What Are Solar Connectors and Cable Lugs?
Solar connectors and cable lugs are the termination components that complete every solar and battery wiring installation. MC4 connectors join solar panel strings together in series or parallel configurations. Cable lug ring terminals crimp onto the ends of battery cables and power cables, creating a secure bolted connection to battery terminals, busbars, inverter terminals, and charge controller posts. Without correctly sized, high-quality connectors and lugs, even the best solar system risks voltage drop, overheating, and connection failure.
Products at Volts Energies

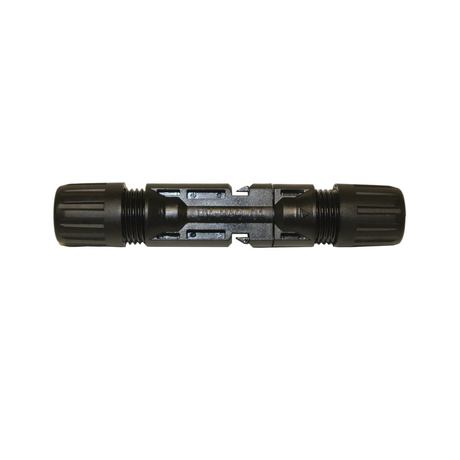

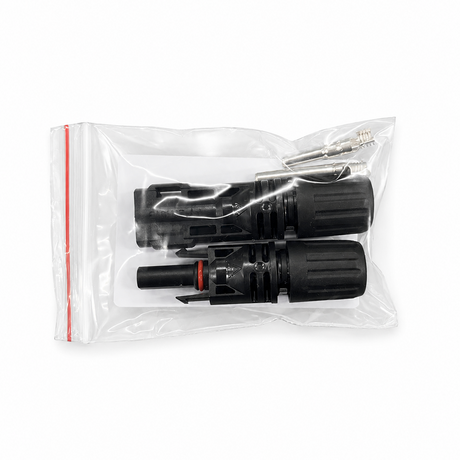

Elios MC4 Solar Connector Pair

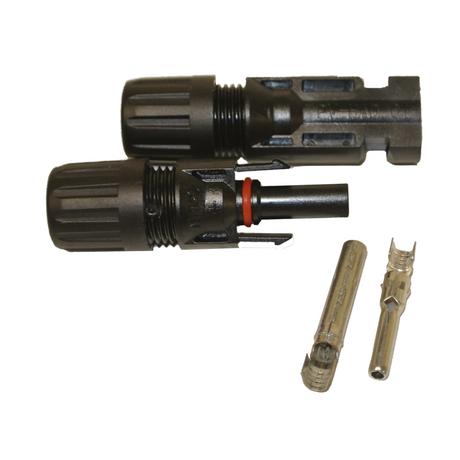

The Elios MC4 Solar Connector Pair includes one male and one female MC4 connector with metal contact pins for a secure, weatherproof connection between solar panels and cable runs. MC4 connectors are the universal standard for solar panel wiring worldwide, compatible with all major solar panel brands, including Canadian Solar, LG Solar, SunPower, and Lumera Solar panels stocked at Volts Energies.
MC4 connectors are rated for outdoor UV exposure, rain, dust, and Canadian temperature extremes from -40°C to +85°C, making them suitable for permanent rooftop, ground mount, and off-grid cabin solar installations across Canada.
Volts Energies Copper Tin-Coated Cable Lugs
Volts Energies cable lugs are pure copper ring terminals with a tin coating that prevents corrosion and oxidation, maintaining low-resistance connections over the full lifespan of your solar or battery system. Each lug features a barrel crimp section for secure cable termination and a ring terminal for bolted connection to battery posts, busbar studs, and inverter terminals.
All cable lugs are sold in packs of 4 and are available in five cable cross-section sizes to match every system application:
VC16-8
- Cable Size: 16mm²
- Bolt Hole: M10
- Best For: Small battery cables and charge controller wiring.
VC25-10
- Cable Size: 25mm²
- Bolt Hole: M8
- Best For: Mid-size battery connections and inverter wiring.
VC25-8
- Cable Size: 25mm²
- Bolt Hole: M10
- Best For: Mid-size battery connections and busbar terminations.
VC50-8
- Cable Size: 50mm²
- Bolt Hole: M10
- Best For: High-current battery bank wiring and inverter/charger cables.
VC70-8
- Cable Size: 70mm²
- Bolt Hole: M10
- Best For: Large off-grid and commercial battery bank wiring.
VC95-8
- Cable Size: 95mm²
- Bolt Hole: M10
- Best For: High-current inverter and battery bank connections.
How to Choose the Right Cable Lug Size
Cable lug size must match your cable cross-section exactly. Using a lug that is too small creates high resistance and heat at the termination point. Using a lug that is too large results in a loose crimp that can arc or pull free under load.
Typical cable sizing by application:
Solar Panel to Charge Controller (Small Systems)
- Recommended Cable Size: 6mm² to 16mm²
- Recommended Lug: VC16-8
Charge Controller to Battery (12V to 24V Systems)
- Recommended Cable Size: 16mm² to 25mm²
- Recommended Lug: VC25-8 or VC25-10
Battery to Inverter (Small to Medium Systems)
- Recommended Cable Size: 25mm² to 50mm²
- Recommended Lug: VC25-8 or VC50-8
Battery to Inverter (Large Off-Grid Systems)
- Recommended Cable Size: 50mm² to 95mm²
- Recommended Lug: VC50-8, VC70-8, or VC95-8
Battery Bank to Busbar (High-Current Systems)
- Recommended Cable Size: 70mm² to 95mm²
- Recommended Lug: VC70-8 or VC95-8
Always refer to your inverter, charge controller, or battery manufacturer specifications for recommended cable and termination sizing.
Bolt Hole Guide: M8 vs M10
The bolt hole size on the ring terminal must match the stud or bolt diameter on your battery terminal, busbar, or inverter connection point.
- M8 bolt hole, fits an 8mm stud or bolt. Common on battery terminals, smaller busbars, and charge controller terminal blocks.
- M10 bolt hole, fits a 10mm stud or bolt. Common on inverter terminals, large busbars, and Victron Lynx distributor connection points.
Check your equipment terminal bolt size before ordering. Volts Energies stocks both M8 and M10 variants in 25mm2 to cover the most common terminal configurations.
Why Pure Copper Tin-Coated Lugs?
Pure copper provides the lowest electrical resistance of any practical conductor material, minimizing heat and voltage drop at termination points. The tin coating adds two critical benefits for Canadian installations:
Corrosion resistance: Bare copper oxidizes over time, especially in humid coastal environments in BC, Nova Scotia, and Ontario. Tin coating prevents surface oxidation that increases contact resistance and causes connection failures.
Solderability: Tin-coated terminals accept solder more readily than bare copper, useful for installations where both crimped and soldered connections are required.
All Volts Energies cable lugs are manufactured from pure copper, not aluminum or copper-clad aluminum, ensuring rated current capacity and long-term connection integrity.
MC4 Connector Compatibility
The Elios MC4 Solar Connector Pair is compatible with all standard 4mm2 to 6mm2 solar cable cross-sections. MC4 connectors from different manufacturers are generally physically compatible, but Volts Energies recommends using matched male and female connectors from the same brand in each connection to ensure a rated weatherproof seal and current-carrying capacity.
FAQs
What Size Cable Lug Do I Need For A Victron MultiPlus Inverter?
Most Victron MultiPlus inverter chargers use M8 or M10 terminal bolts depending on the model and current rating. Check the installation manual for your specific MultiPlus model. For high-current MultiPlus models above 3000VA, 50mm2 to 95mm2 cables with M10 lugs are typically required.
Can I Use These Cable Lugs With LiFePO4 Lithium Batteries?
Yes. Pure copper tin-coated lugs are fully compatible with lithium LiFePO4 battery terminals, including Pylontech batteries stocked at Volts Energies. Ensure the bolt hole size matches the battery terminal stud diameter before ordering.
What Is The Difference Between M8 And M10 Cable Lugs?
M8 and M10 refer to the diameter of the bolt hole in the ring terminal. M8 fits an 8mm bolt or stud. M10 fits a 10mm bolt or stud. The cable cross-section (16mm2, 25mm2 etc.) is independent of the bolt hole size and is determined by the cable you are terminating.
Are MC4 Connectors Waterproof?
Yes. MC4 connectors are rated IP67 for dust and water resistance when properly mated, making them suitable for outdoor rooftop, ground-mount, and off-grid solar installations in all Canadian weather conditions.
Do I Need A Special Crimping Tool For These Cable Lugs?
Yes. A hydraulic or ratchet cable lug crimping tool is required to create a proper low-resistance crimp. Hand crimping with pliers is not recommended for high-current solar and battery applications. A correctly crimped lug will not pull free and will maintain rated current capacity over the system lifetime.
Does Volts Energies Ship Connectors And Cable Lugs Across Canada?
Yes. All connectors and cable lugs ship nationwide across Canada. Free shipping applies on orders over $297.
