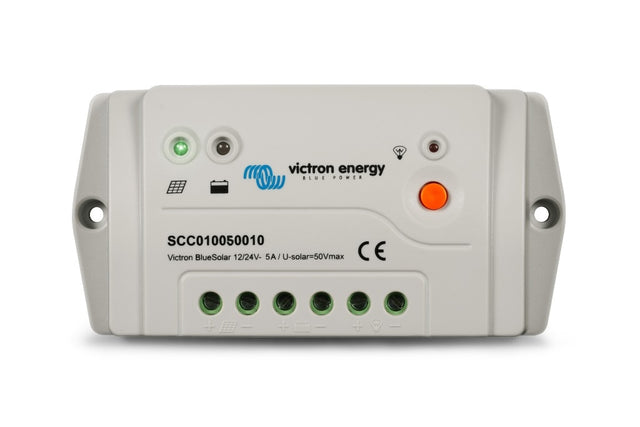

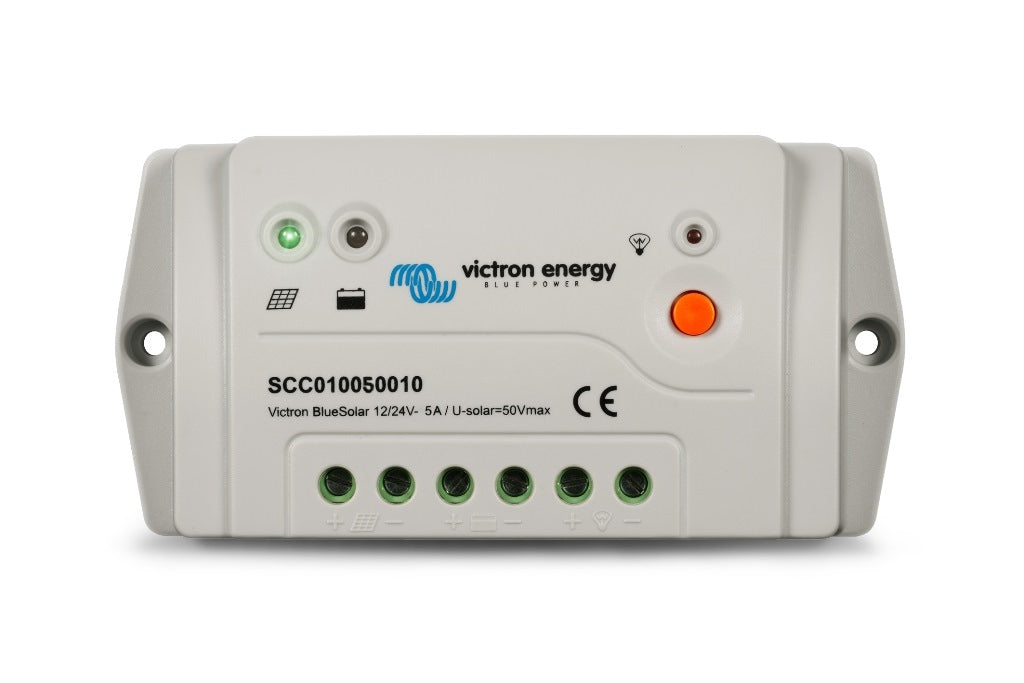

Victron energy BlueSolar PWM-Pro Charge Controller 12/24V-5AProduct SKU: SCC010005010
Estimated shipping time: 1-2 weeks
- Lighting control function
- Charging in 3 stages : Bulk - Absorption - Float
- Protection: short-circuit, overheating, reverse polarity
- Day/Night programming option
- LED status indicators
- External temperature sensor (optional)
The BlueSolar PWM Pro charger can be programmed using software provided free of charge by Victron Energy, or using the BlueSolar control panel. The charger can also be used directly with its original settings.
This model has several functions to control the lighting, monitor the battery state of charge and to disconnect the output in case of low battery voltage.
The system is also equipped with several overloads, short circuit and reverses polarity protection devices.
This model has a 3-stage charging algorithm for the battery: Bulk - Absorption - Float.
- brand: Victron Energy
- charge-current-a: 5
- dc-system-voltage: 12 V
- height-1: 8.5
- length-1: 4.5
- lithium-compatible: No
- maximum-input-voltage: 28\/55 V
- width-1: 14
