Step-by-Step Solar Installation Guide for Beginners

A solar panel installation turns sunlight into household electricity through five main parts: panels, mounting hardware, an inverter, wiring, and a connection to your electrical panel. The process has nine steps, from checking your roof to final inspection.

This guide explains each step in plain language, with costs, timelines, and safety rules for beginners.

How Does a Solar Panel Installation Work?

A solar installation works by capturing sunlight with photovoltaic (PV) panels and converting it into usable AC power for your home. Here is the flow:

1. Panels absorb sunlight and produce direct current (DC) electricity.

2. Wiring carries the DC power to an inverter.

3. The inverter converts DC into alternating current (AC), the type your appliances use.

4. The main electrical panel distributes that power to your home circuits.

5. The utility grid supplies backup power at night and takes any extra energy through net metering, where your utility offers it.

Some systems add a battery. The battery stores extra daytime energy for use at night or during an outage.

The steps above describe a grid-tied system, the most common type. It stays connected to the utility, and it shuts down automatically during a grid outage unless you have a battery or a hybrid inverter. An off-grid system works differently. It has no utility link, so it needs batteries and often a backup generator.

What Equipment Do You Need for a Solar Installation?

A complete system needs these components:

Tools include a drill, impact driver, stud finder, torque wrench, chalk line, multimeter, wire strippers, MC4 crimping tools, and fall-protection gear.

How to Install Solar Panels: 9 Steps From Planning to Final Inspection

Installing solar panels follows nine steps: assess your energy needs and roof, choose panels and system size, select an inverter and battery, secure permits, install the mounting hardware, secure the panels, wire them to the inverter, connect to the electrical panel and grid, and pass inspection. Each step builds on the one before it. Following them in order helps you avoid code violations, roof leaks, and utility delays.

Step 1: Assess Your Energy Needs and Roof Suitability

Start with your electricity use. Find your monthly kilowatt-hour (kWh) usage on your utility bills, and add up 12 months to get your annual total. Divide by 365 to get your daily average.

Next, check the roof. A good solar roof has:

• Orientation: south-facing in the Northern Hemisphere (north-facing in the Southern Hemisphere). East and west faces still work with some output loss.

• Tilt: about 15° to 40° is typical.

• Low shading: trees, chimneys, and nearby buildings can cut output sharply.

• Good condition: the roof should have at least 10 to 15 years of life left. Replace it before installing panels if it is near the end of its life.

• Enough space: a typical residential panel measures about 1.7 m by 1.1 m (roughly 18 sq ft).

• Structural strength: a licensed roofer or structural engineer can confirm it can carry the load.

Free tools such as PVWatts and Google Project Sunroof help you estimate production for your address. Ground mounts suit homes with poor roofs and open land.

Step 2: Choose the Right Solar Panels and System Size

Size the system based on your energy use and local sunlight. Use this formula:

System size (kW) = daily kWh ÷ peak sun hours ÷ 0.8

The 0.8 factor covers losses from wiring, heat, dust, and the inverter.

Example: a home using 30 kWh per day in a place with 5 peak sun hours needs 30 ÷ 5 ÷ 0.8 = 7.5 kW. With 400-watt panels, that is about 19 panels.

Main panel types:

Check the datasheet for the power rating (watts), efficiency, temperature coefficient, warranty, and certifications such as UL 61730 or IEC 61215. Most panels carry a 25-year performance warranty. Check the wattage and the warranty terms of your chosen model directly.

Step 3: Select an Inverter and Battery Storage System

The inverter is the brain of your system. There are three main types.

Power optimizers are another option. They sit on each panel and work with a string inverter to reduce shading losses.

If you want a battery, check its capacity in kWh and its usable capacity. LiFePO4 (lithium iron phosphate) is common because of its long cycle life and thermal stability. Consider:

• Backup needs: which circuits must stay on during an outage.

• Inverter compatibility: the battery must work with your inverter.

• Warranty: look at years and throughput.

• Cost versus benefit: batteries add cost, and in places with full net metering they may not pay back quickly.

Step 4: Check Solar Permits, Electrical Codes, and Utility Requirements

Most areas require permits for solar. Rules differ by country, state, and city, so contact your local building department early. This step is where many beginners lose time.

Typical requirements:

• Building permit for the roof structure and mounting.

• Electrical permit for wiring and the grid connection.

• Utility interconnection application to get approval to connect to the grid.

• Homeowners association (HOA) approval, if your neighborhood has one.

• Code compliance, such as the National Electrical Code (NEC) in the US or the Canadian Electrical Code (CEC) in Canada.

Typical code topics include rapid shutdown, grounding, wire sizing, overcurrent protection, and labels. Plans often need a site plan, a single-line electrical diagram, and equipment data sheets.

Ask your utility about net metering or net billing. Policies and rates change often, so confirm current terms before you sign anything. You also need Permission to Operate (PTO) from the utility before turning the system on. Many regions require a licensed electrician for the electrical work.

Step 5: Prepare the Roof and Install Solar Mounting Equipment

Mounting hardware holds the system to the roof for decades, so careful work matters here.

1. Mark the layout. Locate rafters with a stud finder, then snap chalk lines to mark the array area. Keep the setbacks required by your fire code, often a clear path along the roof edge and ridge.

2. Install the attachments. Drill pilot holes into the rafters and fix the roof mounts (L-feet or standoffs) with lag bolts. Hit the rafter, not just the roof deck.

3. Seal and flash. Place flashing under the shingles and over the attachment, and seal the penetration with a sealant approved for roofing.

4. Attach the rails. Mount the aluminum rails to the attachments and level them with a string line.

5. Ground the rails. Bond the rails with grounding lugs or integrated bonding hardware.

Roof types vary. Tile, metal, and flat roofs each need specific mounting hardware. Standing seam metal roofs often use clamps that avoid drilling.

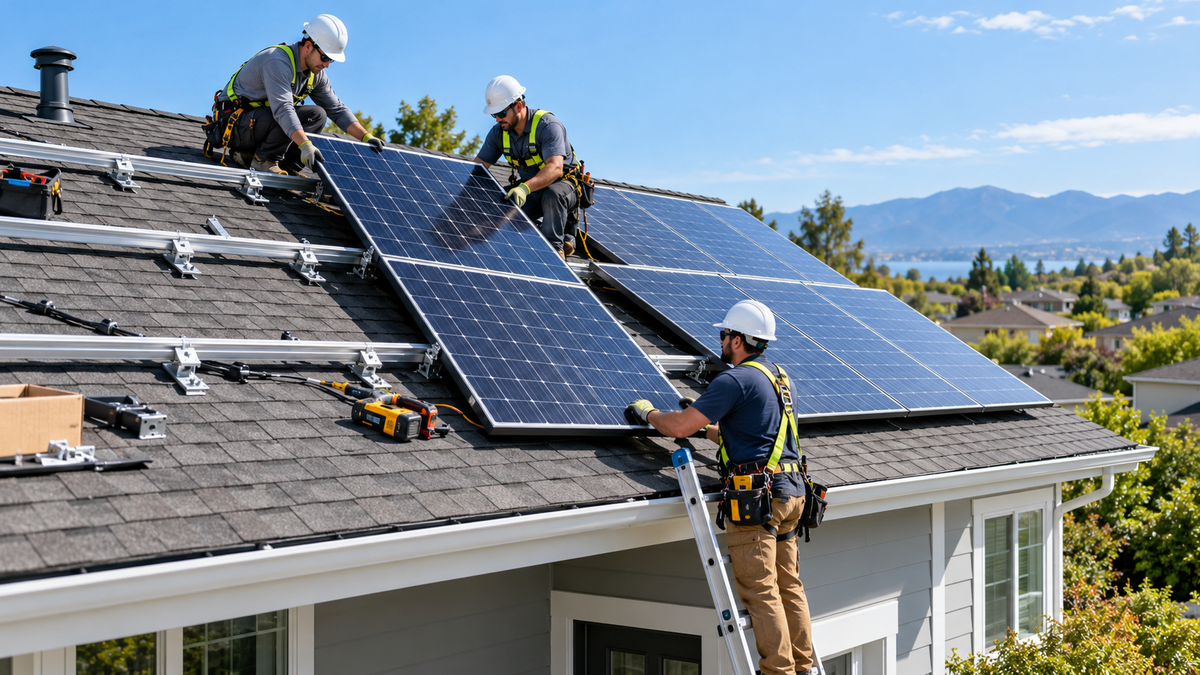

Step 6: Mount and Secure the Solar Panels

Once the rails are in place, install the panels.

1. Lift the panels carefully. A typical panel weighs about 18 to 25 kg (40 to 55 lb). Use two people or a lift, and never carry panels in strong wind.

2. Place the first panel at the edge of the array and secure it with mid clamps and end clamps.

3. Add the next panels, leaving the gap recommended by the manufacturer, usually about 15–20 mm between panels.

4. Torque the clamps to the manufacturer's specification.

5. Manage the cables. Use cable clips under the panels so wires do not touch the roof or hang loose.

6. Cover the panels with a tarp or keep them shaded while wiring if the sun is strong. Panels produce voltage whenever light hits them.

Check the alignment and clamp tightness at the end. Keep a small walkway so you can reach every panel for cleaning and service.

Step 7: Connect the Solar Panels to the Inverter

Wiring links the panels into strings and carries the power to the inverter.

• Series connection: connecting panels in series adds their voltages. Most residential string systems use this.

• Parallel connection: parallel adds current and keeps voltage the same.

• Match the limits: total string voltage, including cold-weather correction, must stay below the inverter's maximum input voltage. Current must stay within the inverter's limits.

Steps:

1. Join the panel leads with MC4 connectors until they click and lock.

2. Run PV wire (usually 10 AWG) through conduit from the roof to the inverter location.

3. Install a DC disconnect near the inverter.

4. Connect the strings to the inverter's DC input terminals, matching positive and negative.

5. For microinverters, plug each panel into its microinverter and join them with the trunk cable.

Test the polarity and open-circuit voltage with a multimeter before connecting to the inverter. A reversed polarity can damage equipment.

Step 8: Connect the System to the Electrical Panel and Grid

This step connects solar power to your home and the utility. In most places, it must be done by a licensed electrician.

1. Install an AC disconnect between the inverter and the main panel, as required by your utility or code.

2. Run AC wiring from the inverter to the main service panel.

3. Add a dedicated breaker in the main panel. Code limits the combined breaker and solar rating relative to the busbar, often called the 120% rule in the NEC. A licensed electrician can confirm this for your panel.

4. Install a production meter or a bi-directional meter if your utility requires one.

5. Label everything with the warning labels required by code.

6. Turn the power off at the main breaker before working inside the panel.

Never connect a generator or solar system to a home circuit without proper isolation. Backfeeding the grid can injure utility workers.

Step 9: Complete System Inspections and Commissioning

Inspection and commissioning confirm that the system works safely and meets code.

1. Local inspection. The building or electrical inspector visits the site and checks mounting, wiring, grounding, labels, and disconnects.

2. Utility inspection or approval. The utility reviews the interconnection and grants Permission to Operate (PTO).

3. System testing. The installer checks string voltage, polarity, insulation resistance, grounding, and rapid shutdown function.

4. Commissioning. Turn on the DC and AC disconnects in the right order, and confirm the inverter starts and exports power.

5. Monitoring setup. Connect the inverter to Wi-Fi and register it with the monitoring app.

Keep copies of permits, inspection reports, equipment warranties, and as-built diagrams. They help with insurance, resale, and warranty claims. Do not turn the system on before PTO unless your utility says it is allowed.

How Much Does Solar Panel Installation Cost?

Cost depends on system size, equipment, roof type, labor rates, and location. Residential systems in the US have commonly been quoted at roughly $2.50 to $3.50 per watt before incentives. Prices change by market, so verify with current local quotes.

Example using that range for a 7.5 kW system: $18,750 to $26,250 before incentives.

These shares are general estimates and vary widely. Batteries add several thousand dollars more, depending on capacity.

Incentives, tax credits, rebates, and net metering rules change often and differ by country and state. Check your government energy office and utility website for current programs before you budget. Get at least three written quotes, and compare cost per watt, equipment brands, warranties, and what is included.

How Long Does It Take to Install a Solar Panel System?

The physical installation takes about 1 to 3 days for a typical home. The full project takes longer, usually 1 to 3 months, because of paperwork and approvals.

Timelines depend on your local building office and utility. Weather, roof repairs, and equipment shortages can add delays. A DIY installation often takes longer, since beginners usually need several weekends.

Common Solar Installation Mistakes Beginners Should Avoid

1. Skipping the energy audit. Without usage data, you may buy a system that is too big or too small.

2. Ignoring shading. Even a small shadow on one panel can reduce a whole string's output on a basic string inverter.

3. Not checking roof age. Removing panels later to replace a roof adds cost.

4. Missing the rafters. Lag bolts that miss the rafter can loosen and cause leaks.

5. Poor flashing and sealing. Roof leaks are one of the most common solar complaints.

6. Wrong wire sizing. Undersized wires overheat and waste power.

7. Exceeding inverter limits. High voltage on cold mornings can damage the inverter.

8. Choosing on price only. Low-cost, uncertified equipment can have weak warranties.

9. Skipping permits. Unpermitted systems can void insurance and block the sale of a home.

10. Forgetting the utility. Turning on before PTO can break interconnection rules.

11. No monitoring. Without it, you may not notice a failed panel or inverter.

Solar Installation Safety Tips for Beginners

Solar work involves heights, electricity, and heavy equipment.

• Use fall protection. Wear a harness anchored to a secure point, and use roof jacks or a ladder with proper extension. Falls are a leading cause of installation injuries.

• Treat panels as live. Panels make DC voltage whenever light hits them, and DC arcs can cause fires.

• Turn off power. Switch off the AC and DC disconnects before working on the inverter or panel.

• Use insulated tools and gloves rated for the voltage.

• Never work alone on a roof.

• Avoid wet, windy, or icy conditions.

• Wear PPE: hard hat, safety glasses, gloves, and non-slip shoes.

• Hire a licensed electrician for the grid connection and main panel work.

• Install rapid shutdown and arc-fault protection if your code requires them.

• Check for overhead power lines before setting up ladders.

If you feel unsure at any step, stop and hire a licensed solar installer. A professional installation also often includes a workmanship warranty.

Final thoughts

A solar installation follows a clear path: measure your energy needs, check the roof, choose panels and an inverter, secure permits, mount the system, wire it safely, and pass inspection. Beginners can handle planning and research with confidence, but roof work and the grid connection need skill and often a licensed professional. Compare several quotes, confirm local codes and incentives, and plan for safety at every stage. A well-built system can produce clean power for 25 years or more.

FAQs

Can I Install Solar Panels Myself?

In many places, you can, but permits, electrical codes, and utility rules still apply. The grid connection often must be done by a licensed electrician.

How Many Solar Panels Do I Need For A House?

It depends on your usage and local sunlight. Use the formula: daily kWh ÷ peak sun hours ÷ 0.8, then divide by the panel wattage. A 7.5 kW system needs about 19 panels of 400 watts.

How Long Do Solar Panels Last?

Most panels are warranted for 25 years of production and often keep working longer, with slow output decline each year. Inverters usually last 10 to 15 years.

Do I Need A Permit To Install Solar Panels?

Almost always. Most areas require building and electrical permits, plus a utility interconnection agreement.

What Is The Best Direction For Solar Panels?

South-facing in the Northern Hemisphere and north-facing in the Southern Hemisphere. East and west faces work too, with some loss.

Do Solar Panels Work On Cloudy Days?

Yes, but at lower output. Panels still produce power from diffuse light.

What Is The Difference Between A String Inverter And Microinverters?

A string inverter serves a group of panels from one unit. Microinverters sit on each panel, which helps on shaded or complex roofs.

Do I Need A Battery With Solar Panels?

No. Grid-tied systems work without one. A battery adds backup power and helps where net metering is limited.

How Much Maintenance Do Solar Panels Need?

Very little. Rinse off dust or debris when needed, check monitoring, and arrange professional inspections periodically.

What Happens To My Solar System During A Power Outage?

A standard grid-tied system shuts down for safety. You need a battery with a hybrid inverter or a backup-capable inverter to keep power on.
