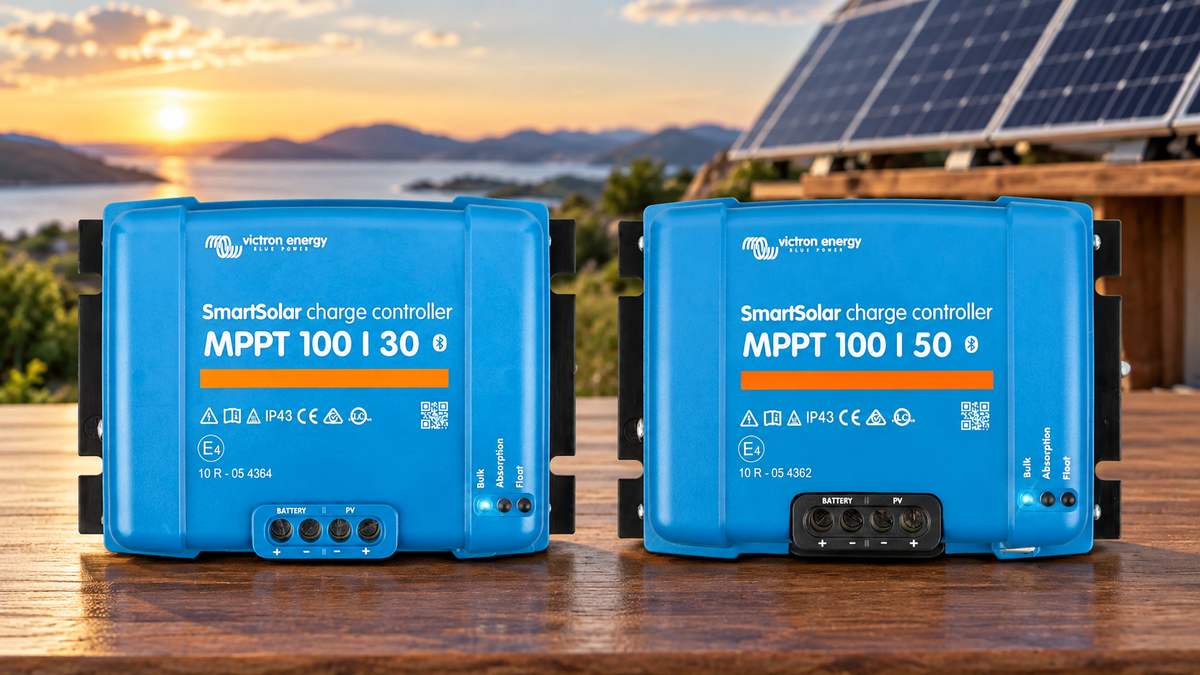

Victron SmartSolar MPPT 100/30 vs 100/50: Which Charge Controller Is Better?

Choosing between the Victron SmartSolar MPPT 100/30 and 100/50 comes down to one core question: how much solar power does your system need to handle. Both controllers share the same 100V maximum PV input, Bluetooth connectivity, and 98 percent efficiency rating, but they differ significantly in charge current and solar array capacity.

This guide breaks down the specs, performance, and ideal use cases for each controller, so you can choose the right one for your van, cabin, boat, or off-grid system.

Victron SmartSolar MPPT 100/30 vs 100/50: Key Differences at a Glance

Both controllers share the same voltage range and efficiency rating, but their charge current and solar array capacity set them apart significantly.

Both controllers share identical voltage handling and efficiency ratings. The real decision point is solar array size: the 100/50 handles significantly more panel wattage, making it the better fit for larger arrays or systems planned for future expansion.

Victron SmartSolar MPPT 100/30 Overview

The SmartSolar MPPT 100/30 suits smaller solar setups, typically one to two panels on a van, cabin, or small boat. With a rated charge current of 30A, it handles up to 440W of solar input on a 12V system or 880W on a 24V system, covering most compact rooftop arrays without needing a larger, more expensive controller.

Despite its smaller capacity, the 100/30 includes the same core technology as its larger sibling: built-in Bluetooth for wireless monitoring through the VictronConnect app, an ultra-fast MPPT algorithm that adapts quickly to changing light conditions, and automatic battery voltage detection. This makes it a capable, full-featured controller for systems that don't need higher charge current.

The 100/30 also skips the cooling fan entirely, since its efficiency stays above 98 percent, resulting in quieter operation and one less moving part that could fail over time.

Victron SmartSolar MPPT 100/50 Overview

The SmartSolar MPPT 100/50 steps up to a 50A rated charge current, handling up to 700W of solar input on a 12V system or 1,400W on a 24V system. This makes it the better choice for mid-sized RVs, larger van conversions, or off-grid cabins running three to four solar panels.

Like the 100/30, the 100/50 shares the same 100V maximum PV voltage, 98 percent efficiency, and fanless design. The higher current rating means it can handle a larger array without hitting its ceiling, giving homeowners and van builders more room to add panels later without replacing the controller.

For systems with higher daily power consumption, larger battery banks, or plans to expand solar capacity over time, the 100/50 offers meaningful headroom that the 100/30 can't match.

Technical Specifications Compared

Both controllers share nearly identical core specifications outside of charge current and PV power handling:

• Maximum efficiency: 98 percent on both models, meaning minimal energy loss during conversion

• Operating temperature range: -30°C to 60°C, with full rated output maintained up to 40°C

• Charge algorithm: Multi-stage adaptive charging on both units, compatible with lithium, AGM, gel, and flooded batteries

• Data communication: VE.Direct port on both models for connection to Victron's monitoring ecosystem

• Self-consumption: Both controllers draw minimal standby power, keeping parasitic battery drain low when panels aren't producing

The near-identical specification sheet outside of current rating confirms that the decision between these two controllers is almost entirely about matching charge capacity to your solar array size.

Charging Capacity and Solar Panel Compatibility

Matching your solar array size to the right controller ensures efficient charging without exceeding the unit's rated current or voltage limits.

Best Solar Array Size for the 100/30

The 100/30 comfortably handles arrays up to 440W on a 12V system or 880W on a 24V system. This typically covers one to two standard 200W to 220W solar panels, making it well suited to smaller van conversions, small boats, or backup systems with limited roof space.

Best Solar Array Size for the 100/50

The 100/50 supports arrays up to 700W on a 12V system or 1,400W on a 24V system, covering roughly three to four standard panels. This makes it a better fit for larger van builds, RVs, or off-grid cabins with more available roof or ground-mount space for solar.

Series vs Parallel Panel Configurations

Wiring panels in series increases total voltage while keeping current the same, while wiring in parallel keeps voltage steady and increases current. Since both controllers share a 100V maximum PV input, series wiring often makes better use of available capacity without exceeding the current rating, particularly on the 100/30 where the 35A max short circuit current leaves less margin. Always calculate your combined panel voltage and current against the controller's limits before finalizing your wiring configuration.

Future System Expansion

If you're planning to add panels down the road, sizing up to the 100/50 from the start can save the cost and labor of replacing a controller later. The 100/30's lower ceiling means even a modest expansion, like adding a second panel to an already-maxed array, could require an upgrade sooner than expected.

Calculating your current and planned panel wattage upfront helps you choose the controller that fits both your system today and tomorrow.

Performance, Efficiency, and MPPT Features

Both controllers use Victron's ultra-fast MPPT algorithm, which continuously tracks the optimal power point on the solar panel's voltage-current curve. This technology proves especially valuable under partial shading or rapidly changing cloud cover, where the algorithm can improve energy harvest by up to 30 percent compared to standard PWM controllers.

Both models include automatic battery voltage detection, adaptive multi-stage charging, and built-in protection against reverse polarity, reverse current, and PV short circuits. Temperature compensation adjusts charging voltage based on ambient conditions, helping protect battery health across seasonal temperature swings.

The fanless design on both controllers means quieter operation and fewer components prone to wear, though it also means output derates slightly if ambient temperatures climb above 40°C, a detail worth considering for installations in consistently hot climates.

Installation Requirements and System Compatibility

Both controllers install using the same mounting approach, wall or panel-mounted near the battery bank, with wiring sized appropriately for the rated charge current. The 100/50's higher current rating requires slightly heavier gauge wiring between the controller and battery bank compared to the 100/30, to safely handle the increased amperage without excessive voltage drop.

Both units connect to Victron's broader ecosystem through the VE.Direct port, allowing integration with a GX device or Cerbo GX for full system monitoring through the VRM portal. Bluetooth connectivity on both models allows quick setup and monitoring directly through a smartphone without needing additional hardware.

Compatibility extends across lithium, AGM, gel, and flooded battery types on both controllers, with dedicated charging profiles selectable through the VictronConnect app for each battery chemistry.

Price Comparison and Long-Term Value

The 100/30 typically costs less upfront than the 100/50, reflecting its lower current rating and smaller PV capacity. For systems that will never exceed one or two panels, the 100/30 delivers full Victron performance at a lower price point without paying for capacity you won't use.

The 100/50 costs more initially but offers better long-term value for systems likely to grow. Avoiding a future controller upgrade, along with the associated labor and rewiring, often outweighs the higher upfront cost for anyone planning to expand their solar array within a few years of installation.

For budget-conscious builds with confirmed, fixed panel counts, the 100/30 offers solid value. For systems with any uncertainty about future expansion, the 100/50's extra headroom tends to pay for itself over time.

Which Victron MPPT Controller Should You Choose?

Matching your controller to your actual solar array size, and any planned future expansion, ensures efficient charging without overspending on unused capacity.

Best for Camper Vans and RVs

Smaller van conversions with one to two roof-mounted panels are well served by the 100/30, which comfortably handles typical van solar setups without excess unused capacity. Larger RVs or vans with three or more panels benefit from the 100/50's higher ceiling.

Best for Off-Grid Cabins

Cabins with moderate power needs and a compact solar array often do well with the 100/30, especially if roof or ground-mount space limits total panel count. Cabins with larger arrays or higher daily power consumption benefit from the 100/50's expanded capacity.

Best for Residential Solar Systems

Small residential backup systems with limited panel counts can use the 100/30 effectively, though most residential setups with several panels will need the 100/50 or multiple controllers working together to handle total system wattage.

Best for Growing Solar Installations

Any system with planned future expansion should default to the 100/50. The extra current headroom accommodates additional panels without requiring a controller replacement, saving both cost and installation time down the road.

Choosing the right controller upfront saves you the cost and hassle of upgrading later as your solar power needs continue to grow.

Final Thoughts

The SmartSolar MPPT 100/30 and 100/50 share the same core Victron technology, differing mainly in charge current and PV power capacity. The 100/30 suits smaller, fixed solar arrays, while the 100/50 offers more headroom for larger systems or future expansion. Matching the controller to your actual and planned solar array size ensures efficient charging without overpaying for unused capacity.

FAQs

What's The Main Difference Between The Victron 100/30 And 100/50?

The 100/50 has a higher rated charge current, 50A versus 30A, allowing it to handle significantly larger solar arrays.

Can I Use The 100/30 With A 500W Solar Array?

No, the 100/30 supports up to 440W on 12V systems, so a 500W array would exceed its rated capacity.

Do Both Controllers Support Lithium Batteries?

Yes, both the 100/30 and 100/50 support lithium, AGM, gel, and flooded batteries with dedicated charging profiles.

Is The 100/50 Worth The Extra Cost For A Small Van Build?

Only if you're planning to expand your solar array later; otherwise, the 100/30 covers most small van setups efficiently.

What's The Maximum PV Voltage For Both Controllers?

Both the 100/30 and 100/50 share a maximum PV open-circuit voltage of 100V.

Do These Controllers Include Bluetooth Monitoring?

Yes, both models include built-in Bluetooth for wireless monitoring through the VictronConnect app.

Can I Connect Solar Panels In Series To These Controllers?

Yes, series wiring increases voltage while keeping current the same, which often suits the 100V input limit efficiently.

What Warranty Comes With Victron Smartsolar Controllers?

Both the 100/30 and 100/50 include a 5-year limited warranty from Victron Energy.

Which Controller Is Better For A 24V Battery System?

Both auto-detect 12V and 24V systems, though the 100/50 supports up to 1,400W on 24V compared to 880W for the 100/30.

Do These Controllers Require A Cooling Fan?

No, both models are fanless due to their high efficiency, exceeding 98 percent under normal operating conditions.
