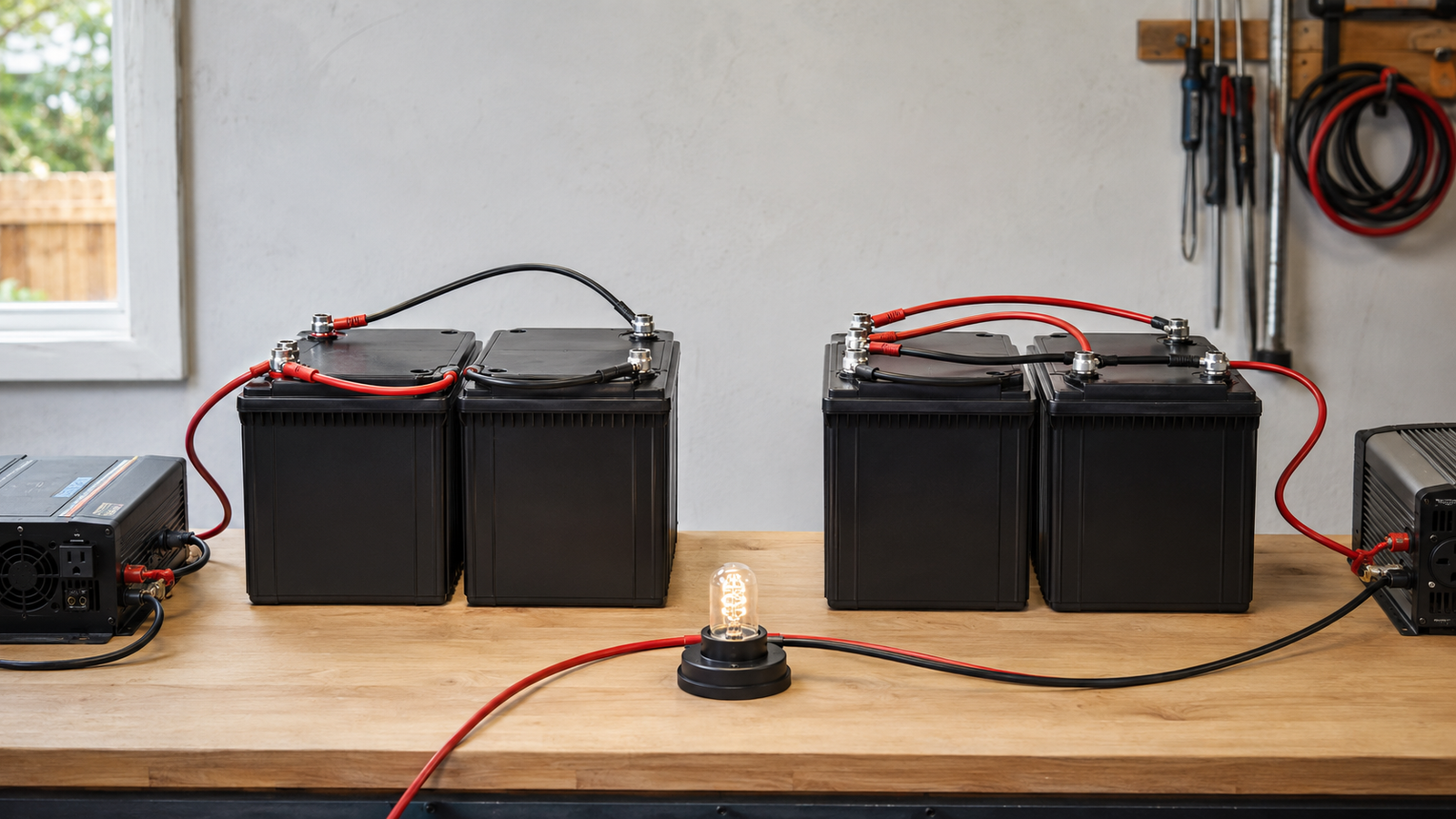

Wiring Batteries in Series vs. Parallel: What's the Difference?

Wiring batteries in series adds voltage while capacity stays the same. Wiring them in parallel adds capacity while voltage stays the same. Two 12 V 100 Ah batteries make either a 24 V 100 Ah bank in series, or a 12 V 200 Ah bank in parallel.

Both configurations store the same total energy, 2,400 watt-hours in that example. What changes is the voltage your system runs at and the current your cables have to carry. This guide covers how each method works, how to wire them, what happens when you combine the two, and the mistakes that damage banks.

Batteries in Series vs. Parallel: What's the Difference?

Series wiring connects the positive terminal of one battery to the negative terminal of the next, so voltages add together. Parallel wiring connects all positives to all positives and all negatives to all negatives, so amp-hours add together instead.

The energy stored is identical because watt-hours equal volts multiplied by amp-hours. Four 12 V 100 Ah batteries hold 4,800 Wh whether you wire them as 48 V 100 Ah or 12 V 400 Ah.

How Does Wiring Batteries in Series Work?

In a series string, current has only one path. It flows through every battery in turn, so each one carries the same current while the voltages stack.

You connect the negative terminal of battery one to the positive terminal of battery two, then continue down the line. The system's main positive comes off the first battery in the chain and the main negative off the last.

Two 12.8 V LiFePO4 batteries in series give 25.6 V. Four give 51.2 V, the standard "48 V" bank used in most modern off-grid homes. Because current stays constant through the string, capacity does not change: four 100 Ah batteries in series remain a 100 Ah bank at four times the voltage.

The trade-off is that a series string is only as good as its weakest member. If one battery has lower capacity or higher internal resistance, it limits the whole string.

How Does Wiring Batteries in Parallel Work?

In a parallel bank, current splits across multiple paths. Every battery sits at the same voltage, and their capacities combine.

All positive terminals connect to a common positive point, and all negatives to a common negative point. Four 12 V 100 Ah batteries in parallel give a 12 V 400 Ah bank.

Parallel wiring has a hidden requirement: each battery must see the same total path resistance, or current sharing goes uneven. Cable resistance sounds trivial until you compare it to the battery itself, a 20 cm 35 mm² cable with lugs measures roughly 1.5 mΩ, while a battery's internal resistance is often only 3–10 mΩ. Current follows the easiest path, so the nearest battery does most of the work and ages faster.

Series vs. Parallel Batteries: Voltage and Capacity Compared

Here is what four identical 12.8 V 100 Ah LiFePO4 batteries produce in each arrangement:

Same energy, three very different wiring jobs. The 12.8 V version needs cable, fuses, and busbars rated four times higher than the 51.2 V version to deliver identical power. That single column explains why larger systems move to higher voltages.

How to Wire Batteries in Series

Confirm first that your batteries are rated for series use. Many lithium drop-ins have a limit, Battle Born, for example, permits up to four 12 V units in series for a 48 V bank. Exceeding a manufacturer's series limit can expose the internal BMS to voltages it was not built to switch.

Steps:

1. Charge each battery fully and individually, so all units start at the same state of charge.

2. Disconnect all loads and chargers.

3. Run a cable from battery 1 negative to battery 2 positive. Repeat down the string.

4. Take the bank positive from battery 1 and the bank negative from the last battery.

5. Set your charger to the correct series voltage, roughly 28.8 V absorption for a 24 V LiFePO4 bank, 57.6 V for 48 V.

6. Fuse the bank at the positive output and torque every terminal to the manufacturer's specification.

Advantages: Lower current for the same power, thinner and cheaper cable, less voltage drop, compatibility with 24 V and 48 V inverters, better efficiency on long runs.

Disadvantages: No capacity increase, weakest battery limits the string, individual batteries can drift out of balance, and a single failure takes the whole bank offline. Victron recommends midpoint voltage monitoring on series strings, in a healthy bank, the midpoint reads exactly half the total, and drift signals a weak battery or poor connection.

How to Wire Batteries in Parallel

Parallel wiring looks simpler but is easier to get wrong, because the fault is invisible until batteries start ageing unevenly.

Steps:

1. Match all batteries for chemistry, capacity, brand and age, and bring them to the same state of charge.

2. Connect all positive terminals together and all negative terminals together, using identical cable lengths and gauges.

3. Fuse each positive lead individually, not just the bank output.

4. Take the system connection using the diagonal method, main positive from the battery at one end, main negative from the battery at the opposite end. This equalizes the current path through each unit.

5. For four or more batteries, use separate positive and negative busbars mounted close to the bank, with equal-length cables to each battery.

Advantages: More runtime, more available current, the bank keeps working if one battery fails, and lithium batteries in parallel self-balance because they all sit at the same voltage.

Disadvantages: Much higher current, so heavier cable and larger fuses; uneven cable lengths cause uneven ageing; and charging a large parallel bank takes longer at a given charge current.

Charging Batteries in Series vs. Parallel

Series banks charge at the combined voltage but at single-battery current. Parallel banks charge at single-battery voltage with the current divided across every unit. Set your charger for the bank, not one battery.

A 12 V LiFePO4 battery with a 14.4 V absorption setting becomes about 28.8 V for a 24 V series bank and 57.6 V for 48 V, with float below 54.4 V.

The balancing difference matters most. A drop-in battery's BMS balances the cells inside that battery, not across the string, so series-connected units drift apart over time. Battle Born recommends fully charging each battery individually once a year if the series bank isn't on a multi-bank charger. Parallel banks avoid this, every battery sits at the same voltage, so they equalize on their own.

Two rules apply to both: never charge LiFePO4 below 0 °C without heating or BMS low-temperature protection, and never run a lead-acid charge profile on a lithium bank.

Series-Parallel Battery Configurations Explained

Series-parallel combines both methods to raise voltage and capacity at the same time. It is written as 2S2P (two in series, two in parallel), 4S2P, and so on.

Eight 12.8 V 100 Ah batteries wired 4S2P give a 51.2 V 200 Ah bank, 10,240 Wh at a system voltage most hybrid inverters expect.

Build it in the right order: create identical series strings first, confirm each string reads the correct voltage, then parallel the completed strings. Every string must contain the same number of batteries of the same type and capacity.

Manufacturers set limits here too. Victron's Lithium Smart batteries allow a maximum of 20 batteries in a single system across series, parallel, or series-parallel arrangements. Always check the manual before scaling a bank.

How Battery Wiring Affects Solar and Off-Grid Systems

Your bank voltage is not an isolated choice, it dictates what inverter and charge controller you can use, and how much current your DC wiring carries.

• Inverter compatibility. Inverters accept a specific DC input: 12 V, 24 V, or 48 V. A 48 V inverter will not run on a 12 V bank.

• Charge controller output. MPPT controllers are rated in output amps. A 60 A controller delivers roughly 768 W into a 12.8 V bank but around 3,072 W into a 51.2 V bank.

• Cable and fusing cost. Copper is priced by weight. Halving current lets you drop several wire sizes.

• Voltage drop. Under CEC Rule 8-102, drop shall not exceed 3% on a branch circuit or feeder and 5% overall. Low-voltage DC banks have the least margin.

For anything above roughly 3,000 W of continuous load, a 48 V series or series-parallel bank is normally the practical choice.

Can You Connect Different Batteries in Series or Parallel?

You can wire different batteries together, but you shouldn't. Mixing batteries in one bank causes uneven charging and early failure. The rules are stricter for series than for parallel.

In series, never mix. Current flows through every battery in turn. The smallest battery reaches its cutoff first and ends the discharge for the whole string. Series banks need identical batteries.

In parallel, always match voltage and chemistry. Parallel batteries share one voltage, so they equalize on their own. That makes parallel more forgiving. Same-model batteries with different amp-hours will run together, but current splits by internal resistance, not by capacity, so the share won't match the labels.

Always use batteries with the same:

• Model and brand, matching internal resistance and BMS behaviour

• Chemistry, LiFePO4, AGM, gel and flooded lead-acid each charge differently

• Nominal voltage, 12 V with 12 V, never mixed

• Amp-hour capacity, the smallest unit caps what the bank delivers

• Approximate age, ideally bought and commissioned together

Already own mismatched batteries? Don't force them into one bank. Run them as two separate banks, each with its own charge source. Or link them through a DC-DC charger, so each battery gets the right charge profile. A lead-acid starter battery paired with a LiFePO4 house bank is the common example.

Adding a new battery to an old bank rarely gives the capacity you paid for. If your bank is several years old, replace it as a set.

Common Battery Wiring Mistakes to Avoid

Most failed banks trace back to a handful of avoidable errors.

1. Unequal cable lengths in parallel. The closest battery takes most of the current and ages first.

2. Skipping per-battery fuses. A fault in one battery can be fed by every other battery in the bank.

3. Connecting batteries at different states of charge. Large equalizing currents flow between them the moment you close the circuit.

4. Wrong charger voltage after a series build. A 12 V profile will chronically undercharge a 24 V bank.

5. Loose or under-torqued terminals. A poor connection is a resistor generating heat at the highest-current point in the system.

6. Using one busbar for both polarities, or mounting busbars far from the bank.

7. Ignoring the manufacturer's series limit, which can expose a BMS to voltage beyond its rating.

Bank wiring involves high fault currents. If you are unsure, have a licensed electrician review the design before commissioning.

How to Choose Between Series and Parallel Battery Wiring

Start with your inverter, not your batteries. The inverter's DC input voltage sets your bank voltage, and everything follows from there.

Then check three things: your inverter's DC input, your charge controller's output rating, and the manufacturer's stated limits for series and parallel use.

Final Thoughts

Series wiring adds voltage, parallel wiring adds capacity, and both store the same total energy. The real difference is current, a 48 V bank moves a quarter of the amps a 12 V bank does for the same power, which means lighter cable and less loss. Match every battery in a bank for chemistry, capacity, brand, and age, keep parallel cable runs equal, fuse each battery individually, and respect the manufacturer's series limits. Get those right, and the configuration takes care of itself.

FAQs

Does Wiring Batteries In Series Increase Capacity?

No. Series wiring increases voltage while amp-hour capacity stays the same. Total energy in watt-hours does rise, because watt-hours equal volts multiplied by amp-hours.

Does Parallel Wiring Increase Voltage?

No. Parallel wiring adds amp-hours while voltage stays the same. Four 12 V 100 Ah batteries in parallel make a 12 V 400 Ah bank.

Which Is Better, Series Or Parallel?

Neither is better overall. Series suits higher-power systems because it lowers current and cable cost. Parallel suits small 12 V systems that need more runtime at an existing voltage.

Can I Wire Four 12 V Batteries To Get 48 V?

Yes, in series, if the manufacturer permits it. Some lithium drop-ins cap series use at four units; others are not rated for series at all. Check the manual first.

Do Batteries Need To Be Identical To Be Wired Together?

Yes. Match chemistry, nominal voltage, capacity, brand and age. Mixing causes uneven charging, reduced usable capacity and premature failure.

What Is A 2s2p Battery Configuration?

Two batteries in series, and two of those series strings in parallel. It doubles both voltage and capacity, four 12 V 100 Ah batteries become a 24 V 200 Ah bank.

Do I Need A Fuse On Each Battery In A Parallel Bank?

Yes. Fuse each positive lead individually. Without it, a fault in one battery can be fed by the current of every other battery in the bank.

Why Do Parallel Batteries Need Equal Cable Lengths?

Because cable resistance is comparable to a battery's internal resistance. Unequal runs make current flow unevenly, so some batteries work harder and age faster.

Can I Add A New Battery To An Old Bank?

It is not recommended. The new battery will carry more current and wear prematurely, and the old batteries limit total usable capacity. Replace the bank as a set.

What Charge Voltage Does A 48 V Lifepo4 Bank Need?

Around 57.6 V for bulk and absorption, with float set below 54.4 V for a typical four-battery 12 V series string. Always confirm against your specific battery's datasheet.
