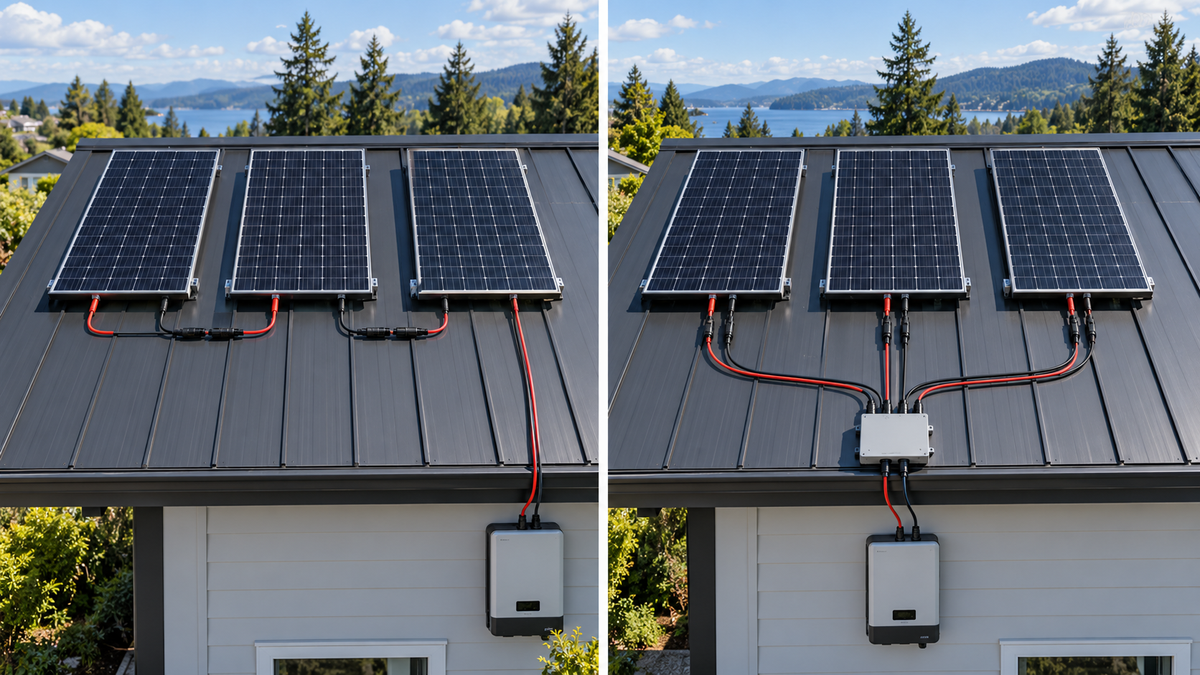

What's the Difference Between Wiring Solar Panels in Series or Parallel?

Solar panels can be wired in series, in parallel, or as a combination of both, and the method you choose changes your system's voltage, current, and how it handles shading. Series wiring adds panel voltages together while current stays the same. Parallel wiring adds current together while voltage stays the same. Choosing the wrong setup can mean an inverter that won't accept your array, uneven power loss from a single shaded panel, or wiring that doesn't meet code.

This guide compares series and parallel solar panel wiring in detail, covering how each affects voltage, current, and shading tolerance, so you can decide which method, or which combination, fits your solar setup.

Solar Panels in Series vs. Parallel: What's the Difference?

Series wiring connects the positive terminal of one panel to the negative terminal of the next, forming a single chain called a string. This adds each panel's voltage together while the current stays the same as a single panel. Parallel wiring connects all positive terminals together and all negative terminals together. This adds each panel's current together while the voltage stays the same as a single panel.

Most residential solar arrays use one method or a combination of both, depending on roof layout, inverter requirements, and shading conditions.

How Does Wiring Solar Panels in Series Work?

In a series string, panels connect end to end, positive to negative, forming a single electrical path. Picture four panels each rated at 40V and 10A. Wired in series, the string produces 160V (40V × 4) while current stays at 10A, the same as a single panel.

This matters because most string inverters and charge controllers are built to accept a specific voltage range, often between 150V and 600V for residential systems. Wiring panels in series is usually the most direct way to reach that input voltage without needing excessive current-handling capacity in your wiring.

Key characteristics of series wiring:

• Voltage accumulates across the string; current does not

• Fewer wires needed, since panels connect directly to each other in a chain

• The entire string's output depends on its weakest-performing panel

• Standard for most grid-tied residential systems using string inverters

Understanding how voltage and current behave in a series string helps you design a solar system that stays within your inverter’s operating limits.

How Does Wiring Solar Panels in Parallel Work?

In a parallel connection, all panels' positive terminals join together, and all negative terminals join together, typically through a combiner box or parallel wiring harness. Using the same four 40V, 10A panels, wiring them in parallel keeps voltage at 40V while current climbs to 40A (10A × 4).

This setup is common in off-grid and low-voltage systems, particularly those using MPPT charge controllers designed for higher current input, or systems where individual panels face different amounts of shading throughout the day.

Key characteristics of parallel wiring:

• Current accumulates across panels; voltage does not

• Requires heavier gauge wiring and often a combiner box to handle higher current

• Each panel operates independently, so one shaded panel doesn't drag down the others

• Common in off-grid setups, RV and marine systems, and shade-prone installations

Series vs. Parallel Solar Panels: How Do Voltage and Current Differ?

The relationship between voltage and current is the mathematical core of this decision, and it directly determines what equipment your system needs.

This isn't just a technical detail. Total power output (watts) stays the same either way, since power equals voltage multiplied by current. What changes is how that power arrives at your inverter or charge controller, and that determines wire gauge, safety margins, and equipment compatibility. Higher voltage, lower current systems (series) generally lose less power over long wire runs, while higher current systems (parallel) need thicker, more expensive cabling to handle the load safely.

How Does Shading Affect Solar Panels in Series vs. Parallel?

Shading is one of the clearest practical differences between the two wiring methods, and it often decides which one makes sense for a given roof.

In a series string, panels behave like a chain: the string can only produce as much current as its weakest link. If one panel in a series string is partially shaded, it limits the current for the entire string, dragging down output from every panel connected to it, even those in full sun. Modern panels include bypass diodes that reduce this effect somewhat, but the impact is still significant.

In a parallel configuration, each panel operates independently. A shaded panel produces less power on its own, but it doesn't reduce the output of the other panels in the array. This makes parallel wiring, or a series-parallel hybrid, a stronger choice for roofs with chimneys, trees, vents, or other partial-shading obstacles that affect some panels but not others throughout the day.

What Are the Advantages and Disadvantages of Series Wiring?

Series wiring can simplify solar system design and reduce wiring losses, but it also introduces shading sensitivity and higher voltage safety considerations.

Advantages:

• Simple, minimal wiring with fewer connection points

• Reaches higher voltage more easily, matching common string inverter input ranges

• Lower current means thinner wire gauge and lower material cost

• Less power loss over long cable runs due to lower current

Disadvantages:

• Highly vulnerable to shading; one shaded or underperforming panel affects the entire string

• A single panel failure can disrupt the whole string's output

• Higher voltage requires careful adherence to safety and code requirements

• Less flexible for roofs with mixed sun exposure

Choosing series wiring makes the most sense when panels have similar sun exposure and the system can safely accommodate the higher string voltage.

What Are the Advantages and Disadvantages of Parallel Wiring?

Parallel wiring gives each solar panel more independence, making it useful for shaded roofs, mixed orientations, and systems where consistent panel-level performance matters.

Advantages:

• Shading or failure on one panel doesn't affect the others

• Each panel performs independently, maximizing output on partially shaded roofs

• Easier to expand the system by adding more panels without recalculating string voltage

• Lower voltage can simplify some safety and code considerations

Disadvantages:

• Higher current requires thicker, more expensive wiring

• More wiring complexity, often requiring a combiner box or fuse panel

• Greater power loss over long distances due to higher current

• May not reach the voltage threshold some inverters require without additional equipment

Parallel wiring offers greater flexibility under partial shading, but the higher current and added wiring make proper system design especially important.

When Should You Wire Solar Panels in Series?

Series wiring makes sense when:

• Your roof gets consistent, even sun exposure with minimal shading

• You're using a string inverter that requires a specific higher voltage input

• You want simpler wiring with fewer components and connection points

• Your panels are located close to the inverter, minimizing voltage drop concerns

• You're building a grid-tied residential system, the most common setup for series wiring

For evenly sunlit roofs and string inverter systems, series wiring can provide a simple, efficient setup with fewer connections and lower current.

When Should You Wire Solar Panels in Parallel?

Parallel wiring makes sense when:

• Your roof has partial shading from trees, chimneys, or vents at different times of day

• You're running an off-grid system with a charge controller suited to higher current

• You want the flexibility to add panels later without changing string voltage

• Panels are mounted in different locations or orientations with varying sun exposure

• You're wiring a smaller system, like an RV, boat, or shed, where lower voltage is safer to work with

For shaded, multi-orientation, or smaller solar systems, parallel wiring can improve flexibility and panel independence when designed for the required current.

Can You Combine Series and Parallel Solar Panel Wiring?

Yes, and series-parallel wiring is common in residential and commercial solar installations. This hybrid approach groups panels into series strings, then connects those strings together in parallel. It balances the benefits of both methods: each string reaches the voltage needed for the inverter, while multiple strings in parallel mean a shading issue on one string doesn't take down the entire array.

For example, a 12-panel system might be wired as three strings of four panels each, wired in series, with the three strings then connected in parallel. This setup is especially common on larger roofs with multiple sections facing different directions, since each string can be positioned and angled independently while still feeding into a shared inverter.

How Do You Choose Between Series and Parallel Wiring?

Choosing the right wiring method comes down to three main factors: your inverter or charge controller's voltage and current requirements, how much shading your roof experiences throughout the day, and how much flexibility you want for future expansion. Systems with consistent sun exposure and a single inverter often favour series wiring for its simplicity. Roofs with partial shading or multiple orientations often benefit from parallel or series-parallel configurations. When in doubt, a licensed solar installer can calculate the exact string sizing based on your specific panels, inverter specs, and roof layout, since getting this wrong can affect both performance and code compliance.

Final Thoughts

Series wiring adds voltage while parallel wiring adds current, and that single difference shapes how a solar array performs. Series suits simple, unshaded roofs and standard string inverters, while parallel handles shading and expansion better at the cost of heavier wiring. Most residential systems use a series-parallel hybrid to balance both. The right choice depends on your roof's shading pattern, your inverter's voltage requirements, and how the system might grow over time.

FAQs

What's The Main Difference Between Series And Parallel Solar Panel Wiring?

Series wiring adds panel voltages together while current stays the same. Parallel wiring adds panel currents together while voltage stays the same. Total power output is the same either way; only how it's delivered changes.

Which Is Better, Series Or Parallel Solar Panel Wiring?

Neither is universally better. Series wiring suits unshaded roofs and simple setups, while parallel wiring handles partial shading and system expansion more effectively. Most residential systems use a combination of both.

Does Shading Affect Series Or Parallel Wiring More?

Series wiring is affected more by shading, since one shaded panel can limit current for the entire string. In parallel wiring, a shaded panel only reduces its own output, not the whole array.

Can I Mix Series And Parallel Wiring In The Same Solar System?

Yes, series-parallel wiring is common and combines strings of series-connected panels, then wires those strings together in parallel. This balances voltage requirements with shading tolerance.

Why Do String Inverters Usually Require Series Wiring?

String inverters are built for a specific voltage input range, and series wiring is the most direct way to reach that range by adding panel voltages together, rather than relying on current alone.

Does Wiring Method Affect How Much Power My Solar Panels Produce?

Total power output, measured in watts, stays the same regardless of wiring method. What changes is the voltage-to-current ratio delivering that power, which affects wire sizing and inverter compatibility, not the raw energy generated under ideal conditions.

Is Parallel Wiring Safer Than Series Wiring?

Parallel wiring operates at lower voltage, which some installers consider simpler to work with safely, but it involves higher current, requiring thicker wiring and careful fusing. Both methods are safe when installed to code by a qualified electrician.

How Many Solar Panels Can I Wire In Series?

The number depends on your inverter or charge controller's maximum voltage input. Adding panels in series increases total string voltage, so the limit is reached when the string voltage approaches the equipment's rated maximum, typically calculated by an installer for your specific components.

What Is A Combiner Box Used For In Parallel Solar Wiring?

A combiner box safely joins multiple parallel strings or panels into a single output circuit, typically including fuses or breakers for each input to protect against overcurrent and simplify troubleshooting.

Does Series Or Parallel Wiring Lose More Power Over Long Wire Runs?

Series wiring generally loses less power over long distances because it operates at higher voltage and lower current, while parallel wiring's higher current leads to greater voltage drop and power loss over the same wire length.
