Elios Carport M15 | Aluminum Structure for 2 Vehicle | 15 Solar Panels (9 kW+)
Elios | SKU:
ELIOSCARPORTM15
Sale price
$9,50000
Regular price
$11,40000
Unit price
Shipping calculated at checkout.
Elios Carport M15 | Aluminum Structure for 2 Vehicle | 15 Solar Panels (9 kW+) is backordered and will ship as soon as it is back in stock.
$9,500.00
Pickup available at 4490 Avenue des Industries
Usually ready in 2-4 days
Description
Description
Elios Carport M15 is a heavy-duty aluminum solar carport designed for two vehicles and engineered to support 15 high-efficiency 144-cell solar panels (2278 × 1134 × 35 mm), delivering 9 kW+ of solar capacity depending on panel configuration.
Constructed from corrosion-resistant aluminum, this waterproof solar carport features an integrated rain management system for efficient drainage and long-term structural durability. It includes mid and end clamps for secure PV panel mounting and streamlined installation.
Ideal for residential and commercial solar PV projects, the M15 transforms parking areas into energy-generating structures while protecting vehicles from sun, rain, wind, and snow.
Note: Structure only. Solar panels and electrical components are not included.
Warranty:
- 10-year Limited Warranty
Additional Details:
- G.W.: 448kg (987.67 lbs)
- N.W.: 397kg (875.66 lbs)
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

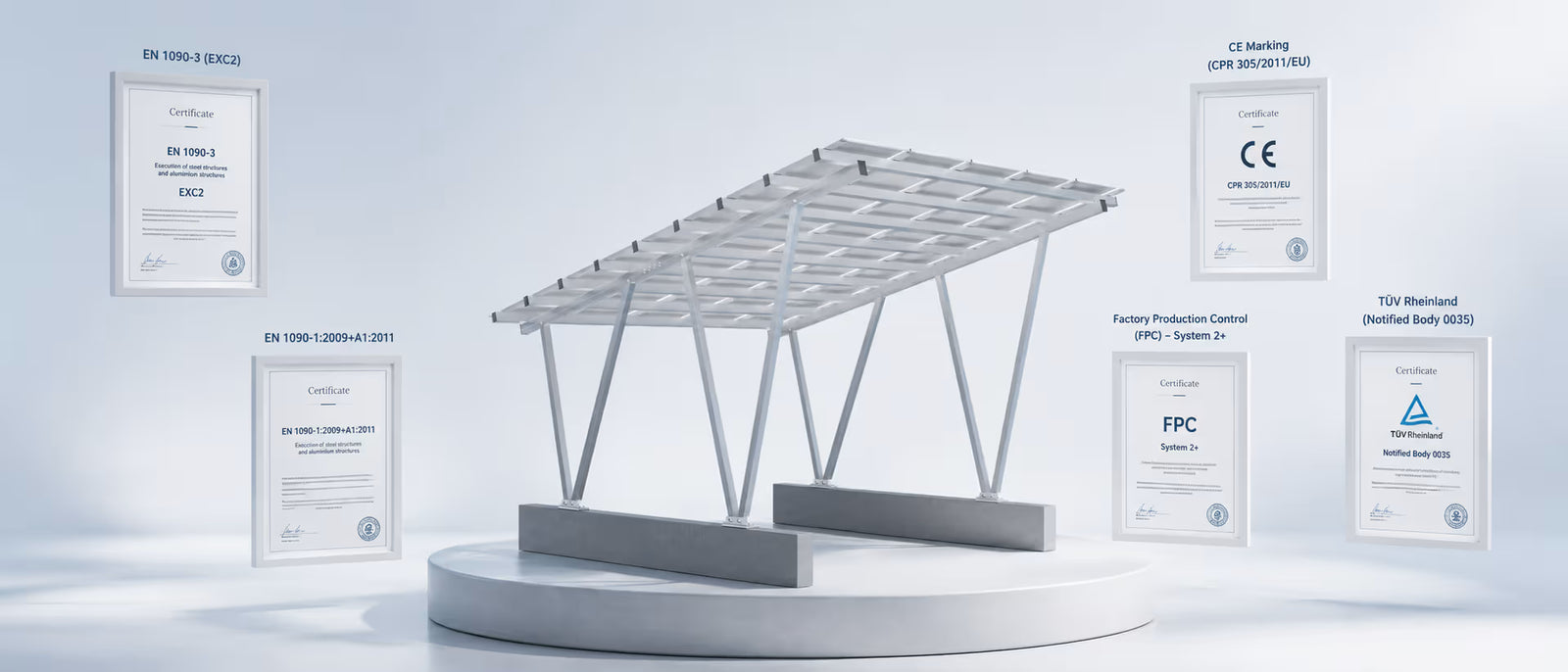

Certifications
EN 1090-3 (EXC2) | EN 1090-1:2009+A1:2011 | CE Marking (CPR 305/2011/EU) | Factory Production Control (FPC) – System 2+ | TÜV Rheinland (Notified Body 0035)
Key Features
The Strength Behind Solar Carport Engineering
Custom PV Module Compatibility
Customizable solar carport structure supports various PV modules for flexible project applications.
Vehicle Weather Protection
Helps protect parked vehicles from sun exposure, wind, snow, rain, and harsh outdoor conditions.
Modern Solar Carport Design
Clean industrial styling enhances parking areas with a professional, streamlined appearance.
Fast Bolt-Together Installation
Preassembled components support bolt-only installation, helping reduce labor time and overall project costs.
Integrated Waterproofing System
Built-in water channels improve waterproof performance, reduce maintenance, and protect the carport structure.
Engineered Carport Durability
Simulation-tested solar carport structure is built to withstand wind, snow, and seismic loads for reliable performance.
Applications
The Strength Behind Solar Carport Engineering
Off-Grid
Open Areas
Commercial
Ground
Concrete Roof
Industrial
Specifications
| Panel Layout | 15 panels (2 vehicles) |
|---|---|
| Material | Corrosion-resistant aluminum |
| Panel Size | 2278 × 1134 × 35 mm (144-cell) |
Additional Details
| Model | Carport M15 |
|---|---|
| Dimensions (mm | inch) | 4050 × 1140 × 860 mm (159.45 × 44.88 × 33.86 in) |
Frequently Asked Questions
Who engineers Elios products?
Elios products are engineered by the Elios team in Canada. Specifications are driven by Canadian operating conditions, cold-weather charging thresholds, snow and wind loading, and CSA C22.2 compliance.
What product lines does Elios make?
Elios makes five lines. Litio LiFePO4 batteries from 1.28 kWh to 61.4 kWh. Altilium AGM and flooded lead-acid batteries from 6V to 12V. Voltaic solar panels from 110W to 600W. Inversa hybrid inverter chargers, currently the 1510 at 10kW output with 15kW of solar input. Terra, Arbora and Koala mounting systems for ground, pole and bracket installation.
Are Elios batteries UL certified?
Yes. The Litio5.12 carries UL9540A, UL1973, UN38.3, IEC62619 and CE certification. The Litio16 carries UL9540A, UL1973 and IP65. UL9540A is the thermal runaway propagation test most Canadian authorities require for residential storage permits.
Is the Inversa inverter certified for grid connection in Canada?
Yes. The Inversa 1510 carries UL1741, UL1741SB, UL1699B, CSA C22.2 and IEEE 1547:2018. UL1741SB covers the grid-support functions required for utility interconnection.
Can Elios lithium batteries charge below freezing?
Litio batteries discharge to -20°C but require above-freezing cell temperature to charge. Heated models including the Litio1.28H-BT, Litio2.56H-BT and Litio5.12 warm cells automatically before accepting charge current, making them suitable for unheated cabins, garages and RV installations.
How long do Elios lithium batteries last?
The Litio5.12 is rated for 6,000 charge and discharge cycles. At one cycle per day, that exceeds sixteen years of service. The Litio10.2 is engineered for a 10-year lifespan.
What snow and wind loads are Elios racking systems rated for?
All three Elios racking lines are rated for 1.4 kN/m² snow load. Wind speed rating depends on mounting type: Arbora pole mounts are rated to 55 m/s, Terra ground mounts to 42 m/s, and Koala roof brackets to 30 m/s. Terra and Koala use galvanized or ZAM-coated steel with stainless steel hardware; Arbora uses a galvanized steel pole with aluminum rails and clamps.
Does Elios racking fit panels from other manufacturers?
Terra systems accept most framed 60-cell, 72-cell and half-cut modules when installed with Elios clamps. Confirm panel frame width and thickness before ordering.
How many Elios batteries can be connected in parallel?
The Litio5.12 supports up to 32 units in parallel for a total of 163.84 kWh. The Litio10.2 supports up to 16 units in parallel for the same total capacity.
Does Volts Energies ship Elios products across Canada?
Yes, we ship Elios products throughout Canada, with the exception of the Northwest Territories, Nunavut, and Yukon. Orders over $297 ship free. A few larger items, batteries, solar panels, racking, and storage cabinets, cost more to ship because of their size and weight, so pricing for those is calculated separately rather than included in the flat free rate.
