Elios Voltaic 110F-B | 110W Flexible Solar Panel

Elios  |  SKU: Voltaic110F-B
Regular price $14067
Shipping calculated at checkout.

Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

Pickup available at 4490 Avenue des Industries

Usually ready in 2-4 days

Description

The Voltaic110F-B is a light, flexible solar panel built to deliver efficient power in mobile and off-grid setups. With up to 110W output and an operating point of 20.9V and 5.27A, it’s a strong fit for situations where rigid panels don’t work well—like RVs, boats, campers, and curved mounting surfaces.

Made with a rugged ETFE front layer and a TPT backsheet, it’s designed for dependable, long-term performance in tough environments. At just 2.15 kg and able to bend up to 240°, it offers impressive flexibility without sacrificing durability, and includes an IP68-rated junction box, MC4-compatible connectors, and strong resistance to heat and humidity for reliable energy wherever you go.

Warranty:
  • 30-year Performance Warranty

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

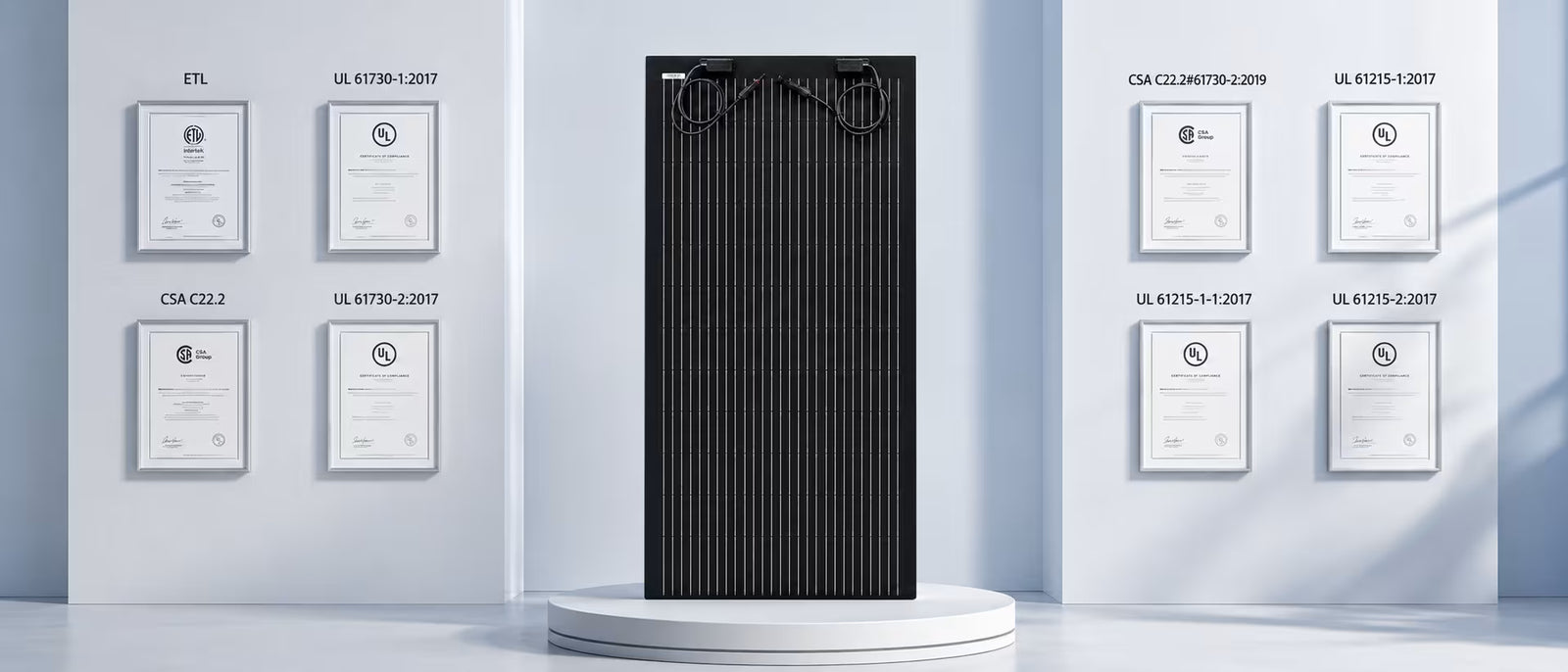

Certifications

ETL | UL 61730-1:2017 | CSA C22.2#61730-1:2019 Ed.2 | UL 61730-2:2017 Ed.1+R:30Apr2020 | CSA C22.2#61730-2:2019 Ed.2 | UL 61215-1:2017 Ed.1 | UL 61215-1-1:2017 Ed.1 | UL 61215-2:2017 Ed.1
Certifications

Key Features

The Power of Flexible Performance

Portable Lightweight Solar Panel

Weighing just 2.15 kg, this compact solar panel offers easy handling, transport, and installation.

Highly Flexible Solar Structure

Bendable up to 240°, with a lightweight build that is 70% lighter than traditional glass solar panels.

Weatherproof Solar Protection

ETFE and PET encapsulation help protect against impact, moisture, and temperatures from -40°C to +85°C.

High-Efficiency Monocrystalline Cells

Premium monocrystalline solar cells deliver up to 24% efficiency for strong energy production.

IP68 Waterproof Performance

An IP68-rated junction box and MC4 connectors support safe, reliable operation in wet outdoor conditions.

Simple Adhesive Installation

Flexible mounting options allow the panel to be secured with adhesives or mounts without heavy framing.
Applications

Applications

The Power of Flexible Performance

Off-Grid
Trailer
RV
Curved Surfaces
Portable Power Solutions
Marine

Additional Details

Dimensions (mm | inch)1079.5 × 562 × 3 mm (42.5 × 22.13 × 0.12 in)
Weight2.15 kg (4.74 lbs)

Resources & Downloads

Frequently Asked Questions

Who engineers Elios products?

Elios products are engineered by the Elios team in Canada. Specifications are driven by Canadian operating conditions, cold-weather charging thresholds, snow and wind loading, and CSA C22.2 compliance.

What product lines does Elios make?

Elios makes five lines. Litio LiFePO4 batteries from 1.28 kWh to 61.4 kWh. Altilium AGM and flooded lead-acid batteries from 6V to 12V. Voltaic solar panels from 110W to 600W. Inversa hybrid inverter chargers, currently the 1510 at 10kW output with 15kW of solar input. Terra, Arbora and Koala mounting systems for ground, pole and bracket installation.

Are Elios batteries UL certified?

Yes. The Litio5.12 carries UL9540A, UL1973, UN38.3, IEC62619 and CE certification. The Litio16 carries UL9540A, UL1973 and IP65. UL9540A is the thermal runaway propagation test most Canadian authorities require for residential storage permits.

Is the Inversa inverter certified for grid connection in Canada?

Yes. The Inversa 1510 carries UL1741, UL1741SB, UL1699B, CSA C22.2 and IEEE 1547:2018. UL1741SB covers the grid-support functions required for utility interconnection.

Can Elios lithium batteries charge below freezing?

Litio batteries discharge to -20°C but require above-freezing cell temperature to charge. Heated models including the Litio1.28H-BT, Litio2.56H-BT and Litio5.12 warm cells automatically before accepting charge current, making them suitable for unheated cabins, garages and RV installations.

How long do Elios lithium batteries last?

The Litio5.12 is rated for 6,000 charge and discharge cycles. At one cycle per day, that exceeds sixteen years of service. The Litio10.2 is engineered for a 10-year lifespan.

What snow and wind loads are Elios racking systems rated for?

All three Elios racking lines are rated for 1.4 kN/m² snow load. Wind speed rating depends on mounting type: Arbora pole mounts are rated to 55 m/s, Terra ground mounts to 42 m/s, and Koala roof brackets to 30 m/s. Terra and Koala use galvanized or ZAM-coated steel with stainless steel hardware; Arbora uses a galvanized steel pole with aluminum rails and clamps.

Does Elios racking fit panels from other manufacturers?

Terra systems accept most framed 60-cell, 72-cell and half-cut modules when installed with Elios clamps. Confirm panel frame width and thickness before ordering.

How many Elios batteries can be connected in parallel?

The Litio5.12 supports up to 32 units in parallel for a total of 163.84 kWh. The Litio10.2 supports up to 16 units in parallel for the same total capacity.

Does Volts Energies ship Elios products across Canada?

Yes, we ship Elios products throughout Canada, with the exception of the Northwest Territories, Nunavut, and Yukon. Orders over $297 ship free. A few larger items, batteries, solar panels, racking, and storage cabinets, cost more to ship because of their size and weight, so pricing for those is calculated separately rather than included in the flat free rate.
