Elios Voltaic 585HC-BF | 585W Bifacial Mono Solar Panel

Elios  |  SKU: 585HCBF
Sale price $29800 Regular price $35760
Shipping calculated at checkout.

Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

Description

The Elios 585HC-BF Solar Panel is a top-performing, durable choice for all your energy needs. With superior performance and reliability, this cutting-edge panel delivers up to 585Wp of power.

The use of automated robotic production and bifacial technology in its advanced design results in an enhanced efficiency of up to 25%. Additionally, its exceptional anti-PID performance, achieved through optimized manufacturing processes and stringent materials control, ensures long-lasting efficiency and consistent energy output.

Whether for residential, commercial, or industrial uses, the versatile and cost-effective 585HC-BF is your solution for sustainable energy.

Warranty:
  • 30-year linear power Warranty
  • 12-year product warranty
  • Only -0.4% annual degradation

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

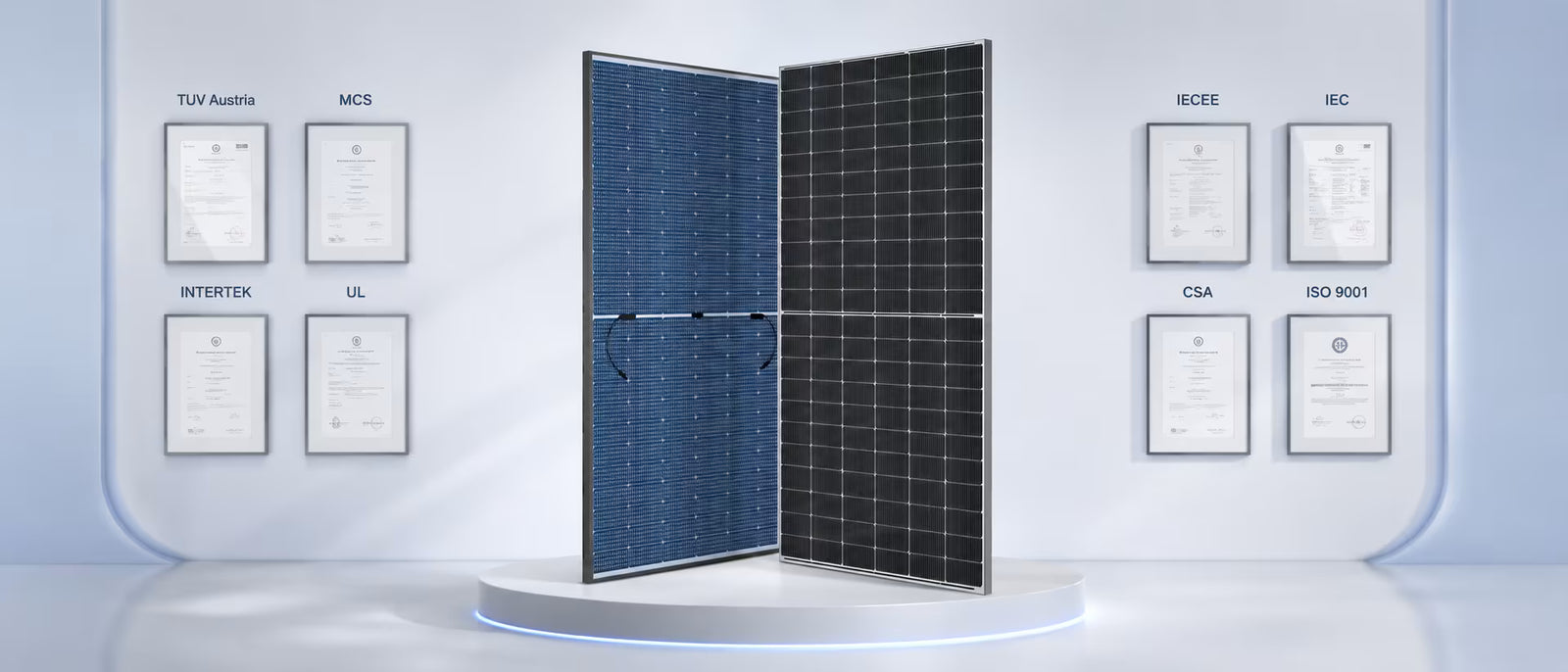

Certifications

TUV Austria | MCS | INTERTEK | UL | IECEE | Archiles | UL 61215 / UL 61730 | IEC 61215 / IEC 61730 | CSA C22.2#61730:2019 | HALT Test Highly Accelerated Life and Extended Reliability Test | IEC 61853 PAN File | IEC TS 62804 PID Resistance | IEC 60068 Dust and Sand Resistance | IEC 62716 Ammonia Resistance | IEC 61701 Salt Mist Resistance | Bankability Report | EN ISO 9001:2015 Quality Management System | EN ISO 14001:2015 Environmental Management System | EN ISO 45001:2018
Certifications

Key Features

The Power of Advanced Solar Performance

Advanced Cell Design

TOPCon and PERC solar cell technology deliver improved energy conversion, stronger panel efficiency, and reliable solar performance.

16-Busbar Structure

Advanced 16-busbar construction enhances light capture, lowers electrical resistance, and supports stable, high-power output.

Bifacial Power Gain

Dual-sided energy generation increases solar power output by capturing reflected sunlight from the rear side of the module.

Half-Cell Efficiency

Half-cell solar panel design reduces shading impact, improves temperature behavior, and maximizes energy production.

Residential Lightweight Build

A residential-friendly lightweight module design makes rooftop solar installation easier, faster, and more adaptable.

Stable Durability

Strong mechanical load capacity and anti-PID protection help ensure long-term durability and consistent solar power generation.
Applications

Applications

The Power of Advanced Solar Performance

Off-Grid
Residential
Commercial
Industrial
Lightning System
Solar Power Plants

Additional Details

Dimensions (mm | inch)2277 × 1133 × 35 mm (89.6 × 44.6 × 1.37 in)
Weight29 ± 1 kg ( 63.94 ± 2.2 lbs)

Resources & Downloads

Frequently Asked Questions

Who engineers Elios products?

Elios products are engineered by the Elios team in Canada. Specifications are driven by Canadian operating conditions, cold-weather charging thresholds, snow and wind loading, and CSA C22.2 compliance.

What product lines does Elios make?

Elios makes five lines. Litio LiFePO4 batteries from 1.28 kWh to 61.4 kWh. Altilium AGM and flooded lead-acid batteries from 6V to 12V. Voltaic solar panels from 110W to 600W. Inversa hybrid inverter chargers, currently the 1510 at 10kW output with 15kW of solar input. Terra, Arbora and Koala mounting systems for ground, pole and bracket installation.

Are Elios batteries UL certified?

Yes. The Litio5.12 carries UL9540A, UL1973, UN38.3, IEC62619 and CE certification. The Litio16 carries UL9540A, UL1973 and IP65. UL9540A is the thermal runaway propagation test most Canadian authorities require for residential storage permits.

Is the Inversa inverter certified for grid connection in Canada?

Yes. The Inversa 1510 carries UL1741, UL1741SB, UL1699B, CSA C22.2 and IEEE 1547:2018. UL1741SB covers the grid-support functions required for utility interconnection.

Can Elios lithium batteries charge below freezing?

Litio batteries discharge to -20°C but require above-freezing cell temperature to charge. Heated models including the Litio1.28H-BT, Litio2.56H-BT and Litio5.12 warm cells automatically before accepting charge current, making them suitable for unheated cabins, garages and RV installations.

How long do Elios lithium batteries last?

The Litio5.12 is rated for 6,000 charge and discharge cycles. At one cycle per day, that exceeds sixteen years of service. The Litio10.2 is engineered for a 10-year lifespan.

What snow and wind loads are Elios racking systems rated for?

All three Elios racking lines are rated for 1.4 kN/m² snow load. Wind speed rating depends on mounting type: Arbora pole mounts are rated to 55 m/s, Terra ground mounts to 42 m/s, and Koala roof brackets to 30 m/s. Terra and Koala use galvanized or ZAM-coated steel with stainless steel hardware; Arbora uses a galvanized steel pole with aluminum rails and clamps.

Does Elios racking fit panels from other manufacturers?

Terra systems accept most framed 60-cell, 72-cell and half-cut modules when installed with Elios clamps. Confirm panel frame width and thickness before ordering.

How many Elios batteries can be connected in parallel?

The Litio5.12 supports up to 32 units in parallel for a total of 163.84 kWh. The Litio10.2 supports up to 16 units in parallel for the same total capacity.

Does Volts Energies ship Elios products across Canada?

Yes, we ship Elios products throughout Canada, with the exception of the Northwest Territories, Nunavut, and Yukon. Orders over $297 ship free. A few larger items, batteries, solar panels, racking, and storage cabinets, cost more to ship because of their size and weight, so pricing for those is calculated separately rather than included in the flat free rate.
