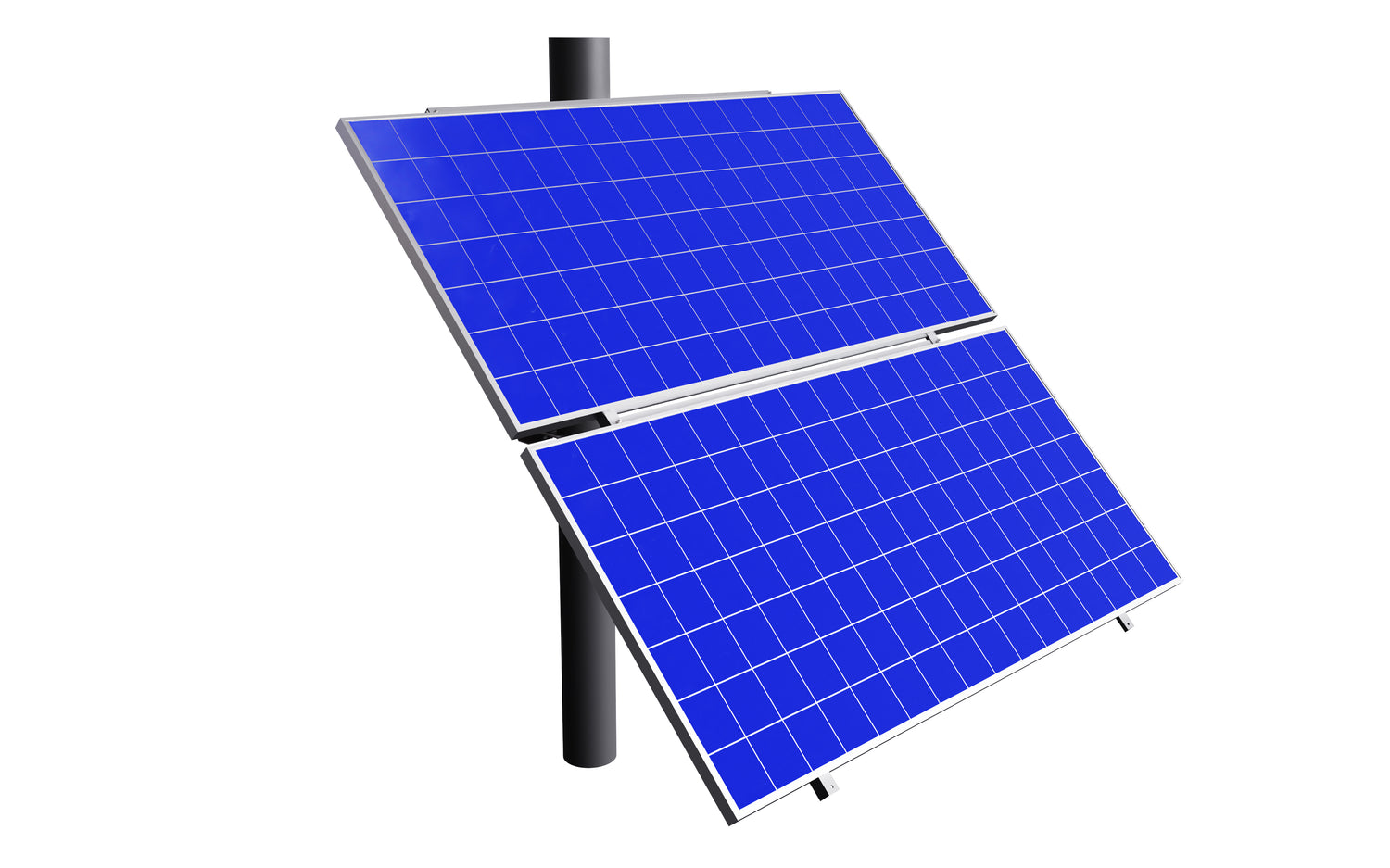

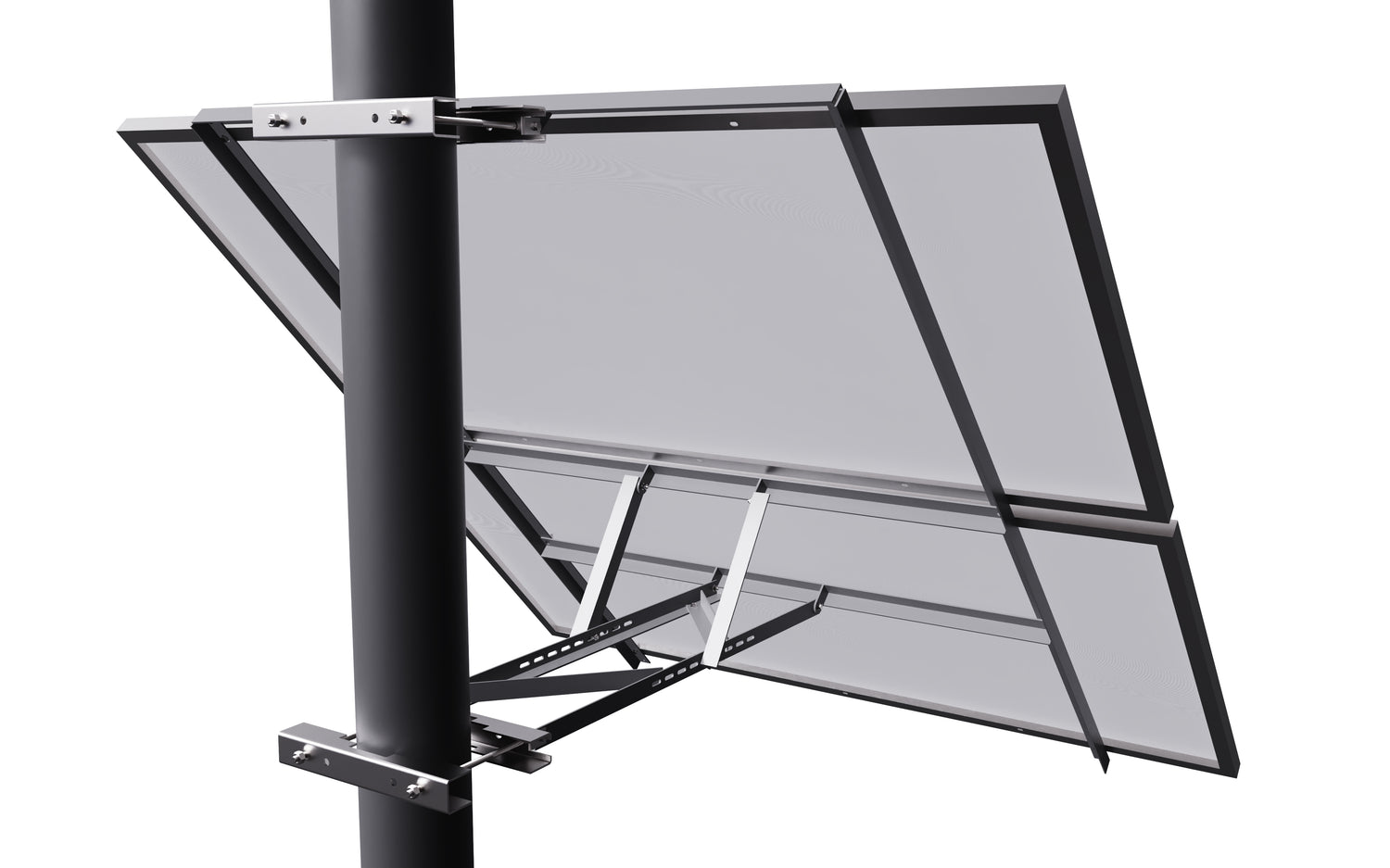

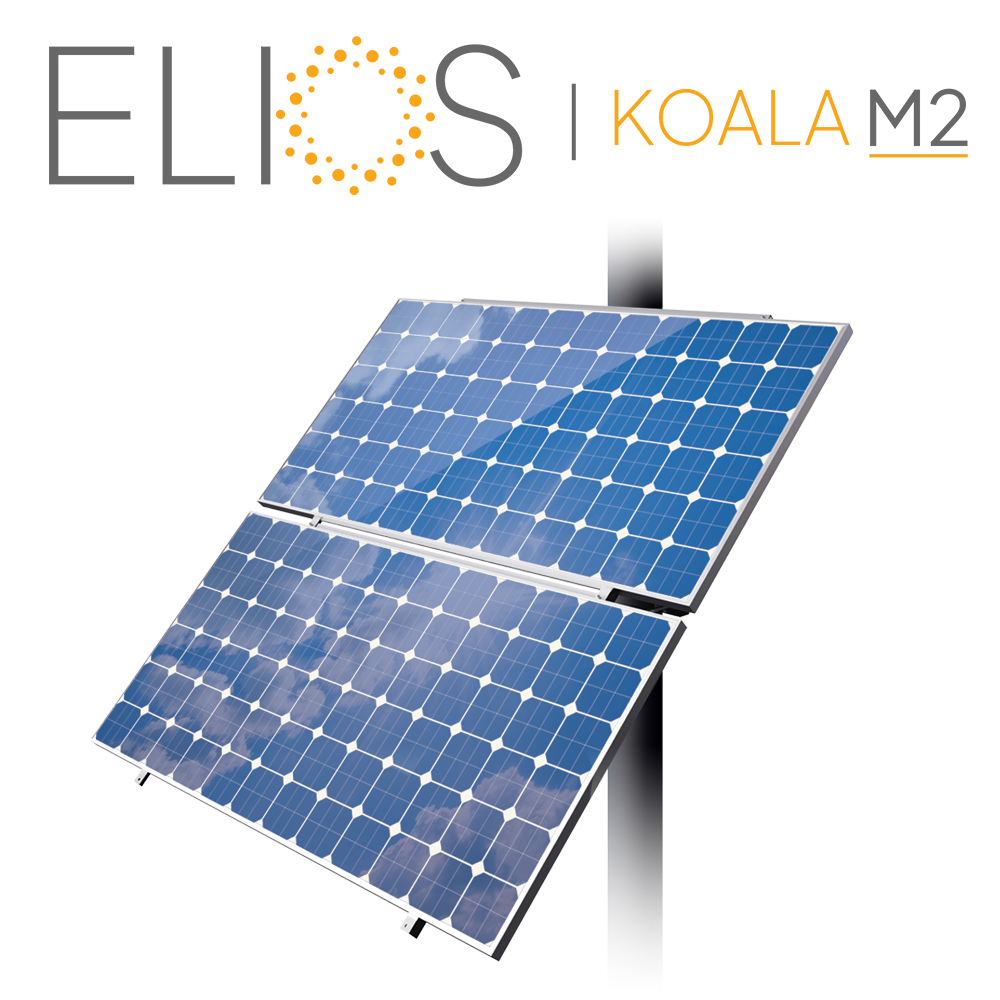

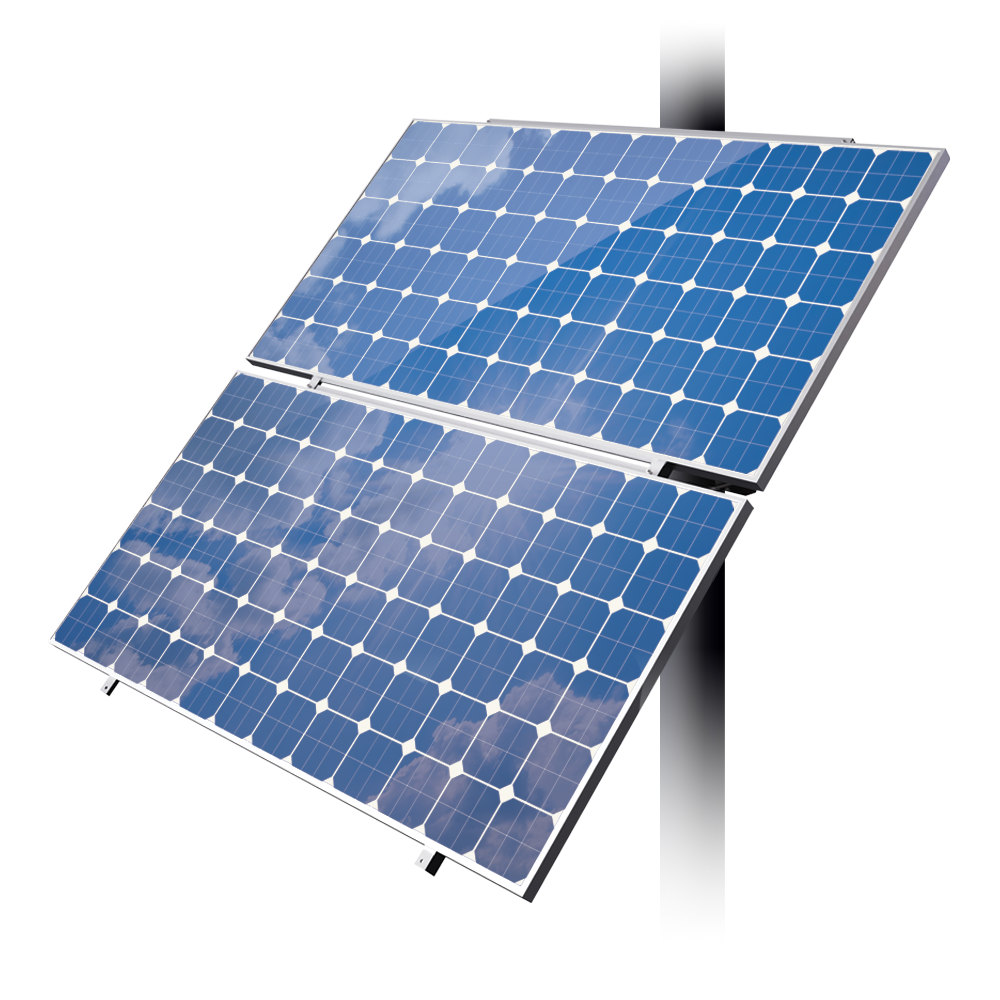

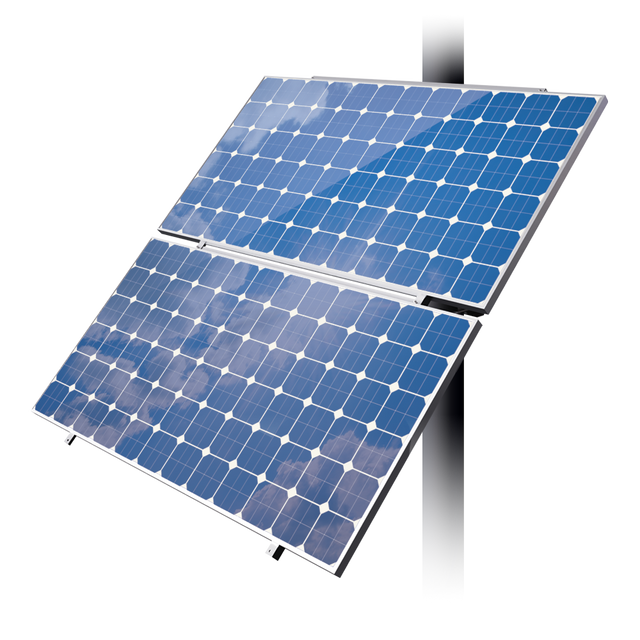

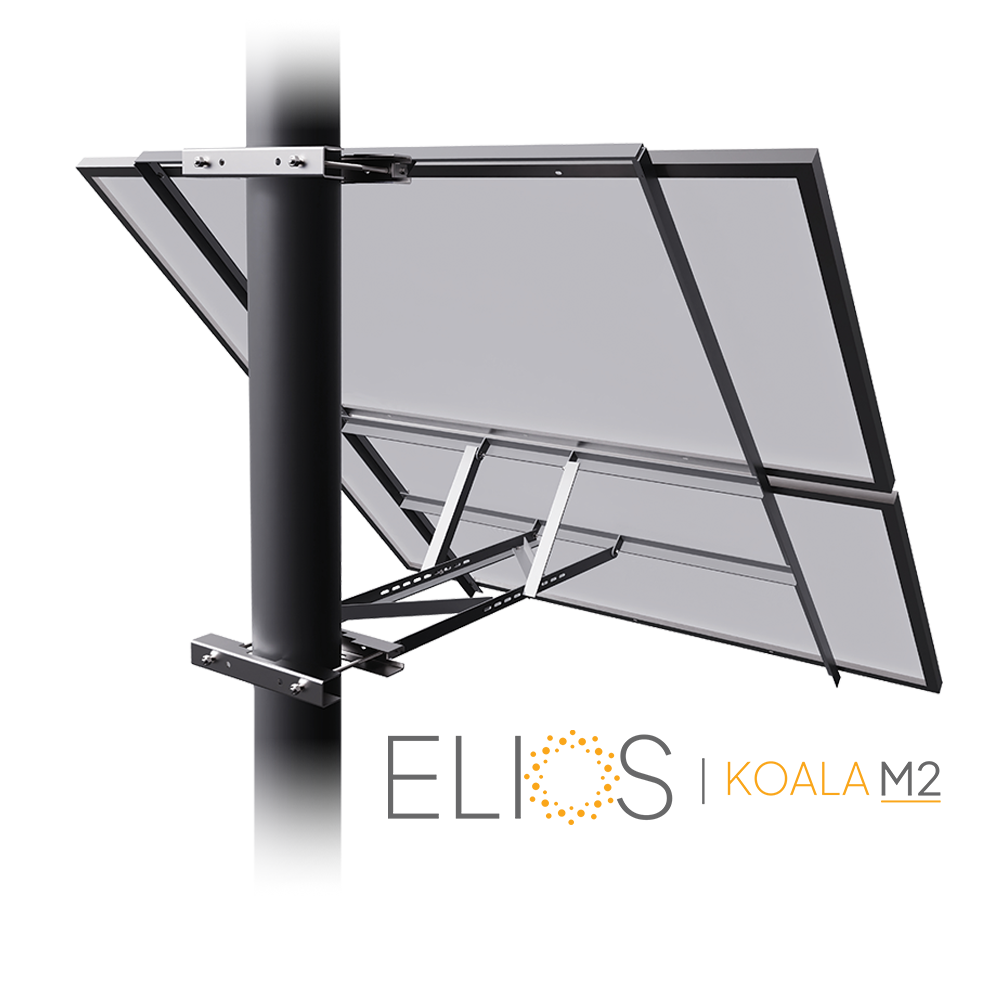

Elios Koala M2 | 2 Solar Panels Mounting Bracket | Mounting Bracket System

Elios  |  SKU: ELIOSSP-PM-2
$39900 $47900
Shipping calculated at checkout.

Elios Koala M2 | 2 Solar Panels Mounting Bracket | Mounting Bracket System is backordered and will ship as soon as it is back in stock.

Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

Pickup available at 4490 Avenue des Industries

Usually ready in 2-4 days

Description

The Elios Solar Panel Mounting Bracket System for two solar panels is a high-quality solution for securely attaching solar panels to a roof or ground-based surface. This solar installation system is made with durable materials and designed for easy installation and engineered to provide a stable and efficient mounting platform for your solar panel.

The mounting bracket system increased energy efficiency by securely attaching the panel in a proper orientation to ensure maximum sunlight exposure which resulting in higher energy production.

Moreover, the solar panel mounting bracket system is constructed with high-quality materials to withstand harsh weather conditions and provides a long-lasting reliable foundation for your solar panel. Whether you're installing solar panels for personal use or any other off-grid purposes, the Solar Panel Mounting Bracket System is the perfect choice for a safe, efficient, and cost-effective solar setup.

This product is composed of the necessary to assemble your mounting bracket system for solar panels designed by Elios team.

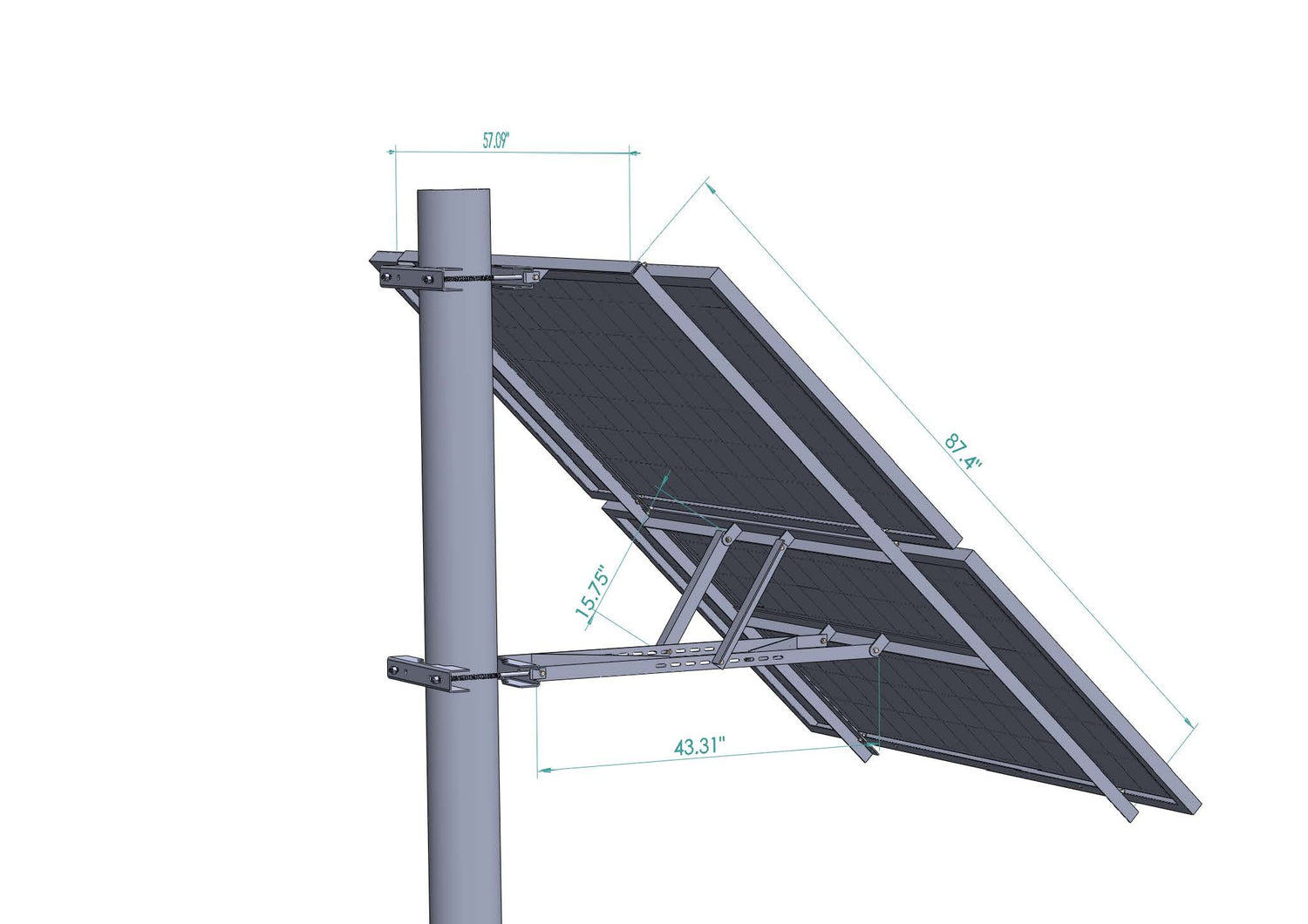

Dimensions:

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

ApplicationsProduct AttachmentsReviews

Key Features

The Strength Behind Reliable Mounting

Dual-Panel Solar Compatibility

Supports two 60-cell or 72-cell solar panels, giving installers flexible options for compact side-of-pole systems.

Galvanized Steel Mounting Frame

Galvanized steel construction provides dependable durability, corrosion resistance, and all-weather mounting performance.

Weather-Resistant Solar Support

Engineered to protect solar installations from wind, snow, and outdoor exposure in demanding climates.

Stainless Steel Installation Hardware

Corrosion-resistant stainless steel hardware supports secure, long-lasting solar panel mounting.

Adjustable Pole Fit

Fits pole sizes from 110mm to 220mm, supporting a wide range of side-pole solar installation requirements.

User-Friendly Mounting Design

Fewer components make installation and maintenance easier while simplifying long-term solar system operation.
Applications

Applications

The Strength Behind Reliable Mounting

Off-Grid
Telecommunications
Surveillance & lighting
Rural
Residential
Commercial

Resources & Downloads

Datasheet
Download
Enclosure Dimensions
Download
Installation Manual
Download
Warranty
Download

Frequently Asked Questions

What is the difference between roof mount and ground mount solar racking?

Roof mount systems attach panels to your existing roof structure and preserve ground space. Ground mount systems anchor into open land and offer more flexibility in tilt angle, panel count, and system orientation. Ground mounts are easier to access for maintenance and cleaning.

Can solar racking handle Canadian winter snow loads?

Yes. Elios racking systems are built for Canadian weather conditions. Ground and roof mount systems use HDG steel or anodized aluminum construction with structural ratings for snow load and wind resistance. Vertical agrivoltaic installations eliminate snow accumulation on panels entirely.

What tilt angle should I use for solar panels in Canada?

Optimal fixed tilt angle for Canadian locations ranges from 30 to 50 degrees depending on province and latitude. A tilt angle roughly equal to your local latitude maximizes annual output. Adjustable tilt systems such as the Terra G10 allow seasonal adjustments for higher winter and summer production.

Do I need a permit to install solar racking in Canada?

Permit requirements vary by province and municipality. Most residential roof mount and ground mount solar installations require a building permit. Contact your local municipality before installation. Volts Energies offers consultation services to help guide your installation planning.

Can I install solar racking myself?

Many Elios racking systems are designed for straightforward installation with hardware and instructions included. Z brackets and bracket mounts are suitable for DIY installation. Larger ground-mount and pole-mount systems such as the Terra G10 and Arbora P8 may benefit from professional installation, particularly for concrete base and anchor bolt work.

Does Volts Energies offer installation services for solar racking?

Yes. Volts Energies offers off-grid system design and installation services across Canada. Contact the team for a free consultation and personalized quote.
