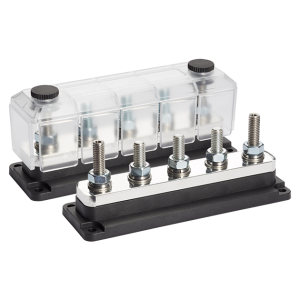

DCM 5xM10 Busbar (60V/600A)

DCM 5xM10 Busbar (60V/600A)

Product SKU: 5075180
  • $137.31
    Unit price per
Shipping calculated at checkout.
Estimated shipping time: 2-4 weeks


The DC Modular high current busbars are used to distribute high DC currents to a number of connected cables, or other DC Modular family members.


The solid and compact design, as well as the possibility to link up multiple busbars on a fi xed grid, make these products the best choice for all professional DC power systems. The high current busbars are available with M8 or M10 stud sizes.


• Stainless steel studs, nuts and washers for optimal corrosion resistance


• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving effi ciency


• Special fi ber reinforced base material off ers excellent high tempera- ture properties, good chemical resistance and high strength


• Unique grid optimized footprints allow space saving arrangements of multiple products


• Common interconnection heights for easy combining of multiple products using link plates


• Robust transparent covers with breakouts to allow wire access from any direction


• Smart terminal design allows dual mirrored cable lug connections


• Easy in-system connection access due to top locked covers

Additional information:

  • brand: TBS Electronics
