Elios Voltaic 110F-B | 110W Flexible Solar Panel

Description:

The Voltaic110F-B is a light, flexible solar panel built to deliver efficient power in mobile and off-grid setups. With up to 110W output and an operating point of 20.9V and 5.27A, it’s a strong fit for situations where rigid panels don’t work well—like RVs, boats, campers, and curved mounting surfaces.

Made with a rugged ETFE front layer and a TPT backsheet, it’s designed for dependable, long-term performance in tough environments. At just 2.15 kg and able to bend up to 240°, it offers impressive flexibility without sacrificing durability, and includes an IP68-rated junction box, MC4-compatible connectors, and strong resistance to heat and humidity for reliable energy wherever you go.

Key Features:

• Lightweight Design: Weighs just 2.15 kg for easy transport and faster, simpler installation.

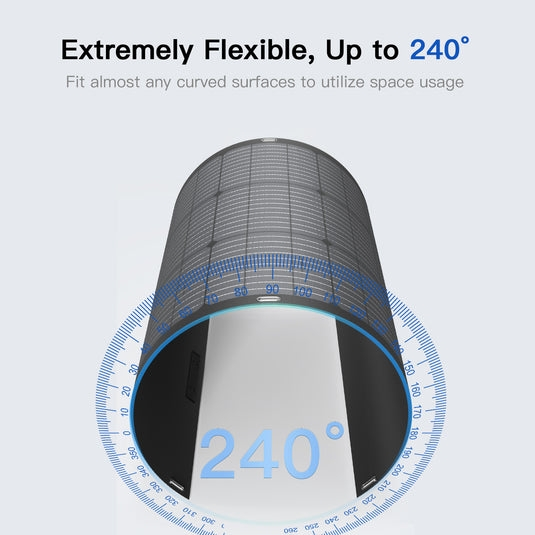

• Flexible Structure: Flexes up to 240° and is 70% lighter than conventional glass-backed panels.
• Durable & Weatherproof: ETFE/PET encapsulation withstands impacts, moisture, and harsh temperatures from –40°C to +85°C.
• High Efficiency: Premium models use monocrystalline cells delivering up to 24% efficiency.

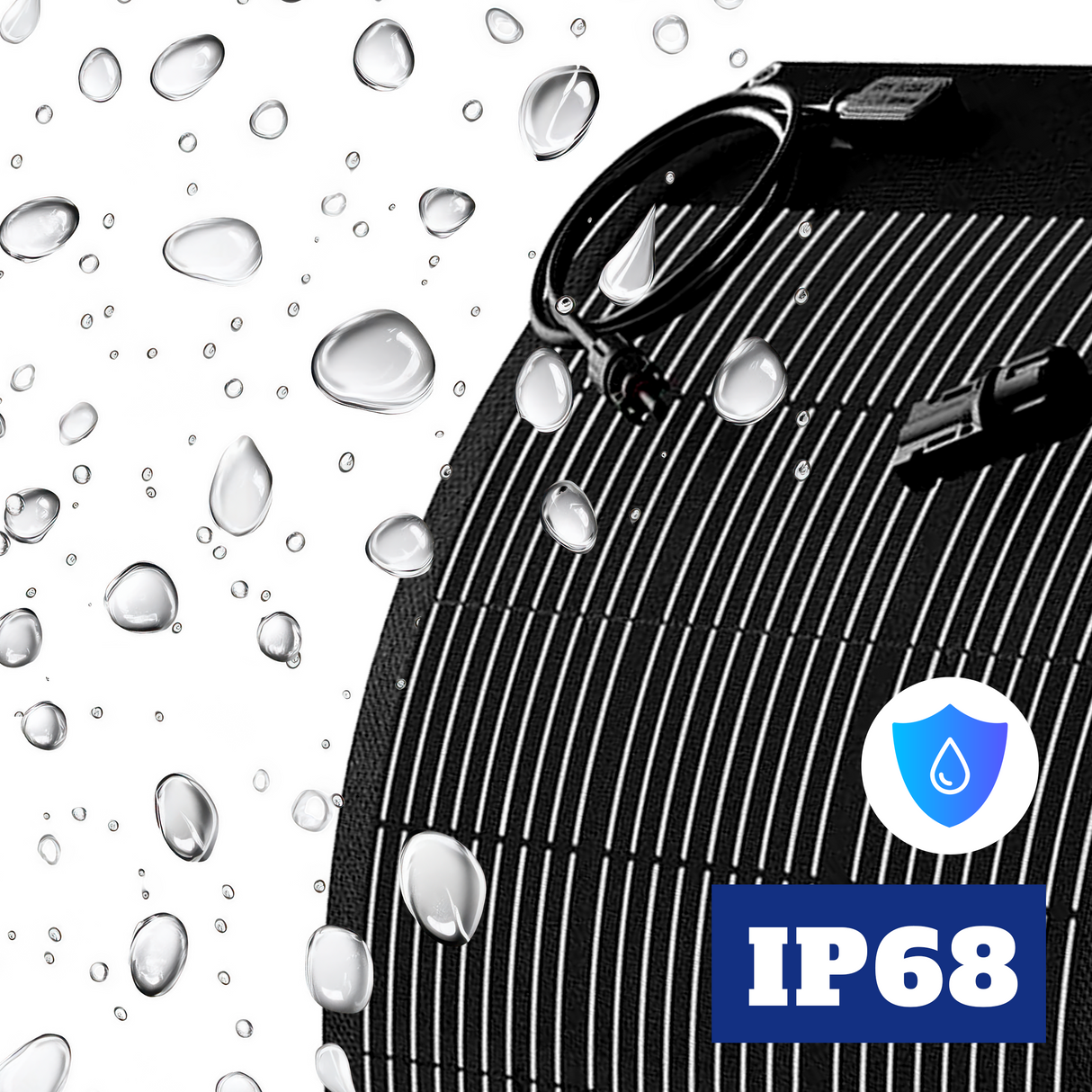

• IP68 Protection: Includes a waterproof junction box and MC4 connectors for safe, weather-resistant performance.

• Easy Installation: Installs quickly with adhesives or simple mounting—no bulky frames required.

Applications:

• Off-Grid Solar Systems | Trailer | RV | Curved Surfaces | Portable Power Solutions | Marine

Certifications:

• ETL | UL 61730-1:2017 | CSA C22.2#61730-1:2019 Ed.2 | UL 61730-2:2017 Ed.1+R:30Apr2020 | CSA C22.2#61730-2:2019 Ed.2 | UL 61215-1:2017 Ed.1 | UL 61215-1-1:2017 Ed.1 | UL 61215-2:2017 Ed.1


Warranty:

• 30-year Performance Warranty


Additional Details:

• Model: Voltaic110F-B
• Dimensions (mm | inch): 1079.5 × 562 × 3 mm (42.48 × 22.13 × 0.12 in)
• Weight: 2.15kg (4.74 lb)
