BENY 1000V DC Combiner Box | 1 IN 1 Out | 2 Poles
BENY | SKU:
BHS-1/1
Regular price
$29500
Unit price
Shipping calculated at checkout.
BENY 1000V DC Combiner Box | 1 IN 1 Out | 2 Poles is backordered and will ship as soon as it is back in stock.
$295.00
Pickup available at 4490 Avenue des Industries
Usually ready in 2-4 days
IP65 Exterior 1000V DC combiner box 1 Input - 1 Output with 2 poles breakers
Description:

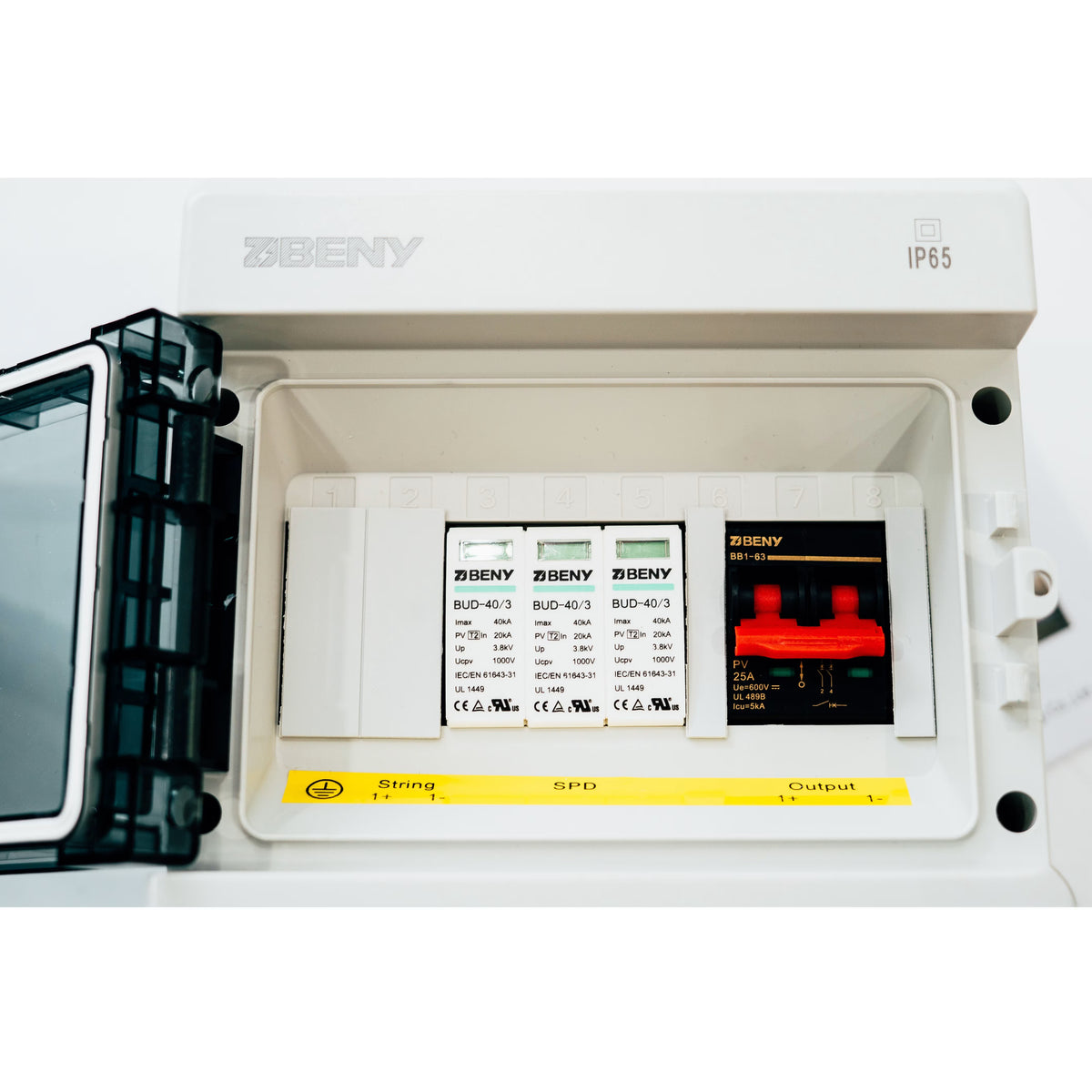

This IP65 DC String box is designed for a 1-string PV system. It has a UL489B, IEC60947-2 approved 600VDC, 2 pole breaker non-polarity for easy wiring. It also comes with a 1000VDC SPD with UL1449 and IEC 61643 approval, designed for solar PV protection, 20KA (IEC, UL), with a response time of less than 25ns.
BENY 1000V DC Combiner Box | 1 IN 1 Out | 2 Poles
Regular price
$29500
Unit price
Additional Information
Additional Information
- Degree of Protection: IP65
- Enclosure Dimensions: L290xW220xH120mm - L11.42"xW8.66"xH4.72"
- Impacts: IK10
- Input Cable Glands: PG09 Cable Gland, 4-8 mm2
- Material: Polycarbonate/ABS
- Operating temperature: -25℃ – +60℃
- Output Cable Gland: PG09 Cable Gland, 4-8 mm2
Product Attachments
Product Attachments
- Data sheet Download Now
-
