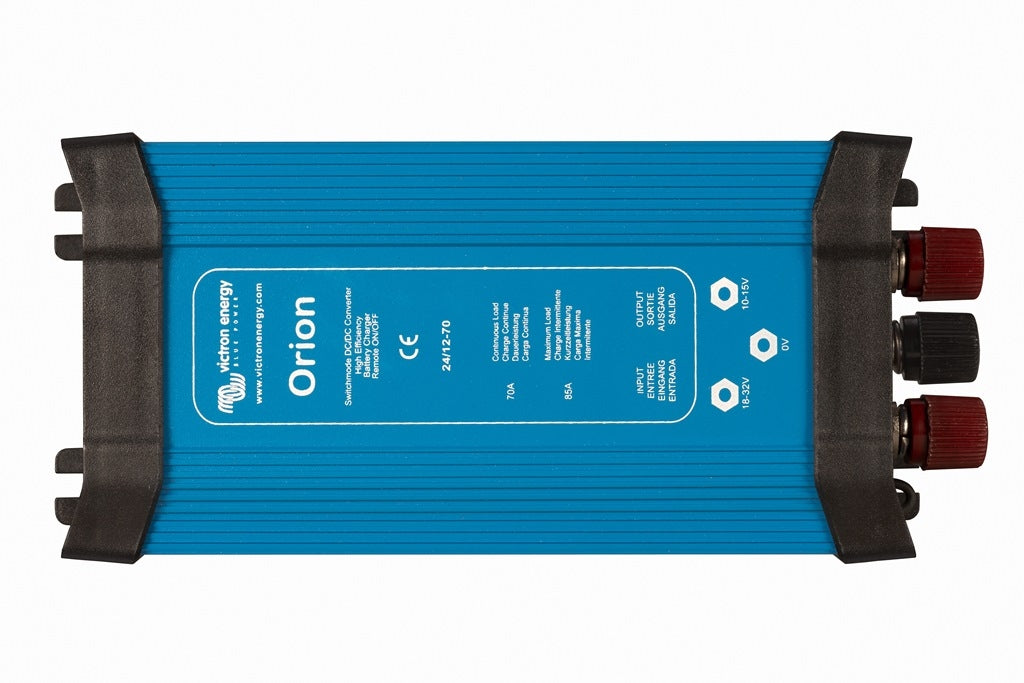

Victron Energy Orion 24/12-70A DC-DC converter IP20 / Binding posts

• High performance : 92%


• Optional remote On/Off


• Adjustable output voltage value


• Converter overheat protection


• Parallel connection possible


• Simple connection

The Orion converter Non-isolated High power can achieve an efficiency of 92% when operated at its nominal current.

It’s equipped with the “Remote on-off” function to start and stop the system remotely. This also dispenses with the need to connect a switch that has to carry the nominal current, a low-power switch is sufficient.

The output voltage of these converter models is adjustable (can be set between 10V and 15V), this can be used to recharge a battery, for example.

Up to five converters of the same model can also be connected in parallel to increase the output current if necessary.

If the system temperature rises, the converter will automatically reduce his output current (temperature >40°C).

The installation of the converter is simple, insulated lugs are supplied for connection.
