Elios Altilium EA12-220 | Sealed Rechargeable Lead Acid AGM Battery | 12V-220Ah

Elios  |  SKU: EA12-220
Sale price $62500 Regular price $71880
Shipping calculated at checkout.

Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

Pickup available at 4490 Avenue des Industries

Usually ready in 2-4 days

Description

The Elios Altilium EA12-220 delivers exceptional performance as a Sealed Lead Acid Battery engineered for dependable energy storage in critical applications.
Featuring sophisticated AGM technology, this zero-maintenance power solution provides a space-efficient, leak-proof construction that guarantees operational safety across diverse environmental conditions.

Warranty:
  • 2-year Limited Warranty
Additional Details:
  • Weight: 60kg (132.3lbs)

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Key Features

The Power of Reliable Energy

Consistent 12V Power Output

Delivers steady 12V 220Ah capacity through repeated cycles for reliable battery performance.

Deep Cycle Battery Design

Built for frequent charging and discharging while maintaining dependable long-term power delivery.

Multi-Use Energy Applications

Suitable for backup power, solar vehicles, boats, RVs, and a wide range of off-grid energy needs.

Extended Battery Shelf Life

Holds charge for over six months at 25°C, supporting dependable long-term storage.

Premium Battery Materials

Manufactured with quality components and advanced processes to improve durability and reliability.

Strict Quality Testing

Tested under rigorous quality control standards to ensure dependable battery performance in demanding use.

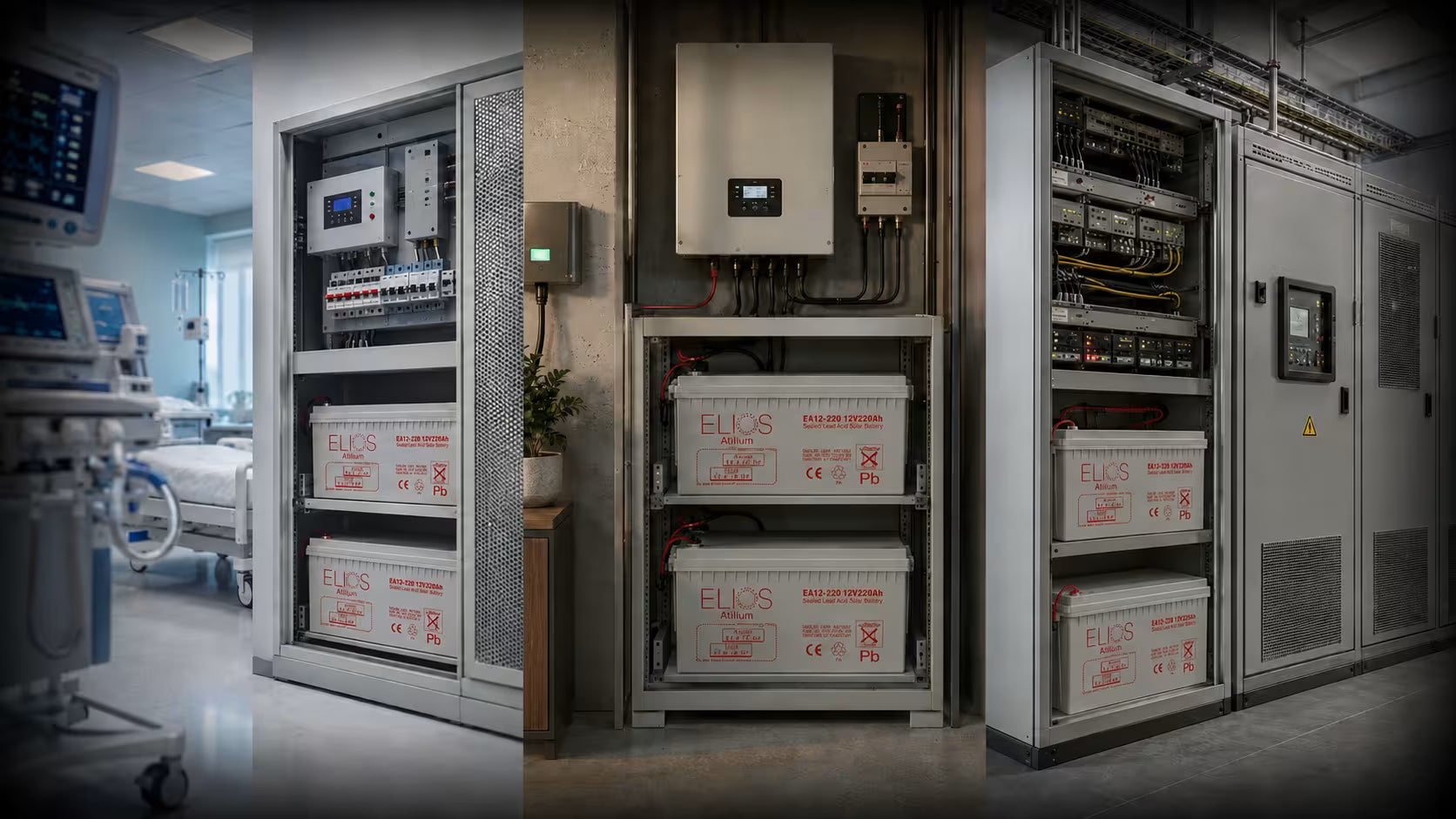

Applications

Applications

The Power of Reliable Energy

Portable devices
Portable power supplies
UPS
Energy storage
Power systems
Medical equipment

Additional Details

ModelEA12-220
Dimensions (mm | inch)522 x 238 x 218 mm (±2 mm) [20.55 x 9.37 x 8.58 in (0.08 in)]

Resources & Downloads

Frequently Asked Questions

Who engineers Elios products?

Elios products are engineered by the Elios team in Canada. Specifications are driven by Canadian operating conditions, cold-weather charging thresholds, snow and wind loading, and CSA C22.2 compliance.

What product lines does Elios make?

Elios makes five lines. Litio LiFePO4 batteries from 1.28 kWh to 61.4 kWh. Altilium AGM and flooded lead-acid batteries from 6V to 12V. Voltaic solar panels from 110W to 600W. Inversa hybrid inverter chargers, currently the 1510 at 10kW output with 15kW of solar input. Terra, Arbora and Koala mounting systems for ground, pole and bracket installation.

Are Elios batteries UL certified?

Yes. The Litio5.12 carries UL9540A, UL1973, UN38.3, IEC62619 and CE certification. The Litio16 carries UL9540A, UL1973 and IP65. UL9540A is the thermal runaway propagation test most Canadian authorities require for residential storage permits.

Is the Inversa inverter certified for grid connection in Canada?

Yes. The Inversa 1510 carries UL1741, UL1741SB, UL1699B, CSA C22.2 and IEEE 1547:2018. UL1741SB covers the grid-support functions required for utility interconnection.

Can Elios lithium batteries charge below freezing?

Litio batteries discharge to -20°C but require above-freezing cell temperature to charge. Heated models including the Litio1.28H-BT, Litio2.56H-BT and Litio5.12 warm cells automatically before accepting charge current, making them suitable for unheated cabins, garages and RV installations.

How long do Elios lithium batteries last?

The Litio5.12 is rated for 6,000 charge and discharge cycles. At one cycle per day, that exceeds sixteen years of service. The Litio10.2 is engineered for a 10-year lifespan.

What snow and wind loads are Elios racking systems rated for?

All three Elios racking lines are rated for 1.4 kN/m² snow load. Wind speed rating depends on mounting type: Arbora pole mounts are rated to 55 m/s, Terra ground mounts to 42 m/s, and Koala roof brackets to 30 m/s. Terra and Koala use galvanized or ZAM-coated steel with stainless steel hardware; Arbora uses a galvanized steel pole with aluminum rails and clamps.

Does Elios racking fit panels from other manufacturers?

Terra systems accept most framed 60-cell, 72-cell and half-cut modules when installed with Elios clamps. Confirm panel frame width and thickness before ordering.

How many Elios batteries can be connected in parallel?

The Litio5.12 supports up to 32 units in parallel for a total of 163.84 kWh. The Litio10.2 supports up to 16 units in parallel for the same total capacity.
