Elios Litio5.12 | 5.12 KWh/51.2VDC Lithium Battery | Rack Mount UL Approved

Name: Elios Litio5.12 | 5.12 KWh/51.2VDC Lithium Battery | Rack Mount UL Approved
Brand: Elios
SKU: Litio5.12
Price: 1995.00 CAD
Availability: InStock

Elios | SKU: Litio5.12

$1,995⁰⁰ $2,879⁰⁰

Shipping calculated at checkout.

Pickup available at 4490 Avenue des Industries

Usually ready in 2-4 days

Description

The Elios Litio5.12 is a robust and scalable lithium battery designed for high-efficiency energy storage in residential, commercial, and off-grid applications. Built with premium LiFePO₄ cells, it delivers a powerful 5.12 kWh capacity at 51.2V and supports flexible system expansion of up to 60 parallel units (307 kWh total).

Its ultra-slim 132mm depth allows for seamless installation in tight spaces, while integrated fire-resistant CR foam and a smart BMS provide superior safety and real-time system protection. With a 6000-cycle lifespan and multi-mounting options, the Litio5.12 is engineered for long-term performance and adaptability.

Warranty:

10-year limited warranty

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Certificate Dimensions & Safety Applications Specifications Product Attachments Reviews

Certifications

UL9540A | UL1973 | UN38.3 | RoHS | IEC62619 | CE-IEC 61000 | IEC62040 | MSDS

High-Capacity Performance

100Ah capacity at 51.2V (5.12kWh) supports high-demand systems with reliable output.

Advanced Cell Architecture

Built with 16x 100Ah LiFePO₄ cells for enhanced efficiency, safety, and longevity.

Integrated Fire Suppression

CR foam layer adds advanced fire safety protection.

Smart BMS Protection

Intelligent Battery Management System monitors and safeguards against overvoltage, undervoltage, overcurrent, overheating, and more.

Space-Efficient Design

Ultra-slim 132mm profile enables installation in compact locations.

Flexible Connectivity

Compatible with CAN, RS485, dry contact, and optional Wi-Fi for smart system integration.

Multiple Mounting Options

Stack-mounted, wall-mounted, or cabinet-installed for versatile deployment.

Low-Temperature Operation

Heating function ensures reliable performance even in colder environments.

Eco-Friendly Construction

Made with non-toxic, recyclable materials for sustainable energy storage.

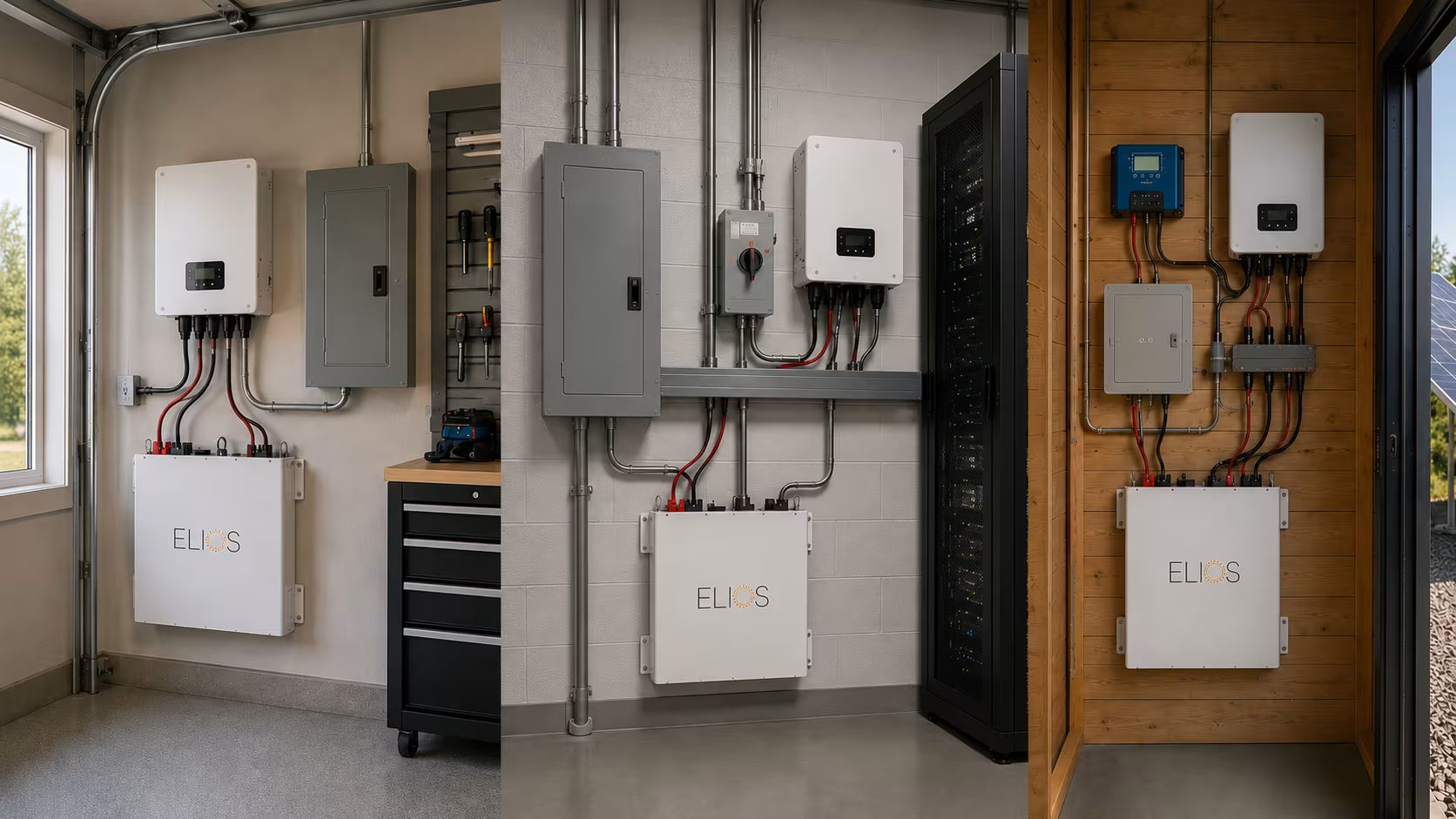

Residential

Commercial

Off-Grid

Micro-Grid

UPS

Peak shaving

Specifications

Communication	CAN, RS485, Dry Contact, WiFi
Cycle Life	6000 cycles

Additional Details

Dimensions (mm \| inch)	440 x 530 x 132 mm (17.32 x 20.87 x 5.2 in)
Weight	~ 44.5 kg (98.10 lbs)

Resources & Downloads

Frequently Asked Questions

Who engineers Elios products?

Elios products are engineered by the Elios team in Canada. Specifications are driven by Canadian operating conditions, cold-weather charging thresholds, snow and wind loading, and CSA C22.2 compliance.

What product lines does Elios make?

Elios makes five lines. Litio LiFePO4 batteries from 1.28 kWh to 61.4 kWh. Altilium AGM and flooded lead-acid batteries from 6V to 12V. Voltaic solar panels from 110W to 600W. Inversa hybrid inverter chargers, currently the 1510 at 10kW output with 15kW of solar input. Terra, Arbora and Koala mounting systems for ground, pole and bracket installation.

Are Elios batteries UL certified?

Yes. The Litio5.12 carries UL9540A, UL1973, UN38.3, IEC62619 and CE certification. The Litio16 carries UL9540A, UL1973 and IP65. UL9540A is the thermal runaway propagation test most Canadian authorities require for residential storage permits.

Is the Inversa inverter certified for grid connection in Canada?

Yes. The Inversa 1510 carries UL1741, UL1741SB, UL1699B, CSA C22.2 and IEEE 1547:2018. UL1741SB covers the grid-support functions required for utility interconnection.

Can Elios lithium batteries charge below freezing?

Litio batteries discharge to -20°C but require above-freezing cell temperature to charge. Heated models including the Litio1.28H-BT, Litio2.56H-BT and Litio5.12 warm cells automatically before accepting charge current, making them suitable for unheated cabins, garages and RV installations.

How long do Elios lithium batteries last?

The Litio5.12 is rated for 6,000 charge and discharge cycles. At one cycle per day, that exceeds sixteen years of service. The Litio10.2 is engineered for a 10-year lifespan.

What snow and wind loads are Elios racking systems rated for?

All three Elios racking lines are rated for 1.4 kN/m² snow load. Wind speed rating depends on mounting type: Arbora pole mounts are rated to 55 m/s, Terra ground mounts to 42 m/s, and Koala roof brackets to 30 m/s. Terra and Koala use galvanized or ZAM-coated steel with stainless steel hardware; Arbora uses a galvanized steel pole with aluminum rails and clamps.

Does Elios racking fit panels from other manufacturers?

Terra systems accept most framed 60-cell, 72-cell and half-cut modules when installed with Elios clamps. Confirm panel frame width and thickness before ordering.

How many Elios batteries can be connected in parallel?

The Litio5.12 supports up to 32 units in parallel for a total of 163.84 kWh. The Litio10.2 supports up to 16 units in parallel for the same total capacity.

Does Volts Energies ship Elios products across Canada?

Yes, we ship Elios products throughout Canada, with the exception of the Northwest Territories, Nunavut, and Yukon. Orders over $297 ship free. A few larger items, batteries, solar panels, racking, and storage cabinets, cost more to ship because of their size and weight, so pricing for those is calculated separately rather than included in the flat free rate.

Compare Features

A table comparing the facets of 3 products
Facet	Elios Litio5.12 \| 5.12 KWh/51.2VDC Lithium Battery \| Rack Mount UL Approved View details	Elios Litio10.2 \| 10.24KWh/51.2V Wall Mount UL Approved Lithium Battery \| No WIFI View details	Elios Litio16 \| 16 kWh/51.2V LiFePO4 Lithium Battery \| UL9540A, UL1973, IP65, WiFi, Heated View details
Price
Price	Sale price $1,995⁰⁰ Regular price $2,879⁰⁰	Sale price $4,750⁰⁰ Regular price $6,456⁰⁰	Sale price $5,500⁰⁰ Regular price $8,340⁰⁰
Capacity
Capacity	-	-	-
Battery Type
Battery Type	-	-	-
Installation
Installation	Rack / Stack / Wall	Wall Mount	-
Communication
Communication	CAN, RS485, Dry Contact, WiFi	CAN, RS485, Dry Contact	CAN / RS485 / Wi-Fi
Dimensions
Dimensions	440 x 530 x 132 mm (17.32 x 20.87 x 5.2 in)	550 × 1000 × 165 mm (21.65 × 39.37 × 6.50 in)	500 × 235 × 943 mm (±5 mm) [19.69 × 9.25 × 37.13 in (±0.20 in)]
Weight
Weight	45.0 kg	98.0 kg	125.0 kg
Certifications
Certifications	UL9540A \| UL1973 \| UN38.3 \| RoHS \| IEC62619 \| CE-IEC 61000 \| IEC62040 \| MSDS	UL9540A \| UL1973 \| UN38.3 \| RoHS \| IEC62619 \| CE-IEC 61000 \| IEC 62040 \| MSDS.	UL 1973 \| UL 9540A \| UN 38.3 \| FCC
Warranty
Warranty	-	10-year limited product warranty	-
