Elios Solar Carport M9 | Aluminum Structure for 1 Vehicle | 9 Solar Panels (5.4 kW+)

Name: Elios Solar Carport M9 | Aluminum Structure for 1 Vehicle | 9 Solar Panels (5.4 kW+)
Brand: Elios
SKU: ELIOSCARPORTM9
Price: 6700.00 CAD
Availability: InStock

Elios | SKU: ELIOSCARPORTM9

$6,700⁰⁰ $8,040⁰⁰

Shipping calculated at checkout.

Description

The Elios Carport M9 is a durable, waterproof aluminum solar carport designed for one vehicle and engineered to support nine 144-cell solar panels (2278 × 1134 × 35 mm).

Built for both residential and commercial solar PV installations, this high-strength structure provides a stable and long-lasting framework for efficient energy generation. Its corrosion-resistant aluminum design ensures reliable structural performance while protecting vehicles from sun, rain, snow, and harsh weather.

The M9 combines clean energy production with functional parking coverage, making it a smart, space-efficient solution for modern solar projects.

Note: This product includes the mounting structure only. Solar panels are not included.

Applications:

Off-Grid | Open Areas | Commercial | Ground | Concrete Roof | Industrial

Warranty:

10-year Limited Warranty

Additional Details:

G.W.: 385kg (848.79 lbs)
N.W.: 285kg (628.32 lbs)

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Certificate Specifications Product Attachments Reviews

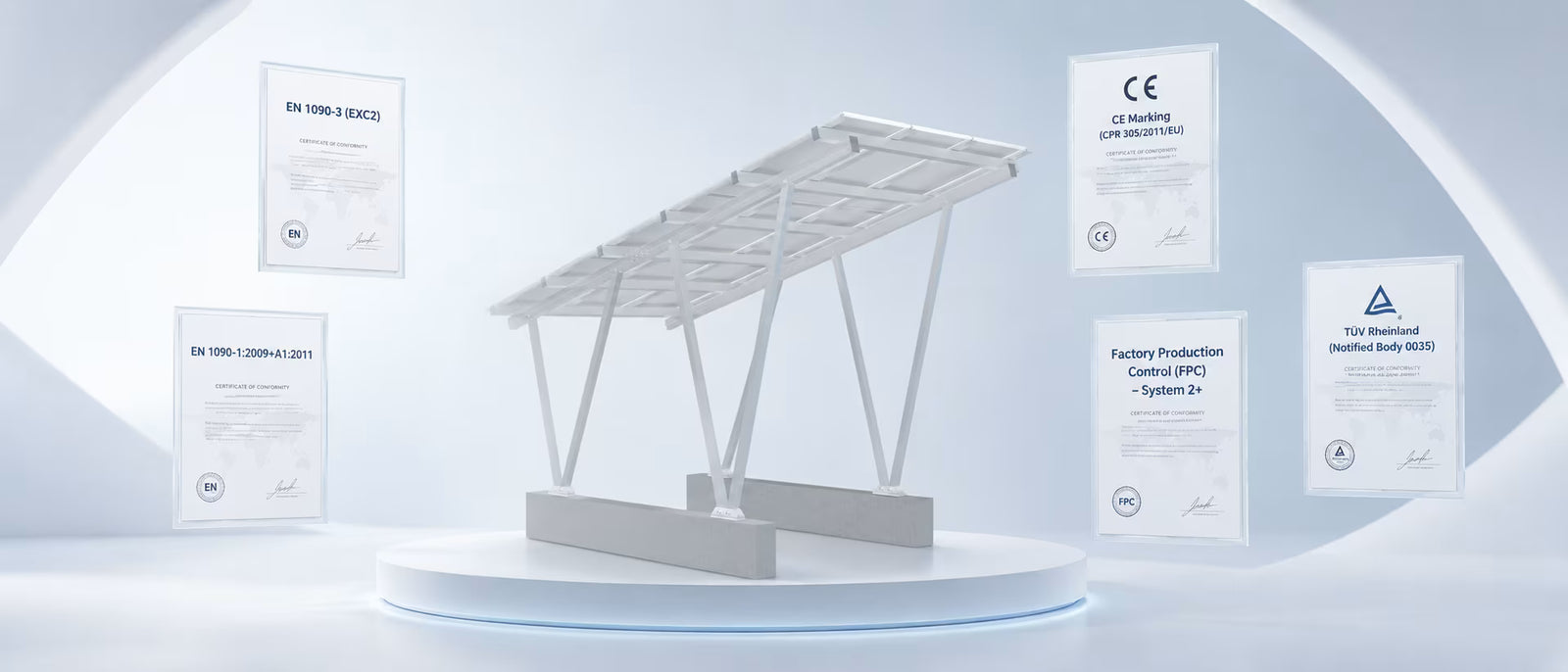

Certifications

EN 1090-3 (EXC2) | EN 1090-1:2009+A1:2011 | CE Marking (CPR 305/2011/EU) | Factory Production Control (FPC) – System 2+ | TÜV Rheinland (Notified Body 0035)

Custom PV Module Compatibility

Customizable solar carport structure supports various PV modules for flexible project applications.

Vehicle Weather Protection

Helps protect parked vehicles from sun exposure, wind, snow, rain, and harsh outdoor conditions.

Modern Solar Carport Design

Clean industrial styling enhances parking areas with a professional, streamlined appearance.

Fast Bolt-Together Installation

Preassembled components support bolt-only installation, helping reduce labor time and overall project costs.

Integrated Waterproofing System

Built-in water channels improve waterproof performance, reduce maintenance, and protect the carport structure.

Engineered Carport Durability

Simulation-tested solar carport structure is built to withstand wind, snow, and seismic loads for reliable performance.

Specifications

Install Site	Off-Grid \| Open Areas \| Commercial \| Ground \| Concrete Roof \| Industrial
Panel Layout	9 panels (1 vehicle)
Material	Corrosion-resistant aluminum
Panel Size	2278 × 1134 × 35 mm (144-cell)

Additional Details

Model	Carport M9
Dimensions (inch \| mm)	4000 × 740 × 800 mm (157.48 × 29.13 × 31.50 in)

Resources & Downloads

Concrete Base Dimensions
