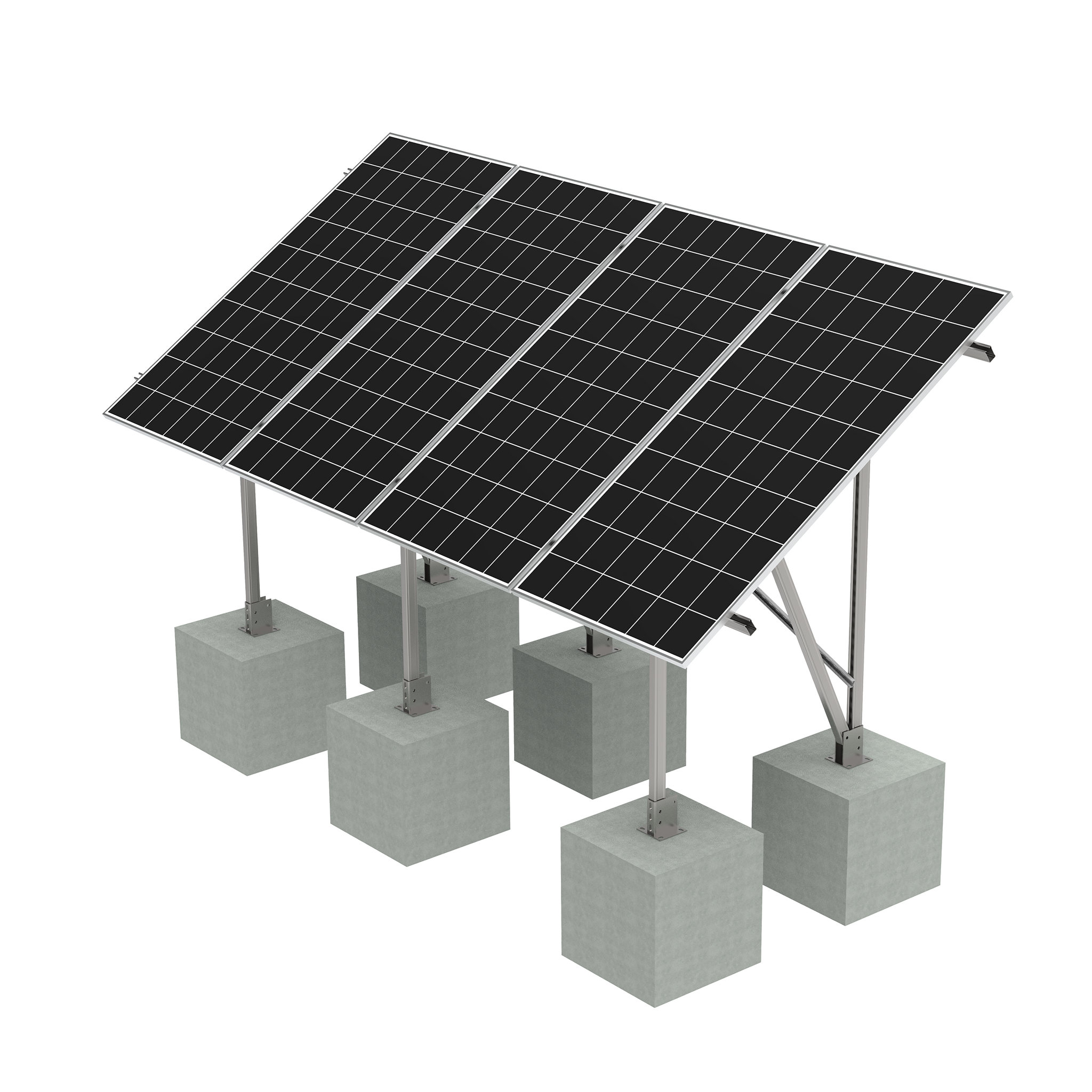

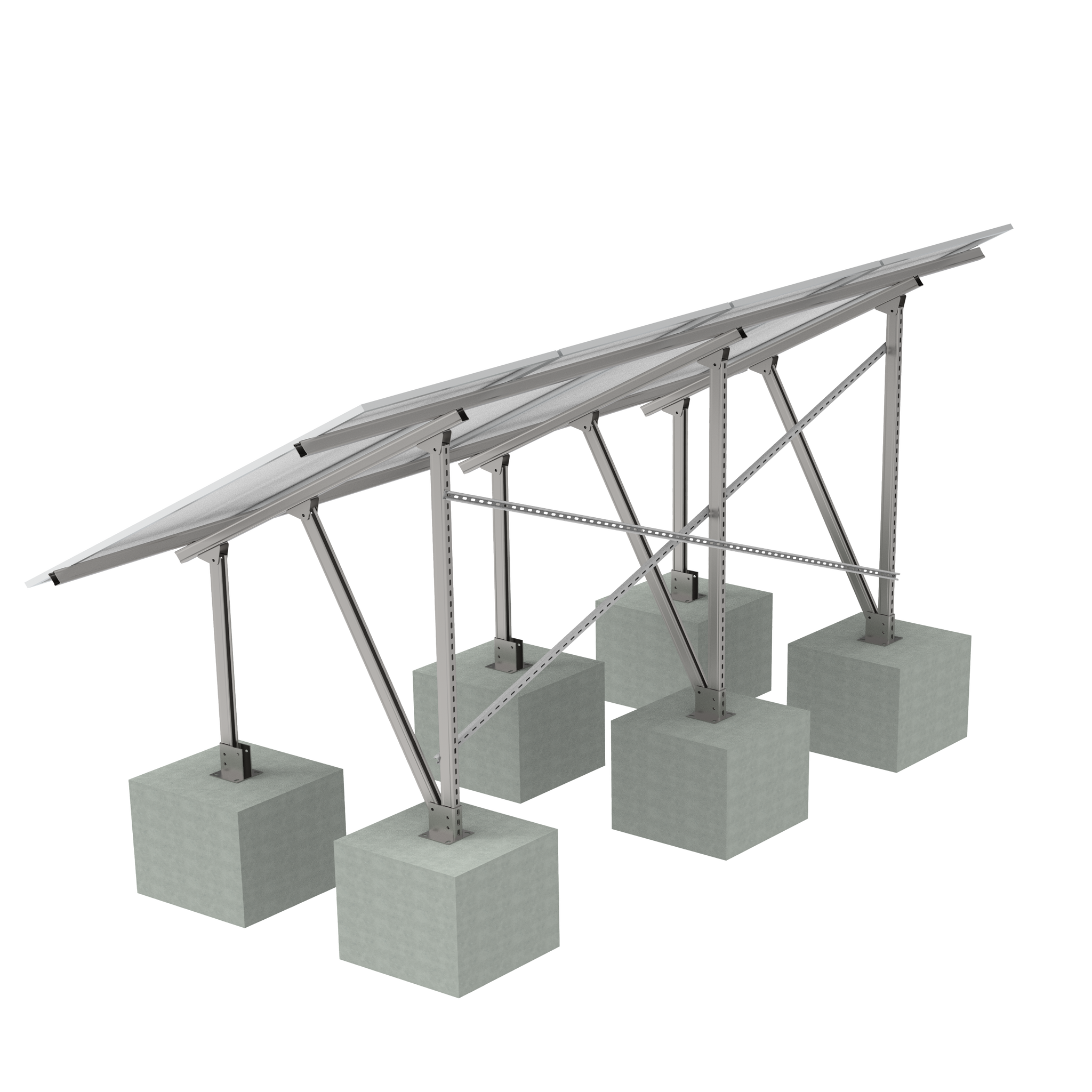

Elios Terra G4 | Ground Mount System For 4 Solar Panels
Product SKU: ELIOSGM-GS-C-4Pickup Only: Contact Us For Canada-wide Delivery
Description:
The Elios Terra G4 Ground Mount System with 3 legs is a sturdy and reliable solution for securely mounting 4 solar panels. It is designed for easy installation and is made with high-quality materials and engineered to withstand harsh weather conditions.
This ground mount system provides a stable base for your solar panels, ensuring maximum energy efficiency and performance. Whether you're installing panels at your home or business, the Elios Ground Mounting System is the perfect choice for a safe and efficient solar setup.
Key Features:
-
Compatible Design: Supports up to four 60- or 72-cell solar panels, providing flexibility for various system configurations.
- Durable Construction: Built with weather-resistant ZAM steel, galvanized steel poles, and aluminum rails and clamps (for 35mm and 40mm panels) to deliver exceptional strength and long-lasting performance in any environment.
- Three-Leg Stability: The three-leg structure provides excellent balance and structural stability, keeping the system steady and secure even in challenging weather conditions
- Stainless Steel Hardware: Ensures corrosion resistance and reliable performance over time.
- Stable Base: Features a 150x150mm base with four expansion anchor holes for a secure and steady installation.
- Easy Installation & Maintenance: Designed with a minimal number of components, making setup straightforward and upkeep simple.
- Customizable Layout: Can be adjusted to fit different panel sizes and orientations for optimal energy production.
- Safe & Secure: Provides a solid, weatherproof foundation that keeps panels firmly in place under wind, rain, or snow.
- Cost-Effective Solution: A reliable, affordable option for maximizing energy efficiency and reducing long-term energy costs.
Install up to four 60- or 72-cell solar panels (1x4 portrait) on this ground-mount system to generate 1,300–1,800 watts, depending on panel output. Using bifacial solar panels can further boost production by up to 1,000 watts, reaching a total capacity of around 3,000 watts.
The Terra G4 Ground Mount System includes all essential components for a durable, easy-to-assemble solar setup, designed by the Elios team for lasting performance.
Applications:
-
Off-grids | Commercial places | Backup Power |
Warranty:
-
5-year limited warranty.
Additional Details:
- Model: ELIOSGM-GS-C-4
The Foot Dimensions:
![]()
Additional information:
- Brand: Elios
- Ground Clearance: 36.02 in
- Tilt Angle: 35°
- Wind-Rating: 42m/s
Product Attachments:
- 35mm End Clamp for Terra G4 & Terra G8: Download Now
- 35mm Mid Clamp for Terra G4 & Terra G8: Download Now
- Datasheet: Download Now
- Installation Manual: Download Now
- Rail for Terra G4 & Terra G8: Download Now
- 35mm Mid Clamp for Terra G4 & Terra G8: Download Now
