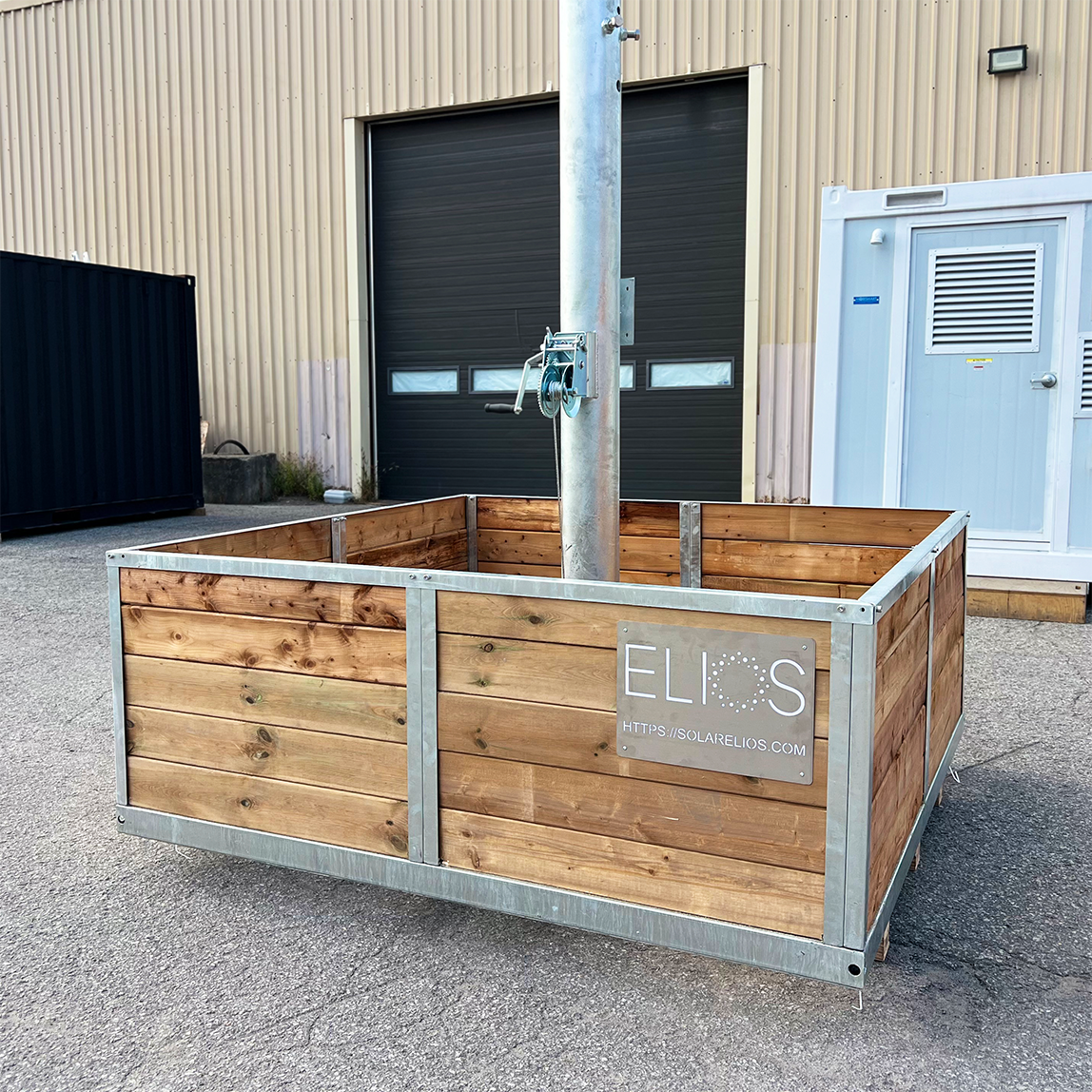

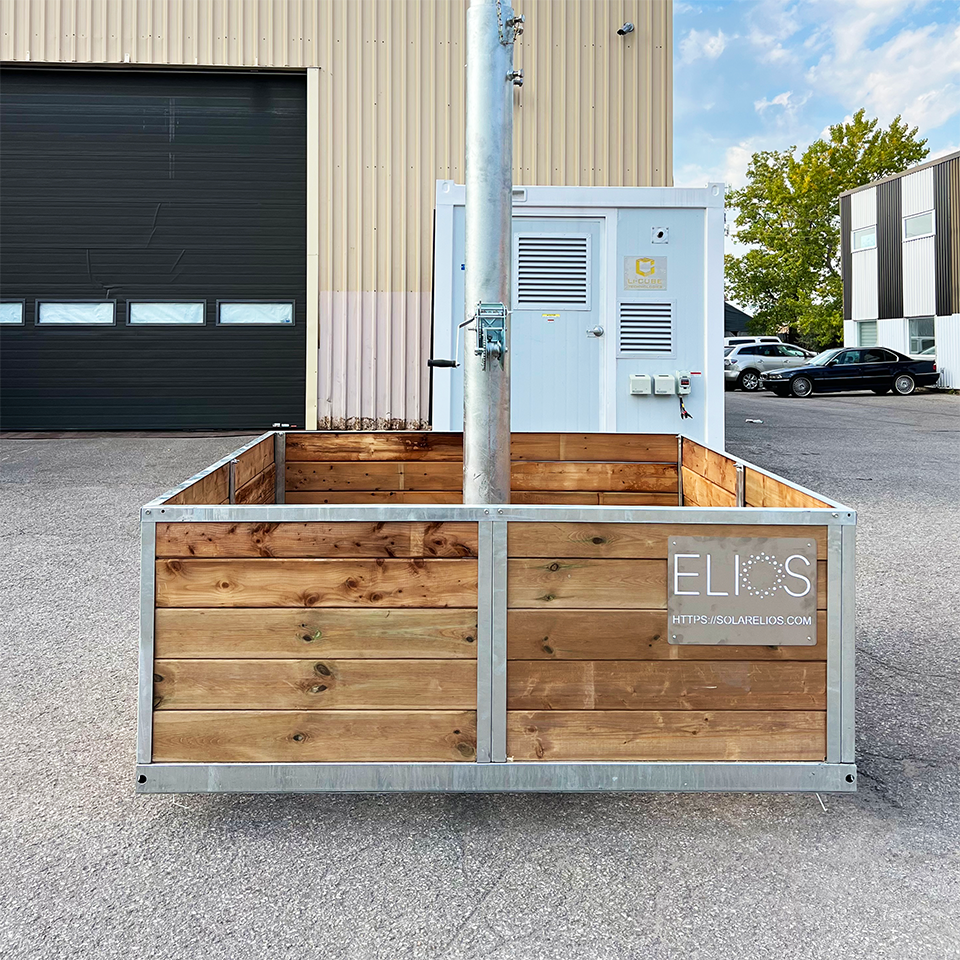

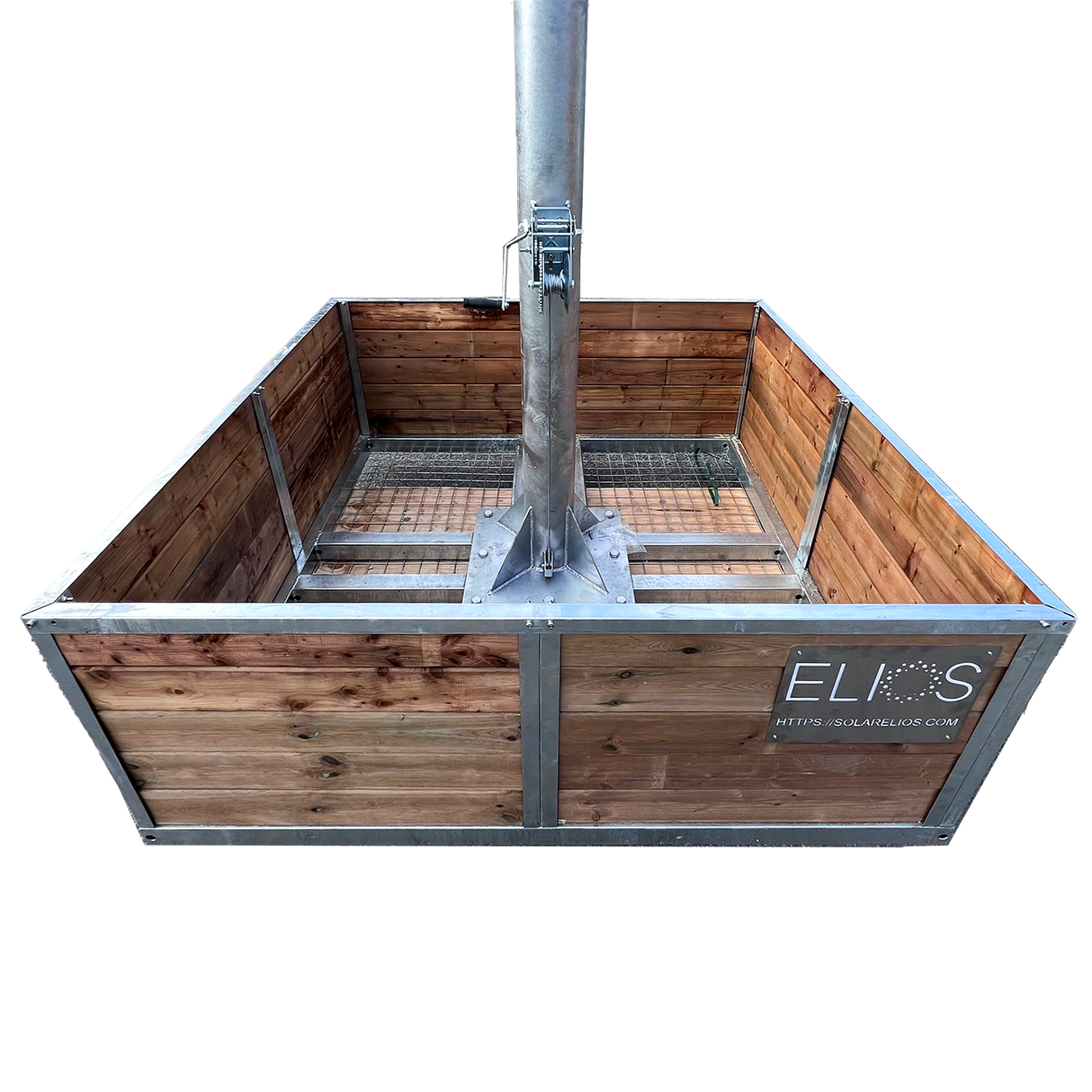

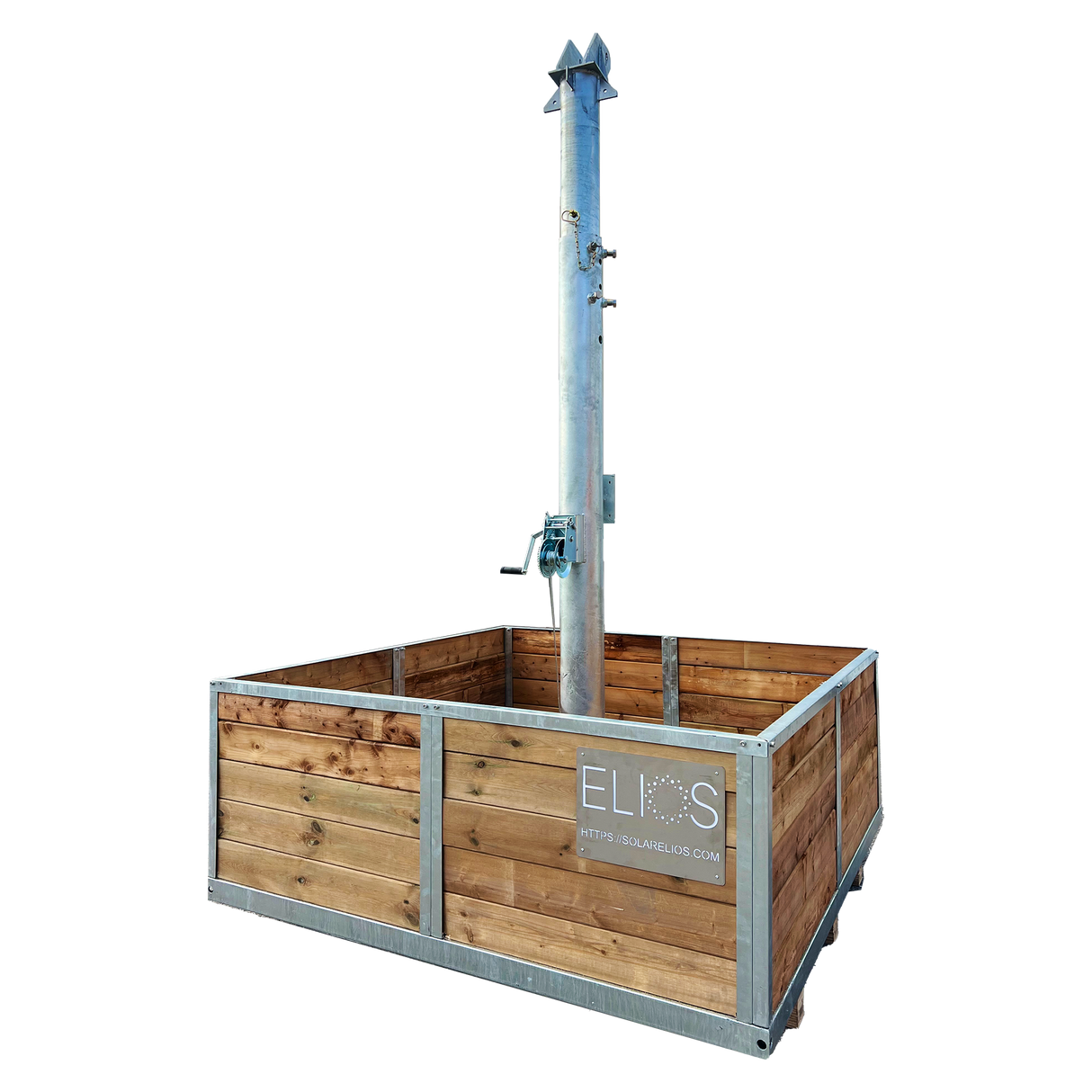

Elios Basket 8 Panel Post for Elios Arbora P8 | To fill with rock

Description:

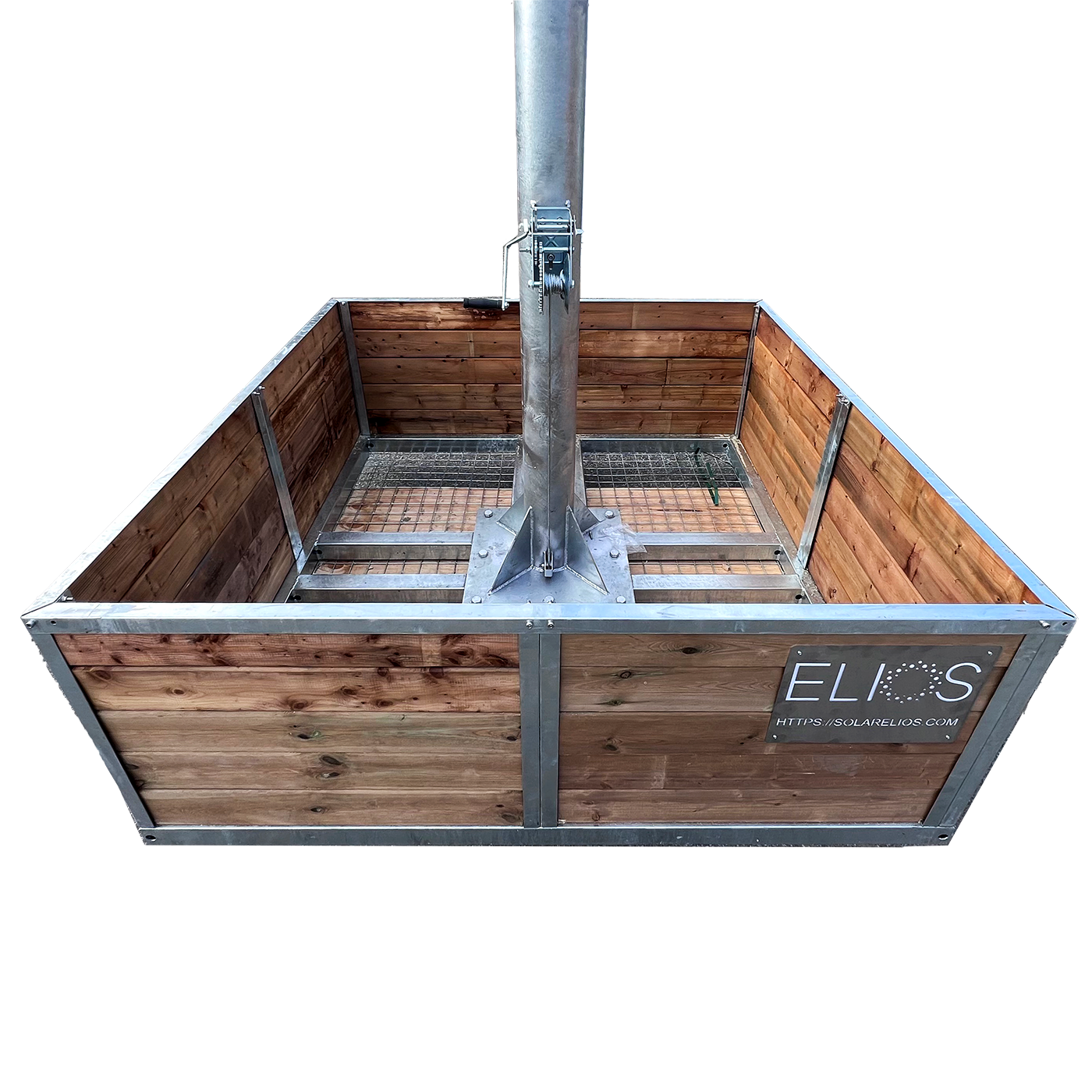

The Elios Basket 8 Panel Post is designed for use as the foundation of the Elios Arbora P8 Pole Mount System, and is the result of our years of expertise in the solar installation industry. Crafted from top-quality materials, this post offers exceptional strength and durability.

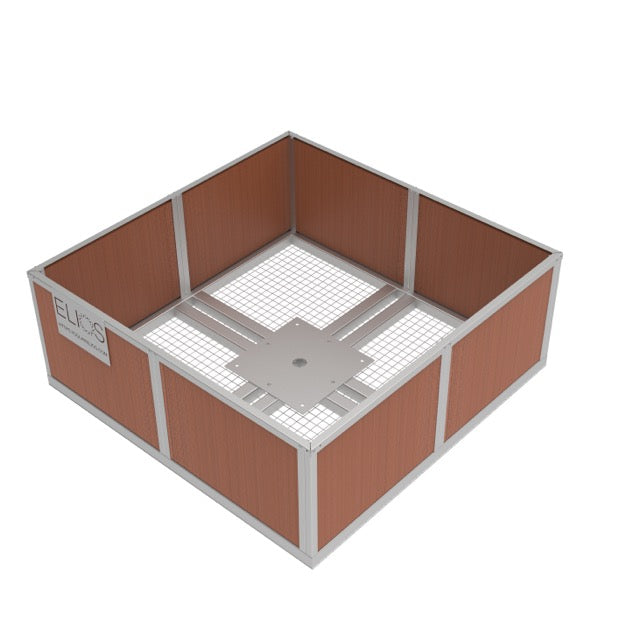

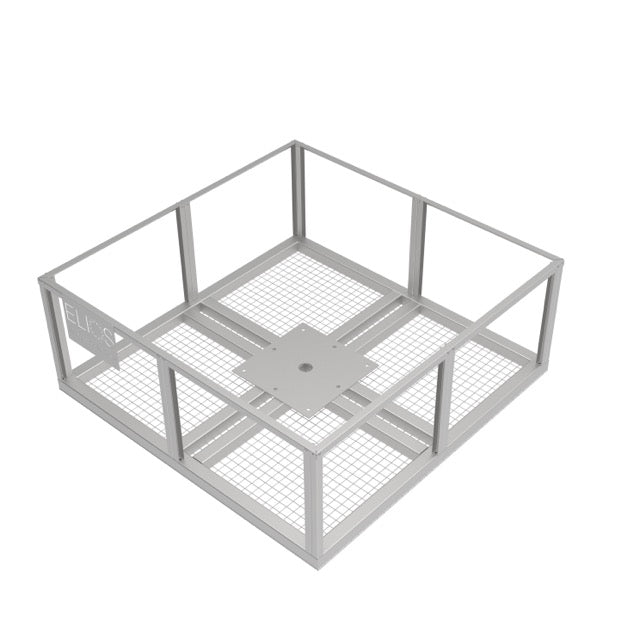

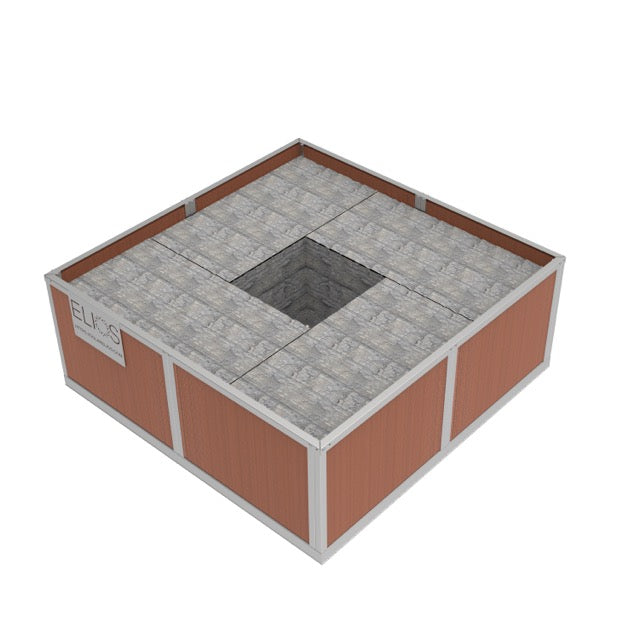

The Elios Basket 8 Panel Post includes all required hardware, a base, and a structure. To prepare for filling with rocks, add your own wooden planks to close the structure (wooden planks not included). For maximum stability, cement or cement blocks can be used inside the basket during installation.

Note: The pole is not included.

Approx. 6.5 tons of rock ballast required at 30° tilt and 40 m/s wind speed. In extreme weather, a 10° tilt is recommended for greater stability and wind resistance.

Key Features:

Applications:

• Residential Installations | Commercial Properties | Off-Grid Systems



Additional Details:

• Model: TP-BA-8
• Dimensions: 78.74 x 78.74 x 30.89 in (2000 x 2000 x 784.50 mm)
• Weight: 235 kg
