Elios Carport M15 | Aluminum Structure for 2 Vehicle | 15 Solar Panels (9 kW+)

Elios Carport M15 is a heavy-duty aluminum solar carport designed for two vehicles and engineered to support 15 high-efficiency 144-cell solar panels (2278 × 1134 × 35 mm), delivering 9 kW+ of solar capacity depending on panel configuration.

Constructed from corrosion-resistant aluminum, this waterproof solar carport features an integrated rain management system for efficient drainage and long-term structural durability. It includes mid and end clamps for secure PV panel mounting and streamlined installation.

Ideal for residential and commercial solar PV projects, the M15 transforms parking areas into energy-generating structures while protecting vehicles from sun, rain, wind, and snow.

Note: Structure only. Solar panels and electrical components are not included.

Key Features:

• Safety & Durability: Engineered with simulations to withstand wind, snow, and seismic loads reliably.
• High Waterproofing: Integrated water channel system ensures full waterproof performance and reduced maintenance.
• Fast Installation: Pre-assembled components allow bolt-only installation, reducing labor time and costs.
• Modern Design: Streamlined industrial look enhances parking areas with a clean, professional appearance.
• Vehicle Protection: Helps shield parked vehicles from sunlight exposure, wind, snow, and harsh weather.

• Custom Compatibility: Customizable structure supports various PV modules for flexible solar project applications.

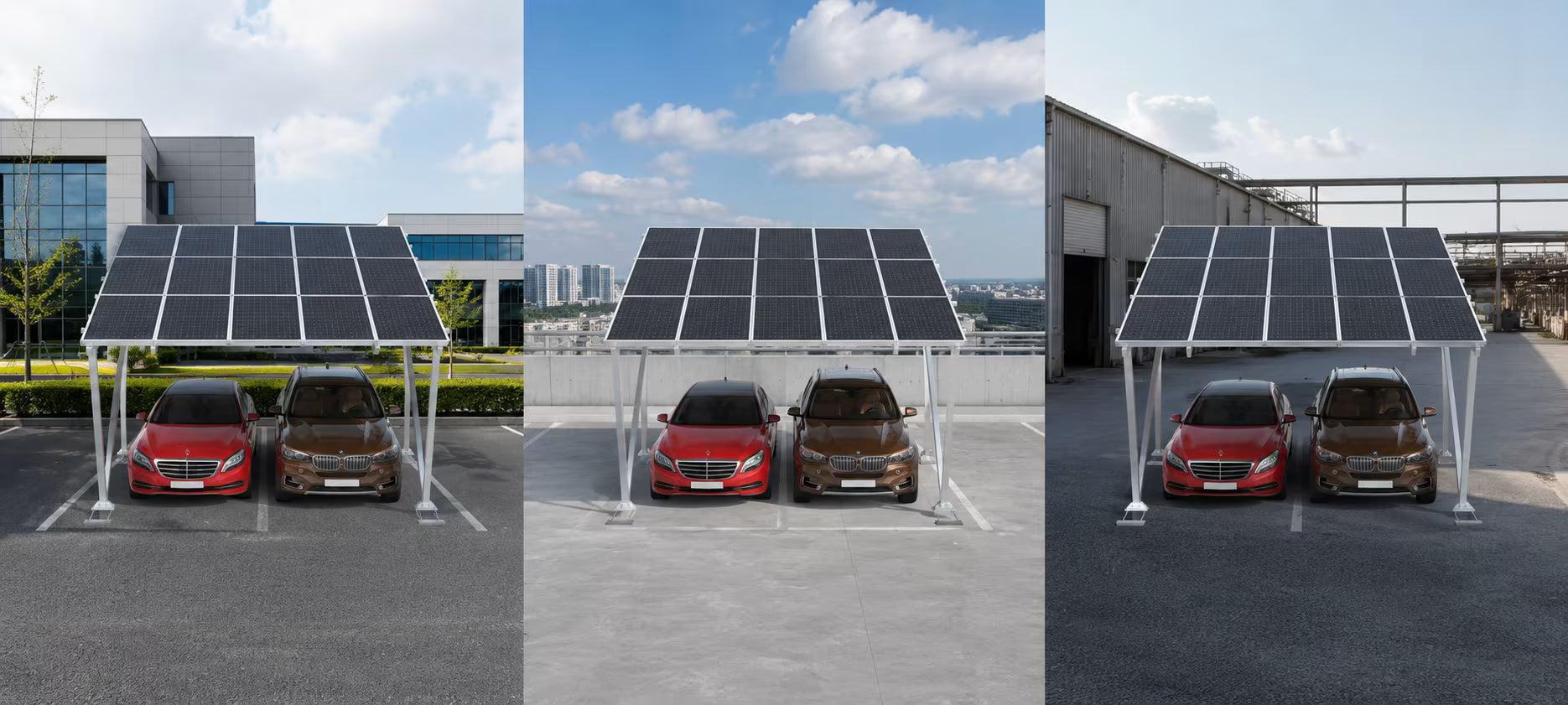

Applications:

• Off-Grid | Open Areas | Commercial | Ground | Concrete Roof | Industrial

Certifications:

• EN 1090-3 (EXC2) | EN 1090-1:2009+A1:2011 | CE Marking (CPR 305/2011/EU) | Factory Production Control (FPC) – System 2+ | TÜV Rheinland (Notified Body 0035)


Warranty:

• 10-year Limited Warranty


Additional Details:

• Dimensions (mm | inch): 4050*1140*860 mm (159.45*44.88*33.86 in)

• G.W.: 448kg (987.67 lbs)

• N.W.: 397kg (875.66 lbs)
