Elios Litio5.12 | 5.12 KWh/51.2VDC Lithium Battery | Rack Mount UL Approved

Name: Elios Litio5.12 | 5.12 KWh/51.2VDC Lithium Battery | Rack Mount UL Approved
Brand: Elios
SKU: Litio5.12
Price: 2399.00 CAD
Availability: InStock

Elios | SKU: Litio5.12

$2,399⁰⁰ $2,879⁰⁰

Shipping calculated at checkout.

Pickup available at 4490 Avenue des Industries

Usually ready in 2-4 days

Description

The Elios Litio5.12 is a robust and scalable lithium battery designed for high-efficiency energy storage in residential, commercial, and off-grid applications. Built with premium LiFePO₄ cells, it delivers a powerful 5.12 kWh capacity at 51.2V and supports flexible system expansion of up to 32 parallel units (81.92 kWh total).

Its ultra-slim 132mm depth allows for seamless installation in tight spaces, while integrated fire-resistant CR foam and a smart BMS provide superior safety and real-time system protection. With a 6000-cycle lifespan and multi-mounting options, the Litio5.12 is engineered for long-term performance and adaptability.

Warranty:

10-year limited warranty

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Certificate Dimensions & Safety Applications Specifications Product Attachments Reviews

Certifications

UL9540A | UL1973 | UN38.3 | RoHS | IEC62619 | CE-IEC 61000 | IEC62040 | MSDS

High-Capacity Performance

100Ah capacity at 51.2V (5.12kWh) supports high-demand systems with reliable output.

Advanced Cell Architecture

Built with 16x 100Ah LiFePO₄ cells for enhanced efficiency, safety, and longevity.

Integrated Fire Suppression

CR foam layer adds advanced fire safety protection.

Smart BMS Protection

Intelligent Battery Management System monitors and safeguards against overvoltage, undervoltage, overcurrent, overheating, and more.

Space-Efficient Design

Ultra-slim 132mm profile enables installation in compact locations.

Flexible Connectivity

Compatible with CAN, RS485, dry contact, and optional Wi-Fi for smart system integration.

Multiple Mounting Options

Stack-mounted, wall-mounted, or cabinet-installed for versatile deployment.

Low-Temperature Operation

Heating function ensures reliable performance even in colder environments.

Eco-Friendly Construction

Made with non-toxic, recyclable materials for sustainable energy storage.

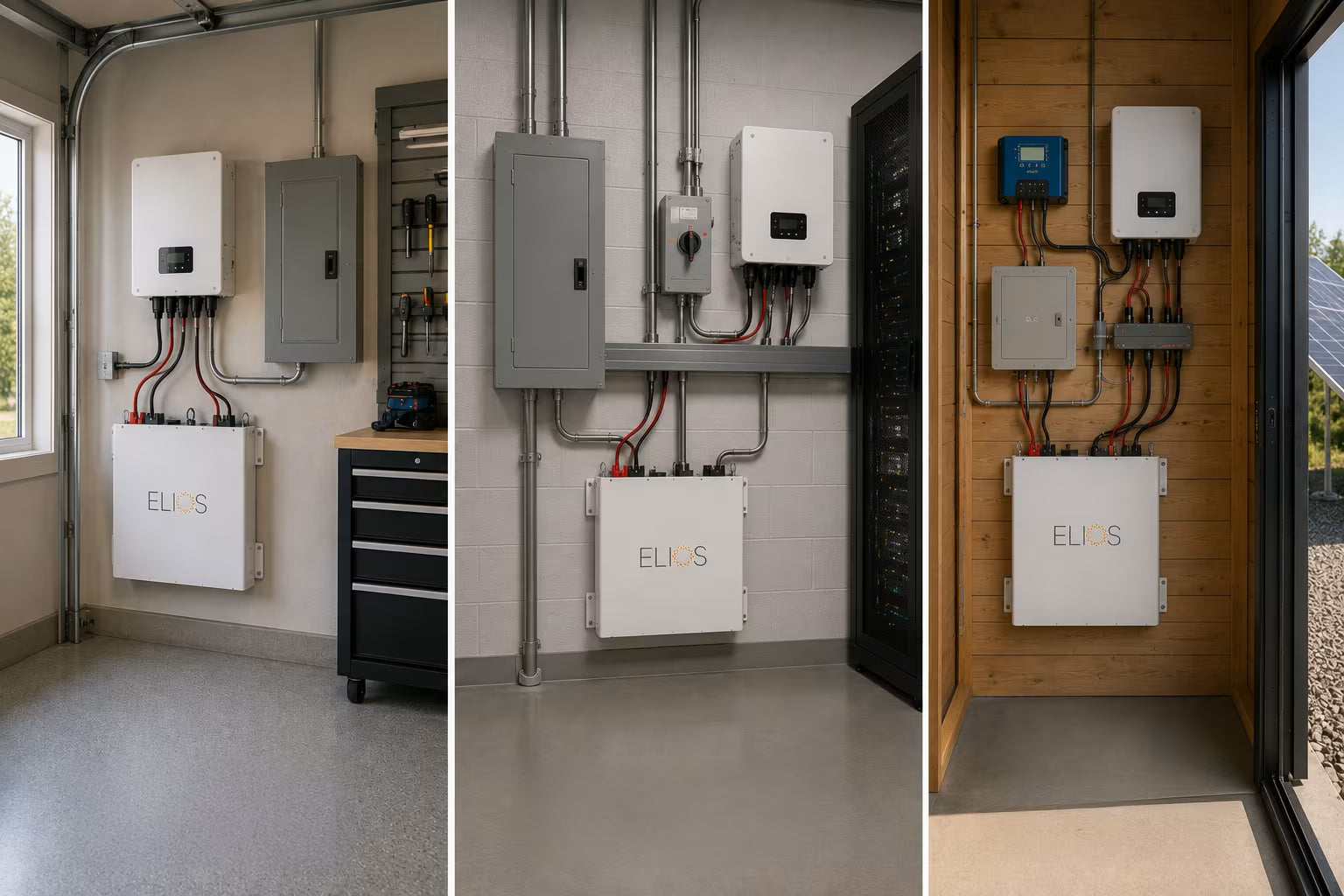

Residential

Commercial

Off-Grid

Micro-Grid

UPS

Peak shaving

Additional Details

Dimensions (mm \| inch)	440 x 530 x 132 mm (17.32 x 20.87 x 5.2 in)
Weight	~ 44.5 kg (98.10 lbs)

Resources & Downloads

Compare Features

A table comparing the facets of 3 products
Facet	Elios Litio5.12 \| 5.12 KWh/51.2VDC Lithium Battery \| Rack Mount UL Approved View details	Elios Litio10.2 \| 10.24KWh/51.2V Wall Mount UL Approved Lithium Battery \| No WIFI View details	Elios Litio16 \| 16 kWh/51.2V LiFePO4 Lithium Battery \| UL9540A, UL1973, IP65, WiFi, Heated View details
Price
Price	Sale price $2,399⁰⁰ Regular price $2,879⁰⁰	Sale price $5,380⁰⁰ Regular price $6,456⁰⁰	Sale price $6,950⁰⁰ Regular price $8,340⁰⁰
Capacity
Capacity	-	-	-
Battery Type
Battery Type	-	-	-
Installation
Installation	Rack / Stack / Wall	Wall Mount	-
Communication
Communication	-	CAN, RS485, Dry Contact	-
Dimensions
Dimensions	440 x 530 x 132 mm (17.32 x 20.87 x 5.2 in)	550 × 1000 × 165 mm (21.65 × 39.37 × 6.50 in)	500 × 235 × 943 mm (±5 mm) [19.69 × 9.25 × 37.13 in (±0.20 in)]
Weight
Weight	45.0 kg	98.0 kg	125.0 kg
Certifications
Certifications	UL9540A \| UL1973 \| UN38.3 \| RoHS \| IEC62619 \| CE-IEC 61000 \| IEC62040 \| MSDS	UL9540A \| UL1973 \| UN38.3 \| RoHS \| IEC62619 \| CE-IEC 61000 \| IEC 62040 \| MSDS.	UL 1973 \| UL 9540A \| UN 38.3 \| FCC
Warranty
Warranty	-	10-year limited product warranty	-
