Elios Contrack A+B | Container Racking for 2 solar Panels

Description:

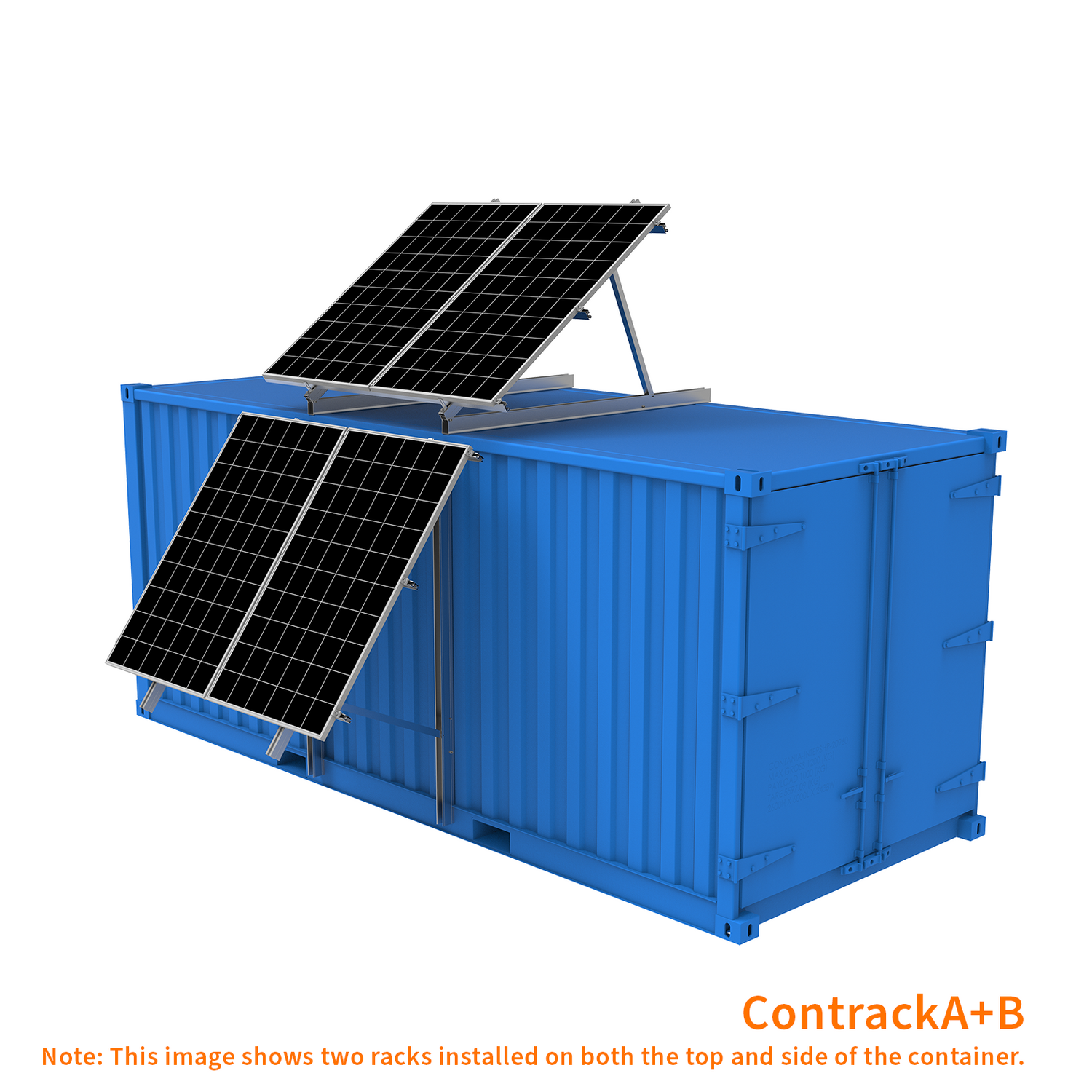

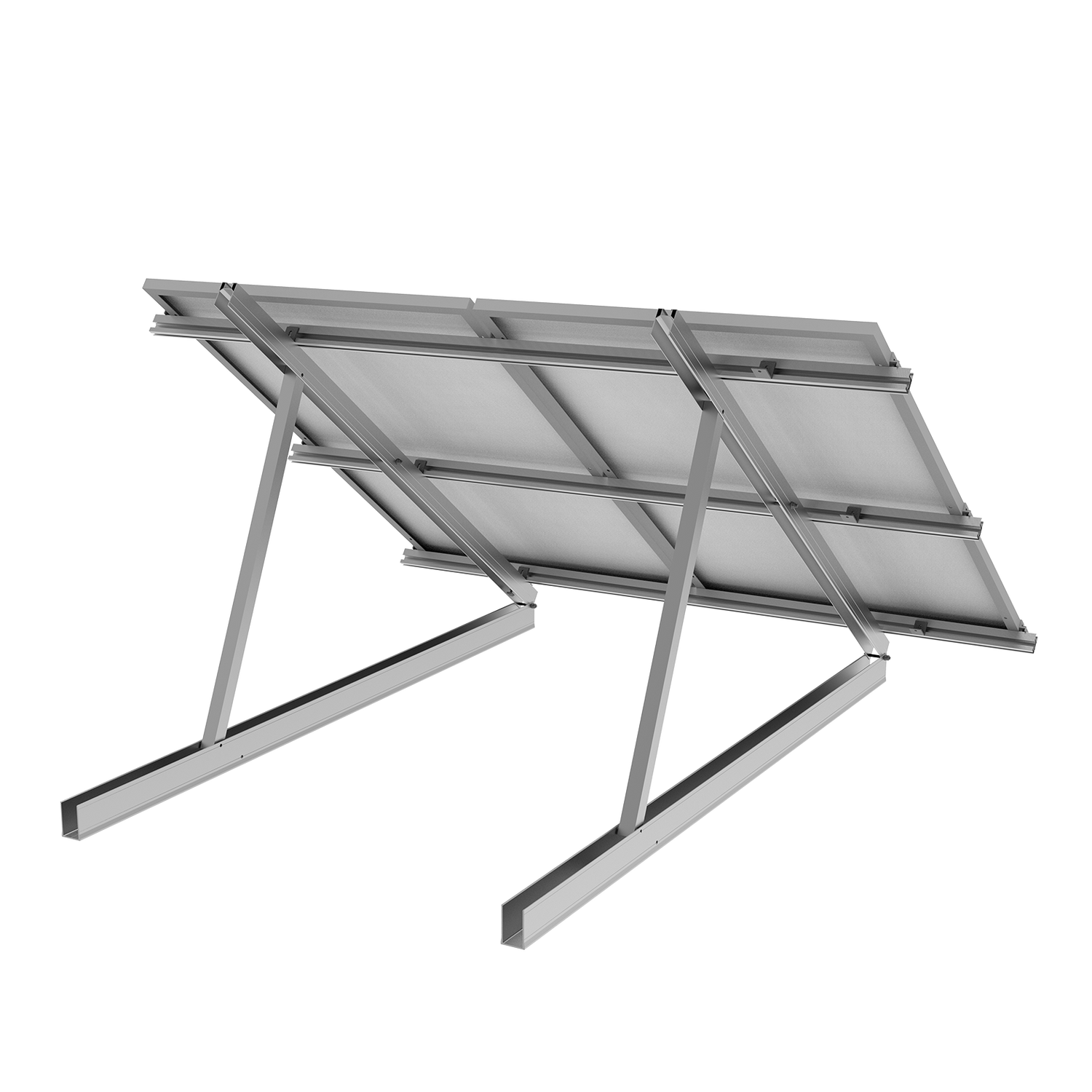

The Elios Contrack A+B is a high-performance aluminum racking system engineered for mounting two solar panels at a fixed 35-degree angle on shipping containers, cargo boxes, or mobile storage units. Optimized for both rooftop and sidewall installation, this modular bracket system offers a space-efficient and structurally sound solution for off-grid and mobile solar applications.

Fits solar panels with 60/120 and 72/144 cells — perfectly compatible with Elios Voltaic 400HC-BF, 400W solar panels and above.

Crafted from high-strength aluminum alloy, the Contrack A+B is built to withstand demanding outdoor conditions while reducing installation time and complexity. Its compact, container-compatible design makes it ideal for rapid deployment and long-term reliability in the field.

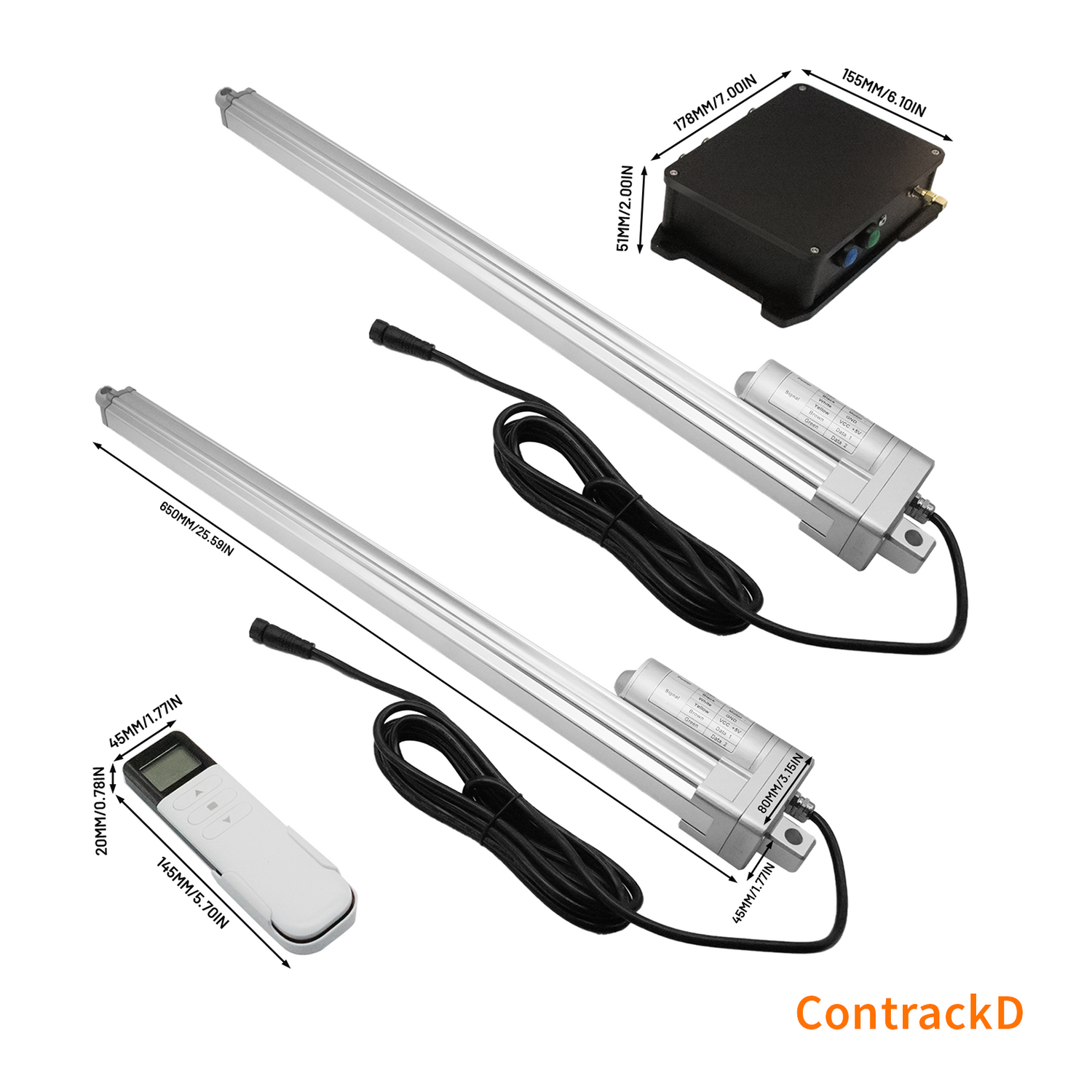

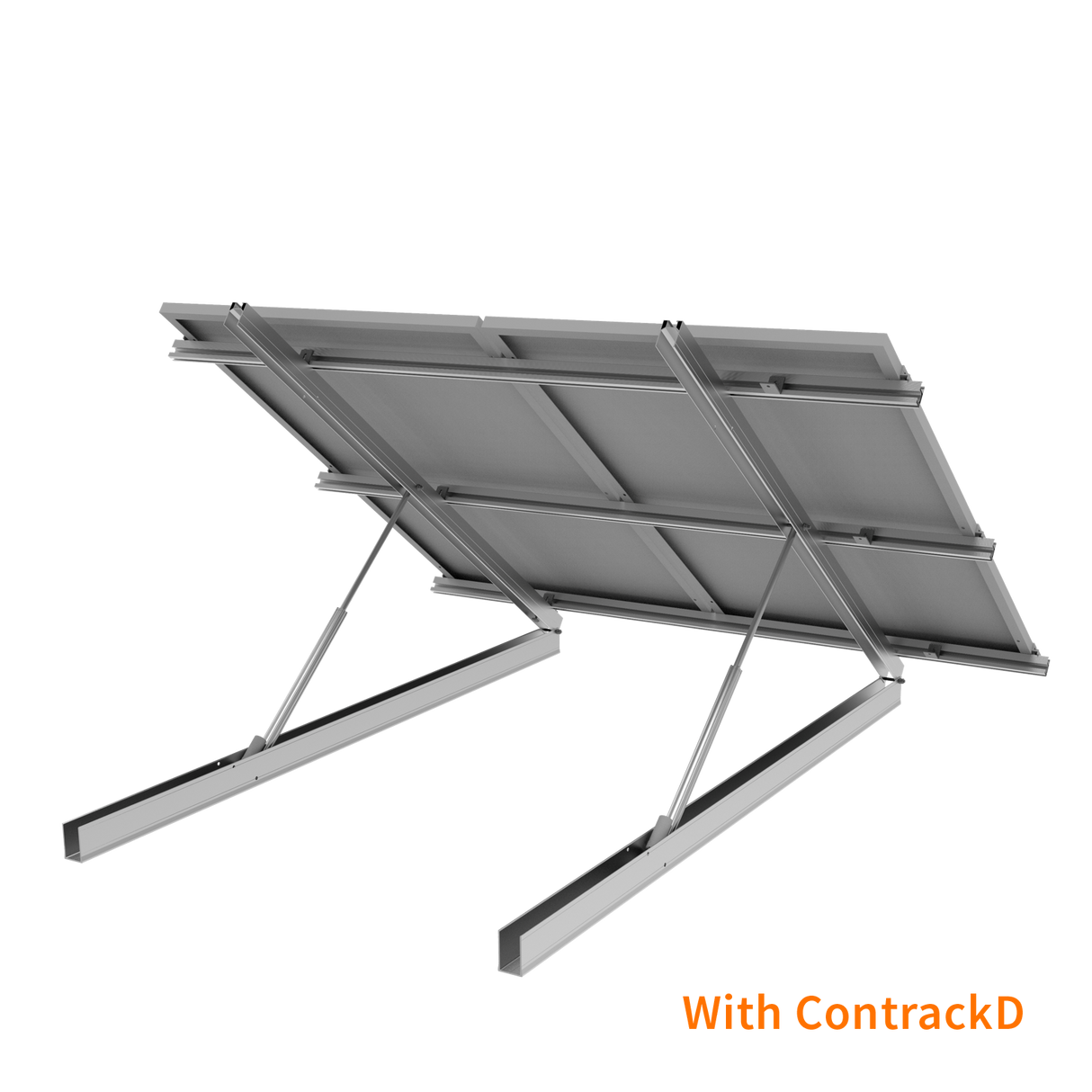

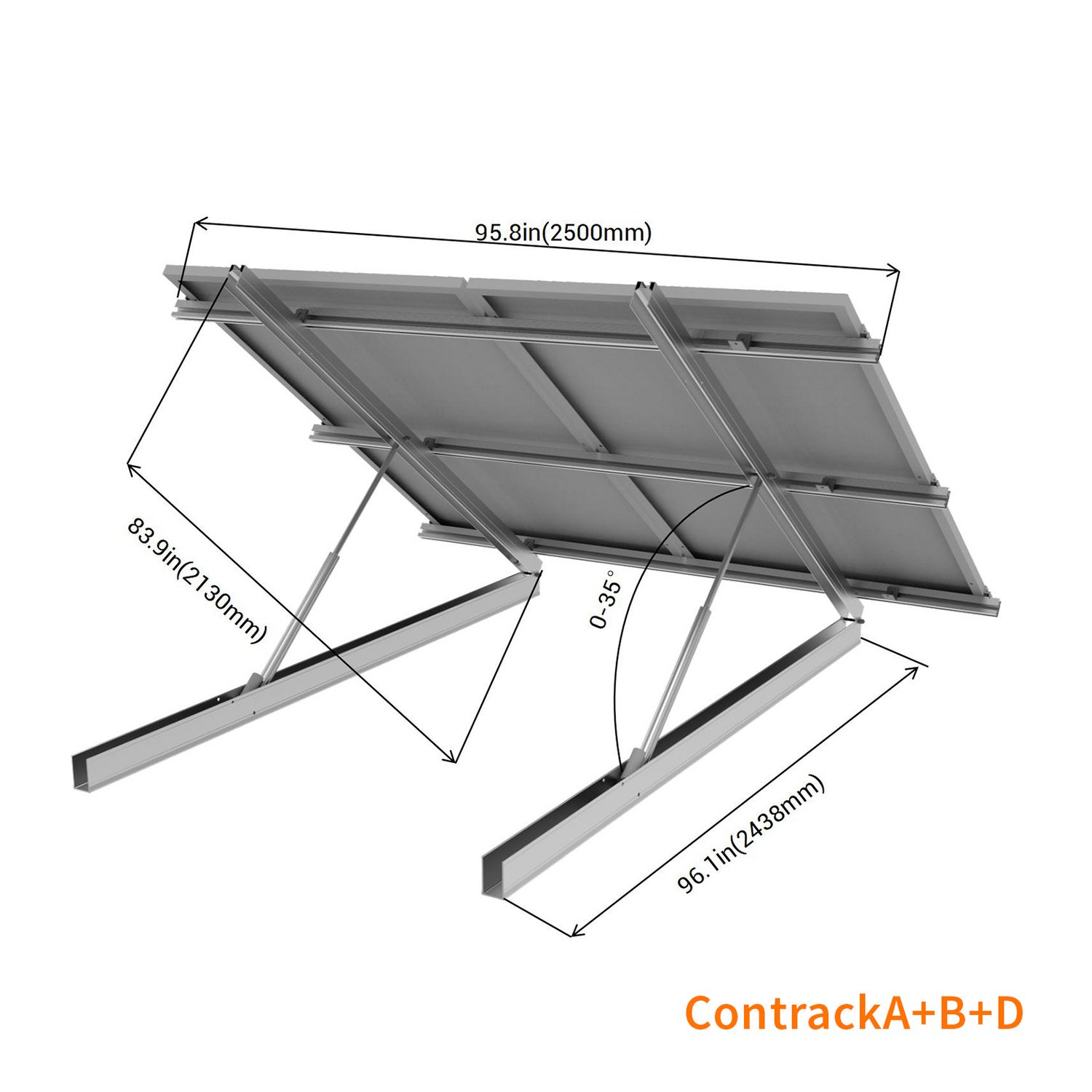

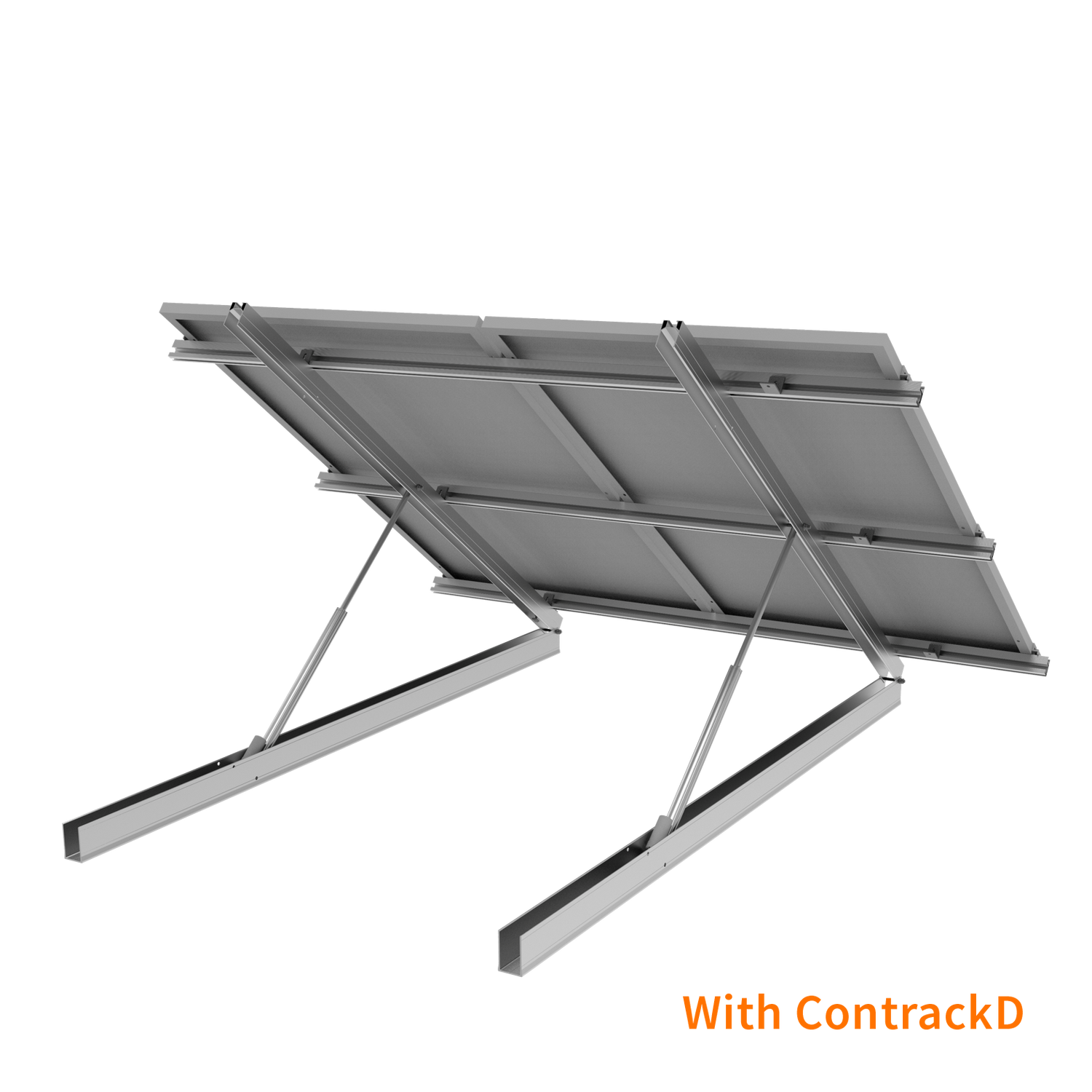

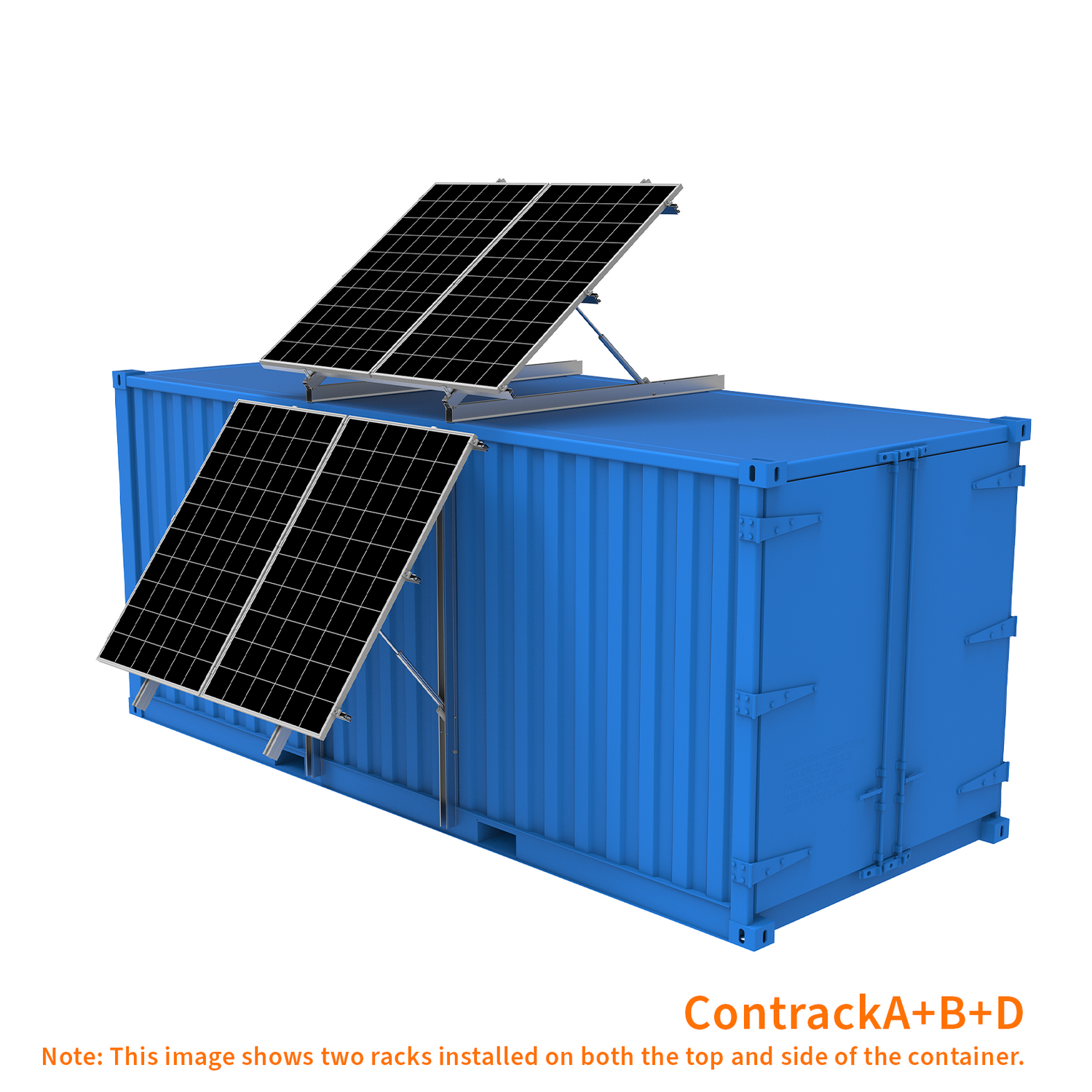

For applications requiring an adjustable tilt angle, the optional ContrackD component allows angle adjustment from 0° to 35°, offering greater flexibility in solar panel positioning.

Key Features:

• Durable Aluminum Construction – Built from high-strength, corrosion-resistant aluminum for long-lasting performance in challenging outdoor environments.
• Modular Two-Panel System – Streamlined design supports quick and secure installation of two solar panels on container rooftops or sidewalls.
• Space-Efficient Integration – Engineered to maximize usable space on shipping containers and mobile units without compromising structural integrity.
• Lightweight & Easy to Deploy – Low-profile and lightweight for faster handling, transport, and installation.

What's in the ContrackA:

• Bottom beam 2438mm x2

• Top beam 2130mm x2

• Support 1150mm x2


• M10x70mm bolt and nut x6

• Rubber x20

• M8x50mm bolt and nut x8

• Tapping screw ST5.5x38mm x12

What's in the ContrackB:

• Rail 2500mm x3

• 30/35mm end clamp x8

• 30/35mm mid clamp x5

• Aluminum nut x14

• L-feet(type-1) 76x50mm x2

• L-feet(type-2) 50x50mm x6

Applications:

• Residential | Commercial | Industrial Flat Roofs | Mobile Workshops | Container Farms & Greenhouses | Delivery Truck Conversions | Refrigerated Containers

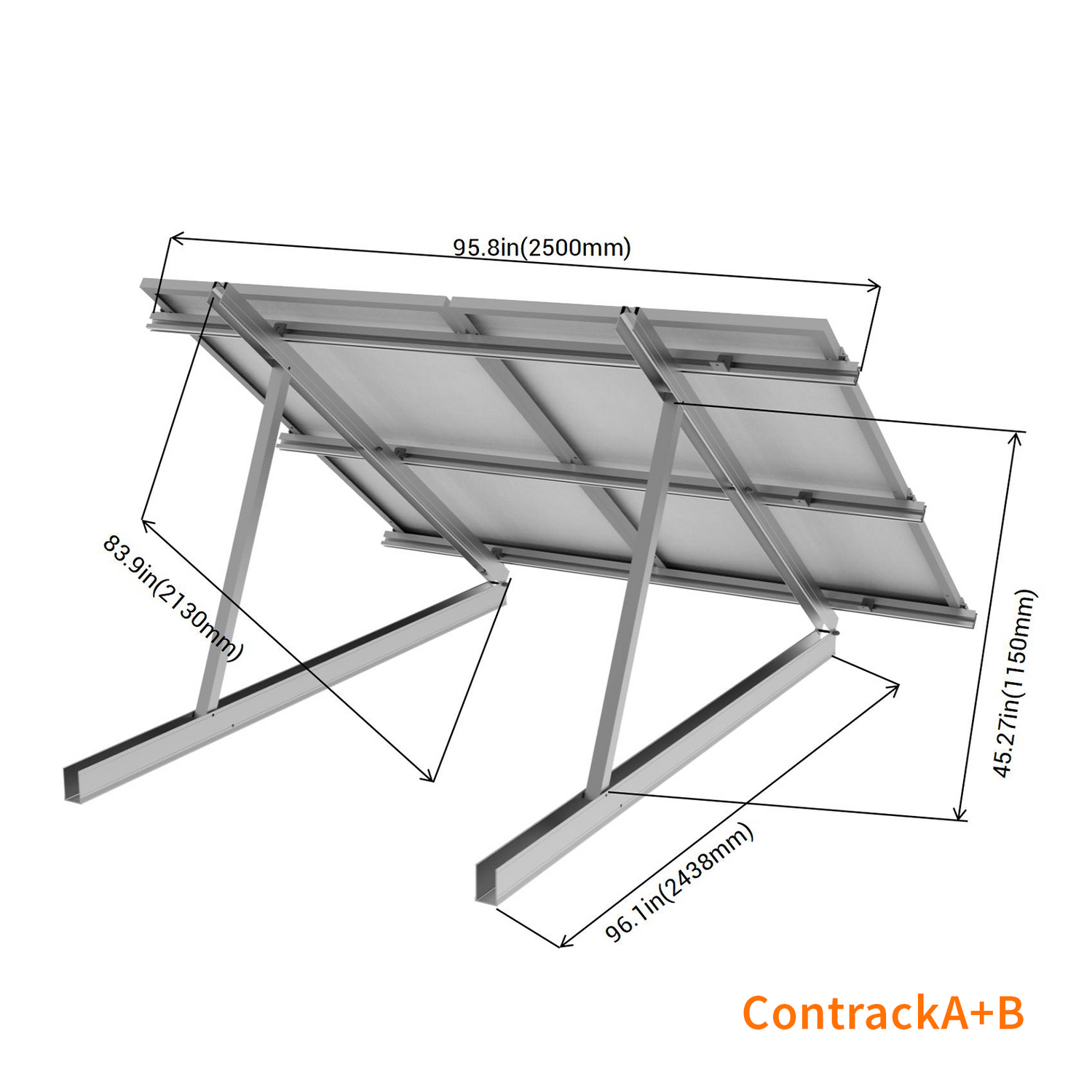

Dimensions:

Warranty:

• 5-year Limited Warranty

Additional Details:

• Model: ContrackA+B
• Weight: ContrackA: 23.1 kg (50.93 lb); ContrackB: 8.3 kg (18.30 lb); ContrackD: 5.79 kg (12.77 lb)
