Elios Contrack A+B | Container Racking for 2 Solar Panels
Elios | SKU:
ContrackA+B
Sale price
$75500
Regular price
$90600
Unit price
Shipping calculated at checkout.
Elios Contrack A+B | Container Racking for 2 Solar Panels is backordered and will ship as soon as it is back in stock.
$755.00
Pickup available at 4490 Avenue des Industries
Usually ready in 2-4 days
Description
Description
For adjustable tilt (0°–35°), add the optional ContrackD component.

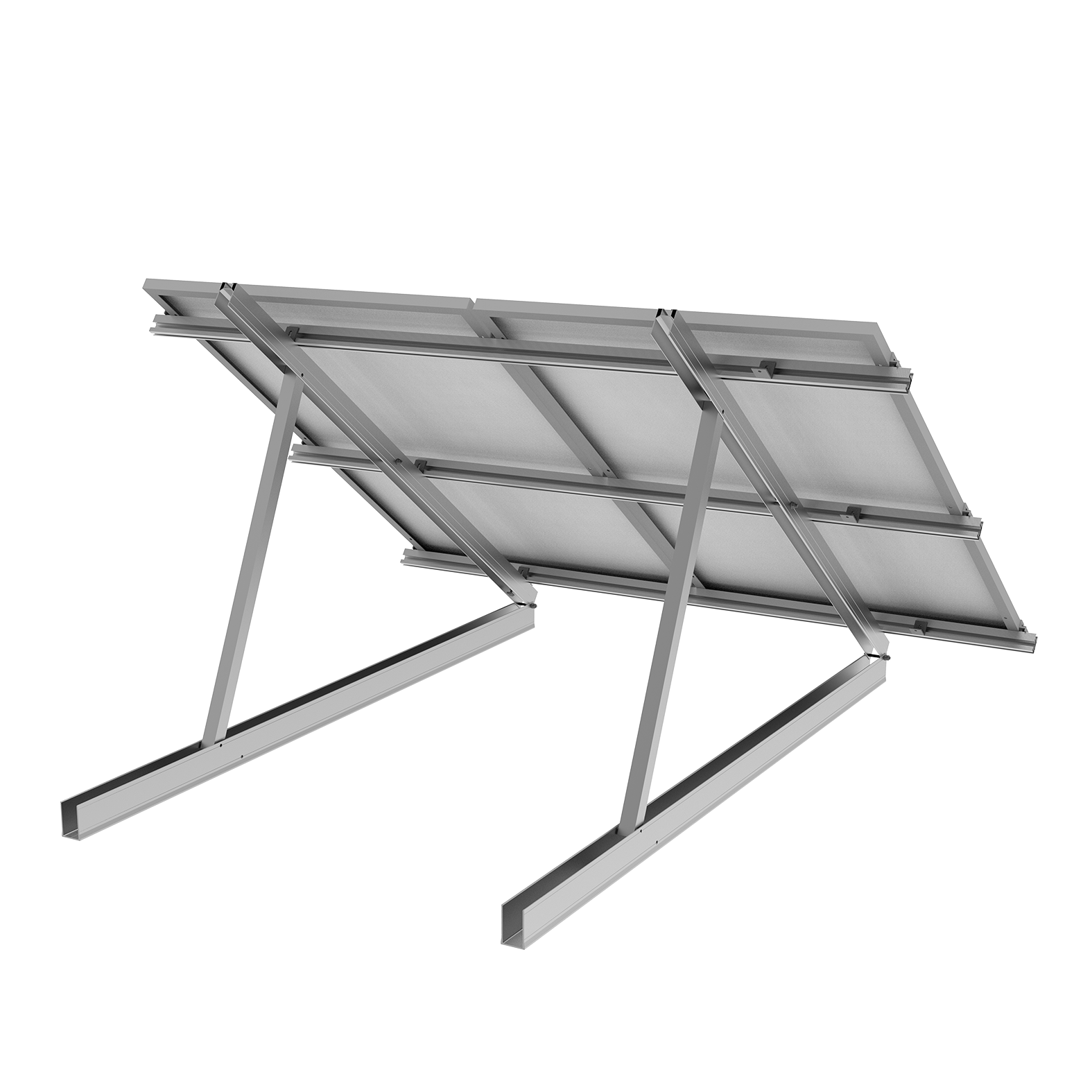

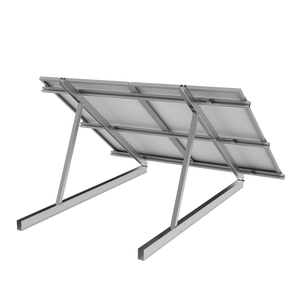

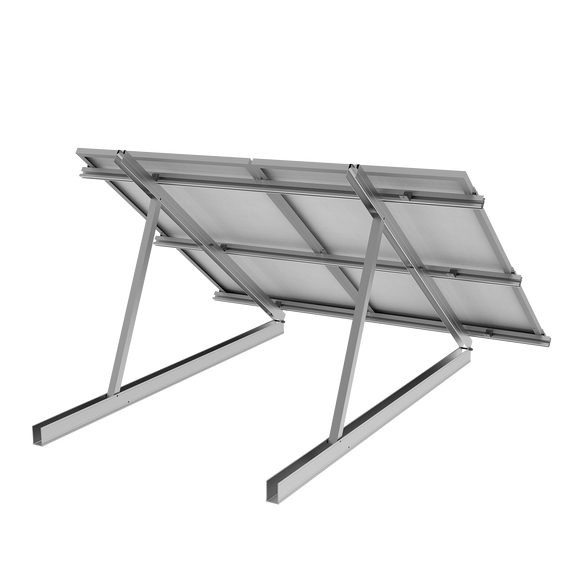

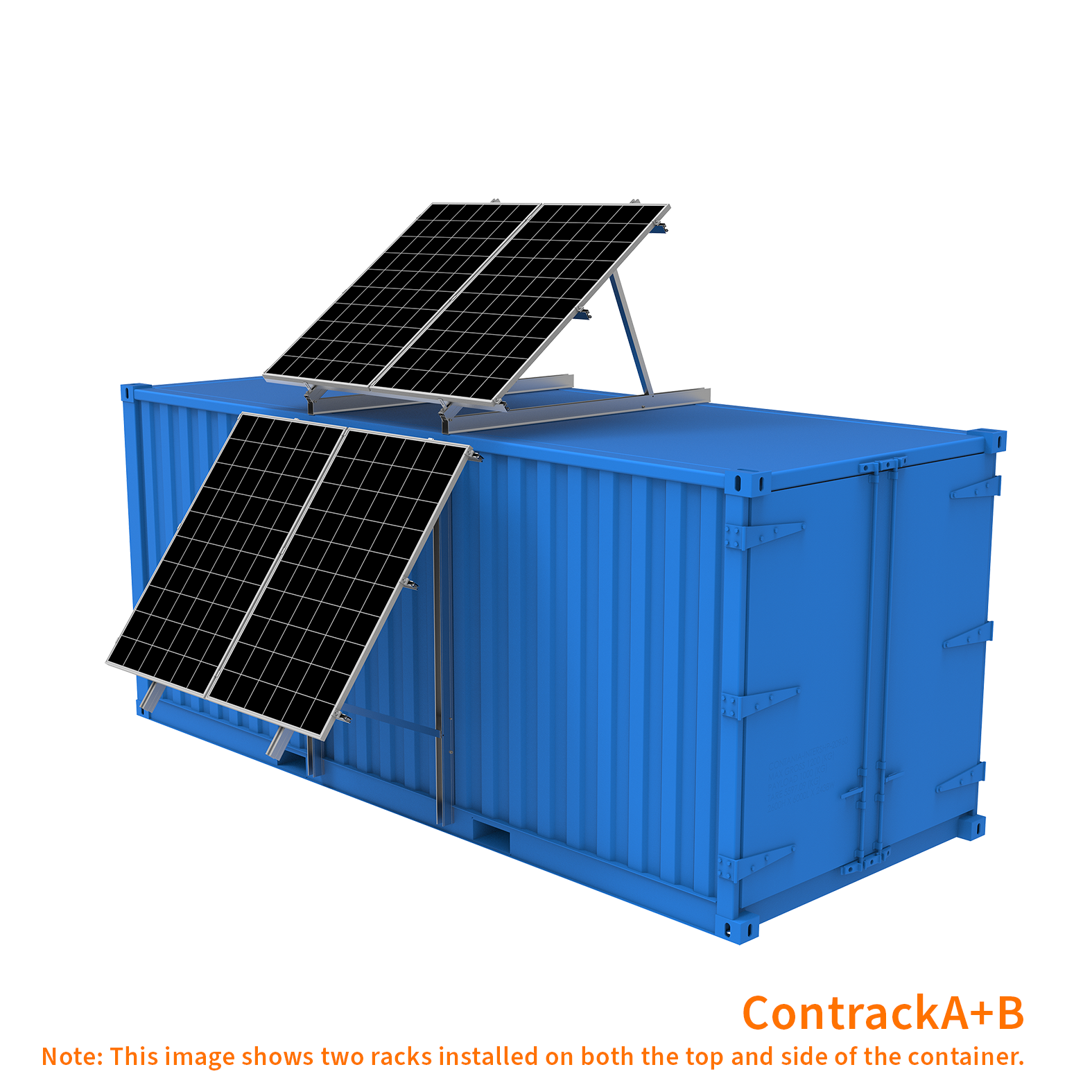

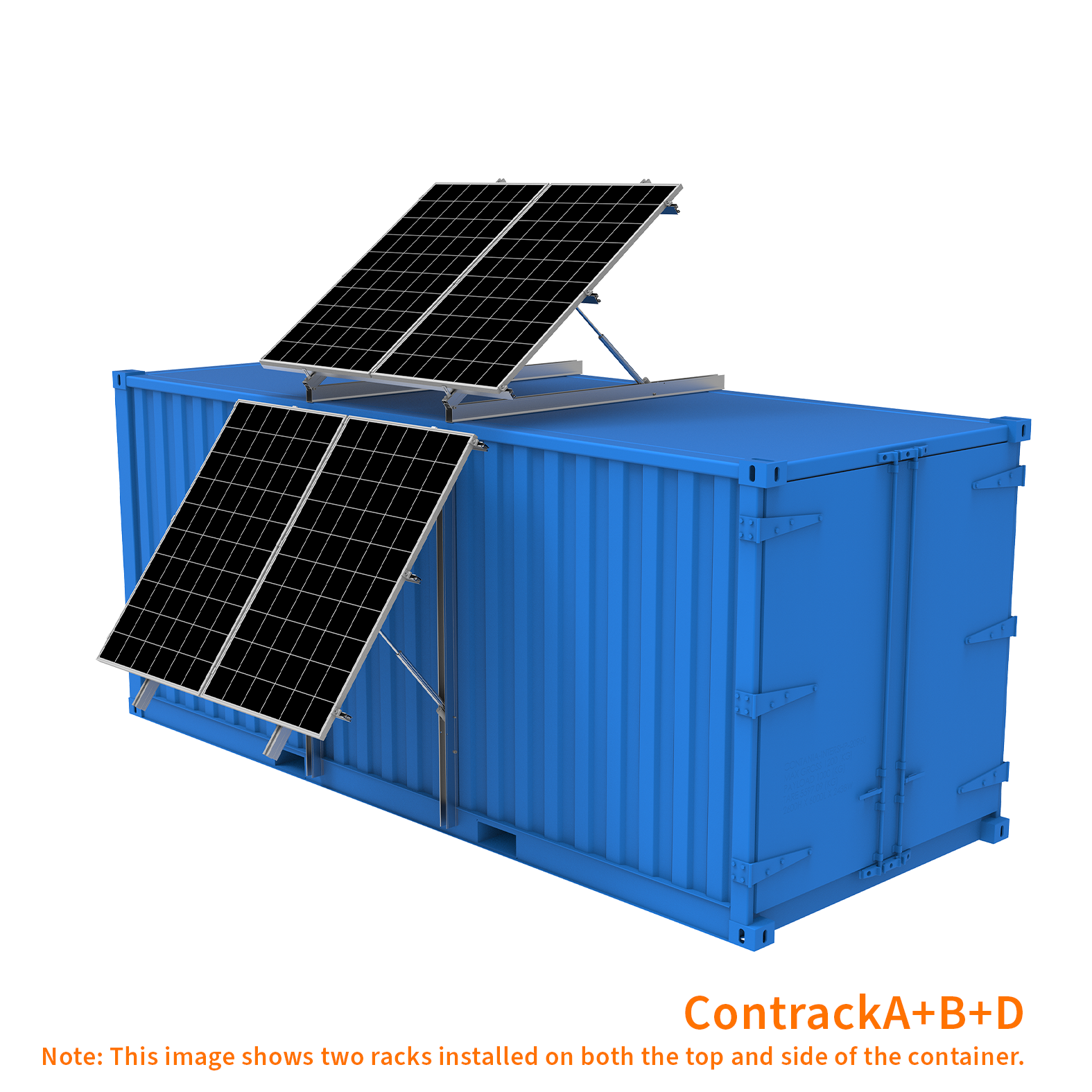

The Elios Contrack A+B is a high-performance aluminum racking system engineered for mounting two solar panels at a fixed 35-degree angle on shipping containers, cargo boxes, or mobile storage units. Optimized for both rooftop and sidewall installation, this modular bracket system offers a space-efficient and structurally sound solution for off-grid and mobile solar applications.
Compatible with standard 60/120-cell and 72/144-cell solar panels, including the Elios Voltaic 600HC-BF, 600W bifacial solar panel.
Crafted from high-strength aluminum alloy, the Contrack A+B is built to withstand demanding outdoor conditions while reducing installation time and complexity. Its compact, container-compatible design makes it ideal for rapid deployment and long-term reliability in the field.

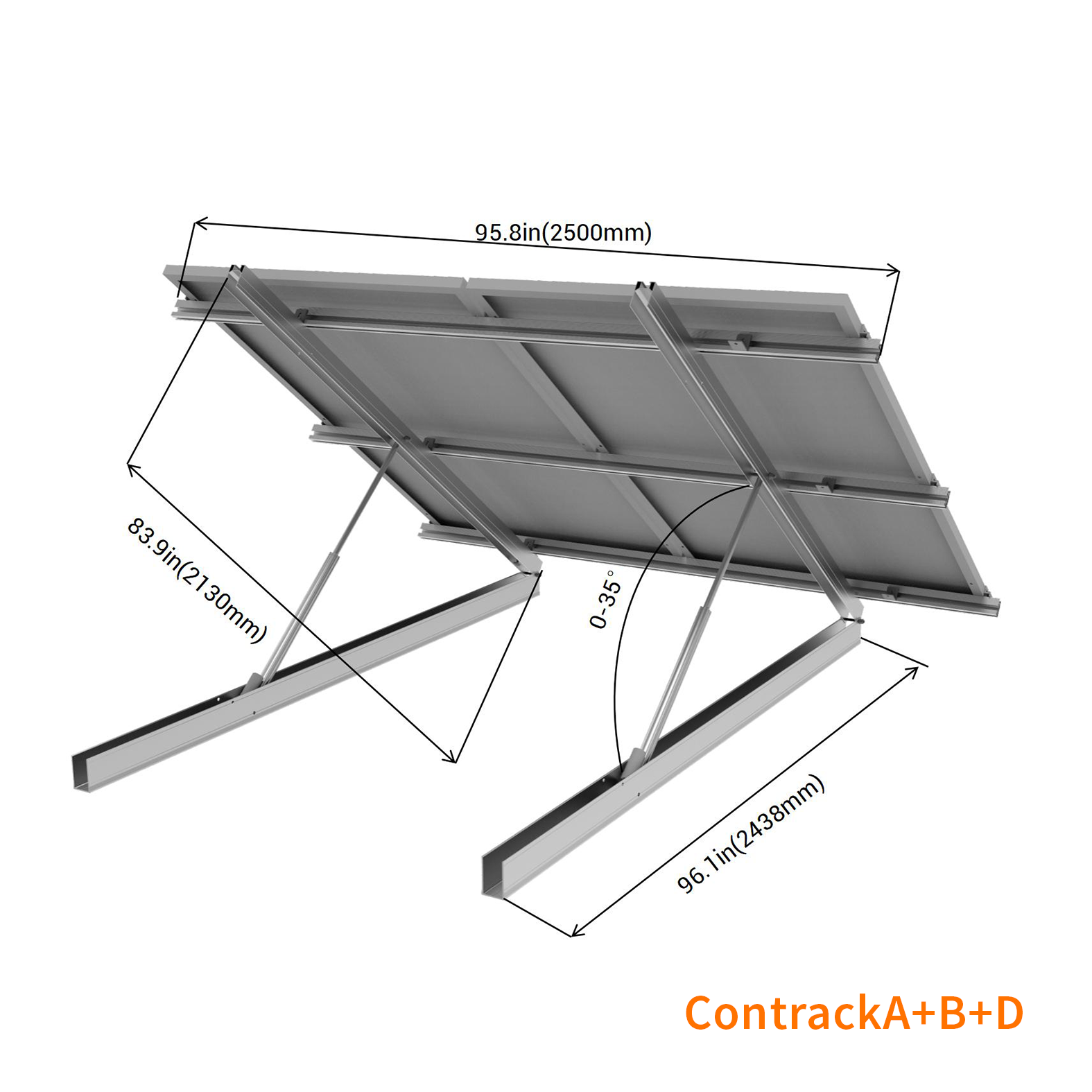

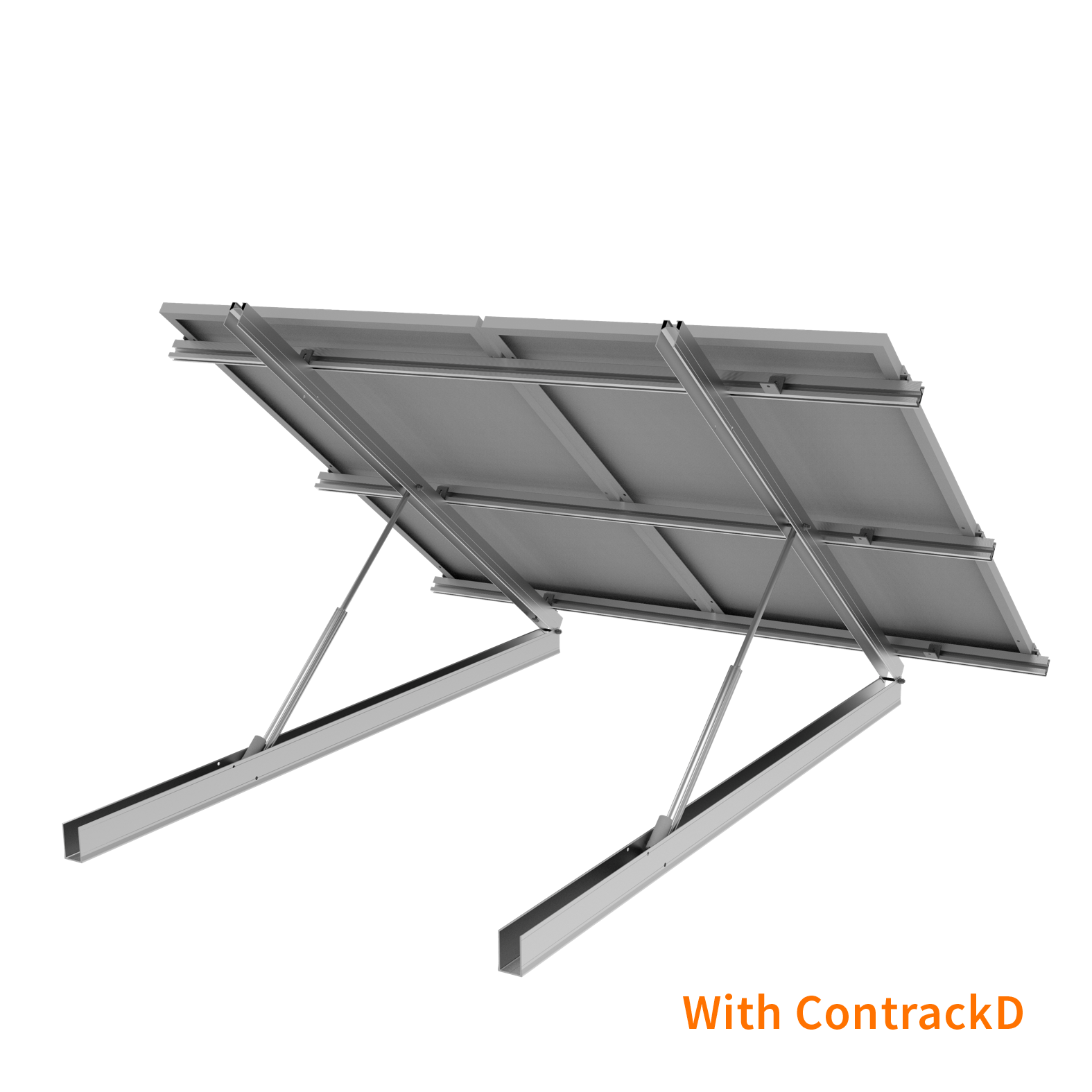

For applications requiring an adjustable tilt angle, the optional ContrackD component allows angle adjustment from 0° to 35°, offering greater flexibility in solar panel positioning.

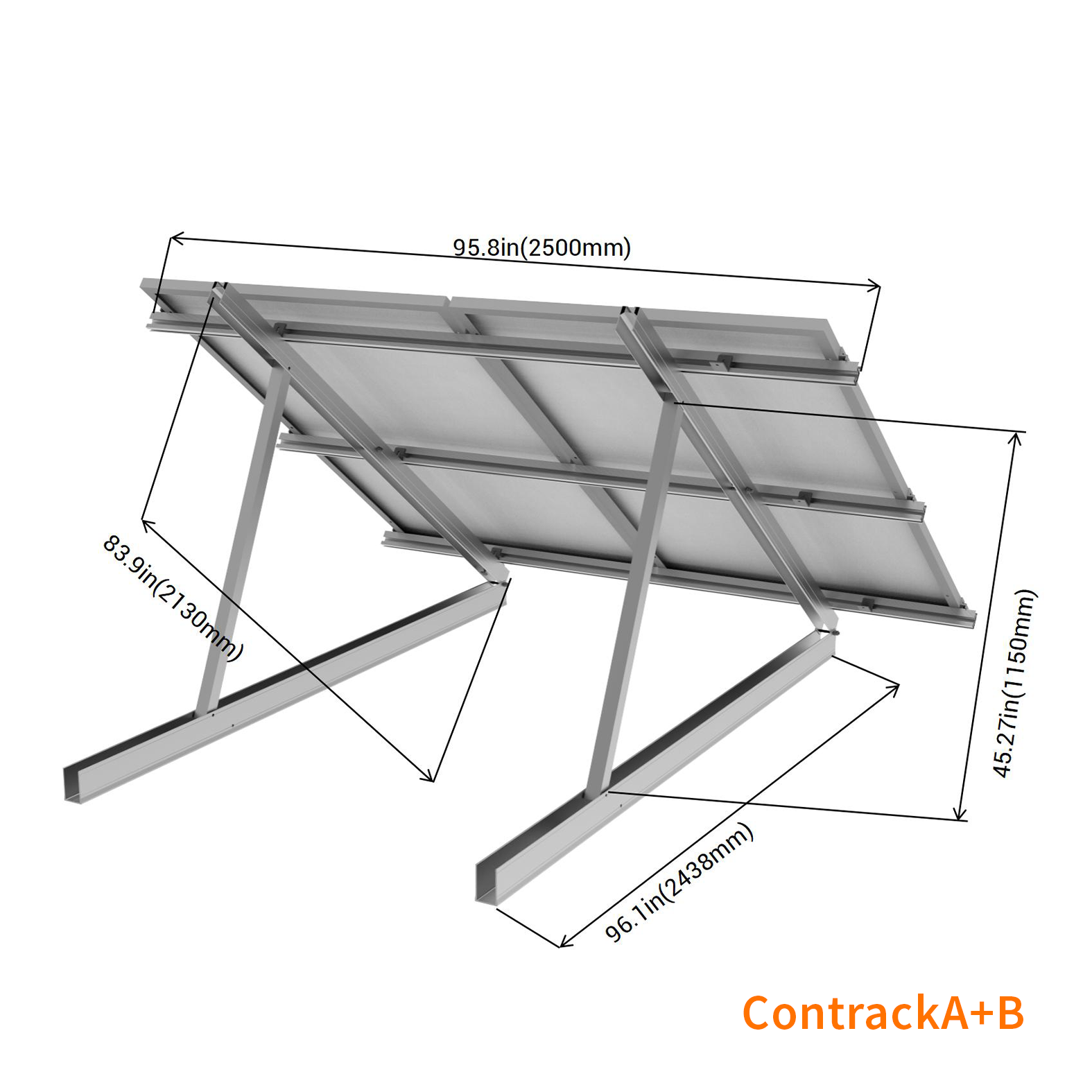

What's in the ContrackA:
- Bottom beam 2438mm x2
- Top beam 2130mm x2
- Support 1150mm x2
- M10x70mm bolt and nut x6
- Rubber x20
- M8x50mm bolt and nut x8
- Tapping screw ST5.5x38mm x12
What's in the ContrackB:
- Rail 2500mm x3
- 30/35mm end clamp x8
- 30/35mm mid clamp x5
- Aluminum nut x14
- L-feet(type-1) 76x50mm x2
- L-feet(type-2) 50x50mm x6

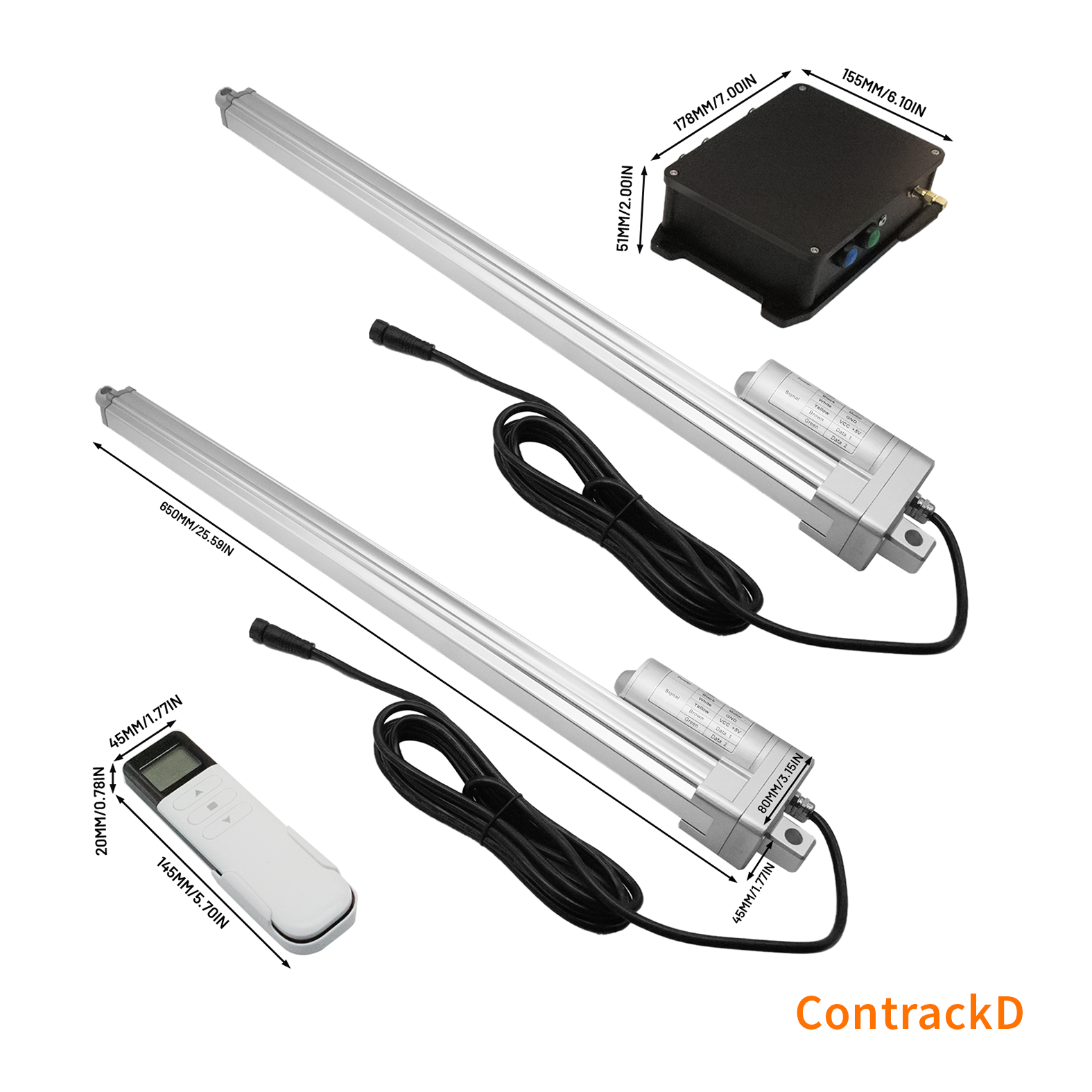

What's in the ContrackD (Optional):
- Linear actuator x2
- Controller x1
- Remote control x1
- M10x70mm bolt and nut x4
- Small Sleeves 12mm x4
- Small Sleeves 16mm x4
Dimensions:
Warranty:
- 5-year Limited Warranty
Additional Details:
- Weight: ContrackA: 23.1 kg (50.93 lb); ContrackB: 8.3 kg (18.30 lb); ContrackD: 5.79 kg (12.77 lb)
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key Features
The Strength Behind Reliable Racking
Durable Aluminum Solar Racking
High-strength, corrosion-resistant aluminum supports long-lasting outdoor solar panel mounting performance.
Two-Panel Mounting System
Streamlined racking design enables fast, secure installation for two solar panels on container-based systems.
Space-Efficient Container Layout
Maximizes available container space while preserving structural strength, stability, and reliable panel support.
Lightweight Racking Design
Low-profile, lightweight construction simplifies transport, handling, and installation for solar mounting projects.
Fast Deployment Setup
Engineered for quick installation to reduce onsite labor, setup time, and overall project effort.
High Wind & Snow Resistance
Designed to withstand winds up to 40 m/s and heavy snow loads for dependable outdoor performance.
Applications
The Strength Behind Reliable Racking
Container
RV
Greenhouse
Commercial
Residential
Industrial
Additional Details
| Model | ContrackA+B |
|---|
