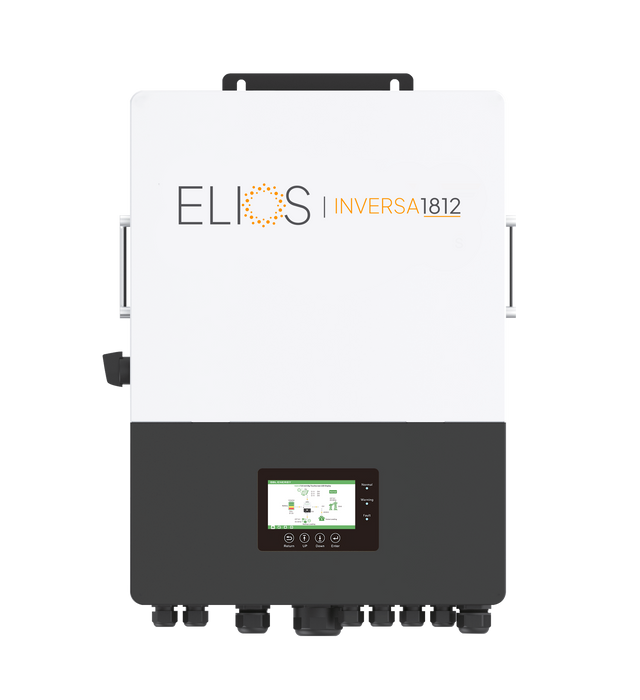

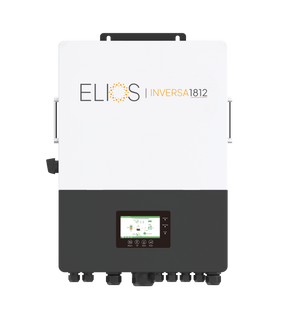

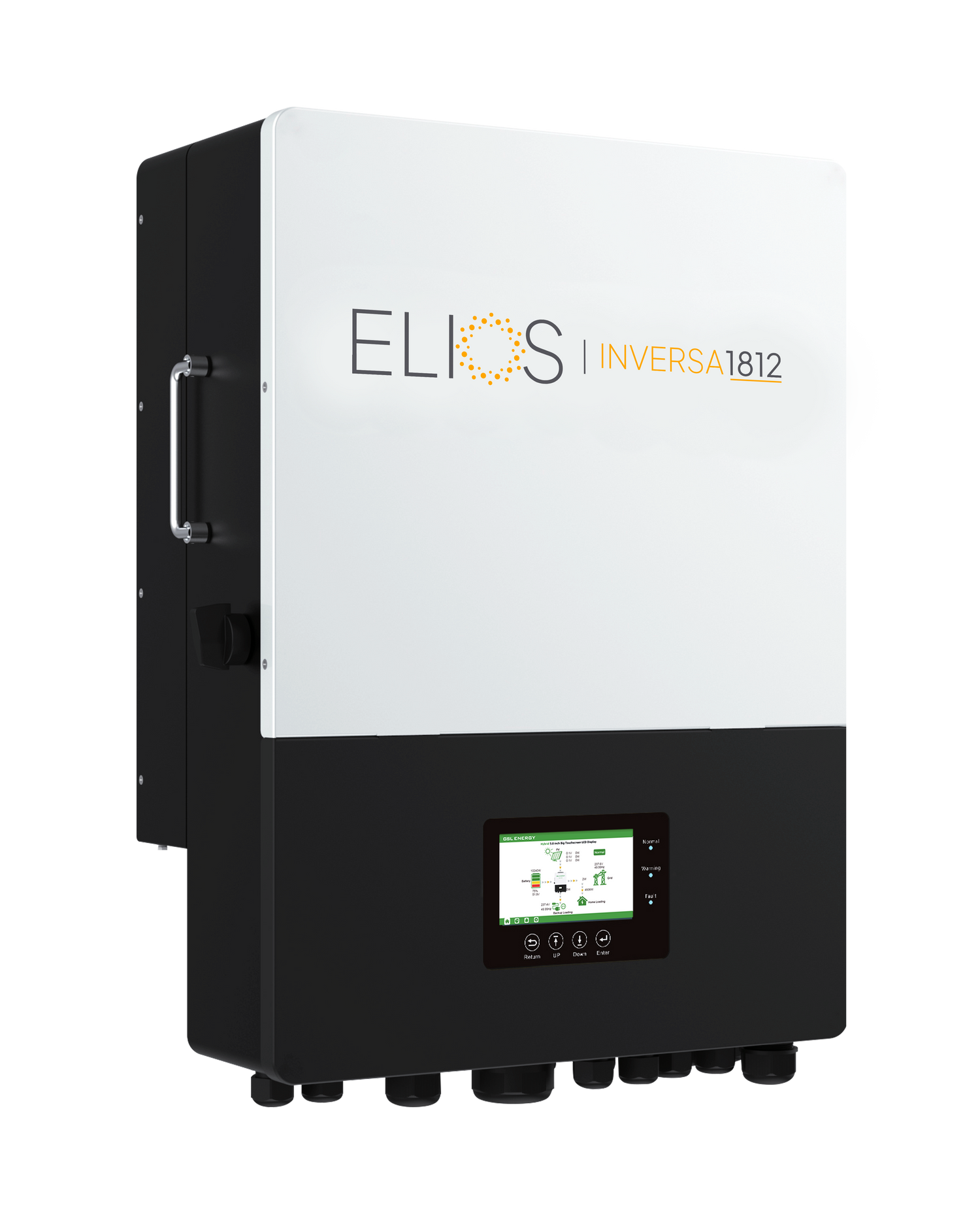

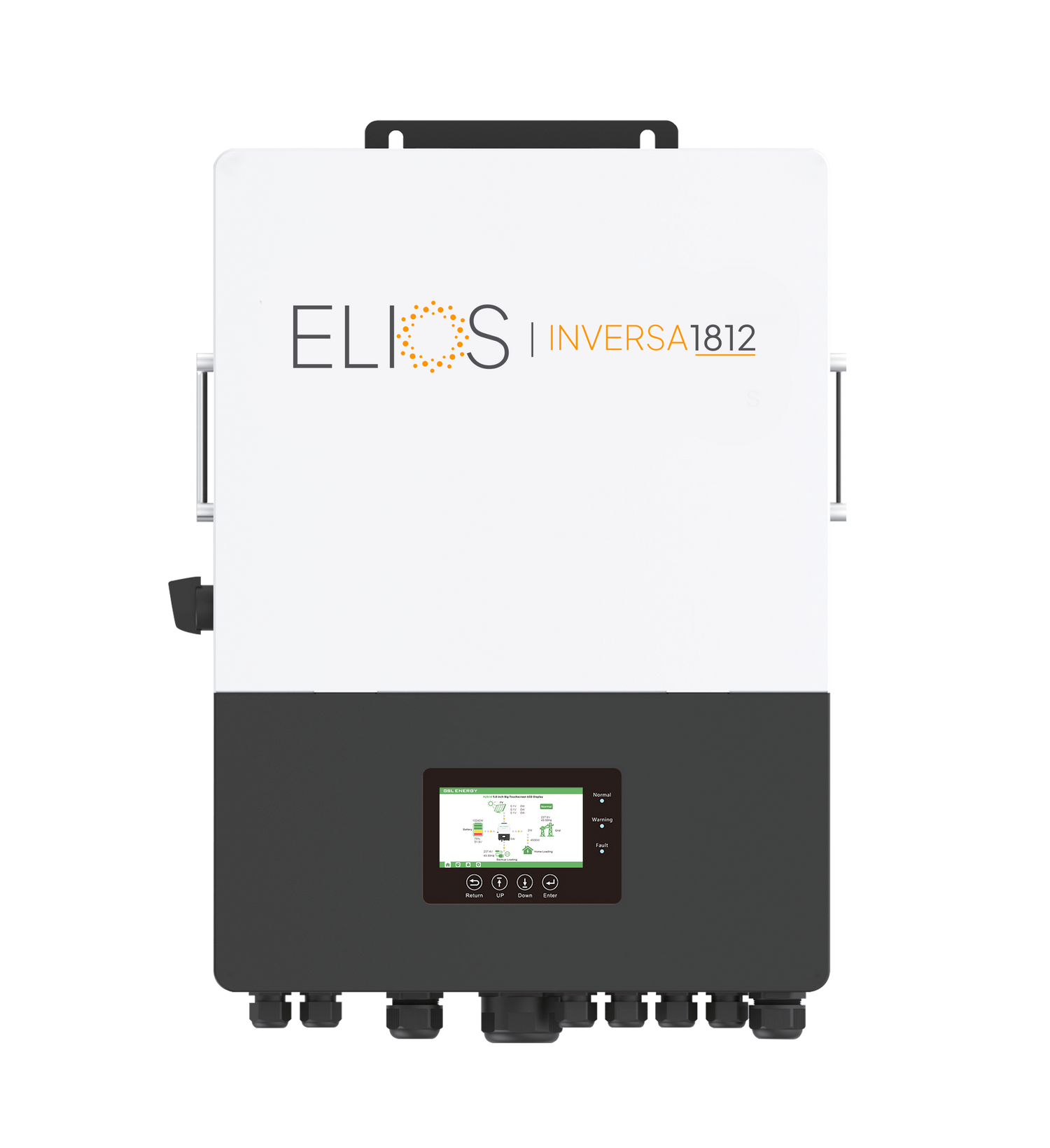

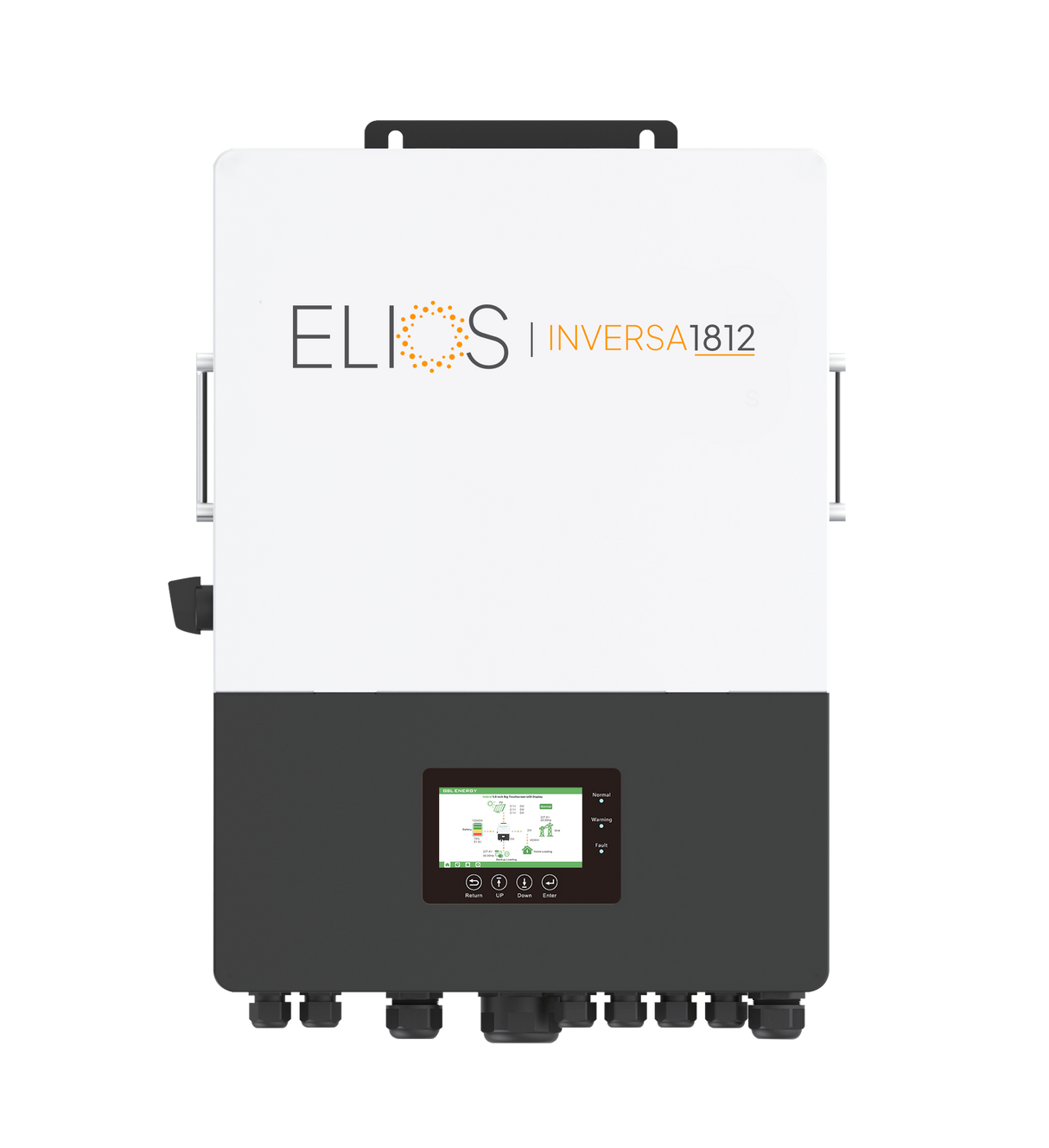

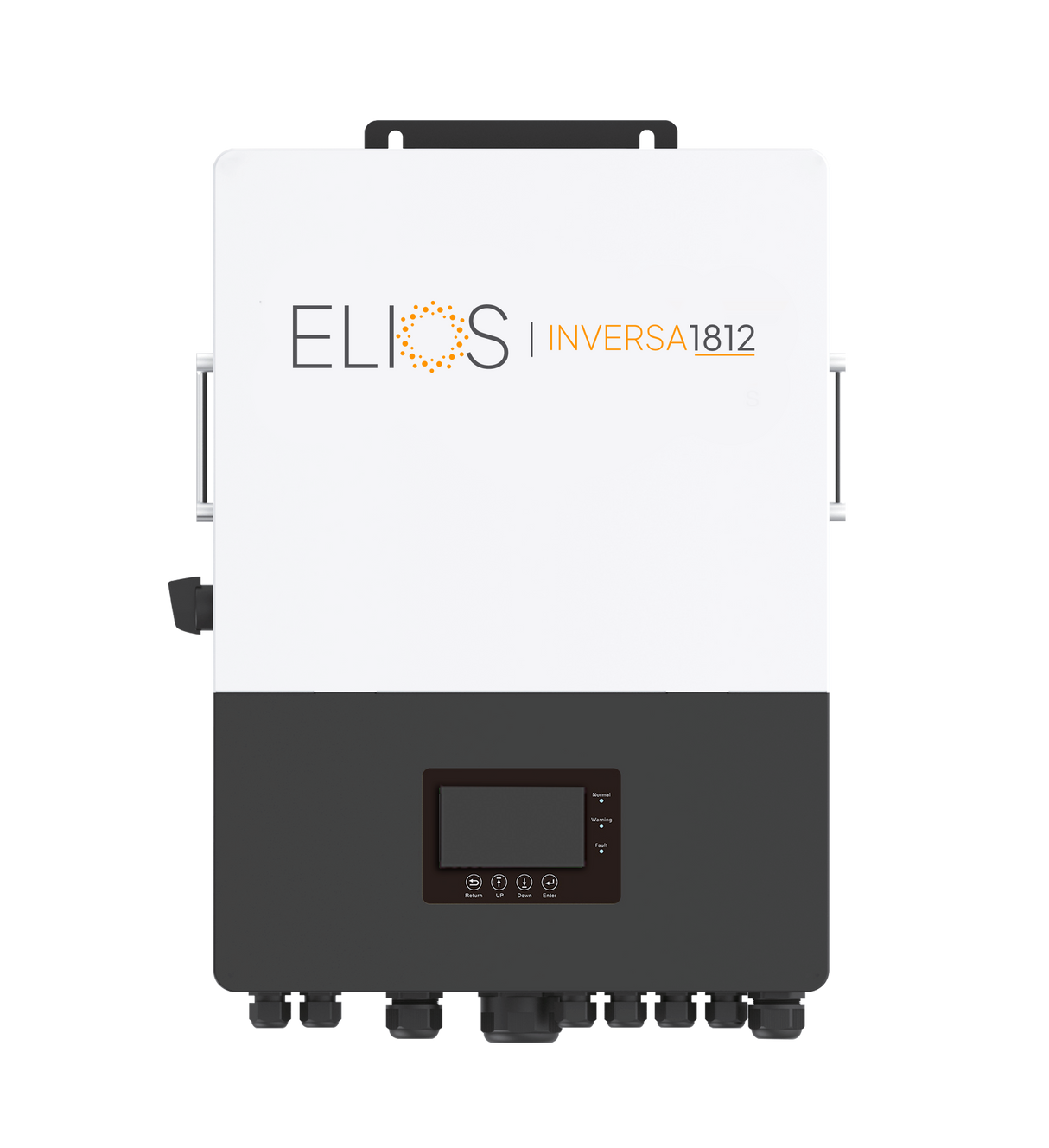

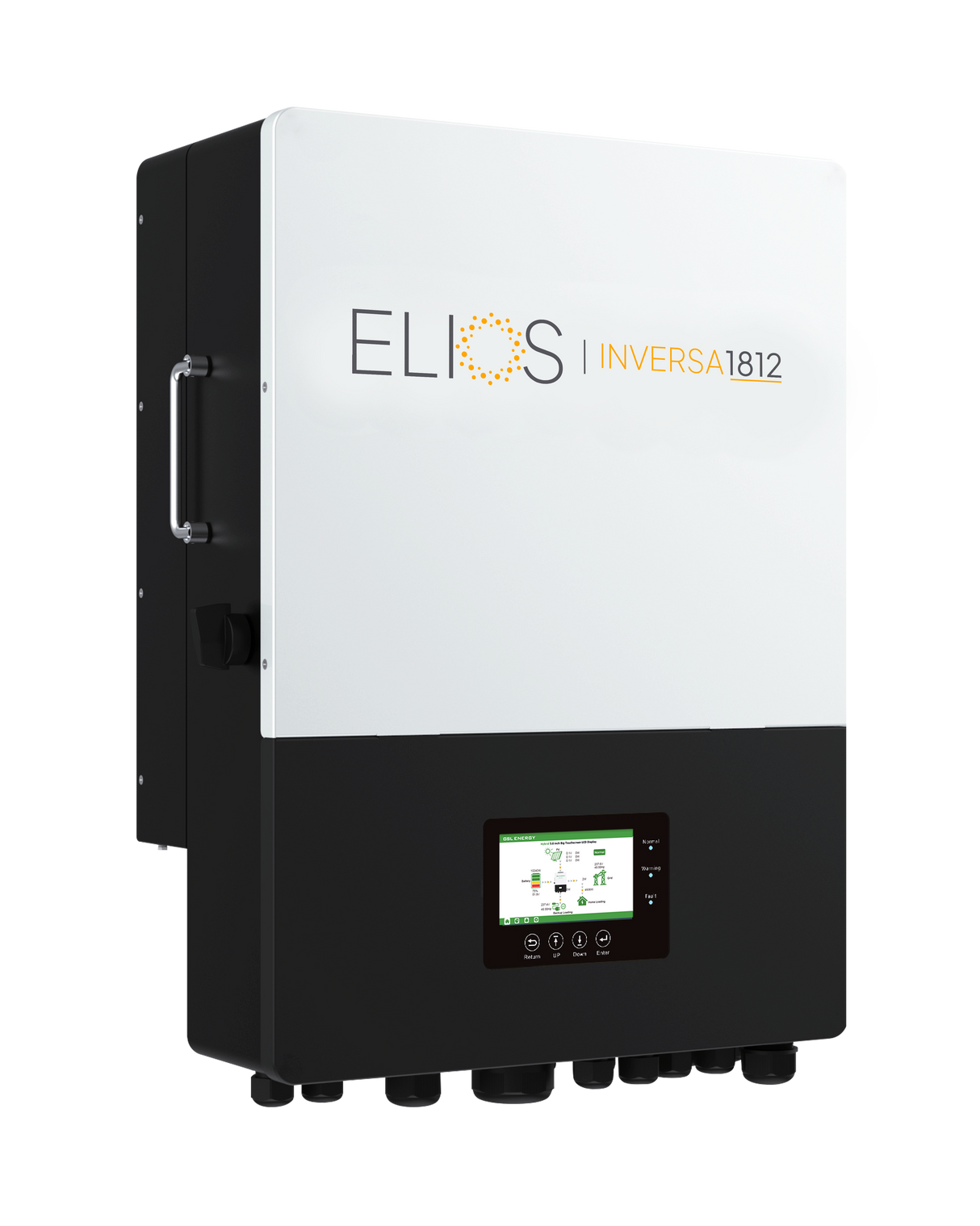

Elios Inversa1812 | 12/18KW All in one Hybrid Solar Inverter Charger | LuxPower | UL1741 Certified

Product SKU: 12/18K-200-120/240-UL
  • $6,998.00
    Unit price per
Shipping calculated at checkout.


Elios has made extraordinary efforts to design the latest and most advanced technologies to fulfill the constantly evolving requirements of the renewable energy industry. The new Hybrid Series High Performance Inverter provides exceptional efficiency and unparalleled reliability as an all-in-one solution for all your energy requirements and can be a great addition to any solar energy system.

This powerful Elios Inversa Hybrid solar Inverter is a device that combines a solar inverter and a battery inverter in one unit. It is designed to be used in residential and commercial solar energy systems to convert DC electricity generated by solar panels into AC electricity that can be used to power appliances in the home or business.

The Elios Hybrid Inverter is a model of Hybrid Inverters that is capable of handling a maximum DC Input Power for Single MPPT 12kW and a maximum PV Input Power 18kW. It is also equipped with a battery charger that allows it to charge batteries from the AC grid or from the solar panels.

This Elios all-in-one Hybrid inverter is designed and produced for high efficiency and reliability, and it comes with a range of features such as remote monitoring, overvoltage protection, and overcurrent protection. It is also designed to be user-friendly, with a simple interface that allows users to easily monitor and control their solar energy system.


Key Features

  • 120V/240V Split phase Pure Sine Wave
  • Self-consumption and feed-in to the grid
  • Auto restart while AC is recovering
  • Programmable supply priority for battery or grid
  • Multiple operation modes: On grid, Off grid and UPS.
  • Configurable battery charging current/voltage settings
  • Configurable AC/Solar/Generator Charger Settings
  • Wi-Fi monitor Support Monitor System and Cloud Connect
  • Voltage Compatibility
  • Multiple Stages Protection
  • Smart Battery Charger Design
  • Built-In 3 strings of MPP trackers



 Advantages

  • Unparalleled Safety – This Hybrid Inverter comes equipped with a sophisticated and intelligent Energy Management System that can be used with multiple connections. It also features a range of safety measures including PV Arc Fault Detection, PV Input Lightning Protection, and Output Over Current Protection, as well as several other safety protection protocols.
  • Long Life Design  This hybrid solar inverter has been designed the Hybrid Series to be highly resilient to extreme weather and temperatures, with an IP65 protection rating that sets it apart from other similar products. In addition to this, we offer a 10-year warranty that serves as a testament to our commitment to quality assurance.
  • Unsurpassed Performance  This all-in-one solar inverter has been engineered to perform exceptionally well in all kinds of applications. It can deliver the required energy whenever and wherever it is needed, thanks to its ability to provide up to 190A of continuous discharge current.
  • Unmatched Reliability – Elios invests considerable effort into researching and developing each of its products, and conducts extensive testing to ensure they meet high standards. The Hybrid 12/18K-200-120/240-UL Series is a prime example of this, as it provides excellent performance and reliability while offering complete versatility.
  • Easier Installation –  This Inverter has the flexibility to function independently or be affixed to a wall as an accessory, offering a space-saving and visually appealing design that enhances the aesthetics of your renewable or backup system.

Applications

  • Solar Renewable Energy
  • Back-Up Energy Systems
  • Home, Office and Trailer
  • Multiple Protection Management System
  • Other electric applications with high energy requirements


Additional information:

  • Brand: Elios
  • DC-Input-Voltage-Range: 100V~600V
  • Height-1: 670 mm
  • Length-1: 490 mm
  • Max-PV-Input-Power: 18000W
  • Max. DC-Input-Power-for-Single-MPPT: 12000W/7000W/7000W
  • Nominal-AC-Voltage: 120/240V Split Phase
  • Nominal-DC-Input-Voltage: 360V
  • Nominal-Power: 12000W
  • Warranty: 10-Year Long Term warranty
  • Width-1: 265 mm

Product Attachments:
