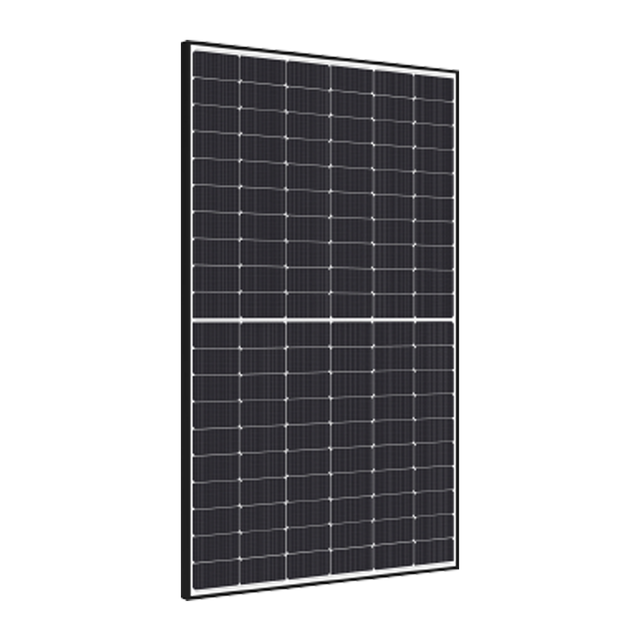

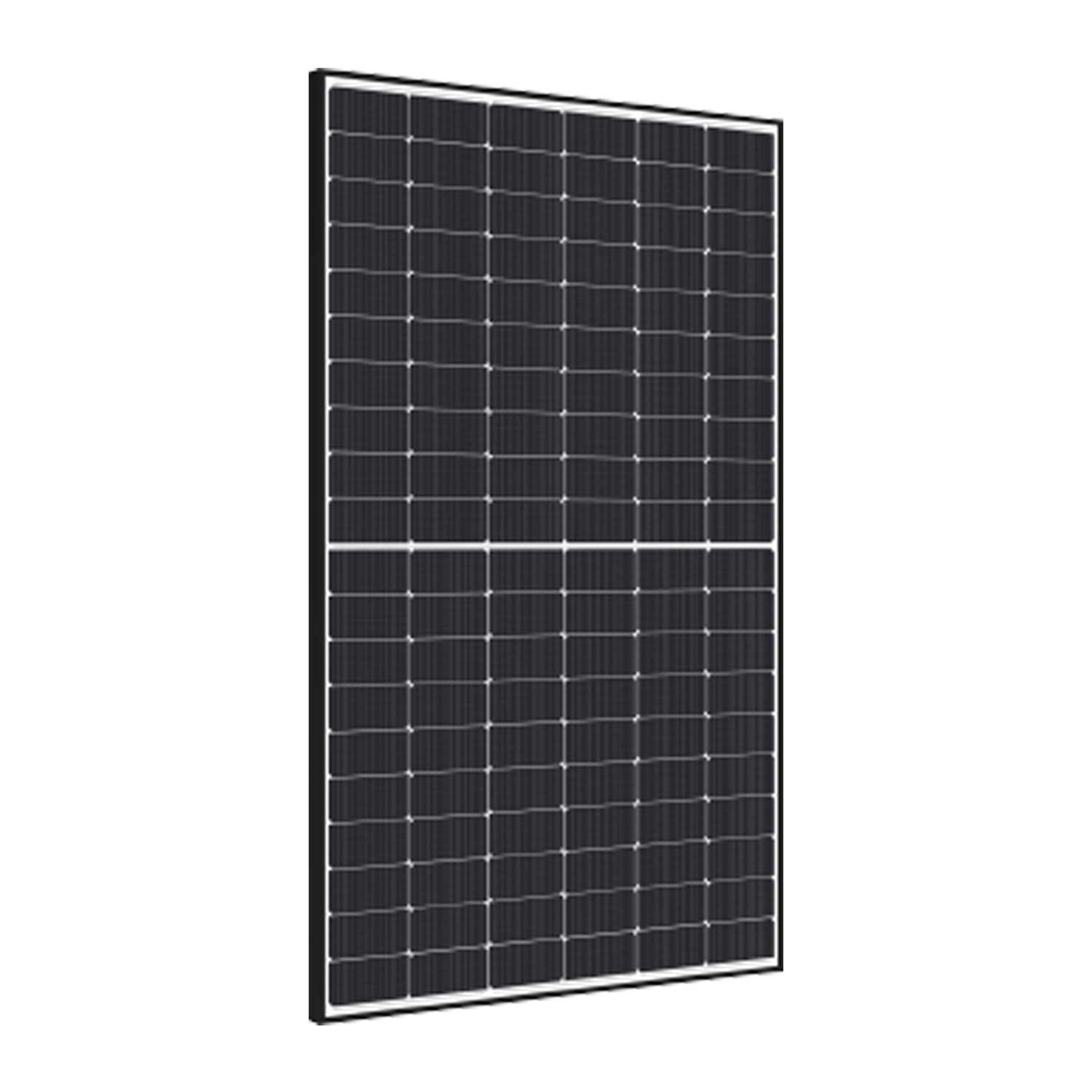

Vsun 480W Bifacial Solar Panel | PERC Cell Technology

Product SKU: VSUN480N-120BMH-DG-BW
  • $349.98
    Unit price per
Shipping calculated at checkout.


*Available Now*

Description:

Experience the future of solar energy with the Vsun 480W Bifacial Solar Panel that generates up to 480 watts of power. Combining revolutionary PERC Cell Technology with a sleek design, this solar module offers unmatched efficiency. As a BNEF Tier 1 PV module manufacturer, Vsun has earned a strong reputation, receiving accolades like "Best Performer" from PVEL Lab and the "Bronze Award" from EcoVadis.

With an impressive efficiency of up to 22.65%, the Vsun 480W is not just a solar panel; it sets a new standard for innovation and reliability. Utilizing TOPcon solar cells integrated with MBB technology featuring Circular Ribbon, our panels capture more sunlight and produce maximum energy output.

With its advanced features, the Vsun 480W Bifacial Solar Panel with PERC Cell Technology offers significant advantages for various applications. Its long-term warranty guarantees a worthwhile investment, with higher energy yield, improved low-light performance, and improved aesthetics as some of its benefits.

Key Features:

  • TOPcon technology ensures higher output power, enhancing overall performance.
  • MBB technology with Circular Ribbon provides better shading tolerance and improved temperature coefficient, ensuring reliable operation in various conditions.
  • Positive tolerance offer ensures consistent and reliable energy yields.
  • Bifacial cells optimize sunlight conversion, further boosting energy production.
  • Excellent PID Resistance ensures durability and longevity.
  • Lower LCOE (Levelized Cost of Energy) makes Vsun panels a cost-effective choice for your solar needs.
  • Compliant with UL 61730 & CSA 61730, IEC 61215 & IEC 61730 standards, ensuring safety and quality assurance.

Application:

  • Residential rooftop solar systems
  • Commercial and industrial rooftop solar systems
  • Ground-mounted solar systems
  • Solar-powered water pumping systems
  • Solar-powered street lighting systems
  • Solar-powered telecommunications systems
  • Solar-powered Off-grid Container

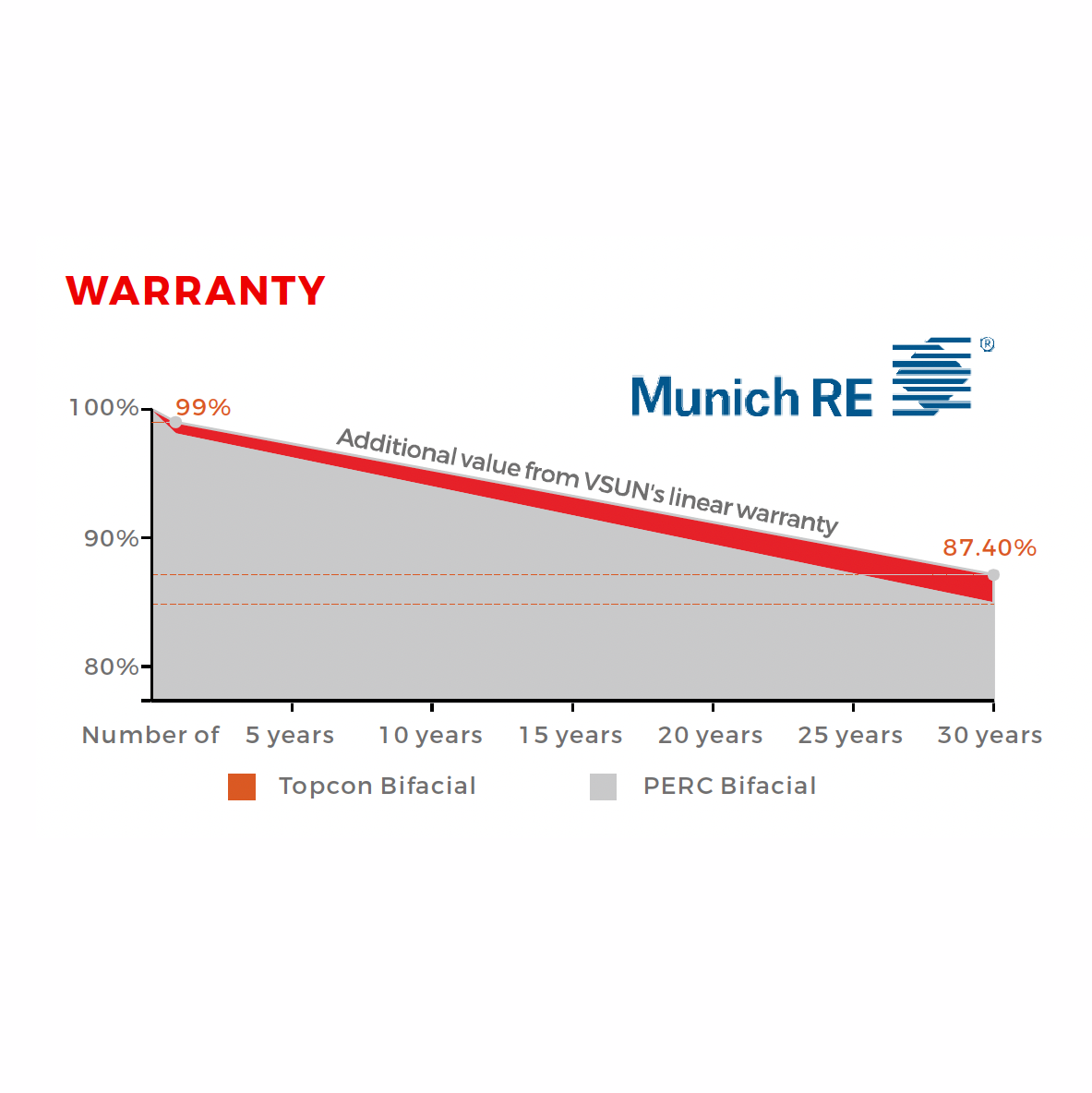

Warranty:

  • 12-year quality assurance
  • 30-year power output guarantee



Additional information:

  • Back glass: Glazed & Semi-toughened glass, 2.0mm
  • Bifaciality: 80%±10%
  • Cable: Potrait: 500 mm (cable length can be customized) , 1×4 mm2 or 12AWG
  • Cell: 12×10 pcs mono solar cells series strings
  • Dimension: 1908×1134×35mm (L×W×H) 75.12*44.65*1.38 inches (L×W×H)
  • Frame: Black anodized aluminum profile
  • Front glass: AR-coating Semi-toughened glass, 2.0mm
  • Module Efficiency: 22.18%
  • Module Type: VSUN480N-120BMH-DG-BW
  • Open Circuit Voltage - Voc (V): 42.71
  • Temperature Range: -40 °C to + 85 °C
  • Weight: 27.5kg / 60.63lbs

Product Attachments:
