Elios Arbora P8-C I Pole Mount System for 8 Solar Panels | Includes Manual Crank & Accessories is backordered and will ship as soon as it is back in stock.
Pickup available at 4490 Avenue des Industries
Usually ready in 2-4 days

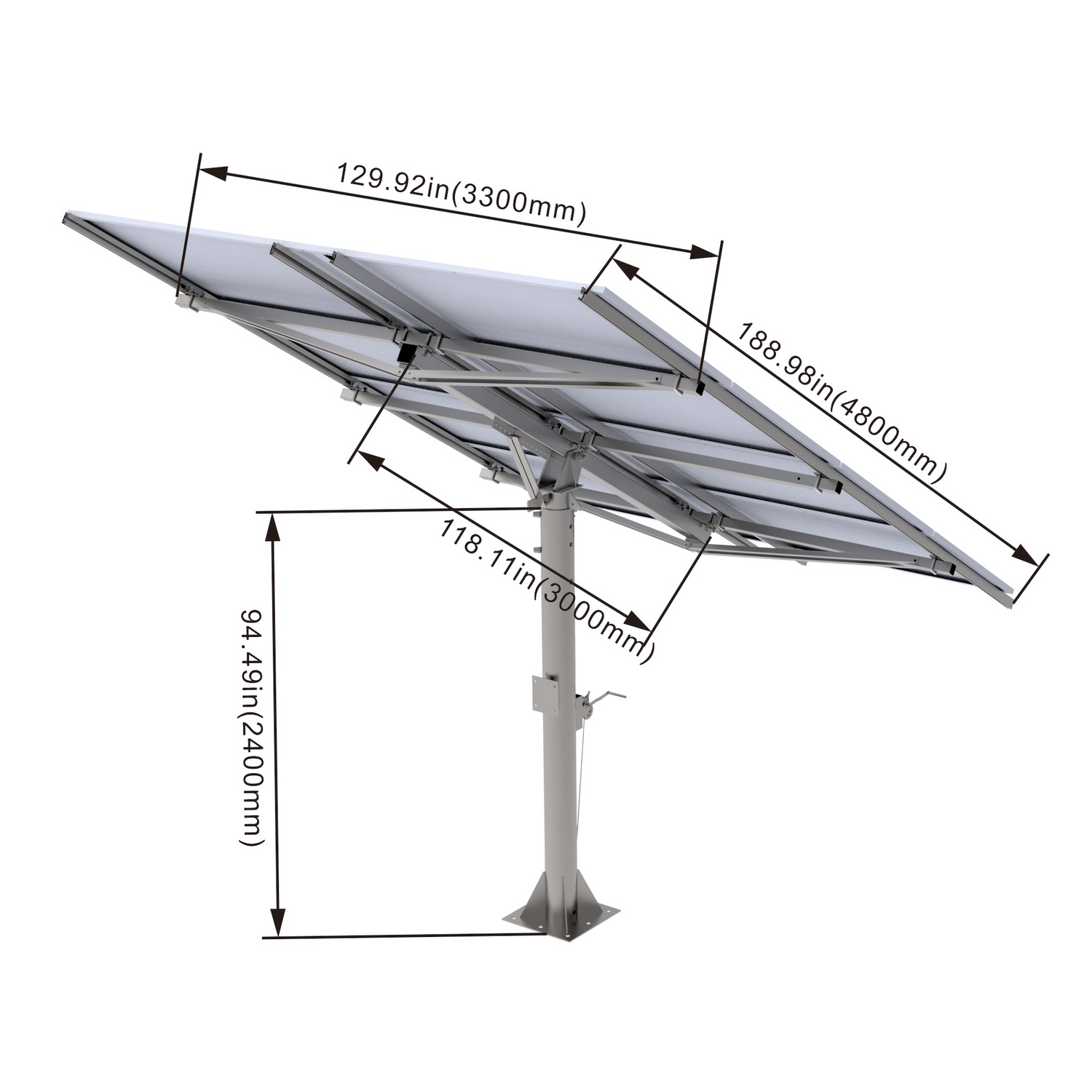

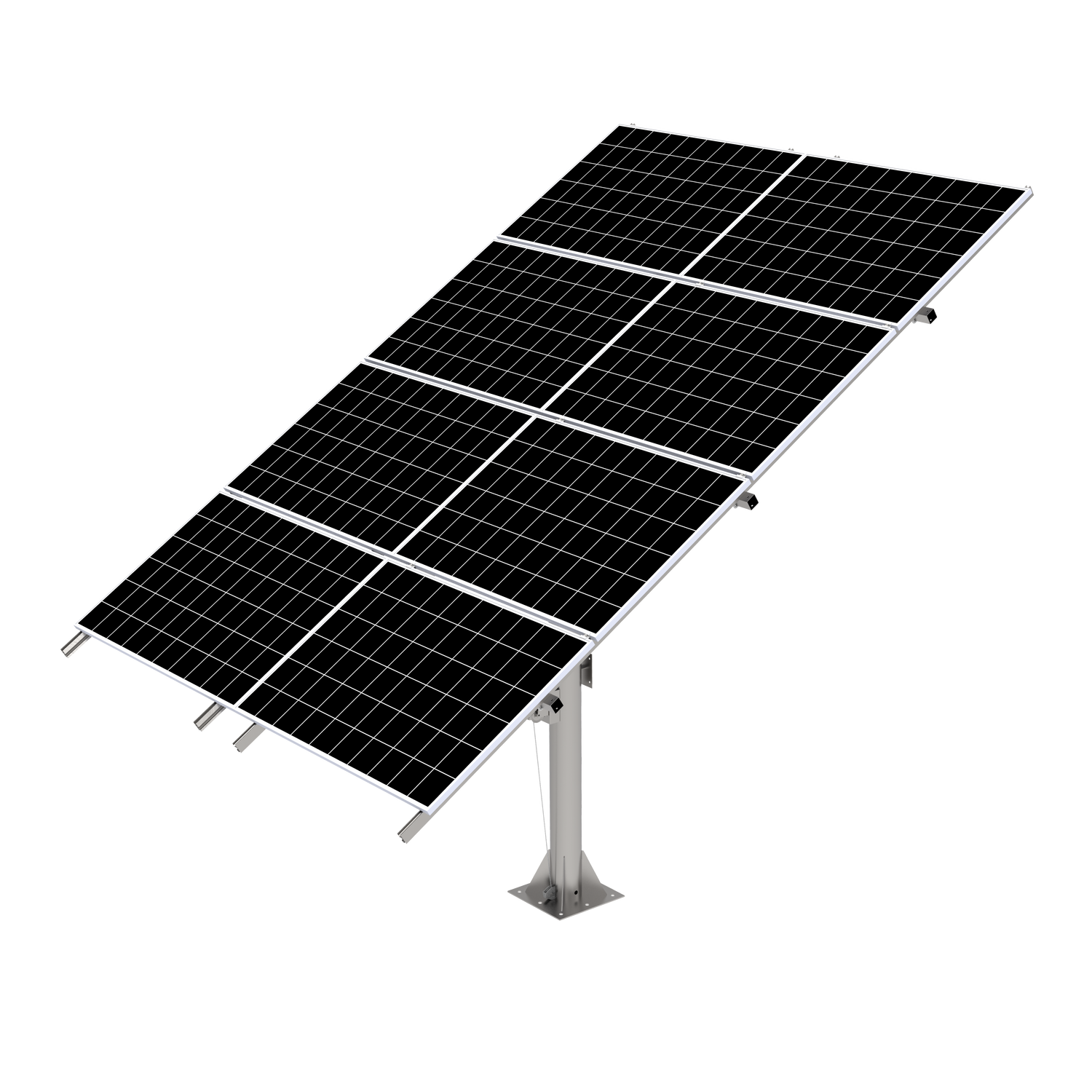

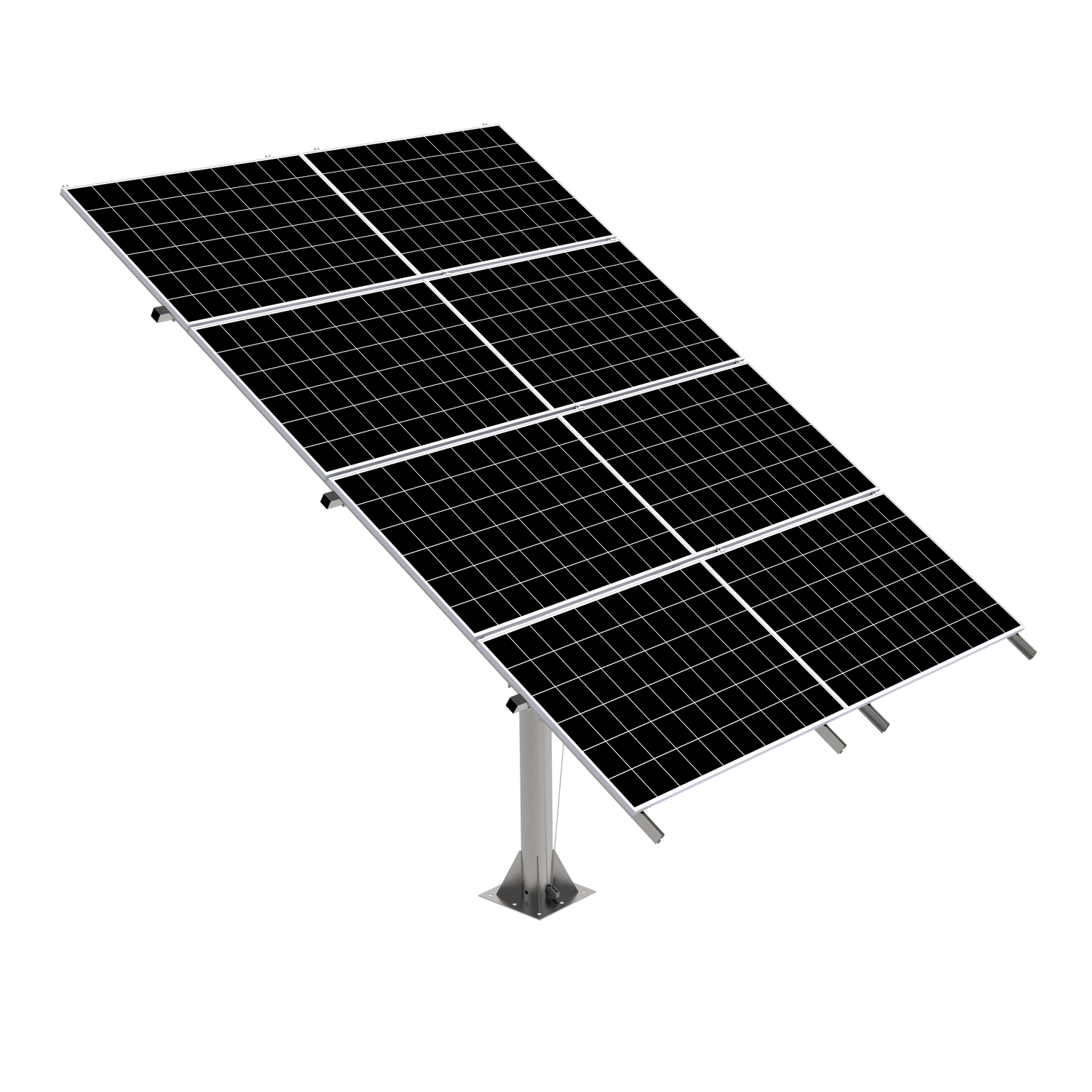

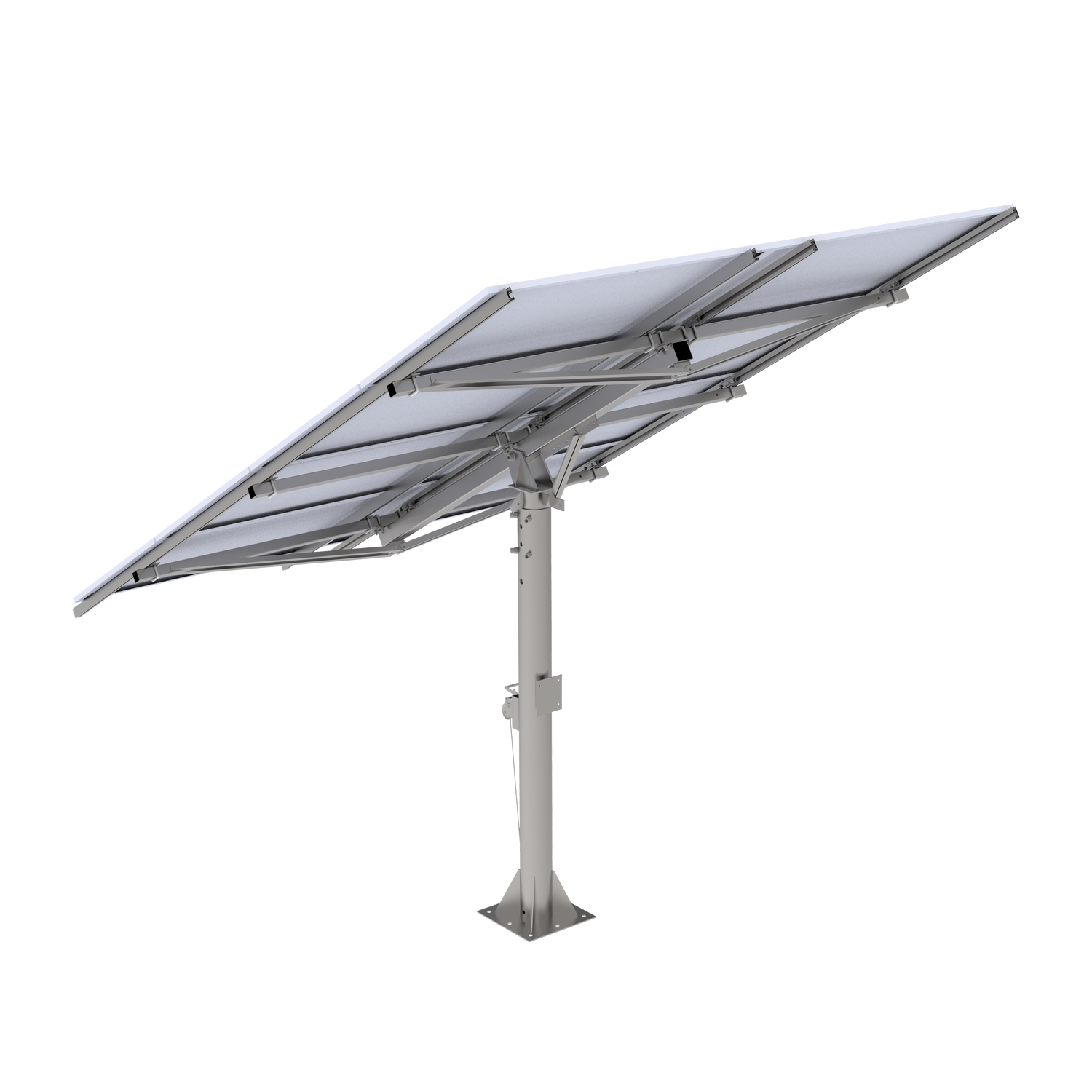

The Elios Arbora P8-C pole mount system delivers robust support for up to eight solar panels, engineered with galvanized steel construction to withstand harsh outdoor conditions. This comprehensive package includes the mounting pole, manual crank mechanism, and all necessary hardware, shipped in protective wooden crating.
Installation anchors to reinforced concrete foundations using corrosion-resistant zinc-plated fasteners for permanent stability. The system's adjustable mounting angle—ranging from 10° to 70°—allows seasonal optimization of solar panel orientation to maximize irradiance capture.
Performance capacity spans 3200 to 4400 watts under standard conditions, extending to 5500 watts with bifacial panel configurations. Suitable for residential, commercial, agricultural, and remote power applications, the Arbora P8-C combines structural integrity with operational flexibility for long-term renewable energy installations.
Note: The angle adjustment handle is not included.
Package dimensions & weight in wood crate: 3400 x 665 x 735 mm (134 x 26 x 29 in), weight: 335 kg (739 lbs)
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
The Strength Behind Vertical Efficiency
The Strength Behind Vertical Efficiency
| Model | TP-PM-8/C |
|---|
