Elios Arbora P8-C I Pole Mount System for 8 Solar Panels | Includes Manual Crank & Accessories

Description:

The Elios Arbora P8-C pole mount system delivers robust support for up to eight solar panels, engineered with galvanized steel construction to withstand harsh outdoor conditions. This comprehensive package includes the mounting pole, manual crank mechanism, and all necessary hardware, shipped in protective wooden crating.

Installation anchors to reinforced concrete foundations using corrosion-resistant zinc-plated fasteners for permanent stability. The system's adjustable mounting angle—ranging from 10° to 70°—allows seasonal optimization of solar panel orientation to maximize irradiance capture.

Performance capacity spans 3200 to 4400 watts under standard conditions, extending to 5500 watts with bifacial panel configurations. Suitable for residential, commercial, agricultural, and remote power applications, the Arbora P8-C combines structural integrity with operational flexibility for long-term renewable energy installations.

Note: The angle adjustment handle is not included.

Key Features:

• Sturdy Vertical Pole: Provides stable and reliable support for solar panels, effectively handling various weather conditions.
• Adjustable Height (One-Time Setup): The manual crank allows you to raise the pole to its full height during the initial installation, optimizing sun exposure and reducing shading. Once set, the height remains fixed for long-term performance.
• Secure Installation: Designed for concrete base installation with zinc-plated rods and anchor bolts, ensuring stability even in high winds.
• Space-Efficient Design: Ideal for limited ground space or shading issues, maximizing vertical space use.
• Durability and Weather Resistance: Built to withstand harsh weather, ensuring long-lasting and reliable solar installation.
• Panel Compatibility: Supports 8 solar panels with 60 or 72 cells, and includes aluminum rails and clamps for 30 & 35mm panel frames.

Applications:

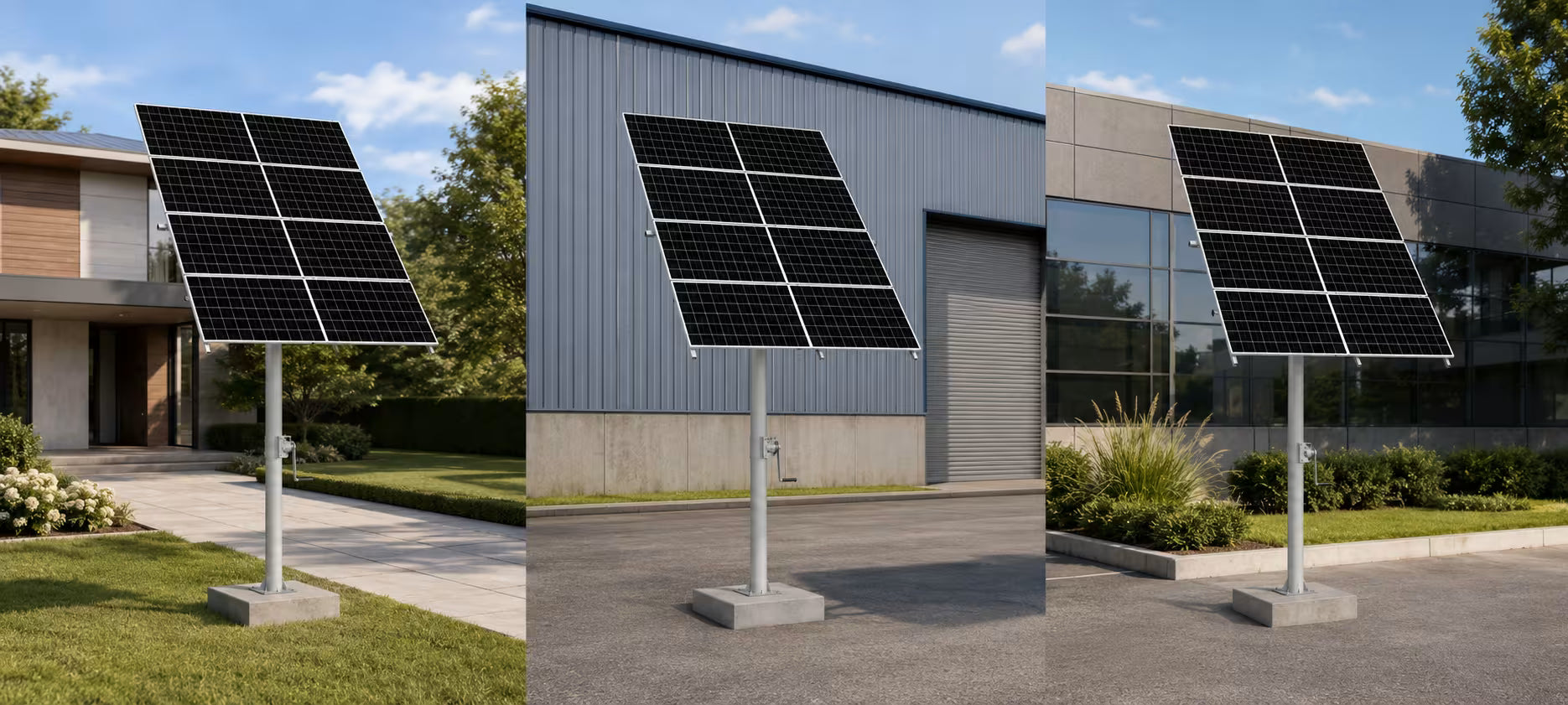

• Off-Grid | Residential | Commercial | Industrial | Agriculture | Solar Power Plants

Additional Details:

• Model: TP-PM-8
• Dimensions: Height: 94.49″ (2400mm) | Main beam length: 118.11″ (3000mm) | Secondary beam length: 129.92″ (3300mm).

• Package dimensions & Weight in wood crate: 3400mmx665mmx735mm (134"x26"x29"), weight: 335Kg (739lbs)
