TBS Battery Protect Relay (500A) | DCM-TBP-24V-500A | 60Vdc

The TBS Battery Protect Relay (500A) is a smart high current magnetic latching contactor, that can handle continuous DC currents of up to 500Amps. The DC Modular Battery Protect Relay can protect your battery without the need of an external measurement and control device.

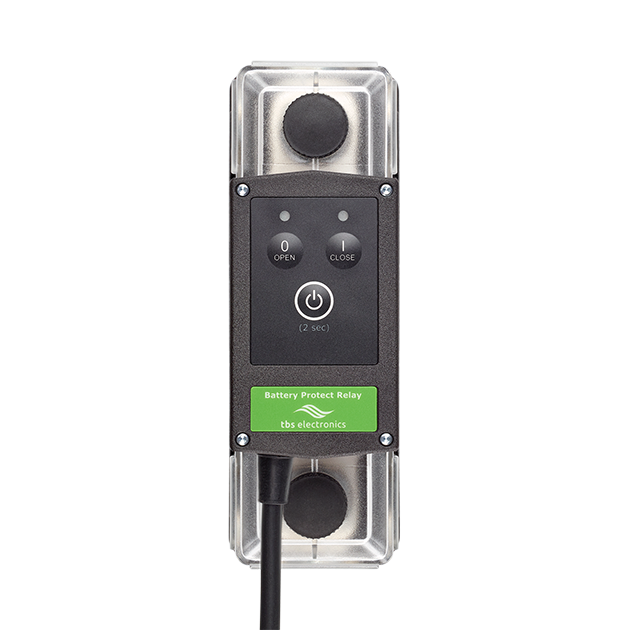

Besides controlling the TBP remotely, buttons positioned at the top also provide a way to open or close the main contact locally. For external control, the TBP is equipped with a 5-wire interface cable. It can be configured to accept two wire or single wire ON/OFF commands for optimal flexibility.

Other Features:

• Electronically controlled magnetic latching contactor                               The TBP is a magnetic latching relay, which means that there is no current draw from the battery when the contact is closed. This is a great benefit compared to regular relays which do require a (sometimes significant-) hold current to keep the contact closed.

• Extremely low power consumption (< 100µA)
• 500Amp nominal current
• 60Vdc contact rating.
• Battery protection
• Override mode                                                                                                        In situations where the TBP has opened the main contact due to a battery Undervoltage, long-pressing the close button (local or external) will close the main contact for 1 minute. This allows the user to jumpstart a low-battery system. When after this minute the battery voltage remains too low, the contact will open up again. But it remains closed when during the override time, a charger has been connected causing the battery voltage to recover.

Application cases:

• Marine applications
• Recreational vehicles (RV)
• Service vehicles
• Off grid solar power systems
• Battery management systems
• Off grid solar power systems
• Battery load shedding applications
• Industrial systems
