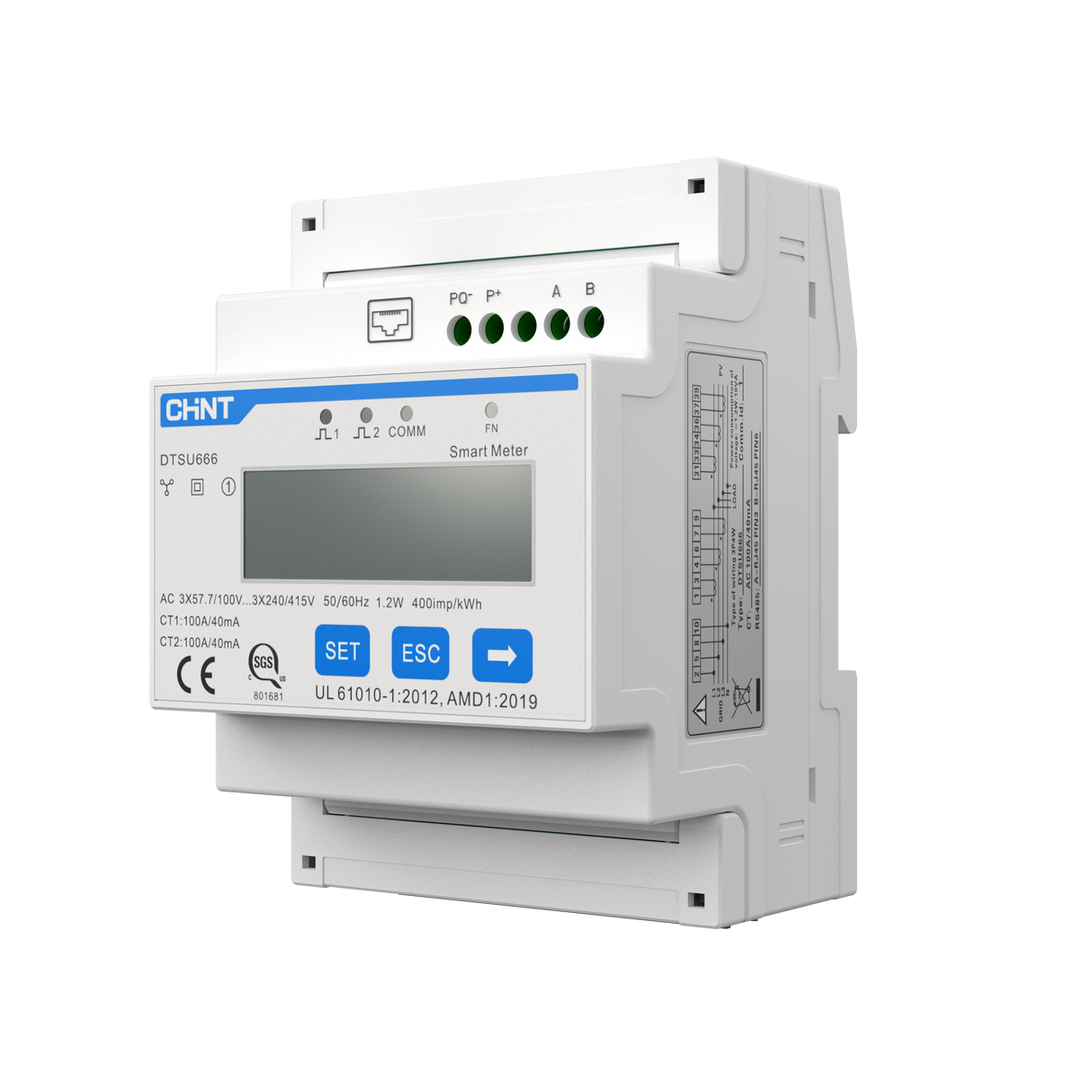

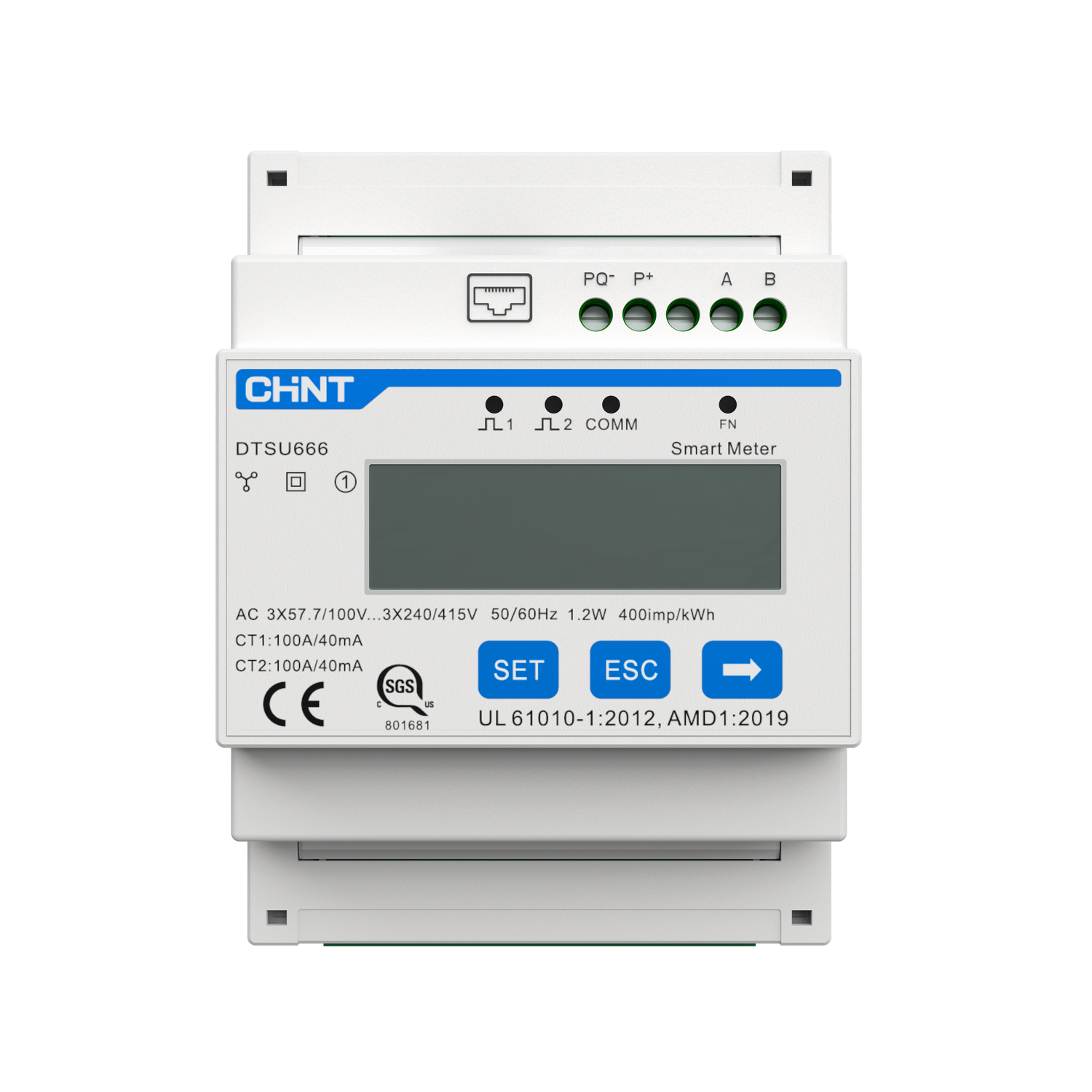

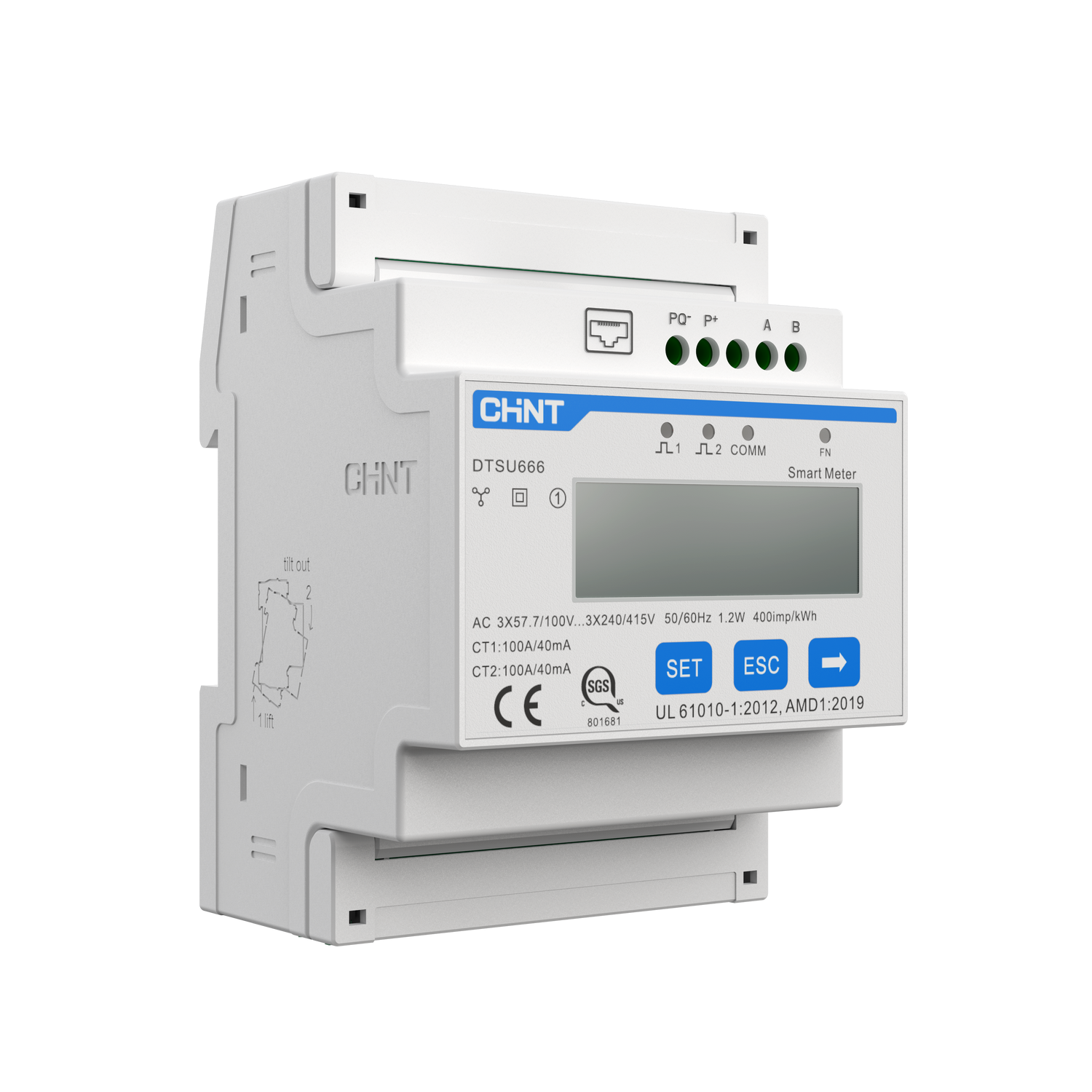

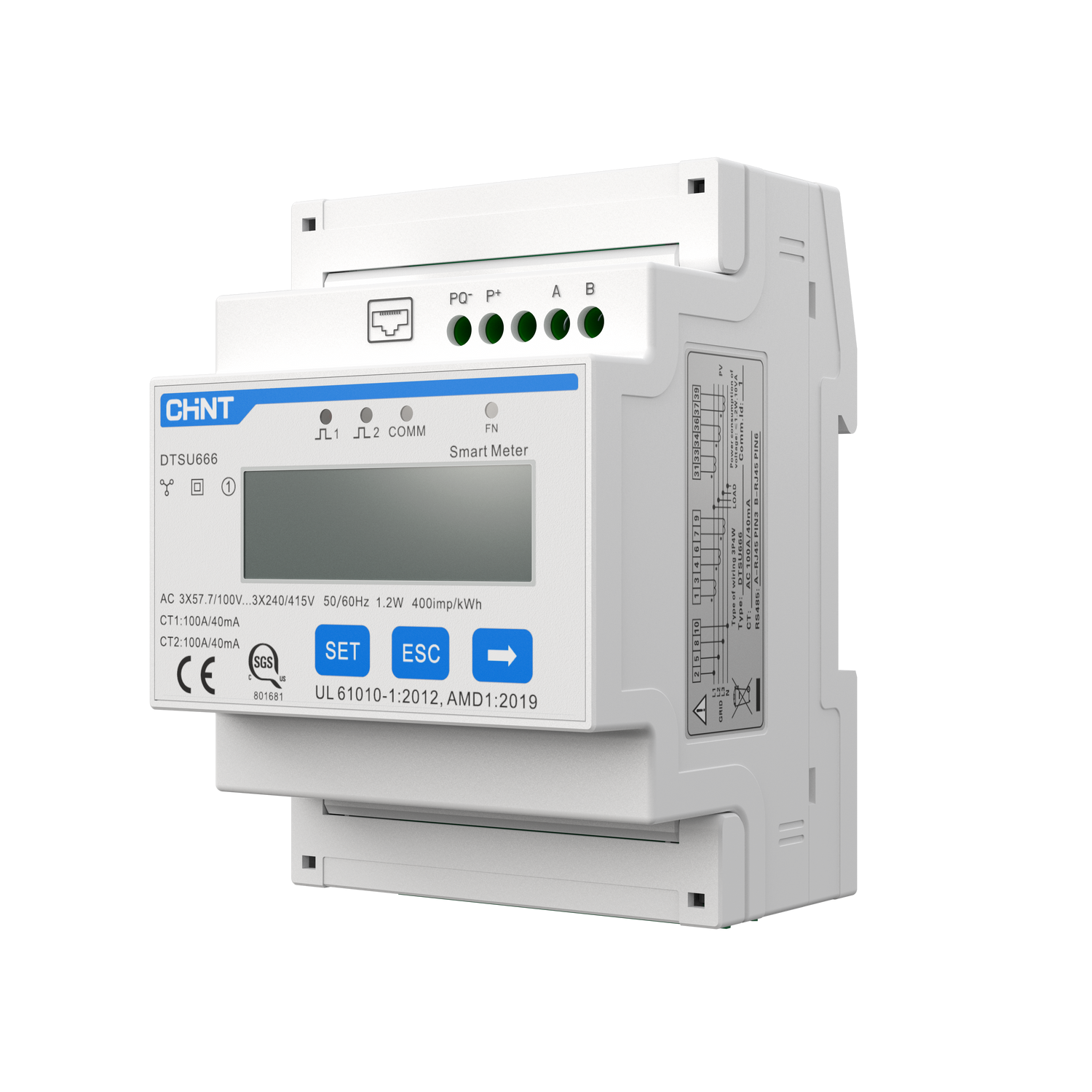

HYXI CHINT DTSU666 100A Smart Meter (2CT)

The HYXI CHINT DTSU666 100A Smart Meter is designed for accurate energy monitoring in 120/240V split-phase residential systems. Supporting up to 100A with 40mA CT input and a dual-CT configuration, it enables real-time measurement of power consumption and grid interaction. With RS485 Modbus, the meter communicates with inverters and energy management systems for load monitoring and export control. It features a 35mm DIN-rail mount for easy installation.

Key Features:

• High-Accuracy Split-Phase Monitoring Designed for 120/240V residential systems, enabling precise real-time measurement of power consumption and grid interaction.
• Dual-CT Measurement Support Supports 100A operation with 40mA CT input, ensuring stable and accurate dual-phase (L1/L2) energy monitoring.
• RS485 Modbus Communication Integrated Modbus RTU over RS485 for reliable data exchange with inverters and energy management systems.
• Load & Export Control Ready Enables real-time load monitoring, grid flow analysis, and applications such as zero-export and energy optimization.
• DIN-Rail Installation Design 35mm DIN-rail mount for quick and standard installation in residential and commercial electrical panels.

Certifications:

• UL 61010-1 | CAN/CSA C22.2 No. 61010-1

Warranty:

• 2-year Limited Warranty

Additional Details:

• Dimensions (mm | inch): 220*110*100 mm / 8.6*4.3*3.9 in
• Weight: 1.32 lb (600 g)
