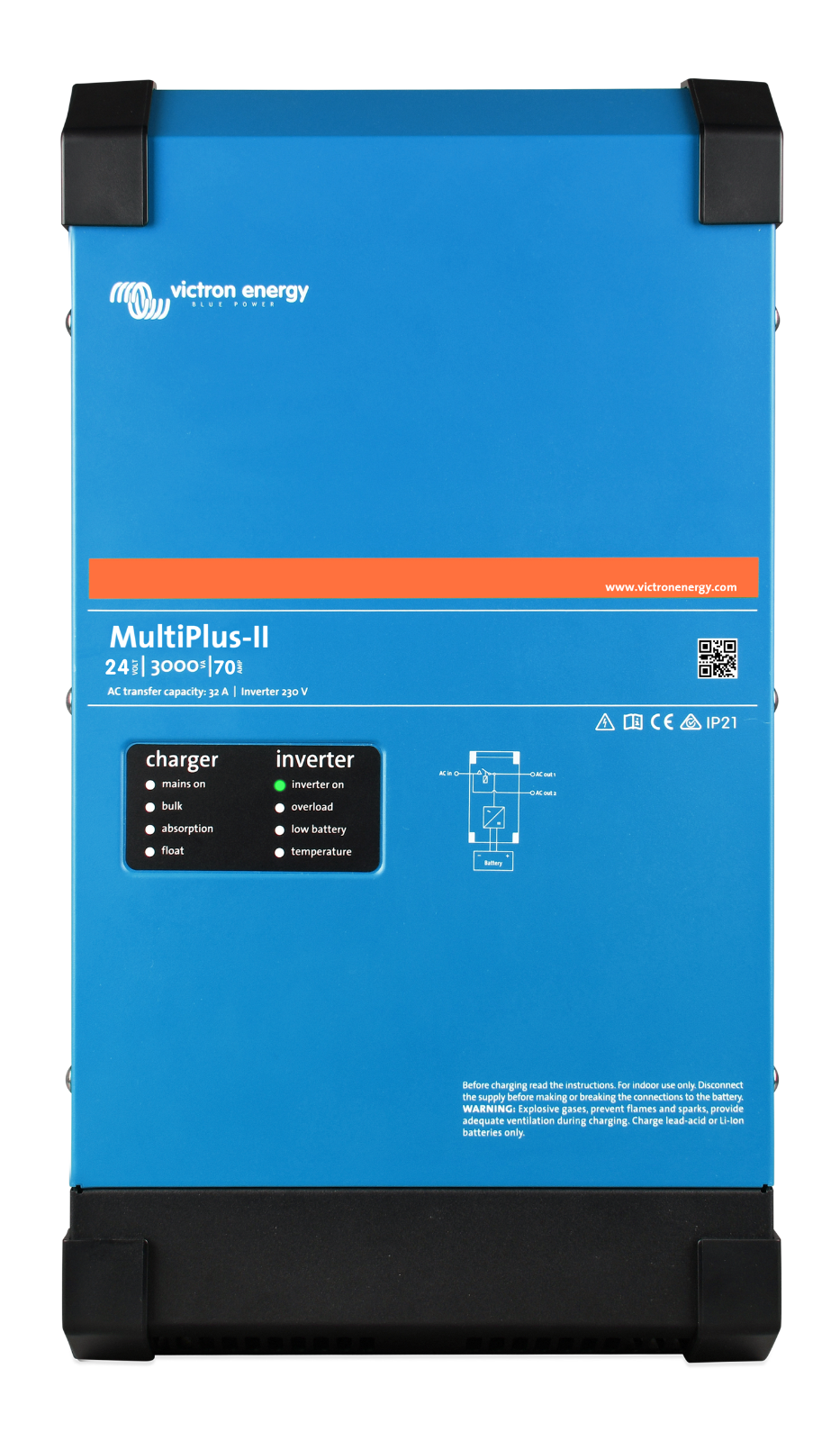

Victron Energy MultiPlus-II 24/3000/70-50 2x120V | UL Certified | PMP242305132

The Victron Energy MultiPlus-II 24/3000/70-50 2x120V serves as an all-in-one mobile solution tailored for standard North American 50A 120/240VAC split-phase applications. Whether sourced from shore power or a generator, it efficiently accepts and passes through both lines of a 120/240V supply, utilizing the full 50A for charging and AC loads. In single-phase 120V supply, the L1 input accepts incoming power for charging, while combining L1 and L2 outputs produces single-phase 120V on each line.

During the absence of an AC source, the MultiPlus transitions to inverter operation, providing a 120V single-phase output. In inverter mode, it internally connects L1 and L2 to deliver 120VAC to loads on either output, ensuring a continuous power supply to both sides of a distribution panel in all connection scenarios. Notably, 240VAC is exclusive to a split-phase 120/240VAC source, preventing battery discharge from heavy loads like water heaters or 240V air conditioners.

Equipped with standard inverter/charger features like PowerControl, PowerAssist, Input Current Limit, two AC outputs, and support for parallel and 3ph configurations for larger capacity VE.Bus systems, the MultiPlus-II 2 x 120V accommodates LiFePO4 batteries and various other battery technologies.

Key Features:

• PowerControl and PowerAssist - Boosting the capacity of the grid or a generator

• Two AC Outputs

• Virtually unlimited power thanks to parallel and three-phase operation

• On-site system configuring, monitoring and control

• Remote configuring and monitoring

Additional information:

• Maximum AC input current: 50A
• DC Input voltage range: 19-33V
• Brand: Victron Energy
• Transfer switch: 50 A
• Maximum apparent feed-in power: 2500 VA
• Depth-1: 6 in.
• Height-1: 23 in.
• Output-power-w: 3000
• Width-1: 11 in.
