Elios Carport M30 | Aluminum Structure for 4 Vehicle | 30 Solar Panels (18 kW+)

Description:

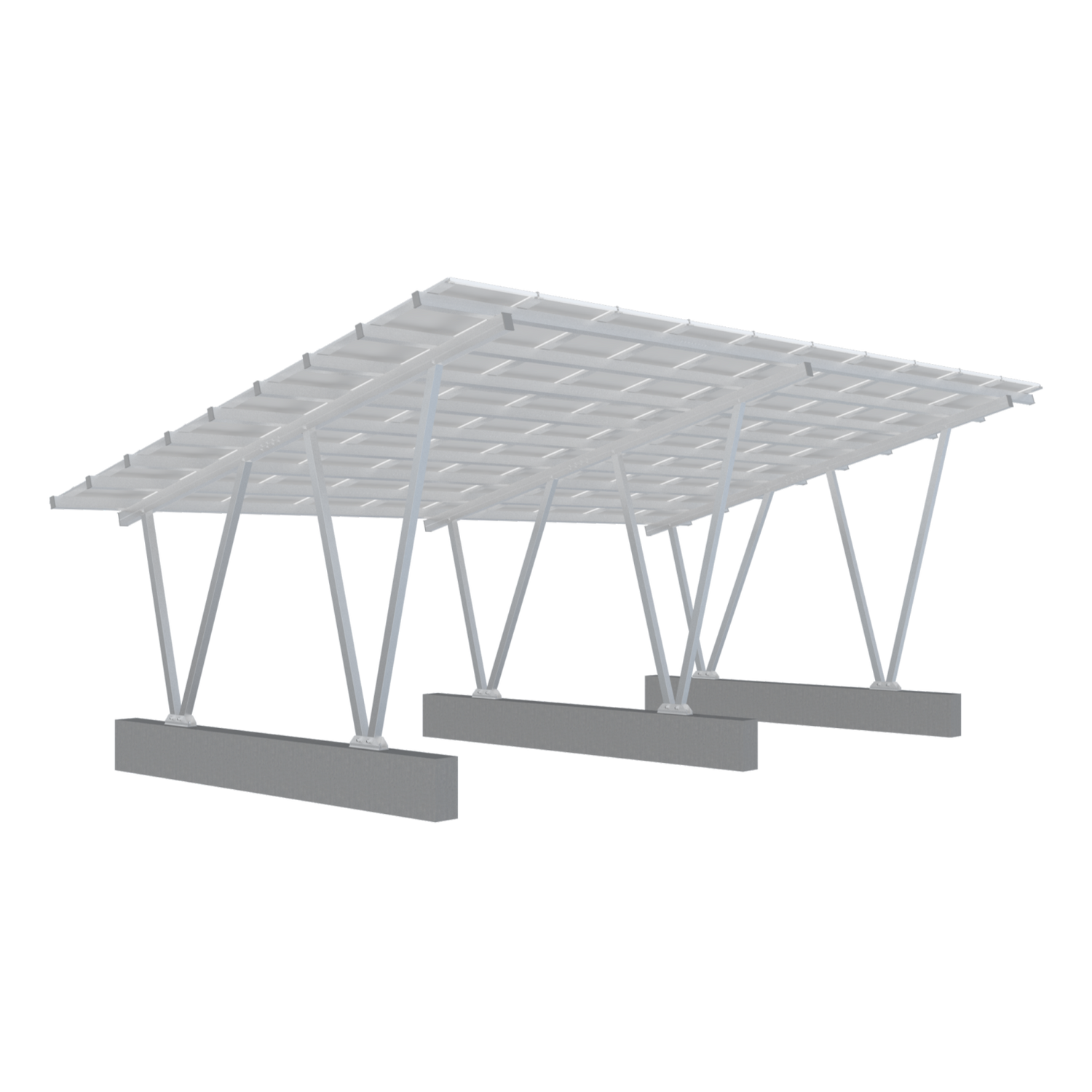

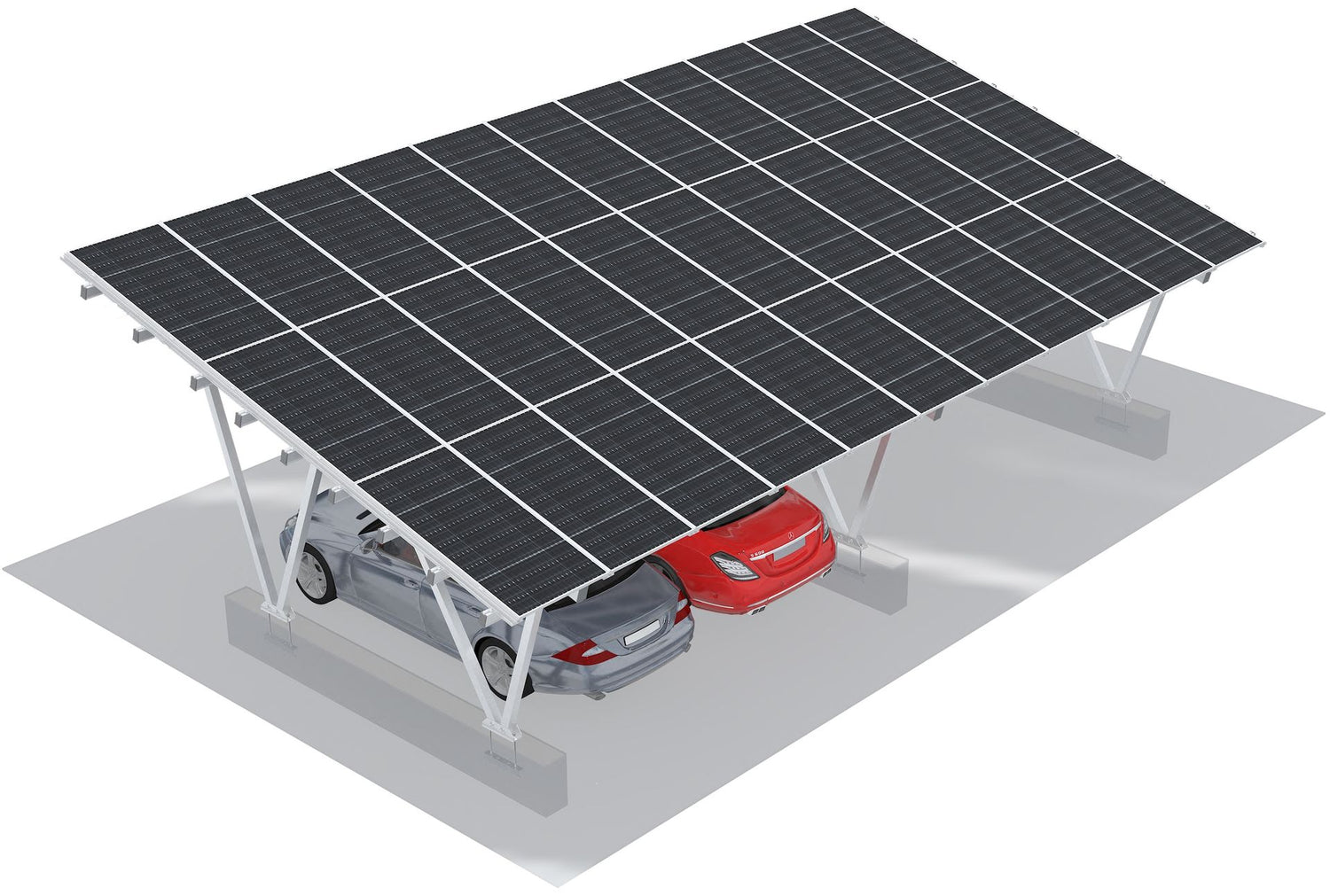

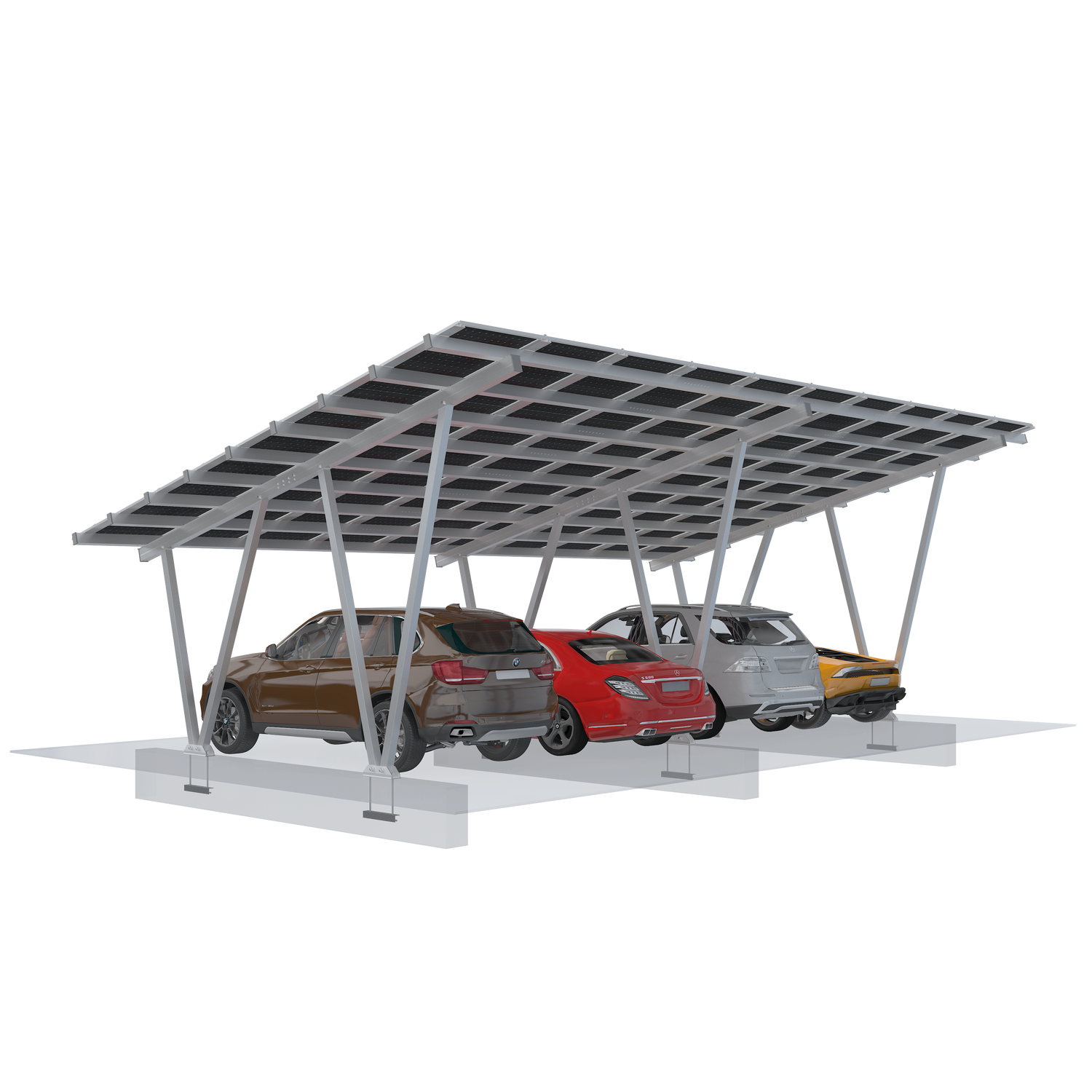

The Elios Carport M30 is a heavy-duty, waterproof aluminum solar carport designed for four vehicles and engineered to support up to 30 high-efficiency 144-cell solar panels (2278 × 1134 × 35 mm), delivering approximately 18 kW+ of solar capacity depending on panel selection.

Constructed from corrosion-resistant aluminum, the M30 features an integrated rain management system for efficient drainage, long-term durability, and dependable structural performance. End and mid clamps are included for secure photovoltaic panel mounting and streamlined installation.

Ideal for residential, commercial, and large-scale solar projects, the M30 converts parking areas into high-capacity energy-producing structures while protecting vehicles from sun, rain, wind, and snow.

Note: Structure only. Solar panels and electrical components are not included.

Key Features:

• Safety & Durability: Engineered with simulations to withstand wind, snow, and seismic loads reliably.
• High Waterproofing: Integrated water channel system ensures full waterproof performance and reduced maintenance.
• Fast Installation: Pre-assembled components allow bolt-only installation, reducing labor time and costs.
• Modern Design: Streamlined industrial look enhances parking areas with a clean, professional appearance.
• Vehicle Protection: Helps shield parked vehicles from sunlight exposure, wind, snow, and harsh weather.

• Custom Compatibility: Customizable structure supports various PV modules for flexible solar project applications.

Applications:

• Off-Grid | Open Areas | Commercial | Ground | Concrete Roof | Industrial

Certifications:

• EN 1090-3 (EXC2) | EN 1090-1:2009+A1:2011 | CE Marking (CPR 305/2011/EU) | Factory Production Control (FPC) – System 2+ | TÜV Rheinland (Notified Body 0035)


Warranty:

• 10-year Limited Warranty


Additional Details:

• Dimensions (mm | inch): 4050*1140*1080 mm (159.45*44.88*42.52 in)

• G.W.: 735kg (1620.40 lbs)

• N.W.: 684kg (1507.96 lbs)
