Elios Contrack A+B+C | Container Racking for 3 solar Panels

Product SKU: ContrackA+B+C

$880.00
Unit price per

Shipping calculated at checkout.

For adjustable tilt (0°–35°), add the optional ContrackD component.

Description:

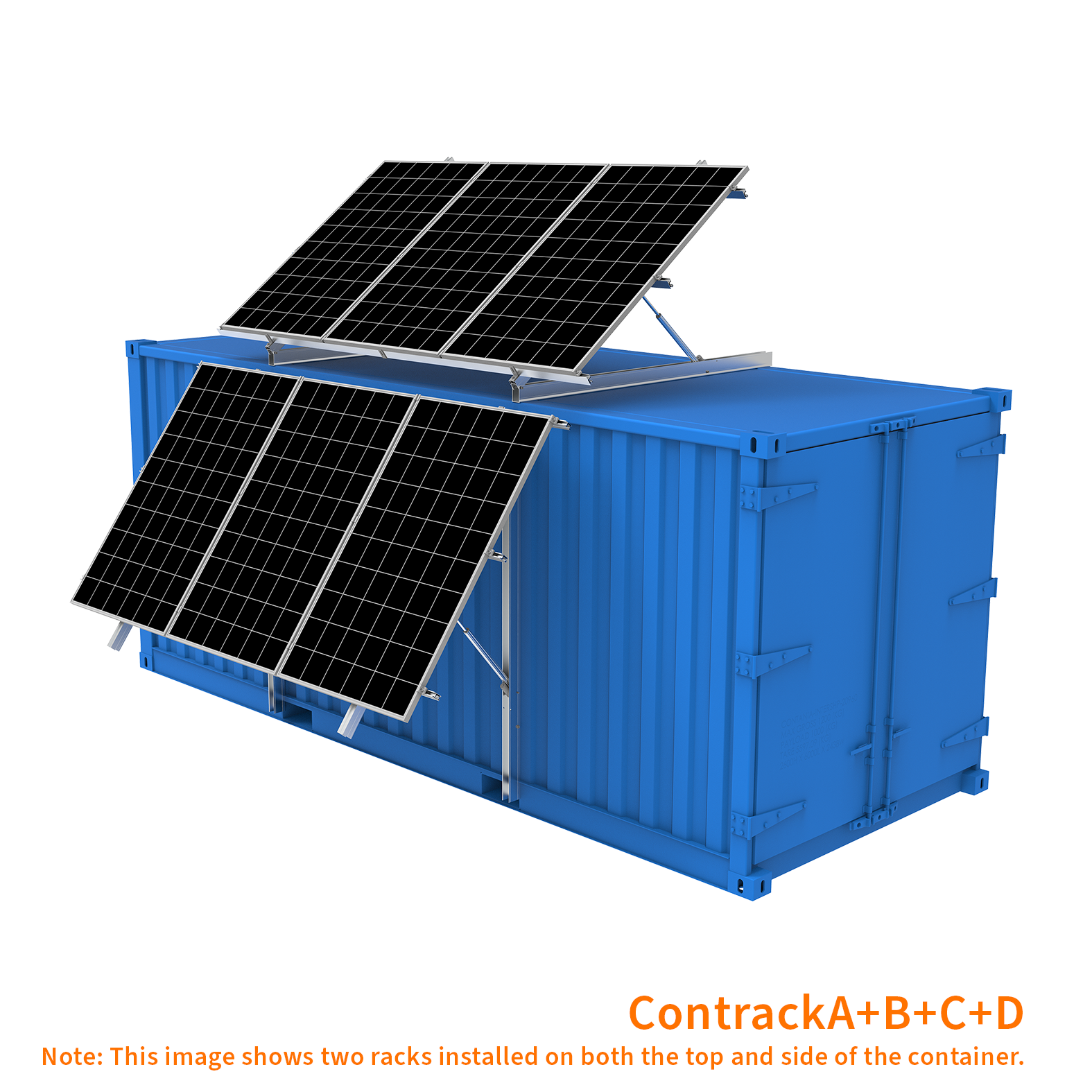

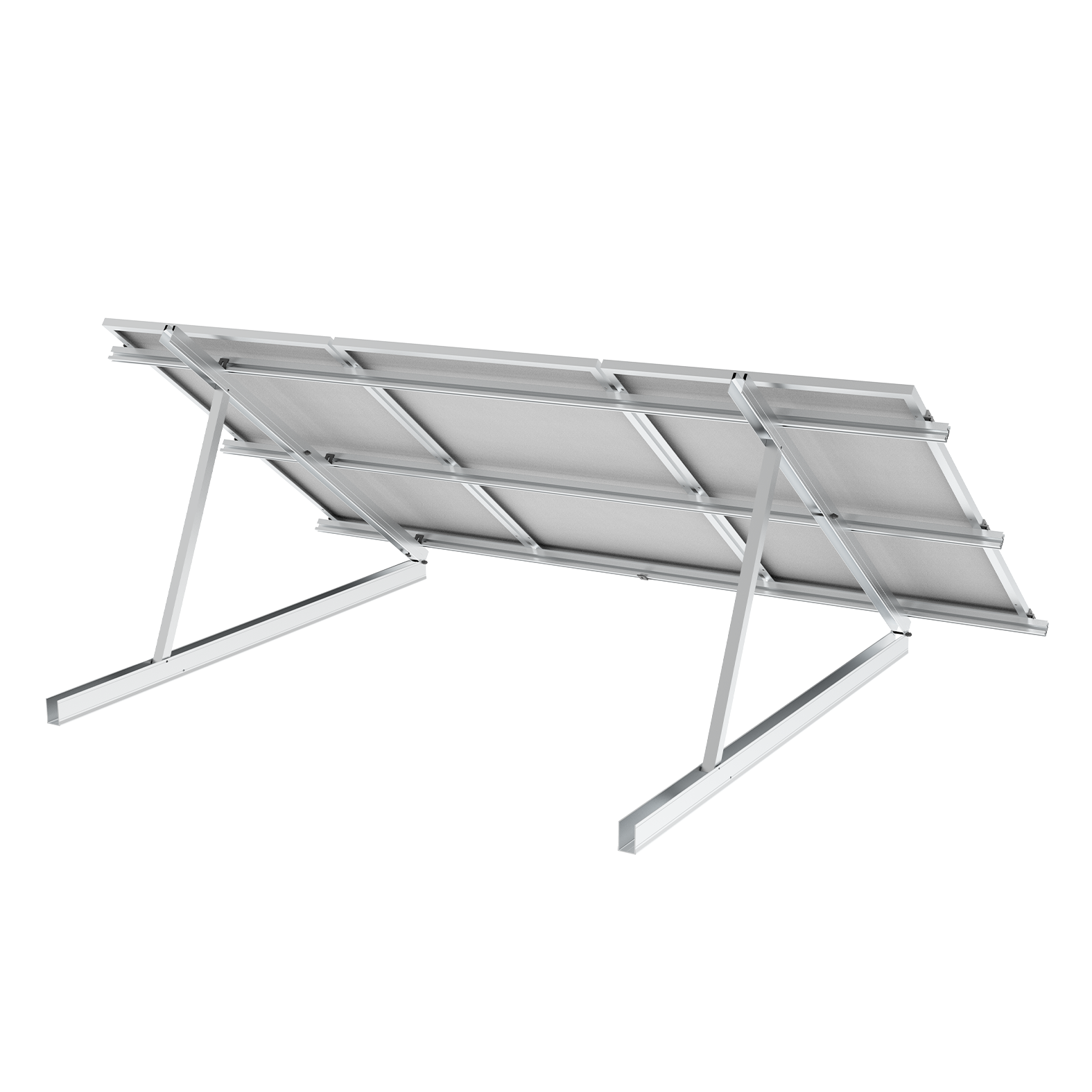

The Elios Contrack A+B+C is a high-performance aluminum racking system designed for mounting 3 solar panels at a fixed 35-degree angle on shipping containers, cargo boxes, or mobile storage units. Ideal for rooftop or sidewall installations, this modular system provides a space-efficient and structurally sound solution for off-grid and mobile solar power applications.

Fits solar panels with 60/120 and 72/144 cells — perfectly compatible with Elios Voltaic 400HC-BF, 400W solar panels and above.

Constructed from high-strength aluminum alloy, Contrack A+B+C is engineered to withstand harsh outdoor conditions while minimizing installation time and complexity. Its lightweight, container-compatible design ensures rapid deployment and long-term durability in the field.

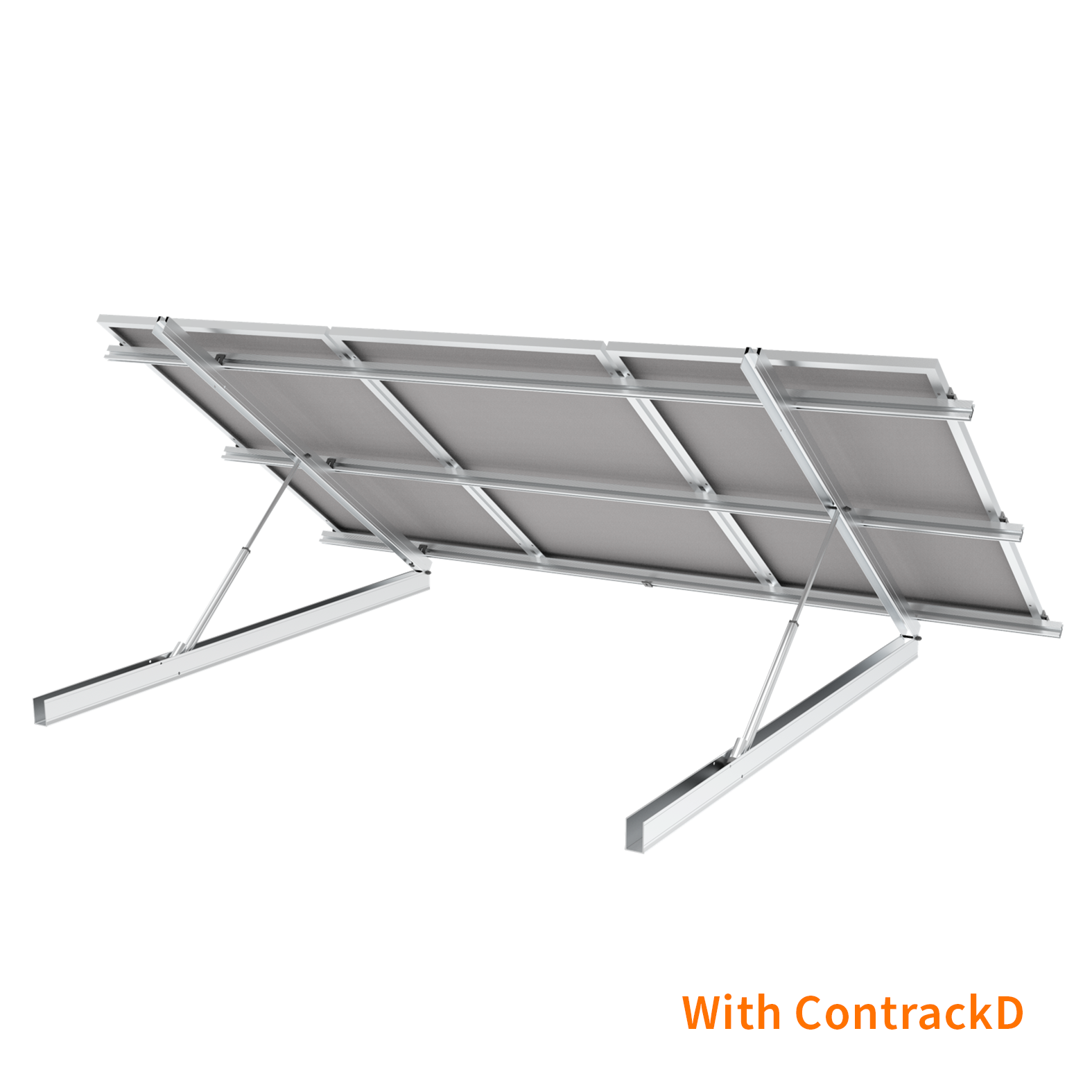

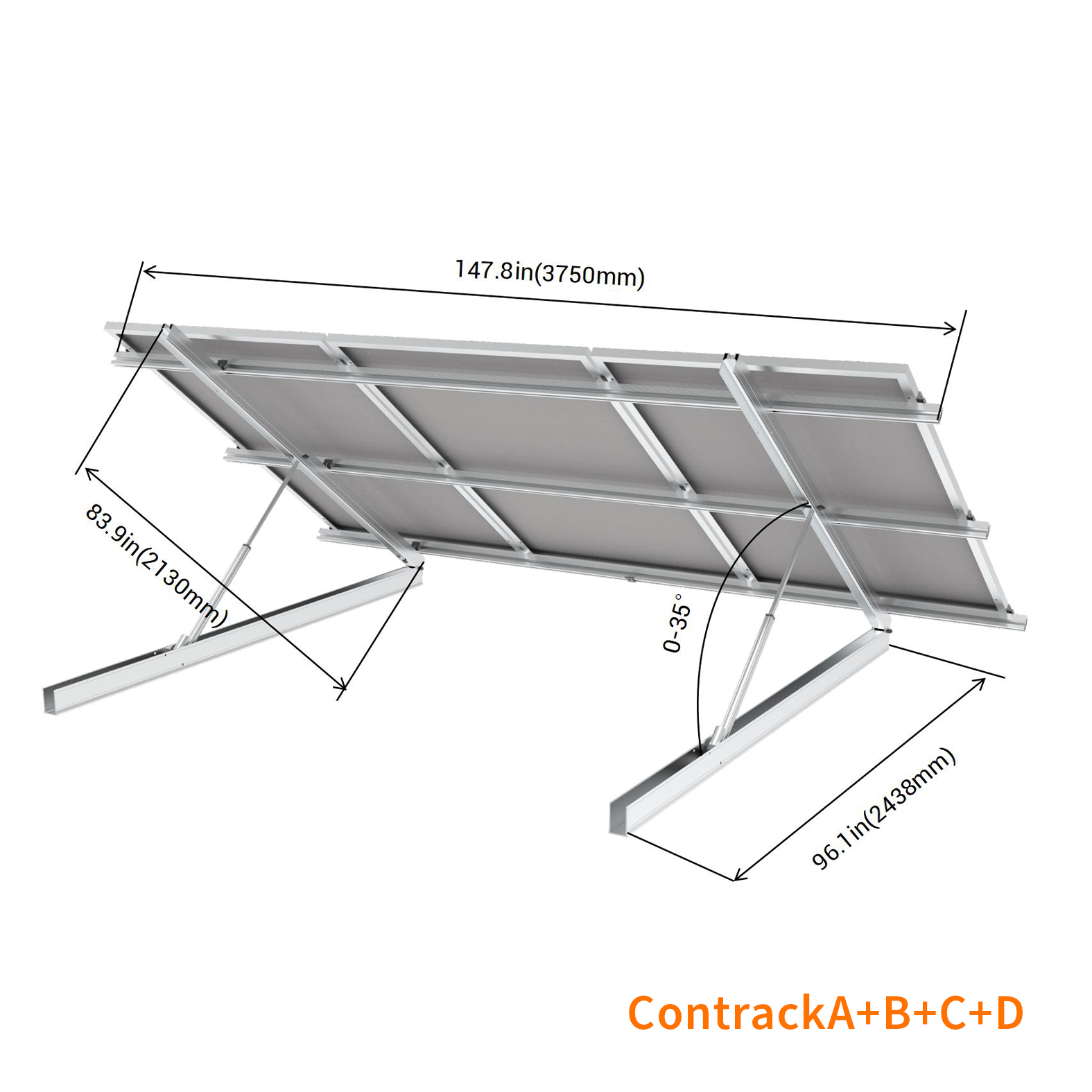

For applications requiring an adjustable tilt angle, the optional ContrackD component allows angle adjustment from 0° to 35°, offering greater flexibility in solar panel positioning.

Key Features:

Durable Aluminum Construction – High-strength, corrosion-resistant aluminum built to endure tough outdoor environments.
Modular Three-Panel System – Simplifies installation of three solar panels on container rooftops or sidewalls.
Space-Efficient Design – Optimized for use on shipping containers and mobile storage units without compromising stability.
Lightweight & Easy to Deploy – Low-profile components designed for fast transport, handling, and installation.

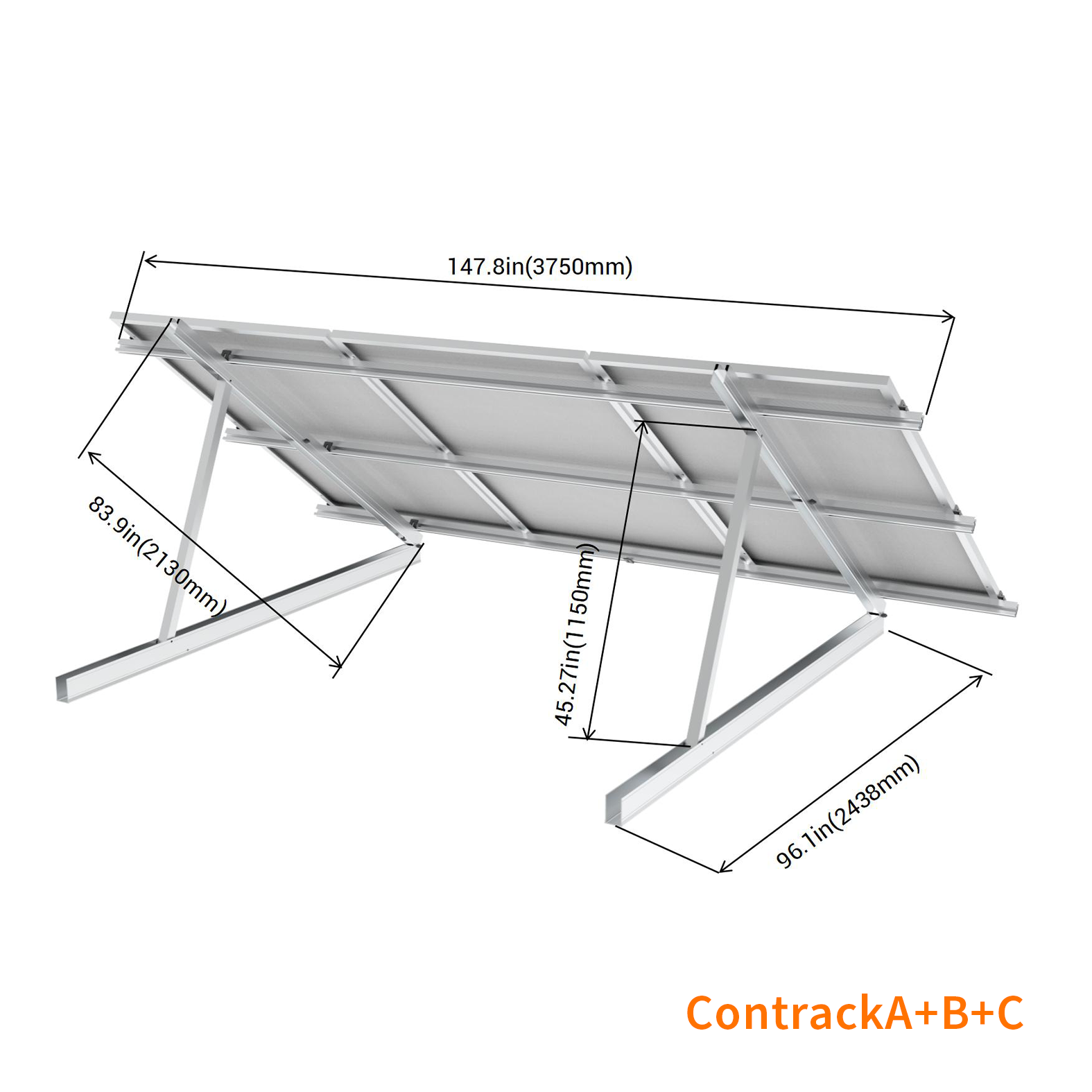

What's in the ContrackA:

Bottom beam 2438mm x2
Top beam 2130mm x2
Support 1150mm x2
M10x70mm bolt and nut x6
Rubber x20
M8x50mm bolt and nut x8
Tapping screw ST5.5x38mm x12

What's in the ContrackB:

Rail 2500mm x3
30/35mm end clamp x8
30/35mm mid clamp x5
Aluminum nut x14
L-feet(type-1) 76x50mm x2
L-feet(type-2) 50x50mm x6

What's in the ContrackC:

Rail 1250mm x3
30/35mm End Clamp x8
30/35mm Mid Clamp x5
Aluminum Nut x14
L-feet (Type-1) 76x50mm x3
L-feet (Type-2) 50x50mm x6
Rail Connector 200mm x4
M8x30mm T-Bolt x1

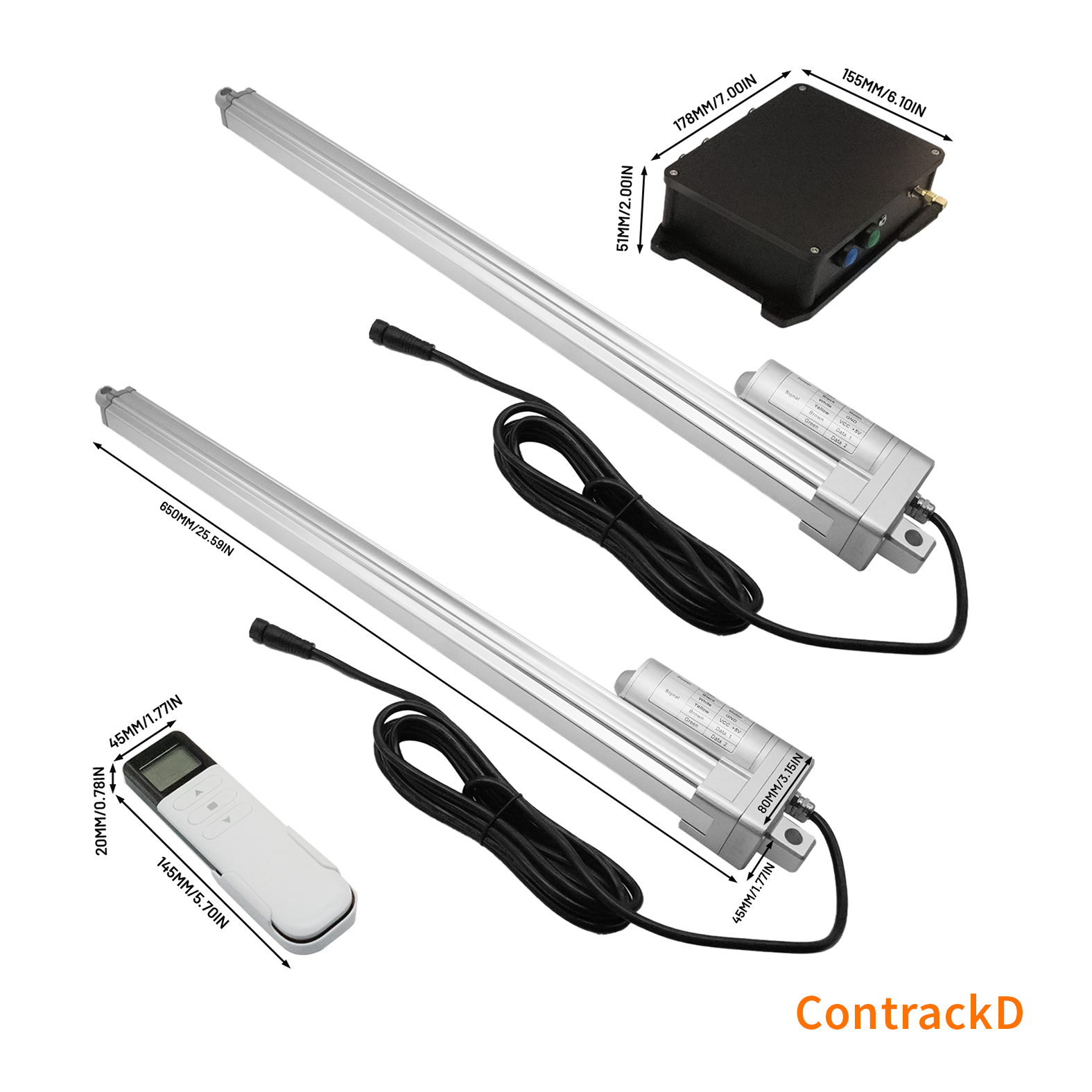

What's in the ContrackD (Optional):

Linear actuator x2
Controller x1
Remote control x1
M10x70mm bolt and nut x4
Small Sleeves 12mm x4
Small Sleeves 16mm x4

Applications:

Residential | Commercial | Industrial Flat Roofs | Mobile Workshops | Container Farms & Greenhouses | Delivery Truck Conversions | Refrigerated Containers

Warranty:

5-year Limited Warranty

Additional Details:

Model: ContrackA+B+C
Weight: ContrackA: 24kg; ContrackB: 9kg; ContrackC: 6.5kg; ContrackD: 6.12kg

Product Attachments:

Datasheet: Download Now
Installation Manual: Download Now
