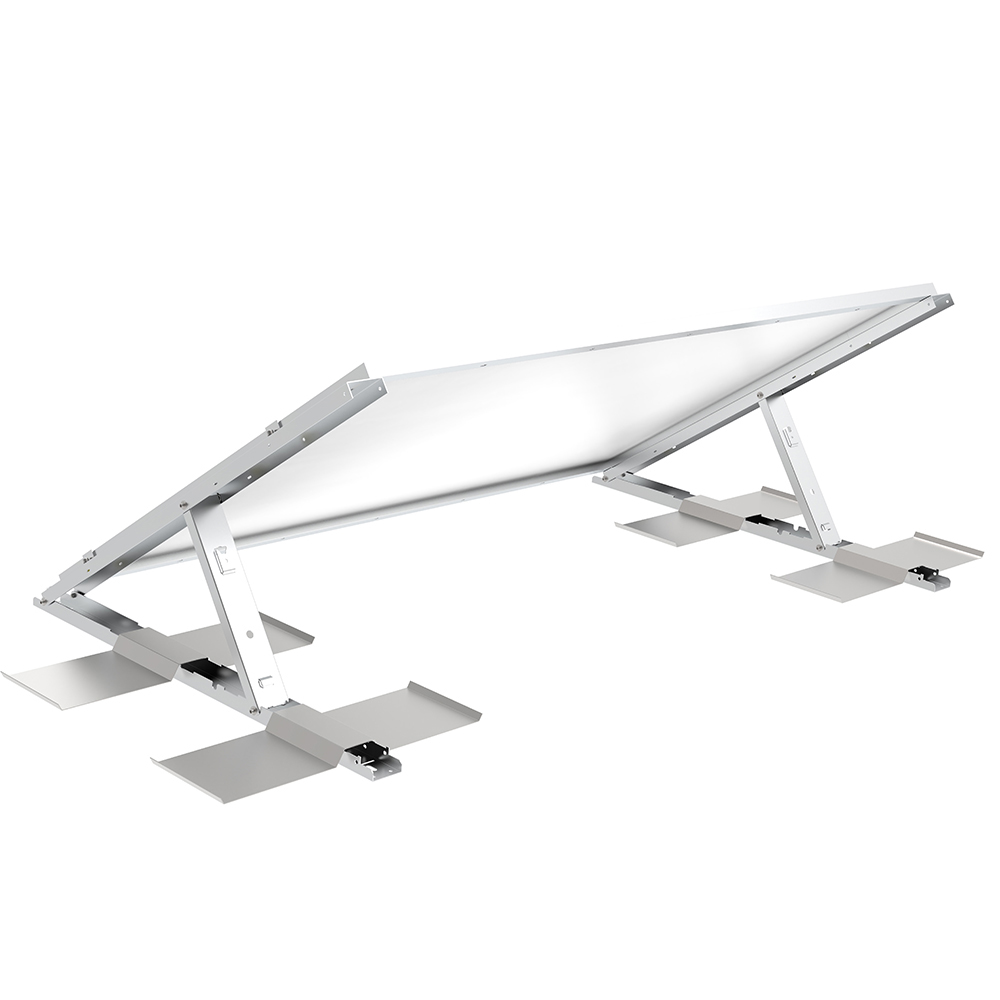

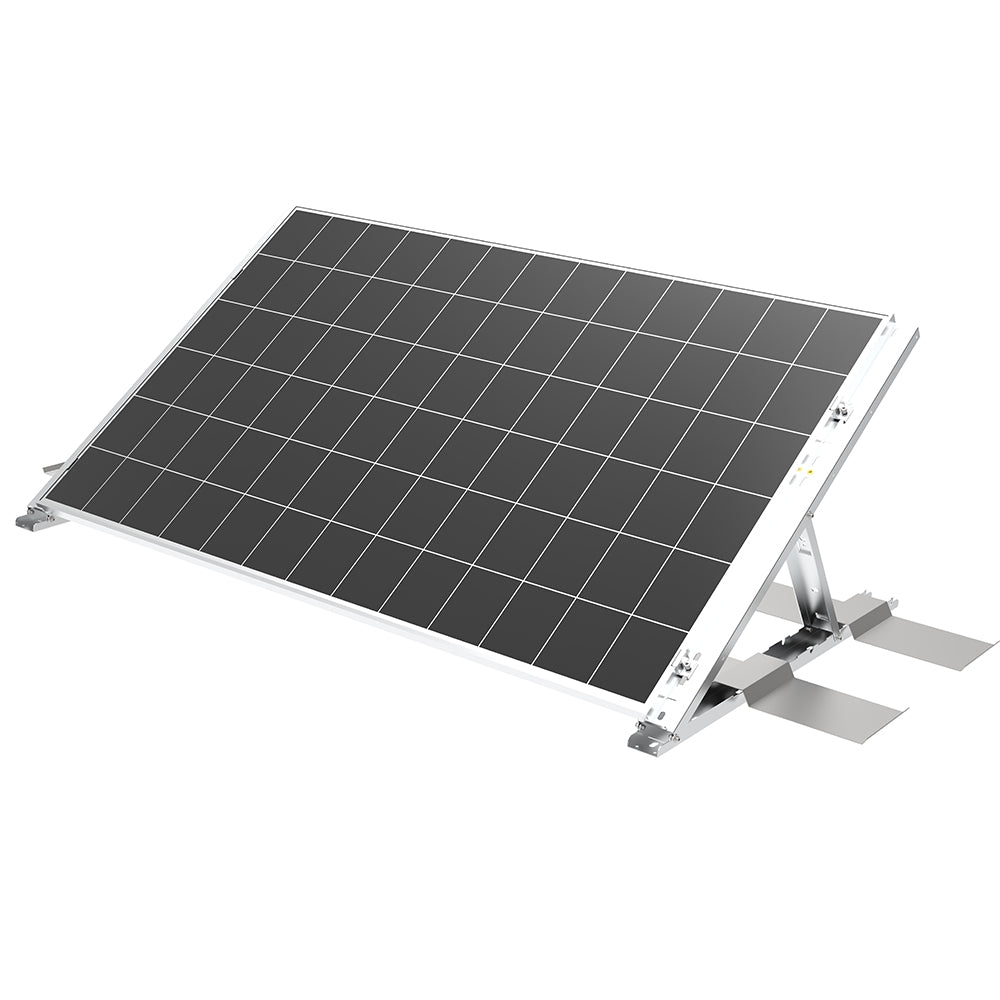

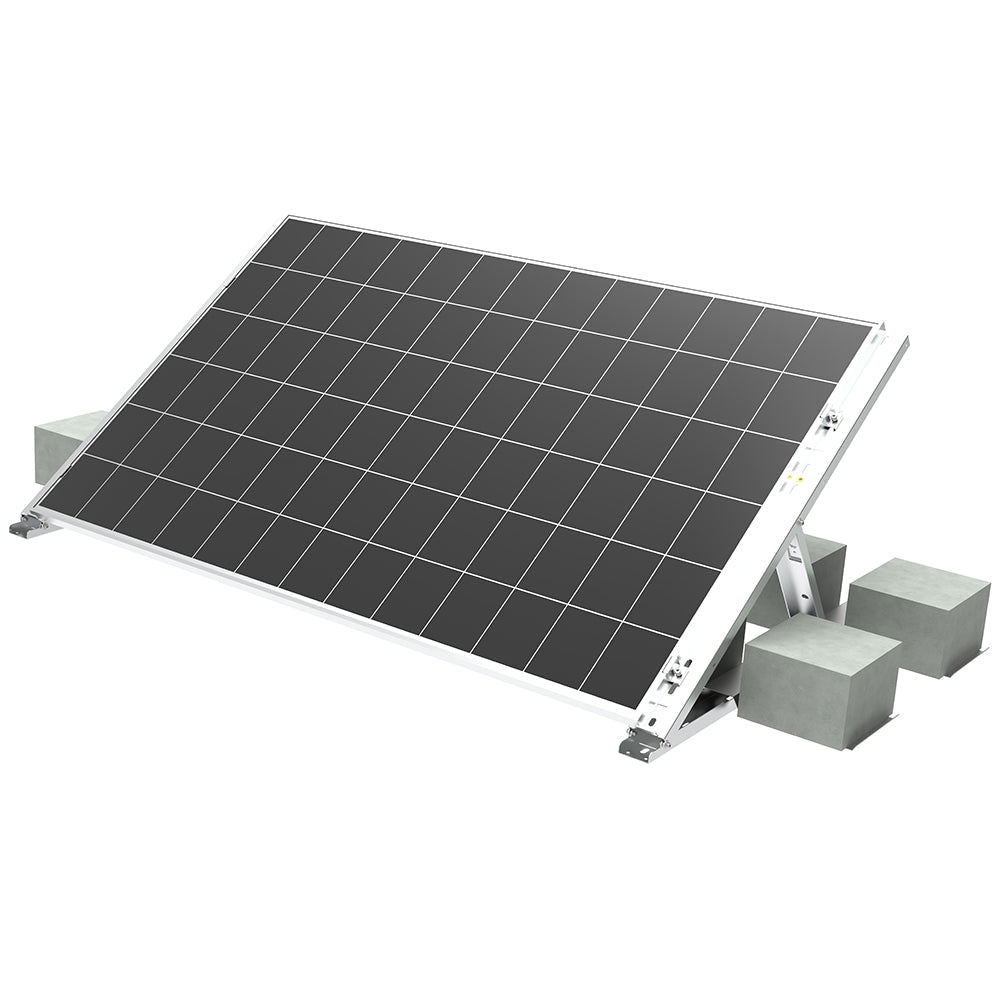

Elios Tectum T1 Ballasted Roof Racking For 1 Panel

Description:

The Elios Tectum T1 Ballasted Roof Racking presents a space-efficient mounting solution engineered for single panel installations. Its collapsible triangular framework reduces logistical expenses while offering a low-weight profile that preserves roof integrity. The system features customizable positioning capabilities to optimize solar incidence angles and energy harvesting efficiency.

The T1's modular architecture facilitates straightforward expansion from individual panel configurations to more extensive arrays, delivering exceptional spatial optimization for rooftop solar deployments.

Key Features:

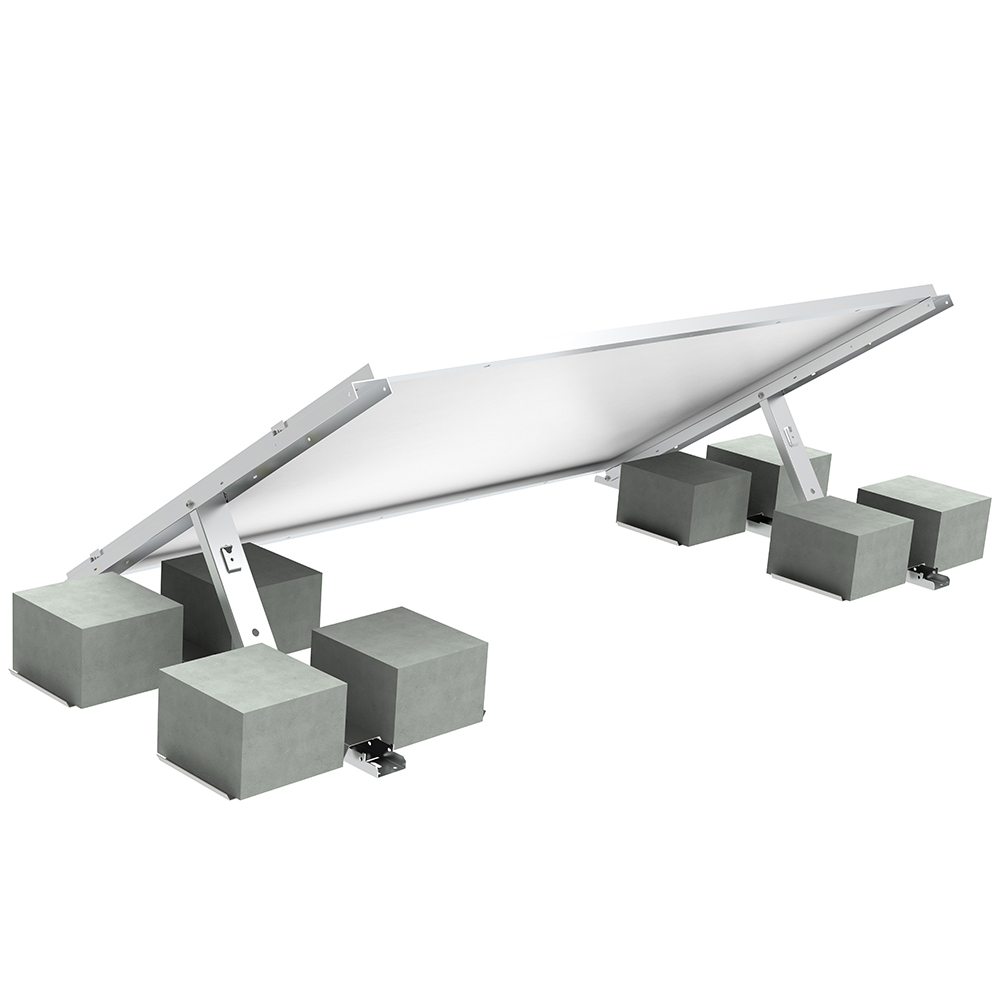

• Roof-Friendly Ballasted Mount
  Designed to sit securely without penetrating or damaging the roof surface.
• Preinstalled Components
  Most parts come preassembled to minimize installation time and labor effort.
• Simple, Cost-Effective Design
  Fewer components make setup easy and reduce overall system costs.
• Modular and Scalable
  Easily extendable to maximize roof space and adapt to growing energy needs.
• Durable and Corrosion-Resistant
  Built with rust-resistant materials for long-term performance and durability.

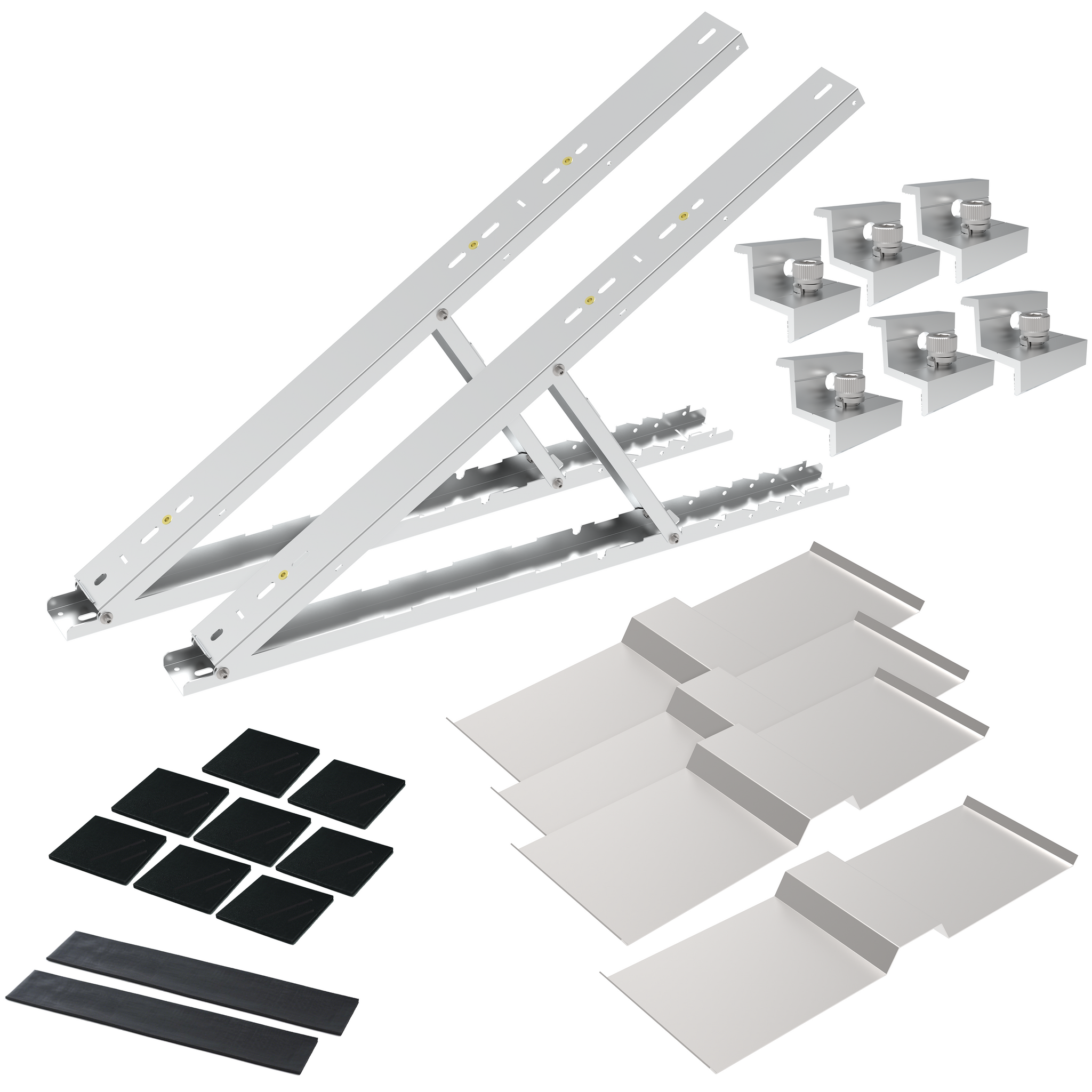

What's in the box:

• Aluminum Folding U-shaped bracket x2
• Rubber for folding U-shaped bracket x2
• 30/35mm End clamp( (including 2 spares) ) x6
• Steel ballasted plate x4
• Rubber for ballasted plate x8

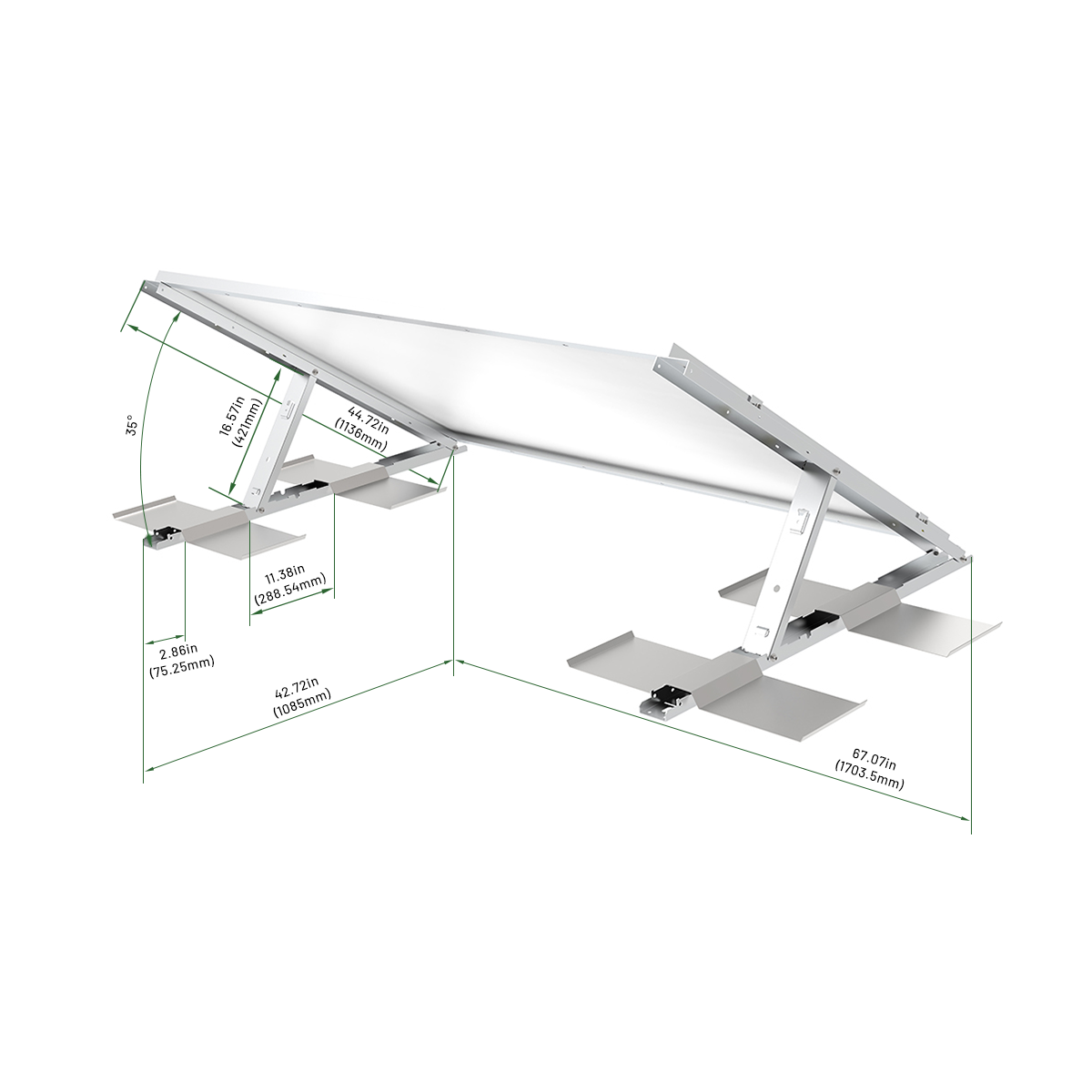

Dimensions:

Applications:

• Residential | Commercial | Industrial flat roof

Warranty:

• 5-year Limited Warranty

Additional Details:

• Model: Tectum T1
• Base Size (mm | inch):   624.82 x 200 mm ( 24.6 x 7.9 in)
• Weight:  12.27kg (27.05 lbs) /set(racking+plate)
