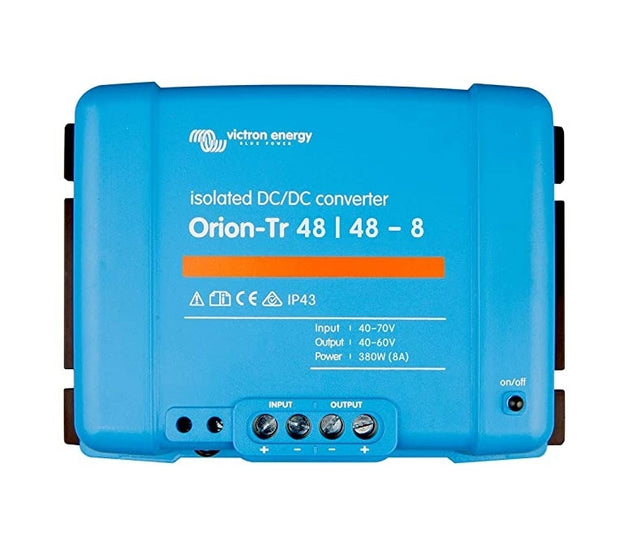

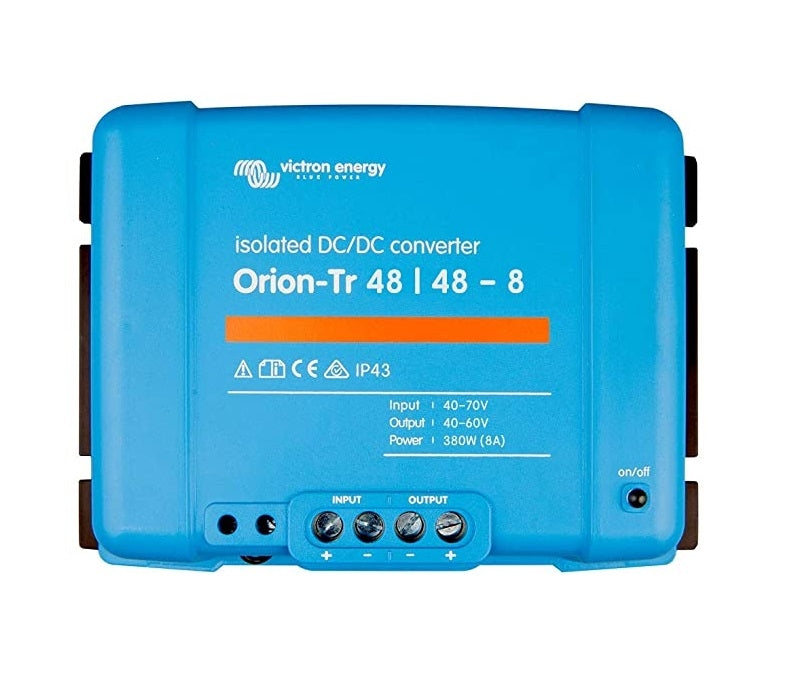

Victron Energy Orion-Tr 48/48-8A (380W) Isolated DC-DC converter

• Optional remote On/Off


• Adjustable output voltage value


• Short-circuit protection


• Converter overheat protection


• Parallel connection possible

The Orion-Tr isolated converter is equipped with the “Remote on-off” function to start and stop the system remotely. This also dispenses with the need to connect a switch that has to carry the nominal current, a low-power switch is sufficient.

The output voltage of the Orion-Tr converter is adjustable (between -15% and 25% of the nominal output value), so it can be used to recharge a battery, for example.

All converter models have output protection against short circuit and overvoltage. It’s possible to connect as many converters in parallel as desired, in order to increase the output current if necessary.

If the system temperature rises, the converter will automatically reduce his output current (temperature >40°C).
