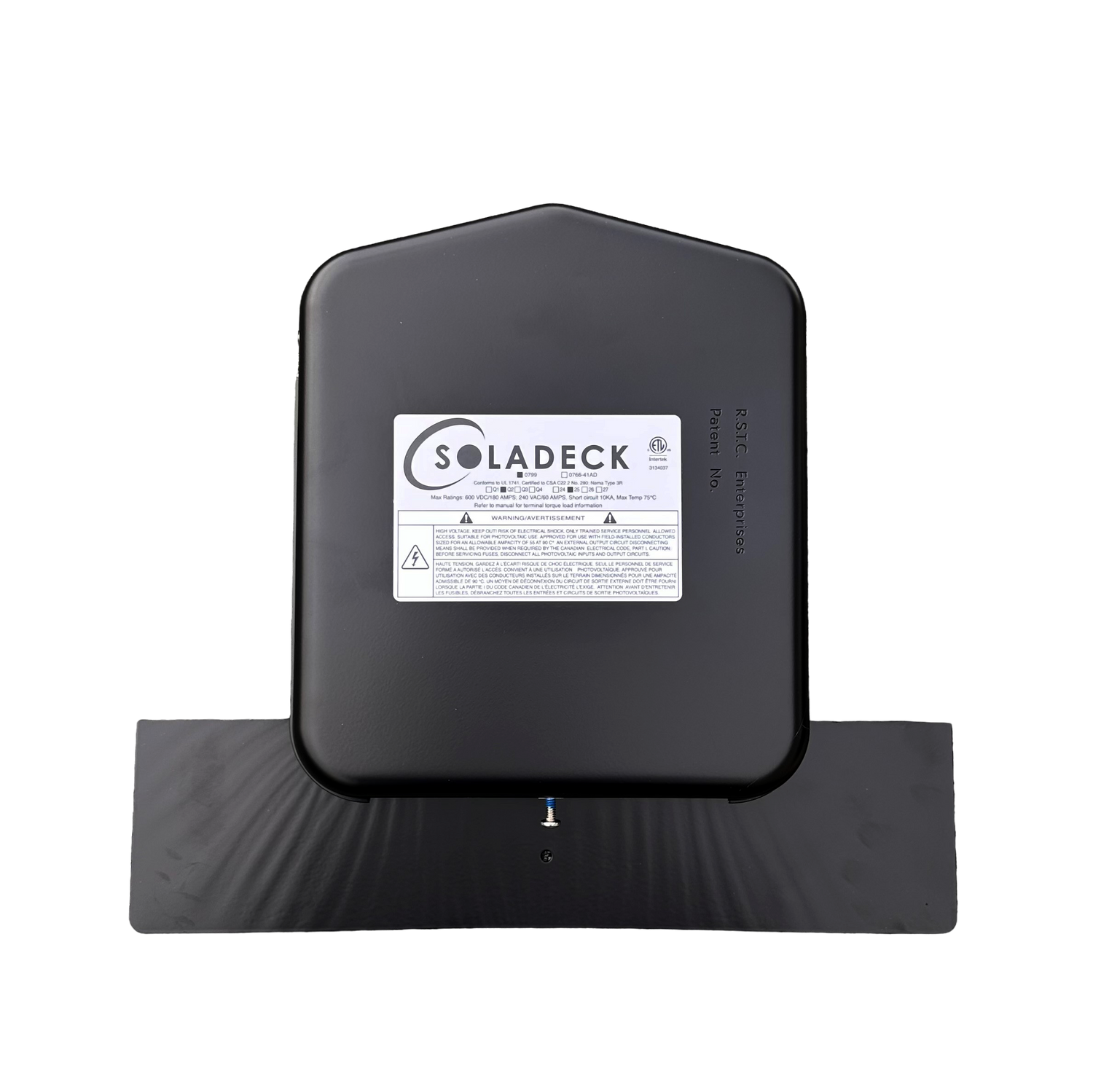

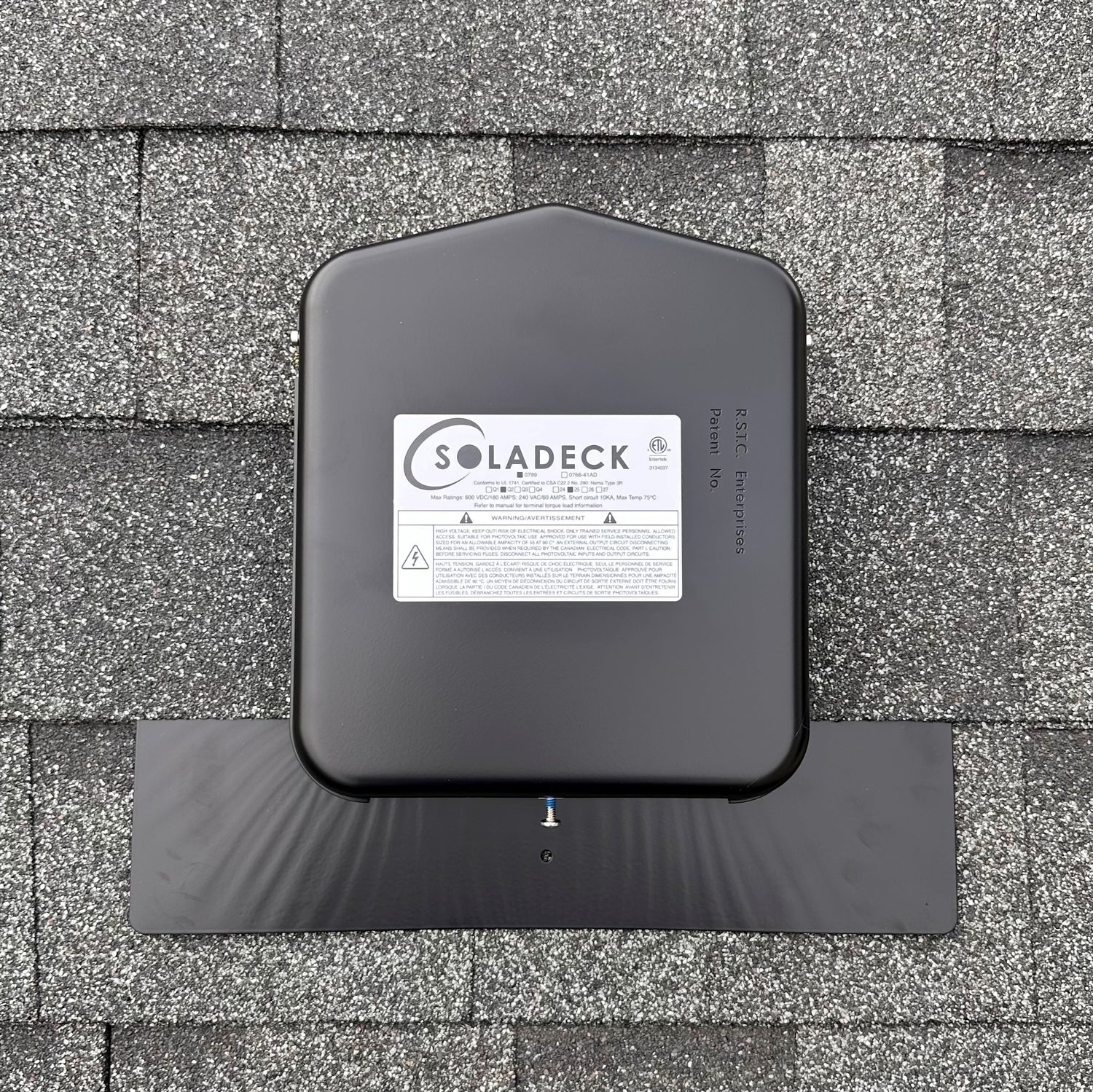

SolaDeck 0799-5B | Black Roof-Mounted Solar PV Junction Box

The SolaDeck 0799-5B is a flashed, roof-mounted solar PV junction box and combiner enclosure designed for composition and cedar roof solar installations. Built for rooftop photovoltaic wiring, this enclosure helps connect outdoor solar system wiring to interior wiring while providing a weather-resistant, professional-looking roof penetration.

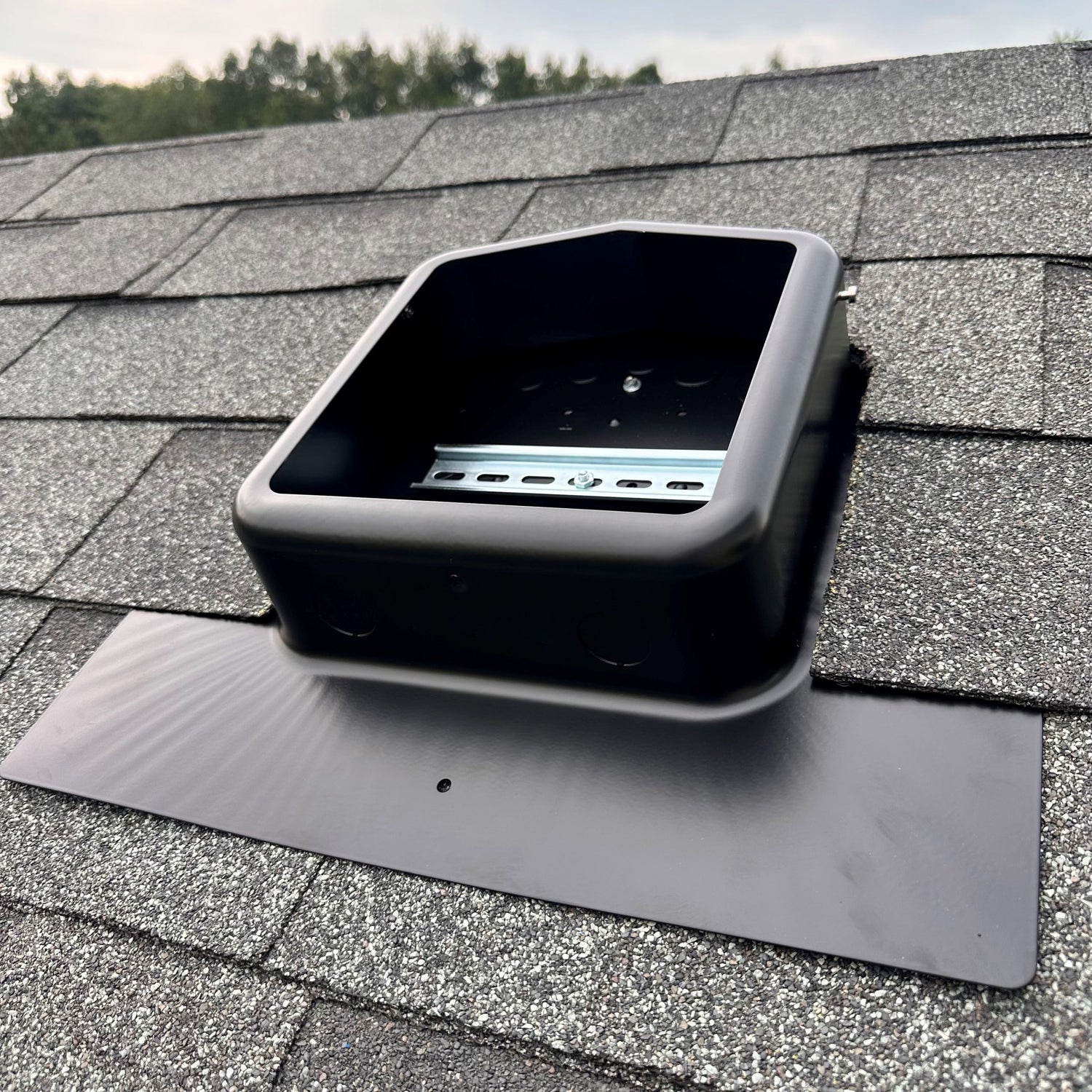

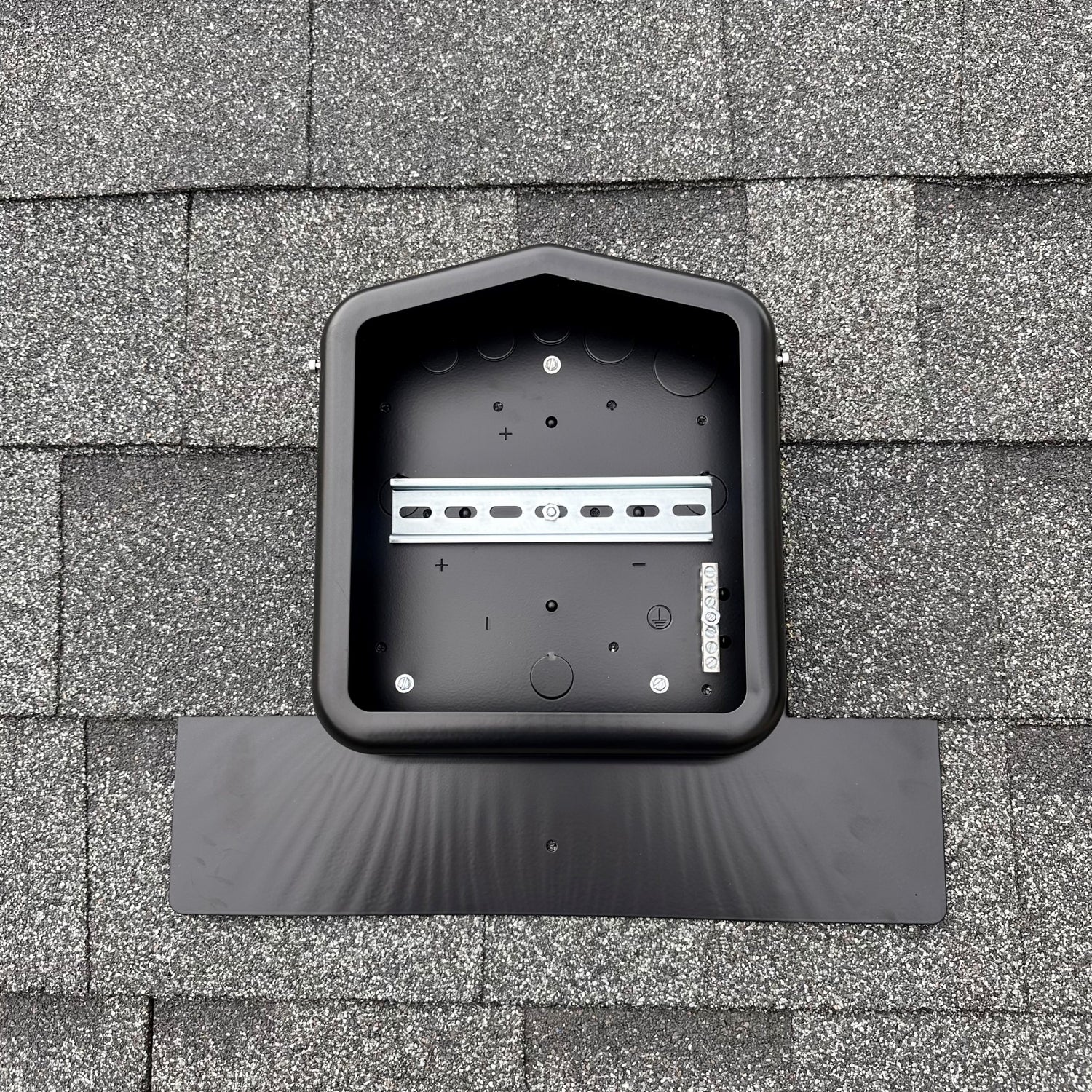

The 0799-5B includes a factory-installed DIN rail and ground block, sidewall knockouts to reduce drilling, and a stamped galvanized steel base and cover. It is suitable for both AC and DC solar wiring applications and is commonly used as a rooftop PV junction box, combiner enclosure, or pass-through box. The SolaDeck 0799-5B is rated for 600 VDC / 120 A and 240 VAC / 120 A, providing reliable performance for rooftop solar applications.

Applications:

• Off-Grid | Residential | Commercial | Industrial | Agricultural Operations | Solar Power Plants

Certificates:

• ETL | UL 1741 | CSA C22.2 No. 290 | NEMA Type 3R | cETL | UL50 Type 3R

Warranty:

• The SolaDeck 0799-5B is backed by a lifetime warranty against defects in materials and craftsmanship.

Additional Details:

• Roof compatibility: 2/12 to 12/12 roof slopes.
• Material: Stamped galvanized steel base and cover.
• Height: 3" / 76.2 mm
• Weight: 9.2 lb / 4.17 kg
