Elios Litio10.2 | Batterie au lithium 10,24 kWh/51,2 V à fixation murale certifiée UL | Sans Wi-Fi

Elios  |  SKU : LIT10.2-CAN-NWF-UL
$5,38000 $6,45600
Frais de livraison calculés lors du paiement.
Apple Pay Diners Club Discover Google Pay Mastercard Shop Pay Visa

Service de retrait disponible à 4490 Avenue des Industries

Habituellement prête en 2 à 4 jours

Description

Description:

L'Elios Litio10.2 est une solution hybride de pointe pour le stockage d'énergie solaire qui s'intègre parfaitement à divers onduleurs et systèmes énergétiques. Son design élégant et compact est idéal pour une utilisation en intérieur comme en extérieur, avec un indice de protection IP65. Capable de prendre en charge des configurations multi-parallèles pouvant aller jusqu'à 16 unités, il offre une évolutivité adaptée à divers besoins énergétiques.

Ce produit est idéal pour le stockage d'énergie résidentiel, les solutions hors réseau, les applications de micro-réseaux et comme alimentation de secours. Avec une durée de vie de 10 ans, l'Elios Litio10.2 garantit une alimentation fiable et durable.

Caractéristiques principales:

  • Conçu pour offrir une grande flexibilité, avec une prise en charge pouvant atteindre 16 unités parallèles et une capacité de 160 kWh.
  • Auto-chauffage à basse température. Installation facile avec configuration automatique du niveau du pack.
  • Conçu pour offrir une grande durabilité, avec une durée de vie de 10 ans.
  • Équipé d'un système avancé de gestion de batterie (BMS intégré).

Applications:

  • Système de stockage d'énergie résidentiel | Commercial | Hors réseau | Micro-réseau | Alimentation UPS | Réduction des pics de charge

Certificat :

  • UL9540A | UL1973 | UN38.3 | RoHS | IEC62619 | CE-IEC 61000 | IEC 62040 | MSDS

Garrantie:

  • Garantie limitée de 10 ans sur le produit.
  • Garantie limitée de 10 ans sur les performances.

Détails supplémentaires ::

  • Modèle: LIT10.2-CAN-NWF-UL
  • Dimensions (inch | mm): 21.7 x 39.4 x 6.5 in (550 x 1000 x 165 mm)
  • Poids:  ~ 97Kg (213.8lbs.)

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

FeaturesCertificateDimensions & SafetyApplicationsSpecificationsWarrantyProduct AttachmentsFAQsReviews

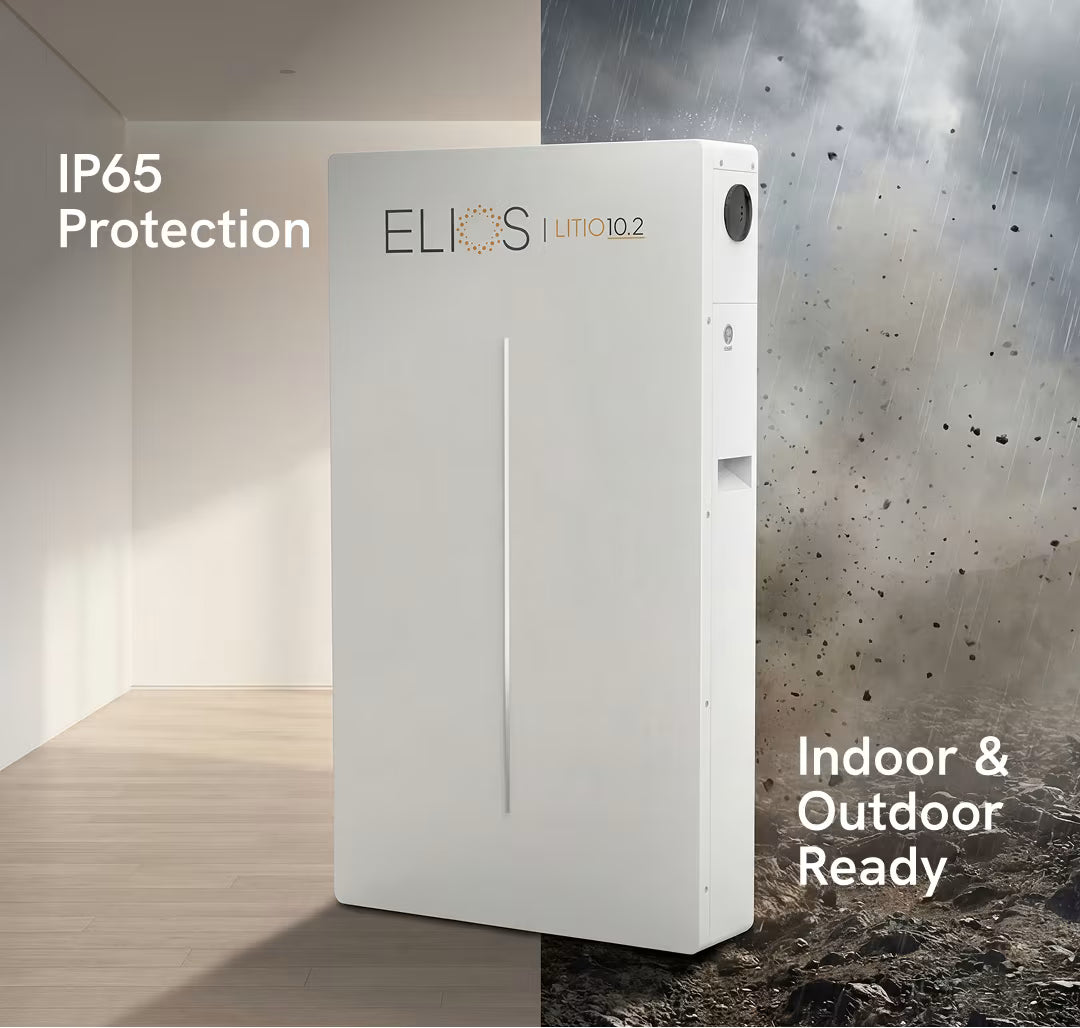

Safe for Indoor and Outdoor Use

The Litio 10.2 features IP65 protection, making it resistant to dust, moisture, and water spray. Its sturdy design allows for both indoor and outdoor installation, ensuring reliable performance in various environmental conditions.
Safe for Indoor and Outdoor Use
Safe for Indoor and Outdoor Use

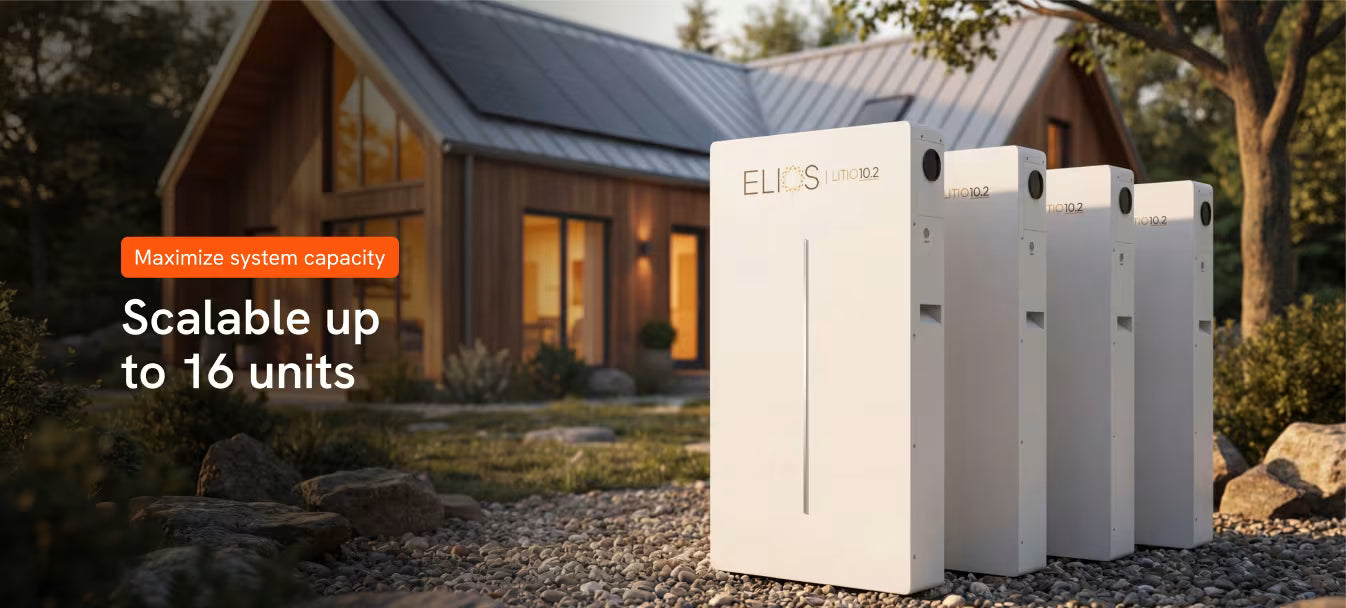

Multi-Parallel Configurations

Engineered for flexibility, the Litio 10.2 supports multi-parallel operation with up to 16 connected units, reaching a total capacity of 163.84 kWh. This scalability allows the system to adapt to growing energy demands over time. By combining units, users can achieve higher storage capacity without compromising stability or efficiency.
Multi-Parallel Configurations

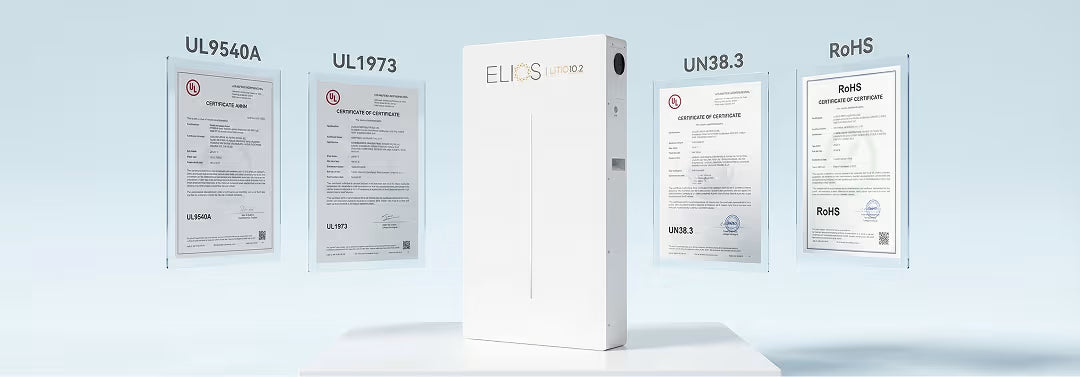

Certifications

UL9540A | UL1973 | UN38.3 | RoHS | IEC62619 | CE-IEC 61000 | IEC 62040 | MSDS.
Certifications

Key Features

The Power of Scalable Storage

Flexible Capacity

Supports up to 16 parallel units, delivering an impressive 160kWh storage capacity.

Low-Temperature Heating

Heating function ensures reliable performance even in colder environments.

Effortless Installation

Automatic pack-level configuration streamlines installation and reduces setup time.

Remote Monitoring

Over-the-air updates enable continuous optimization and simple remote management.

Long-Term Durability

Engineered for a 10-year lifespan, providing dependable and lasting performance.

Advanced Battery Mgmt.

Built-in BMS enhances safety, efficiency, and precise energy control.

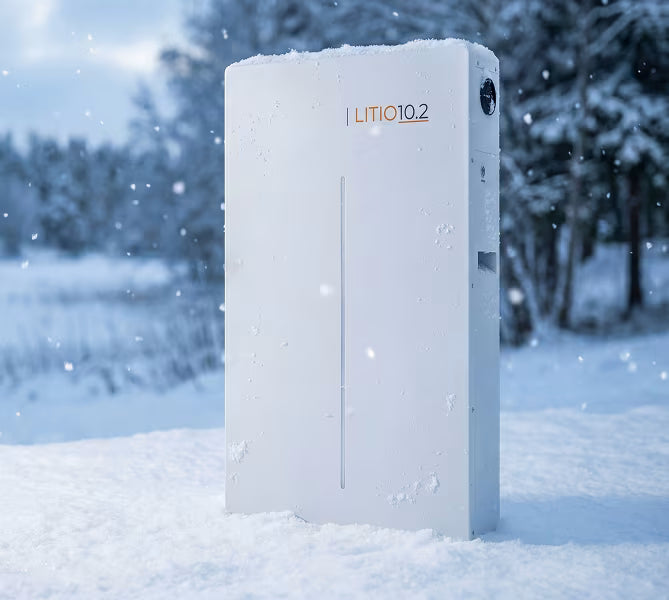

Reliable Performance in Cold

Reliable Performance in Cold

The Litio 10.2 has a built-in heating system that automatically activates in low temperatures, ensuring consistent performance and safe operation even in cold conditions.

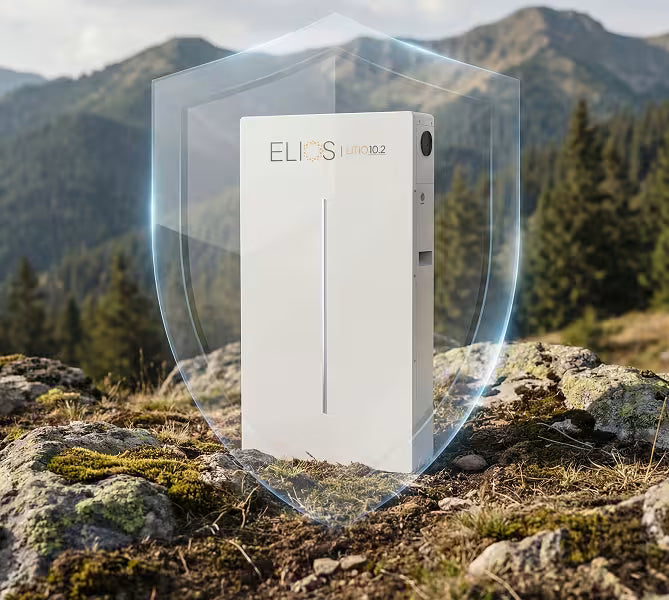

Smart Protection

Smart Protection

We design and install electrical systems with Victron energy equipment on your RV, Truck, or boat

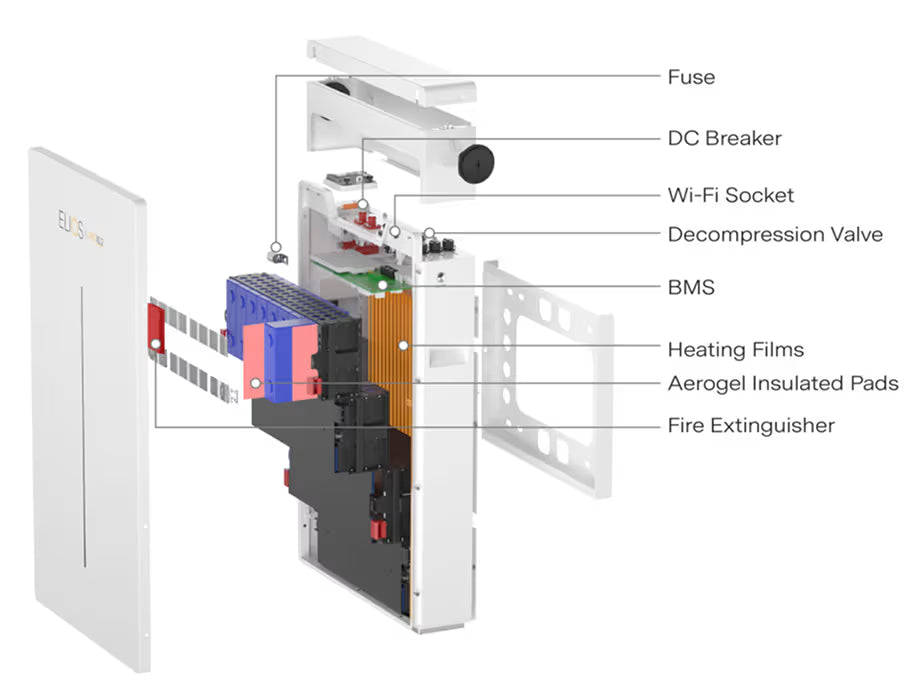

Advanced Safety & Thermal Protection

Engineered for maximum safety, our lithium batteries feature multi-level protection systems designed to ensure long-term reliability and peace of mind. To further enhance safety, every Litio 10.2 model includes a fire suppression unit that automatically activates in the unlikely event of a thermal runaway, providing an extra layer of protection.

Advanced Safety & Thermal Protection

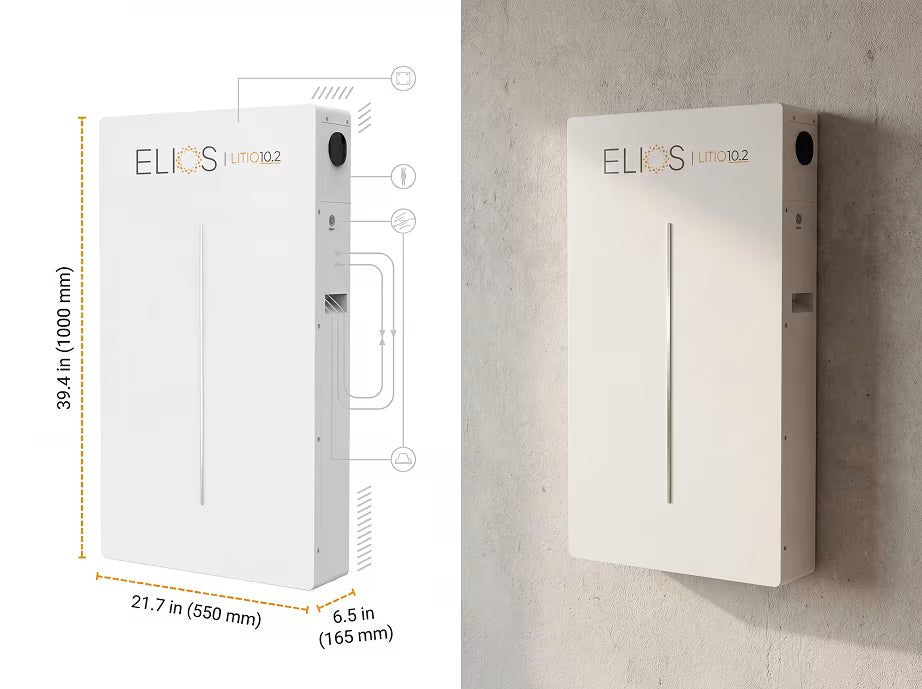

Dimensions

The Elios Litio10.2 battery measures 39.4 × 21.7 × 6.5 in (1000 × 550 × 165 mm). Be sure to plan adequate space for wall mounting, cable routing, and ventilation to ensure safe and efficient operation.

Dimensions

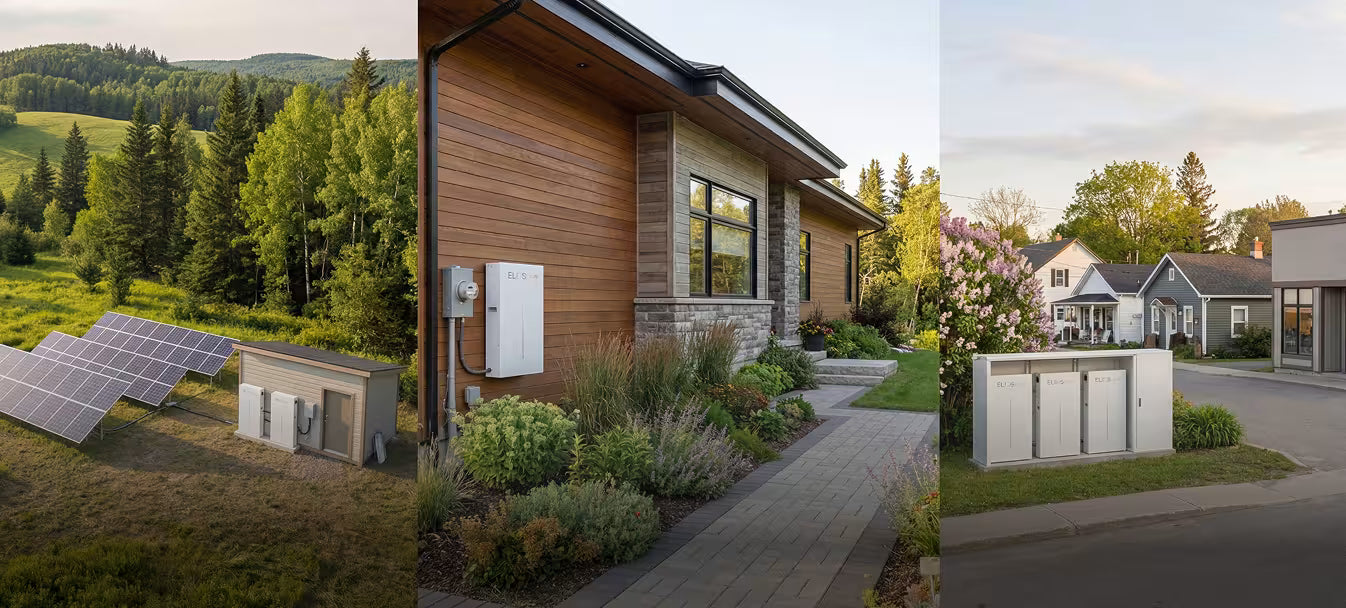

Applications

Applications

The Power of Scalable Storage

Off-Grid
Home Power Storage
Small Commercial Places
Micro-Grid
Peak Charge Reduction
UPS

Specifications

Capacity["160 kWh"]
Communication650 g (7.41 oz)

Additional Details

ModelLIT10.2-CAN-NWF-UL
Dimensions (inch | mm)21.7 x 39.4 x 6.5 in (550 x 1000 x 165 mm)
Weight~ 97 kg (213.8 lb)

Aerogel Blanket Technology

The Aerogel Blanket is a flexible, ultra-light thermal insulator with exceptionally low thermal conductivity (≤0.02 W/m·K) — significantly lower than glass or rock wool.
  • High-temperature resistance (up to 650 °C)
  • Low density (<200 kg/m³)
  • Hydrophobic, moisture-proof performance
Aerogel Blanket Technology

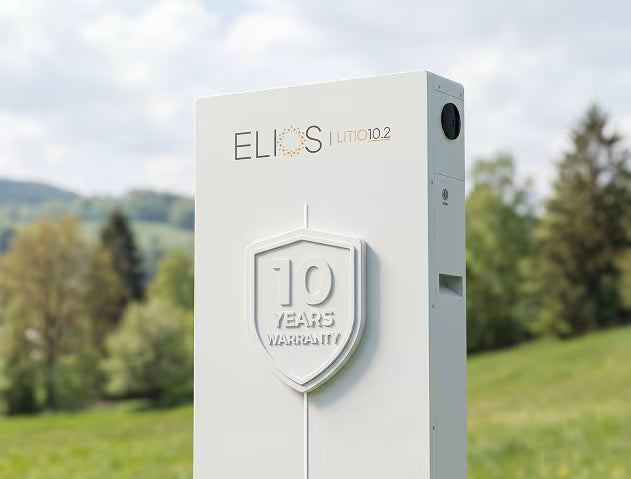

10-year limited product warranty

Resources & Downloads

Datasheet
Download
Enclosure Dimensions
Download
Installation Guide
Download
Warranty
Download

Frequently Asked Questions

What is a LiFePO4 battery and is it safe for home use?
LiFePO4 stands for lithium iron phosphate, and if safety is your main concern, this is the chemistry you want. It runs cooler than standard lithium-ion, holds up better under stress, and is far less likely to cause any thermal issues. The Litio10.2 also comes with a built-in BMS and a fire suppression unit built right into the unit, so there are multiple layers of protection working in the background at all times.
How many days of backup power can a 10 kWh battery actually give me?
Honestly, it depends on how much your home consumes. For most households running the basics, lights, fridge, router, and phone charging, you are looking at roughly 1 to 2 days per charge. Need more? You can stack up to 16 units together for a total of 163 kWh, which is enough to run a full home for several days or cover a small business.
Will it hold up through a Canadian winter?
That was one of the first things we thought about too. The Litio10.2 has a heating system built in that kicks on automatically when temperatures drop, so it keeps charging and discharging normally even when it is freezing outside. Most lithium batteries without this feature simply stop working properly below 0°C, which is a real problem if you are relying on it for backup power in the middle of January.
What certifications should I look for when buying a home battery in Canada?
The two that matter most here are UL1973 and UL9540A. Those are what Canadian utilities, insurers, and permit offices actually look at before approving an installation. The Litio10.2 has both, plus IEC62619, CE, RoHS, and UN38.3 on top of that. It is one of the more thoroughly certified options you will find at this price point in Canada.
Where can I install the Elios Litio10.2 in my home?
This is one of the most common questions we get, and it is worth getting right. Under the Canadian Electrical Code, lithium batteries over 1 kWh cannot be installed inside your living space, so bedrooms, hallways, storage closets and similar areas are off limits. The most common installation spot for Canadian homeowners is an attached garage, which is explicitly permitted under the 2024 CEC for units up to 20 kWh. A dedicated utility room or electrical equipment vault may also be options depending on your local authority. Bottom line: always confirm with a licensed electrician and your local permitting office before you install, as rules can vary slightly by province.
Do I need solar panels to use this?
Not at all, and honestly a lot of our customers use it without solar. A common setup is charging overnight from the grid when hydro rates are lower, then running on stored power during peak hours to cut your electricity bill. Others simply want reliable backup for when the power goes out. Solar pairs beautifully with this battery if you have it or plan to add it later, but it is absolutely not a requirement to get started.
How hard is it to install?
The unit itself is designed to be straightforward, it configures automatically at the pack level so there is not a lot of manual setup involved. That said, the electrical connection needs to be handled by a licensed electrician, that is non-negotiable for safety and warranty reasons. Not sure where to start? Our team at Volts Energies can walk you through the full setup, make sure you have everything you need including cables, breakers, and monitoring gear, and connect you with a certified electrician in your area. Get in touch with us.

Compare Features

Elios Litio10.2 | Batterie au lithium 10,24 kWh/51,2 V à fixation murale certifiée UL | Sans Wi-Fi
Voir les détails
Elios Litio16 | Batterie au lithium LiFePO4 de 16 kWh/51,2 V | UL9540A, UL1973, IP65, Wi-Fi, chauffée
Voir les détails
Elios Litio5.12 | Batterie au lithium 5,12 kWh/51,2 VCC | Montage en rack, homologuée UL
Voir les détails
Prix
Prix
$5,38000 $6,45600
$6,95000 $8,34000
$2,39900 $2,87900
Capacity
Capacity
160 kWh
-
5.12 kWh
Battery Type
Battery Type
-
-
-
Installation
Installation
Wall Mount
-
Rack / Stack / Wall
Communication
Communication
650 g (7.41 oz)
-
240 g (8.47 oz)
Dimensions
Dimensions
21.7 x 39.4 x 6.5 in (550 x 1000 x 165 mm)
-
-
Poids
Poids98.0 kg 125.0 kg 45.0 kg
Certifications
Certifications
UL9540A | UL1973 | UN38.3 | RoHS | IEC62619 | CE-IEC 61000 | IEC 62040 | MSDS.
-
-
Warranty
Warranty10-year limited product warranty-10-year limited product warranty
