Elios Litio5.12 | 5.12 KWh/51.2VDC Lithium Battery | Rack Mount UL Approved

Description:

The Elios Litio5.12 is a robust and scalable lithium battery designed for high-efficiency energy storage in residential, commercial, and off-grid applications. Built with premium LiFePO₄ cells, it delivers a powerful 5.12 kWh capacity at 51.2V and supports flexible system expansion of up to 32 parallel units (81.92 kWh total).

Its ultra-slim 132mm depth allows for seamless installation in tight spaces, while integrated fire-resistant CR foam and a smart BMS provide superior safety and real-time system protection. With a 6000-cycle lifespan and multi-mounting options, the Litio5.12 is engineered for long-term performance and adaptability.

Key Features:

• High-Capacity Performance: 100Ah capacity at 51.2V (5.12kWh) supports high-demand systems with reliable output.

• Advanced Cell Architecture: Built with 16x 100Ah LiFePO₄ cells for enhanced efficiency, safety, and longevity.

• Integrated Fire Suppression: CR foam layer adds advanced fire safety protection.

• Smart BMS Protection: Intelligent Battery Management System monitors and safeguards against overvoltage, undervoltage, overcurrent, overheating, and more.

• Space-Efficient Design: Ultra-slim 132mm profile enables installation in compact locations.

• Flexible Connectivity: Compatible with CAN, RS485, dry contact, and optional Wi-Fi for smart system integration.

• Multiple Mounting Options: Stack-mounted, wall-mounted, or cabinet-installed for versatile deployment.

• Low-Temperature Operation: Built-in self-heating ensures consistent performance in cold climates.

• Eco-Friendly Construction: Made with non-toxic, recyclable materials for sustainable energy storage.

Applications:

• Residential Energy Storage | Commercial Backup | Off-Grid Systems | Micro-Grids | UPS Power Supply | Peak Shaving & Load Management

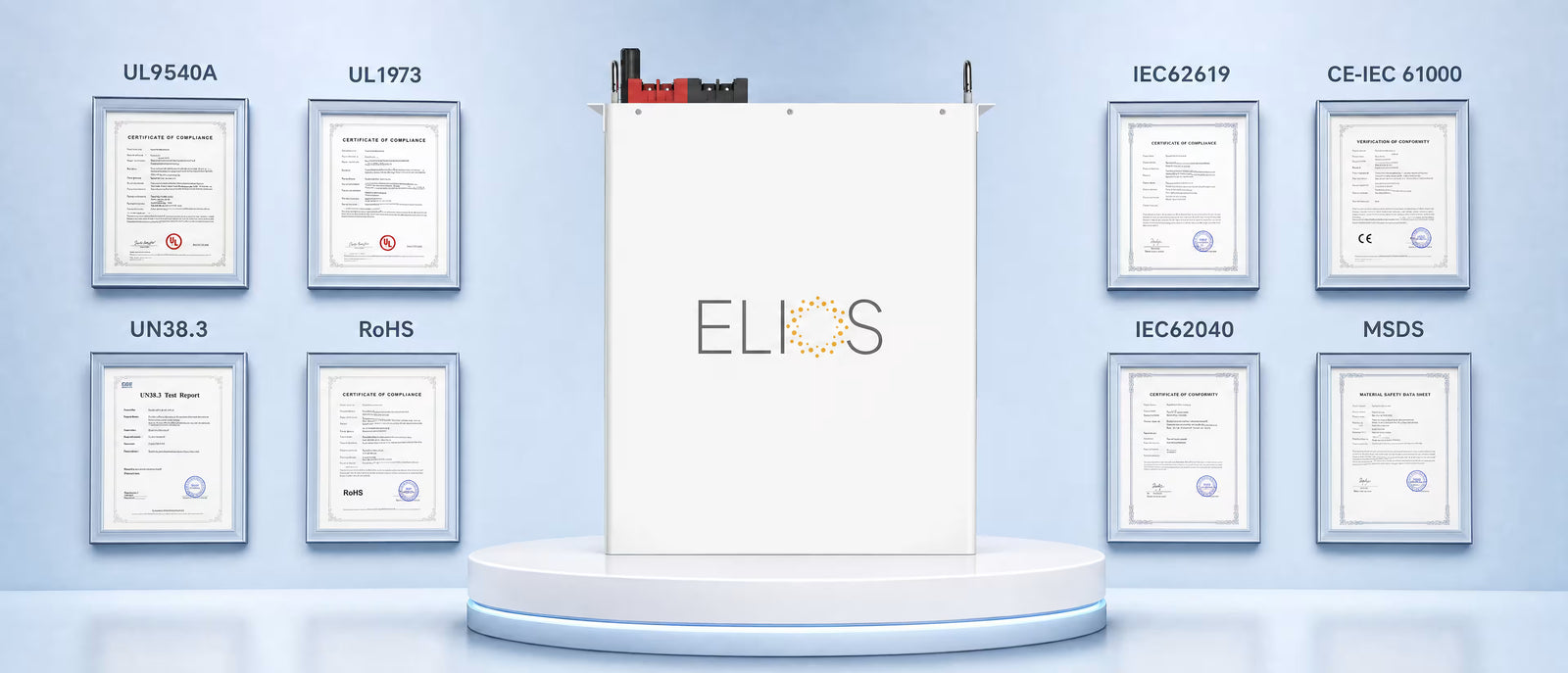

Certificate:

• UL9540A | UL1973 | UN38.3 | RoHS | IEC62619 | CE-IEC 61000 | IEC62040 | MSDS

Warranty:

• 10-year limited warranty.

Additional Details:

• Model: Litio5.12
• Dimensions (inch | mm): 17.32 x 20.87 x 5.2in (440 x 530 x 132mm)
• Weight:  ~ 44.5Kg (98.10lbs.)
