BENY 1000V DC Combiner Box | 1 IN 1 Out | 2 Poles

BENY 1000V DC Combiner Box | 1 IN 1 Out | 2 Poles

Product SKU: BHS-1/1
  • $283.92
    Prix unitaire par
Frais de port calculés à l'étape de paiement.

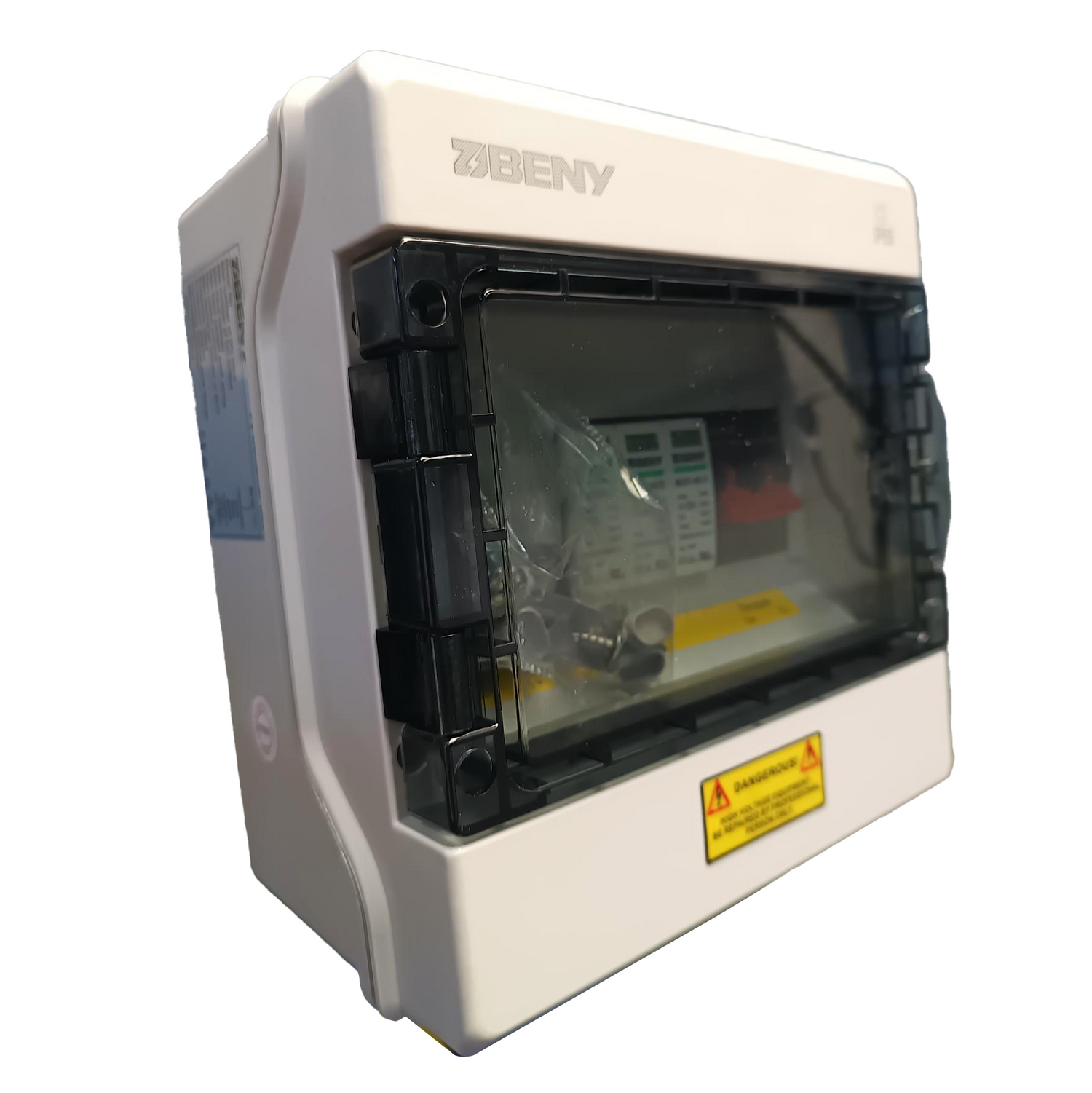

IP65 Exterior 1000V DC combiner box 1 Input - 1 Output with 2 poles breakers

Description:

This IP65 DC String box is designed for a 1-string PV system. It has a UL489B, IEC60947-2  approved 600VDC, 2 pole breaker non-polarity for easy wiring. It also comes with a 1000VDC SPD with UL1449 and IEC 61643 approval, designed for solar PV protection, 20KA (IEC, UL), with a response time of less than 25ns.

Information additionnelle:

  • Degree of Protection: IP65
  • Enclosure Dimensions: L290xW220xH120mm - L11.42"xW8.66"xH4.72"
  • Impacts: IK10
  • Input Cable Glands: PG09 Cable Gland, 4-8 mm2
  • Material: Polycarbonate/ABS
  • Operating temperature: -25℃ – +60℃
  • Output Cable Gland: PG09 Cable Gland, 4-8 mm2

Pièces Jointes au Produit:
